Valco - Adjustable Level Switch, Vertical Mount - KIT.S1 Series

Modular level switch with 1 electrical contact. The user is able to obtain a level switch of the desired length interposing an extension pipe between the control unit and the process fitting. The electrical contact inside the control unit is sealed and immersion proof. The assembly kit can be selected from a wide series of options that allows the user to adapt it to the most common types of installation.

500 mm. to 1500 mm. tube length

Brass stem and connection, Spansil float

Max working pressure up to 20 bar

Max temperature 105°C

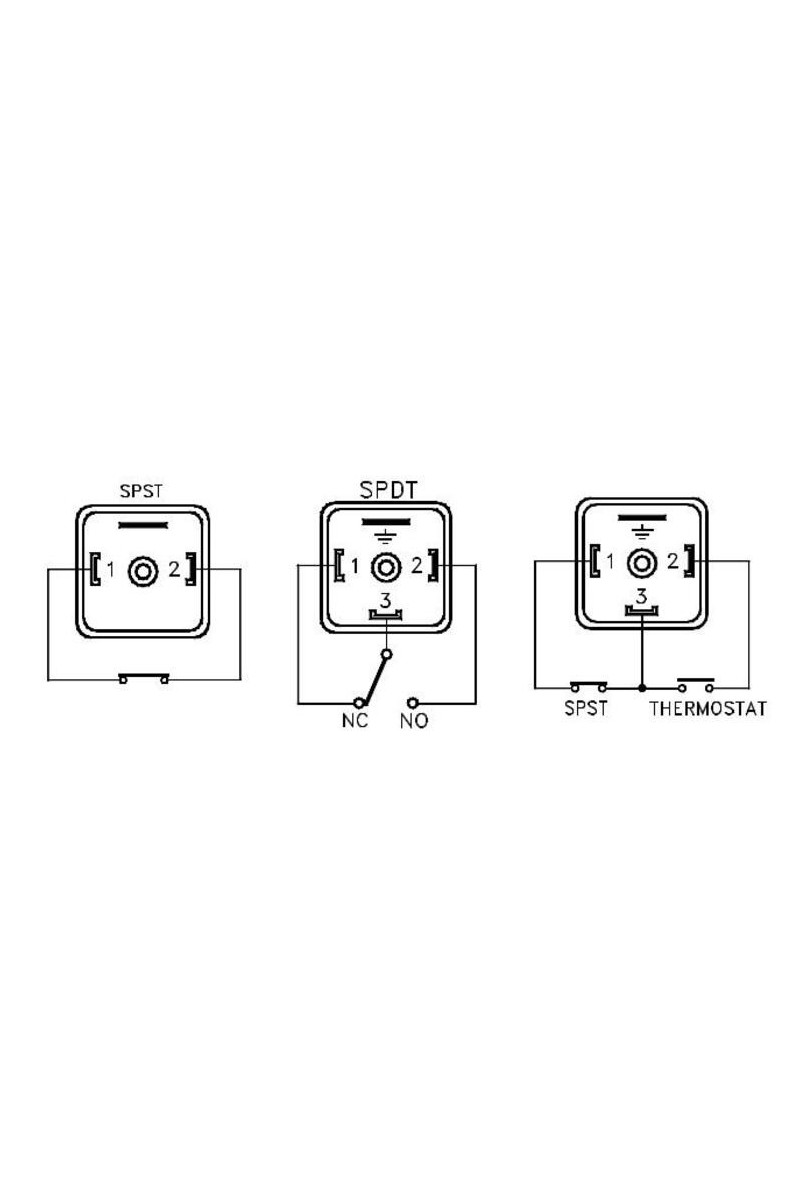

Reed switch SPST or SPDT

£0.00
Tax included
Quantity :
Ask a Question

Current 1.3A
Function N/O & N/C
IP class IP65
Manufacturer part no. KIT.S1.B45.4.B.25GO.S1.L1.I2
Material of connection Brass
Material of float SPANSIL
Material of seals NBR
Pressure max 20 bar
Process connection G1
Specific gravity 0.35
Temperature operational max 105 °C
Voltage 250V
