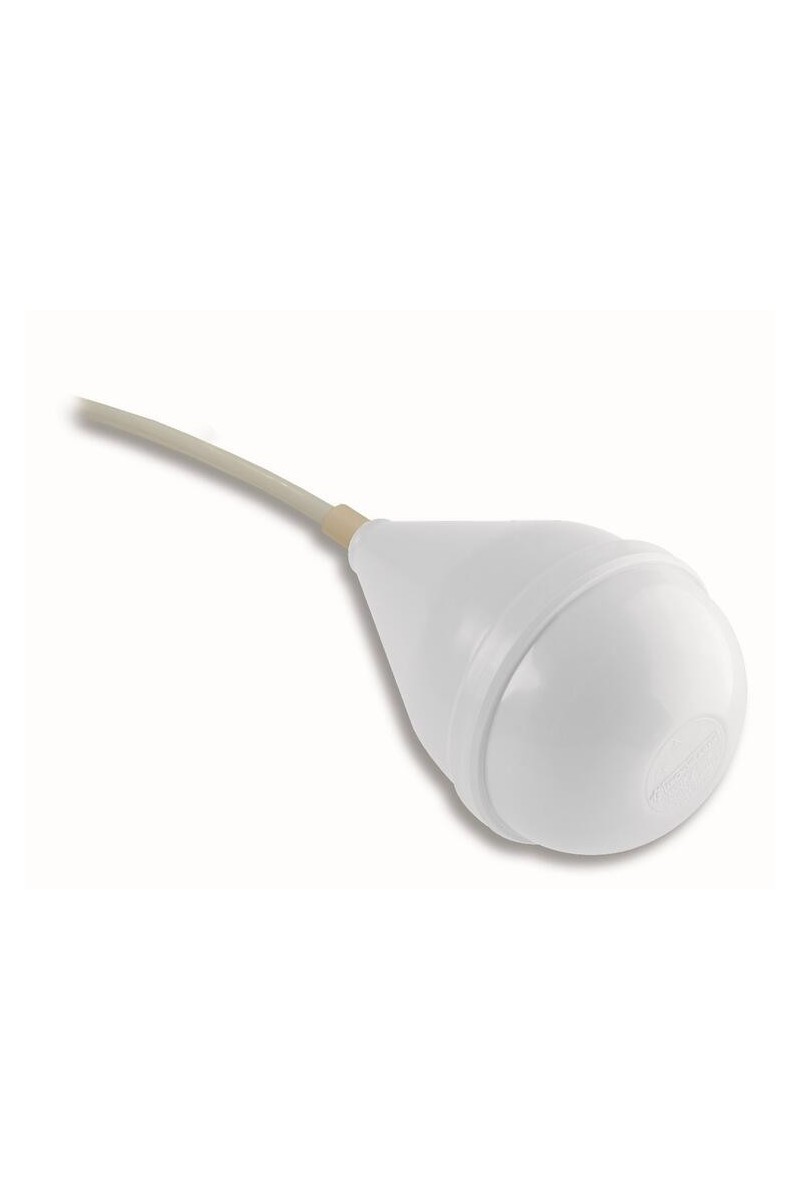

Tecnoplastic Float Switch Taurus-FEP

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alar.

Internal counterweight

20 metres maximum depth

Up to 80°C

Three chamber design

Suitable for use in chemical environments

£0.00
Tax included
Quantity :
Ask a Question

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

 The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

Used alone or in multiples, minimum and maximum levels/high and low alarm outputs can be maintained and adjusted easily.

Suitable for:

  • Immersion in hydrocarbons
  • Medical and scientific facilities
  • Water purification plants
  • Air conditioning plants
    Activation angle 20 °
    Approvals CE
    Cable length 10 m
    Cable type FEP - FFR105OPR5F 4G0,75
    Depth max 20 m

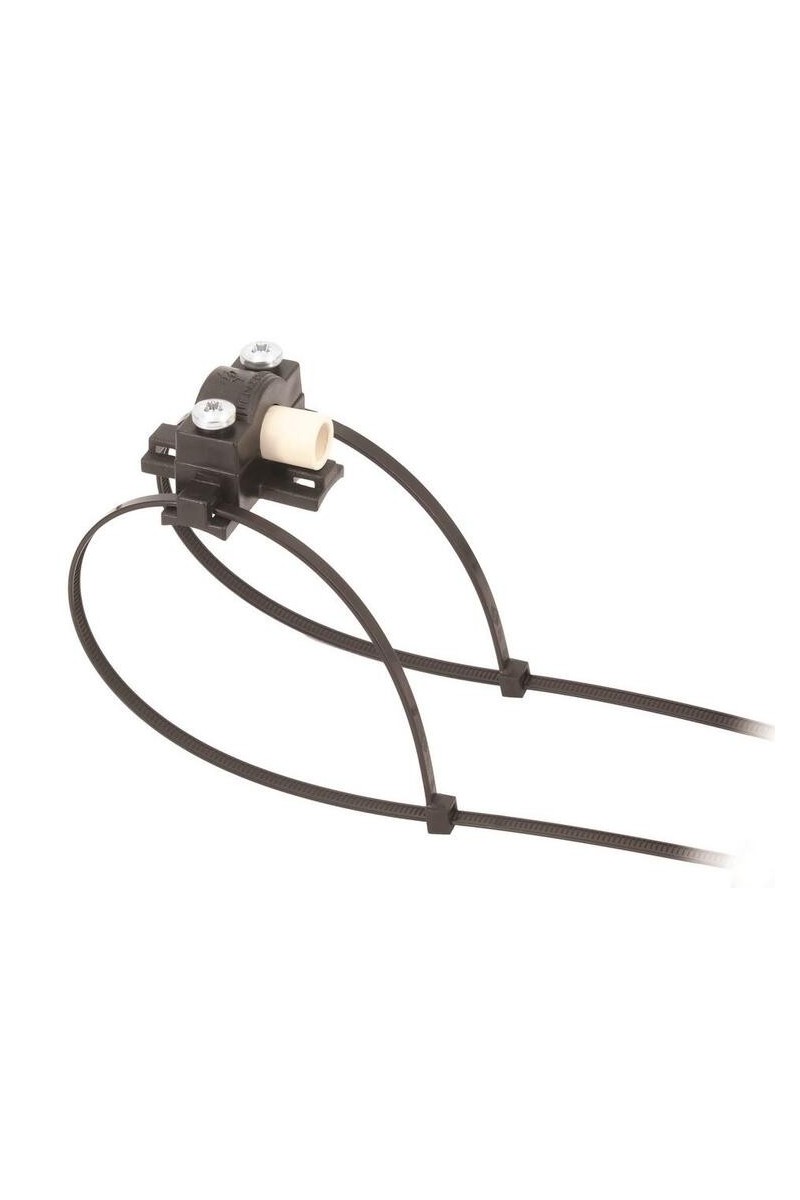

    Fixing kit included Yes
    Insulation class I
    IP class IP68
    Material of float Polypropylene
    Operating temperature to 80 °C
    Rated current 8 A
    Specific gravity 0.95 - 1.05 kg/dm³
    Supply voltage 250 V
