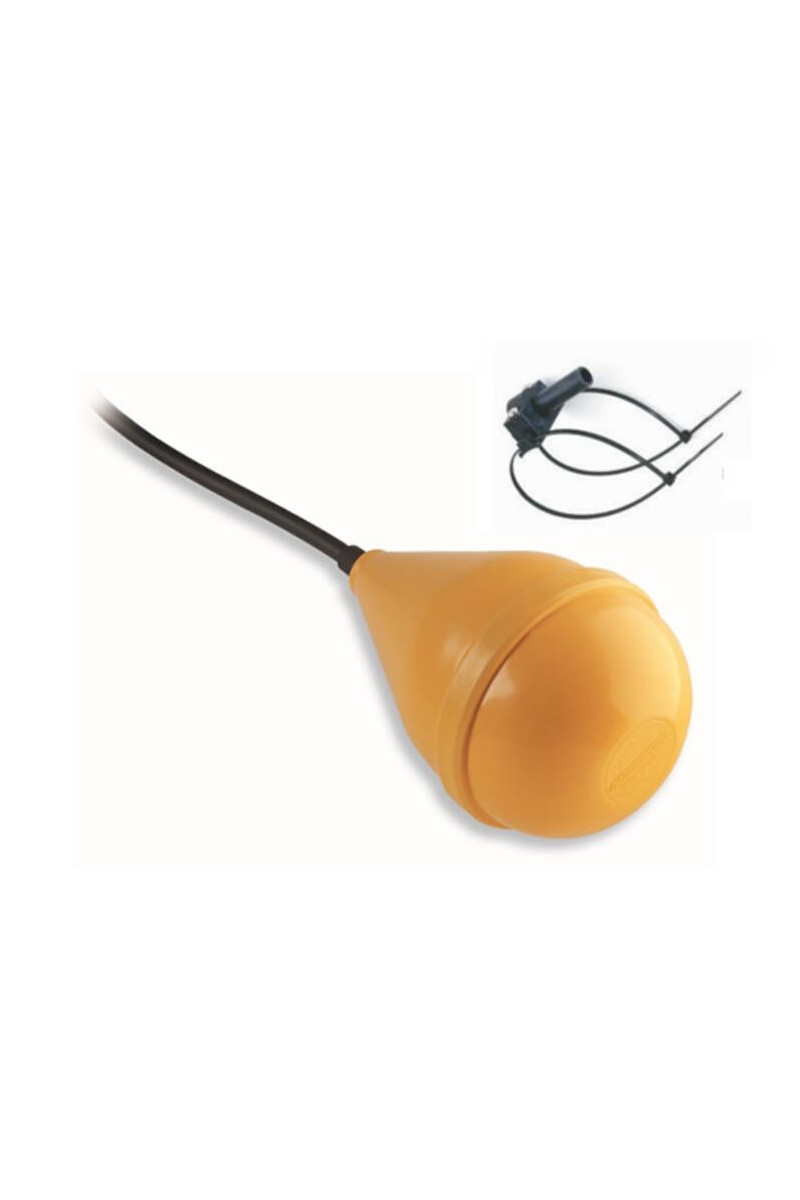

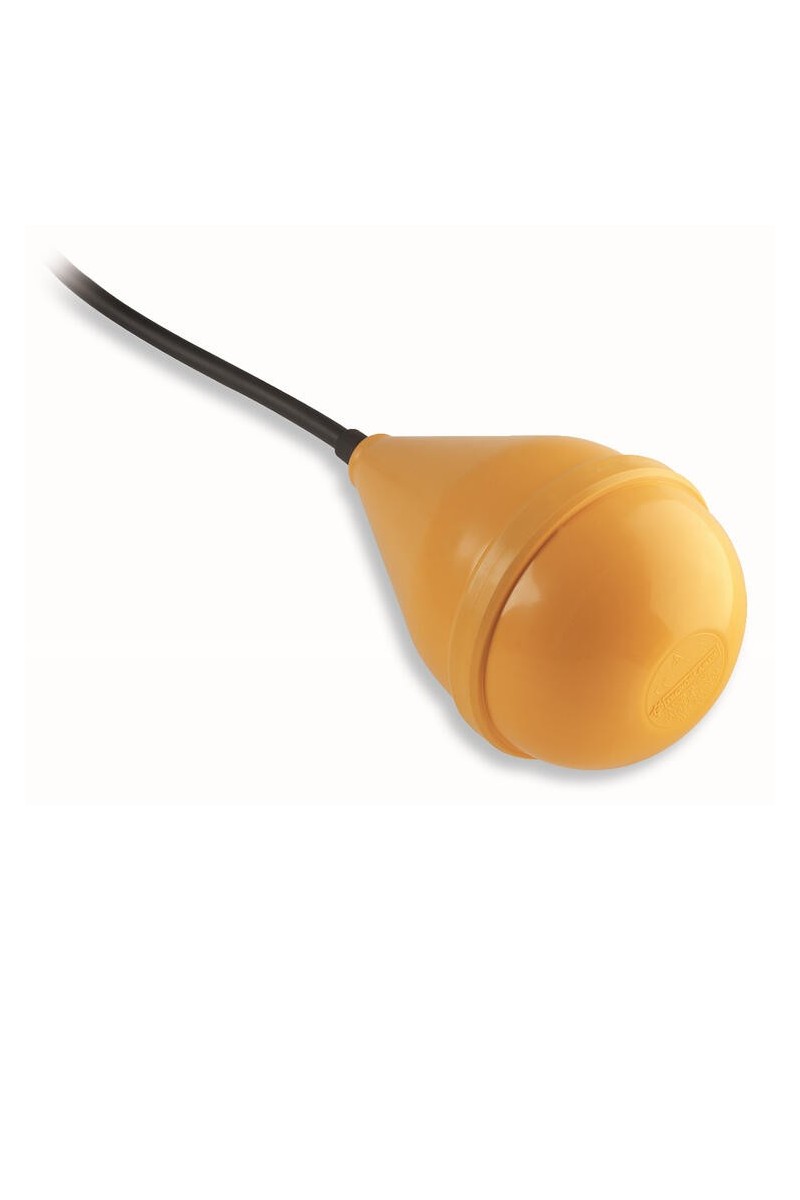

Tecnoplastic - Float switch - Taurus

Unlike traditional floats that float on the water’s surface, the Taurus level switch, thanks to its special construction of an integrated counterweight, remains under water.

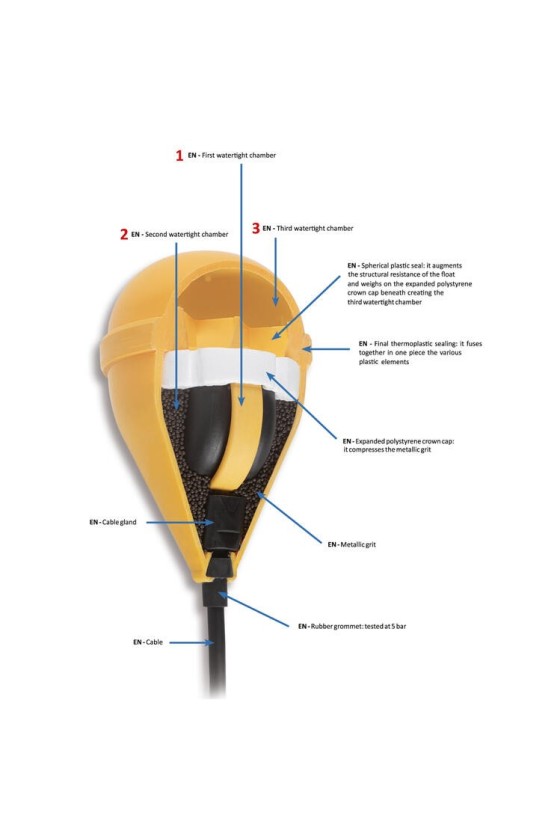

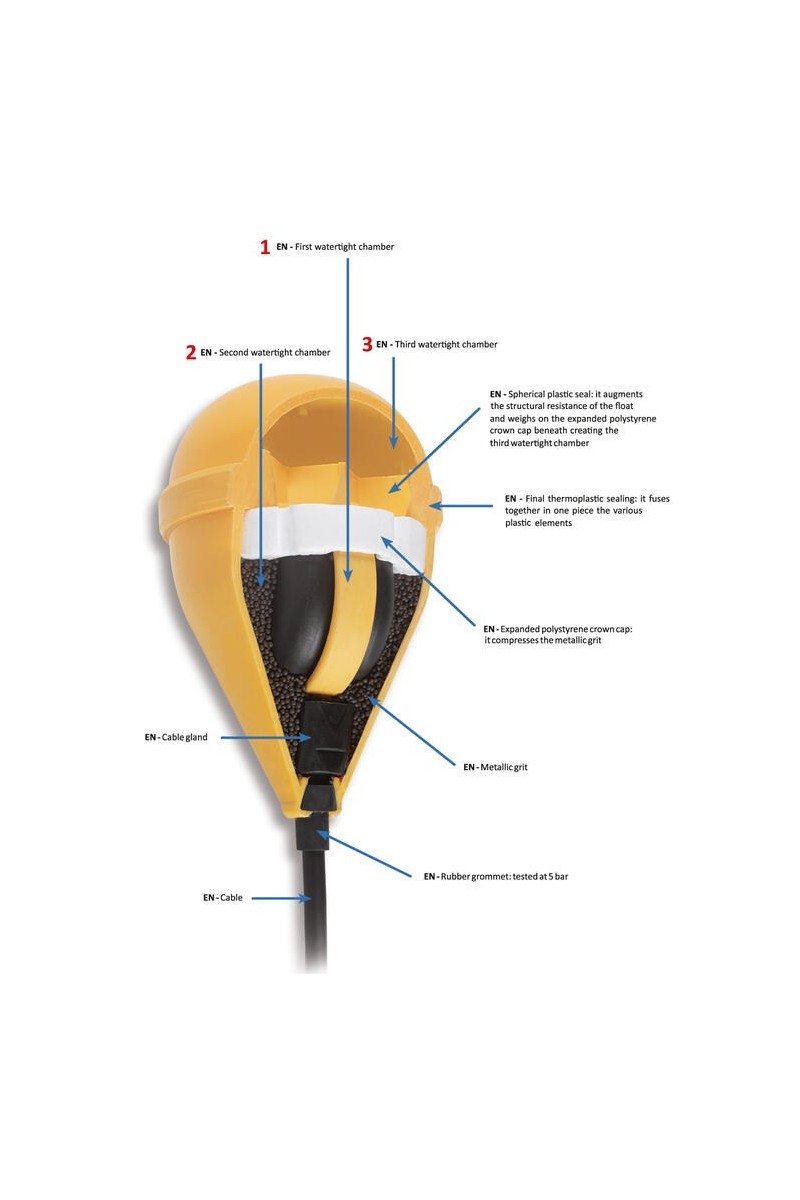

The Taurus has three watertight chambers meaning it is very robust and reliable in critical applications.

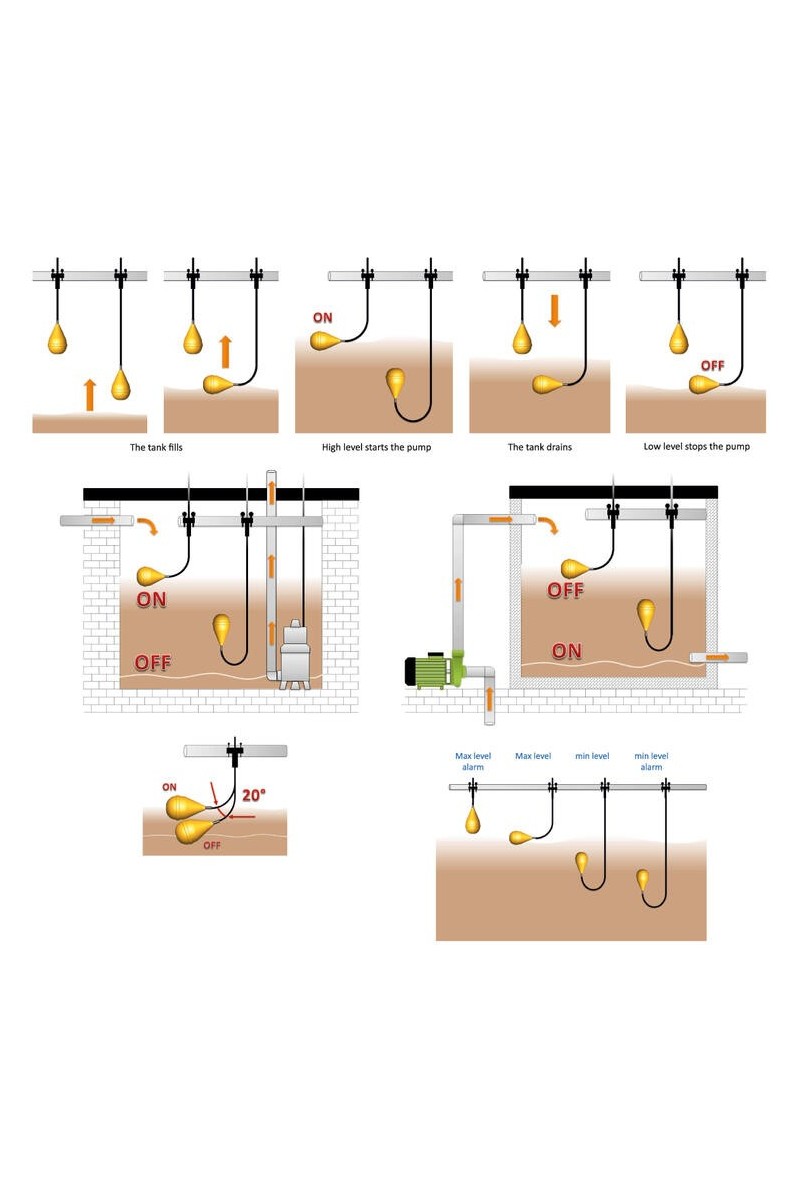

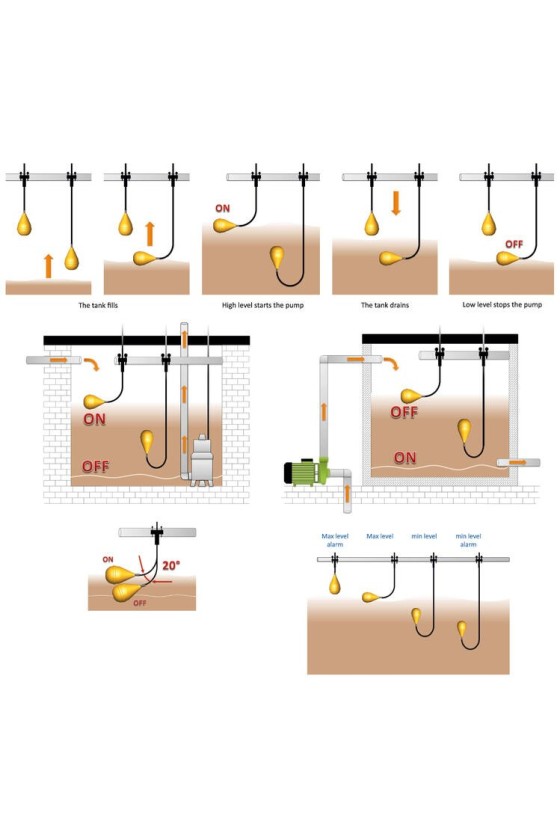

Used alone or in multiples, minimum and maximum levels/high and low alarm outputs can be maintained and adjusted easily.

• Drainage plants
• Pumping stations
• Dirty water systems.




  Activation angle	20 °
  Approvals	CE, EAC, TÜV
  Cable length	6 m
  Cable type	H07RN-F
  Depth max	20 m

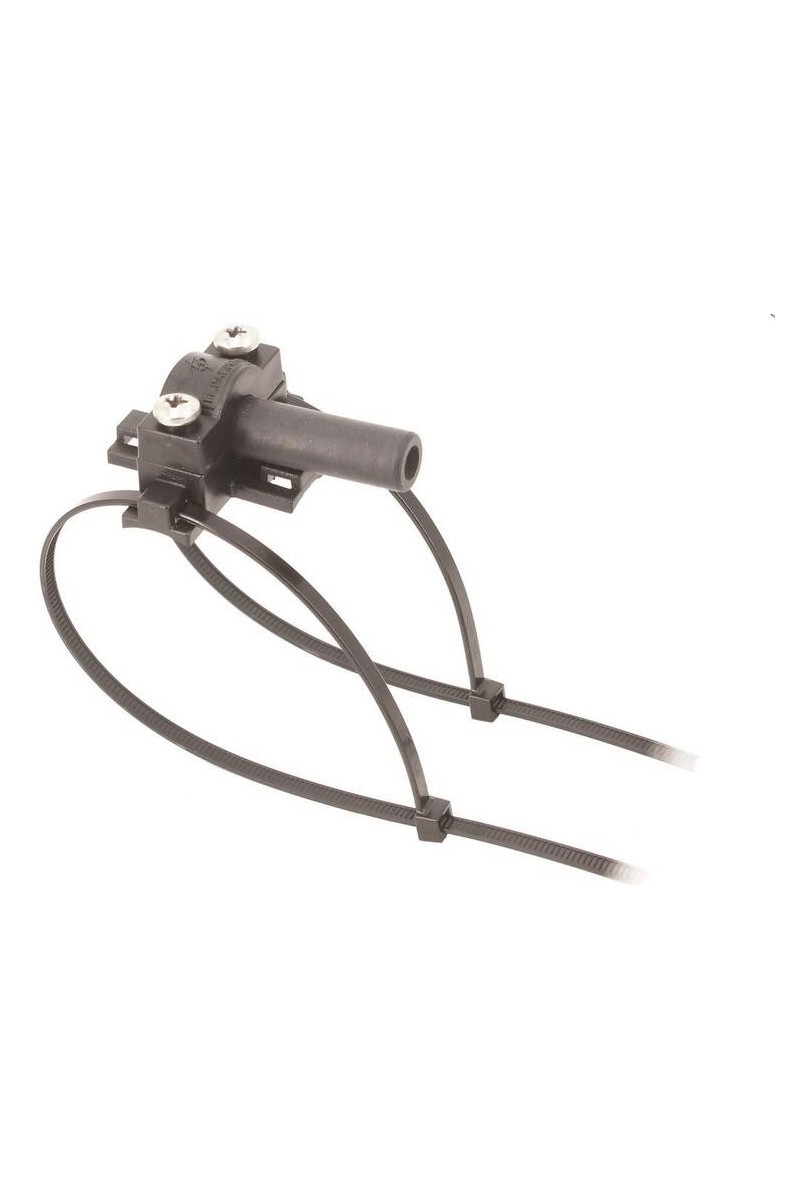

  Fixing kit included	No
  Function	Changeover (SPDT)
  Insulation class	I

  IP class	IP68
  Material of float	Polypropylene
  Operating temperature to	50 °C
  Rated current	8 A
  Specific gravity	0.95 - 1.05 kg/dm³
  Supply voltage	250 V
