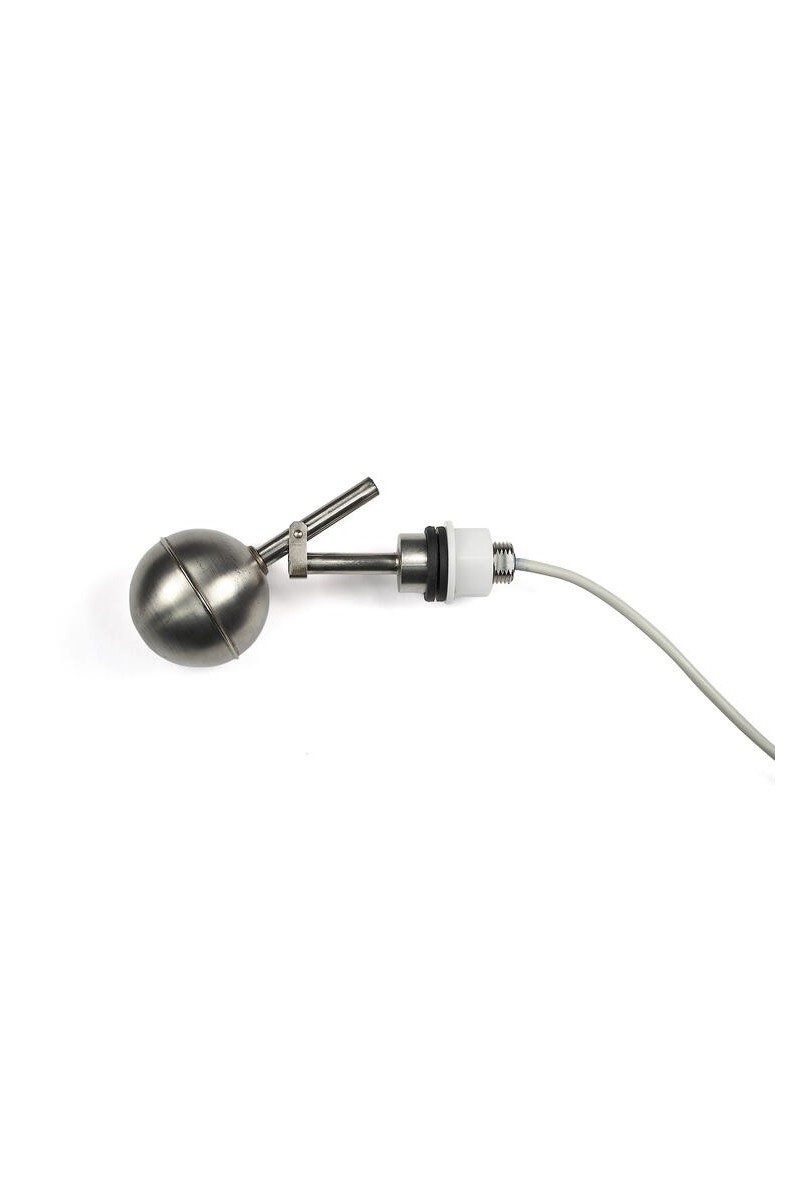

Valco - Stainless Steel Side Mount Level Switch - SML Series
This level switch, with its reduced overall dimensions and simplicity of installation, offers a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. The standard version is for installation from inside the tank, on request, execution with possibility of mounting from outside the tank are available.
Standard item side mounting position

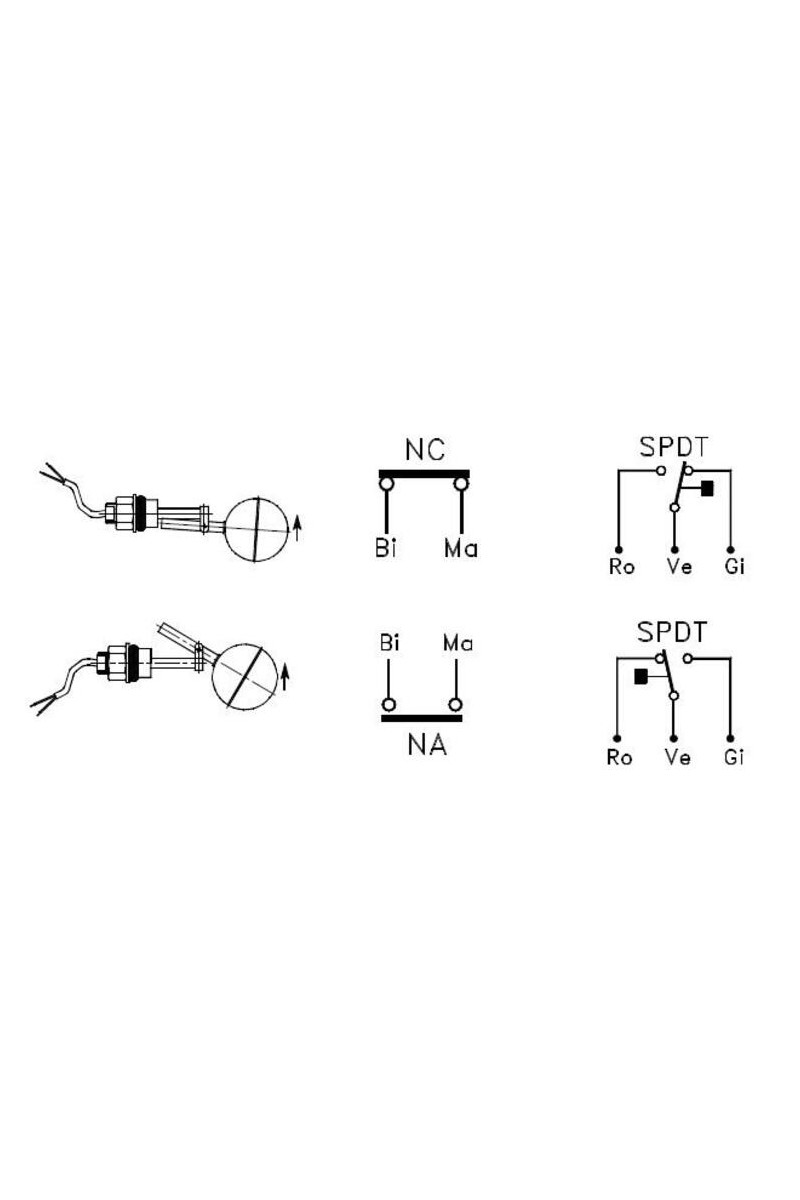

N.1 reed switch contact NA/NC/SPDT
Maximum working pressure 30 Bar
Maximum working temperature 110°C

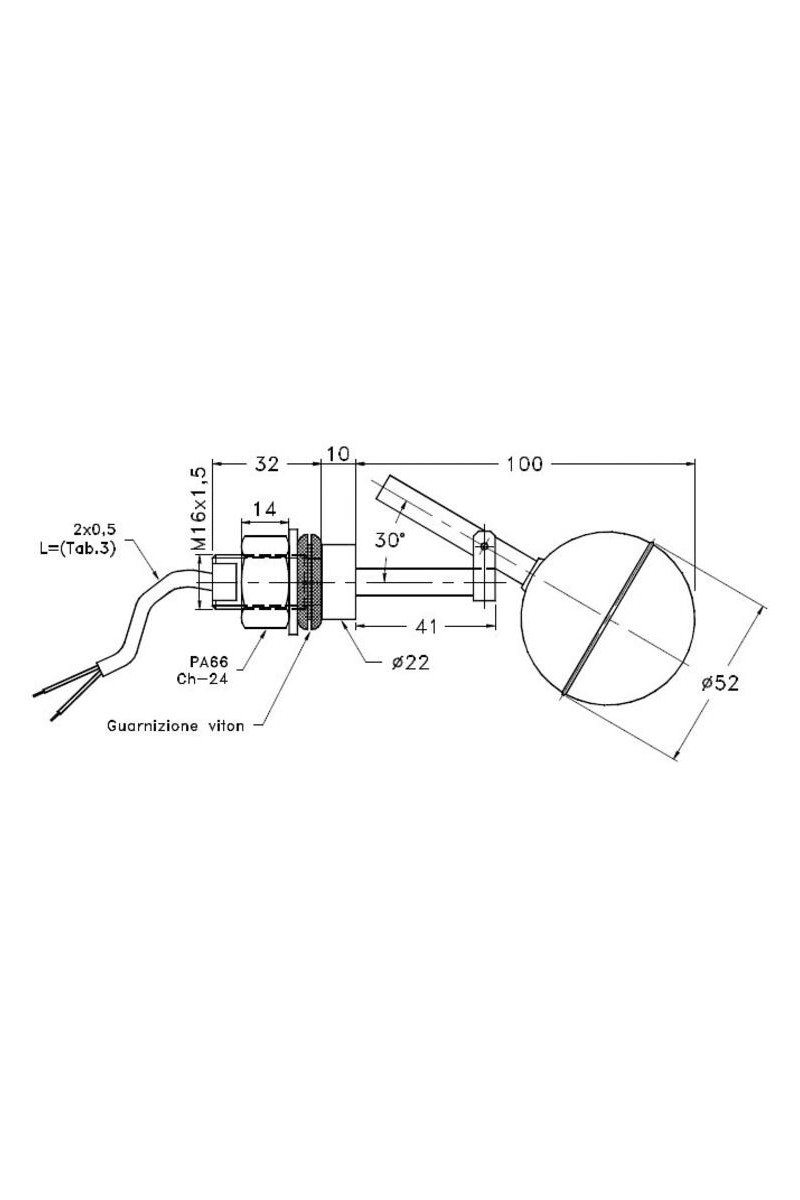

IP65 protectionCurrent 0.5AC/0.7DC Electrical connection Pre-cabled 1.5m Function N/O & N/C Hysteresis max 8 mm IP class IP65 Manufacturer part no. L1.S52.SML.3.16.KS.C1L Material of float Stainless steel 316 Material of seals FKM Material of wetted parts Stainless steel 316 Process connection M16x1.5 Specific gravity 0.67 Temperature operational max 110 °C Voltage 300AC/350DC
