Valco - Customised Multipoint Level Switches / Continuous Level Sensors

For multipoint and continuous Level we can offer custom built solutions to suit your application and needs.

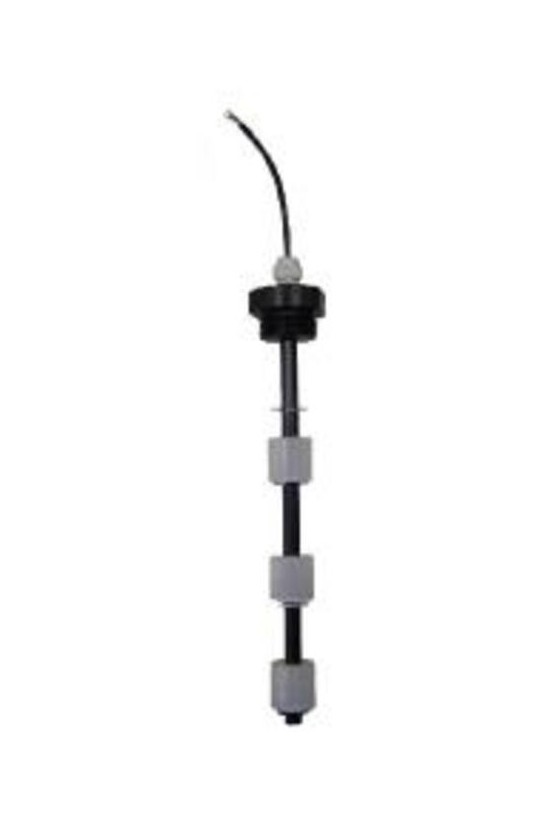

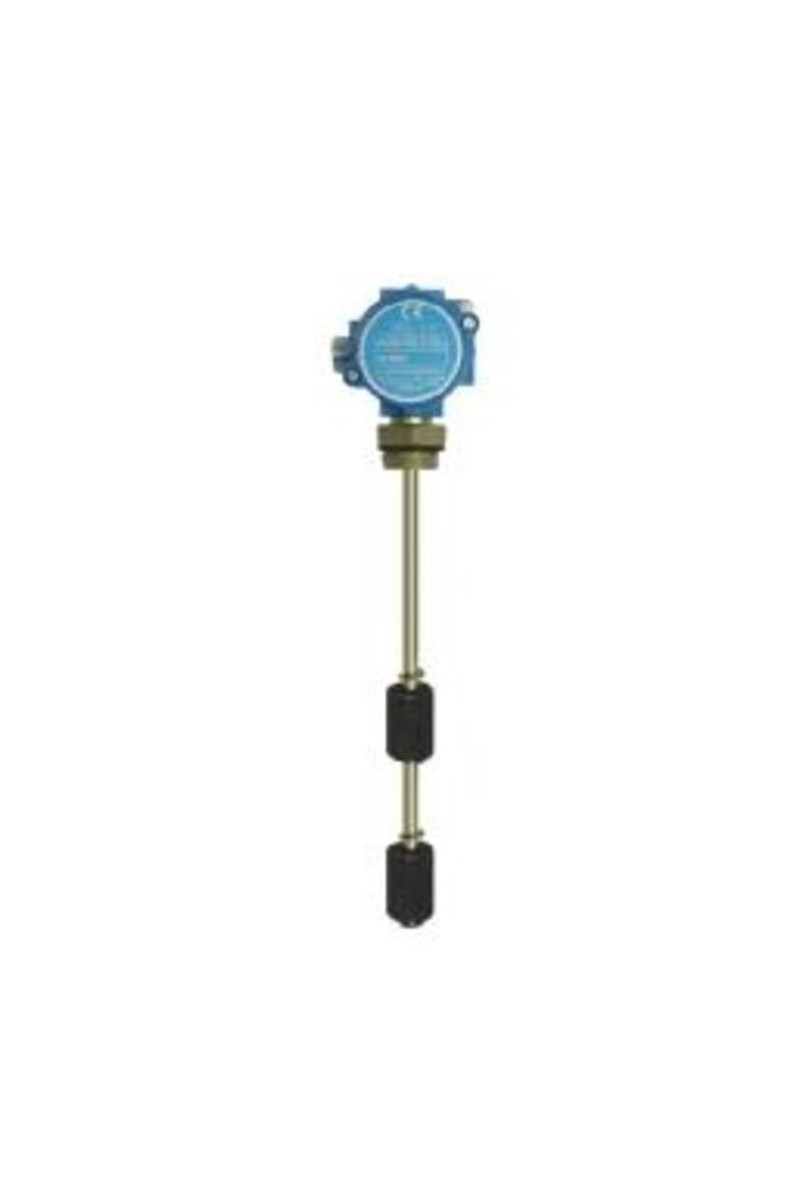

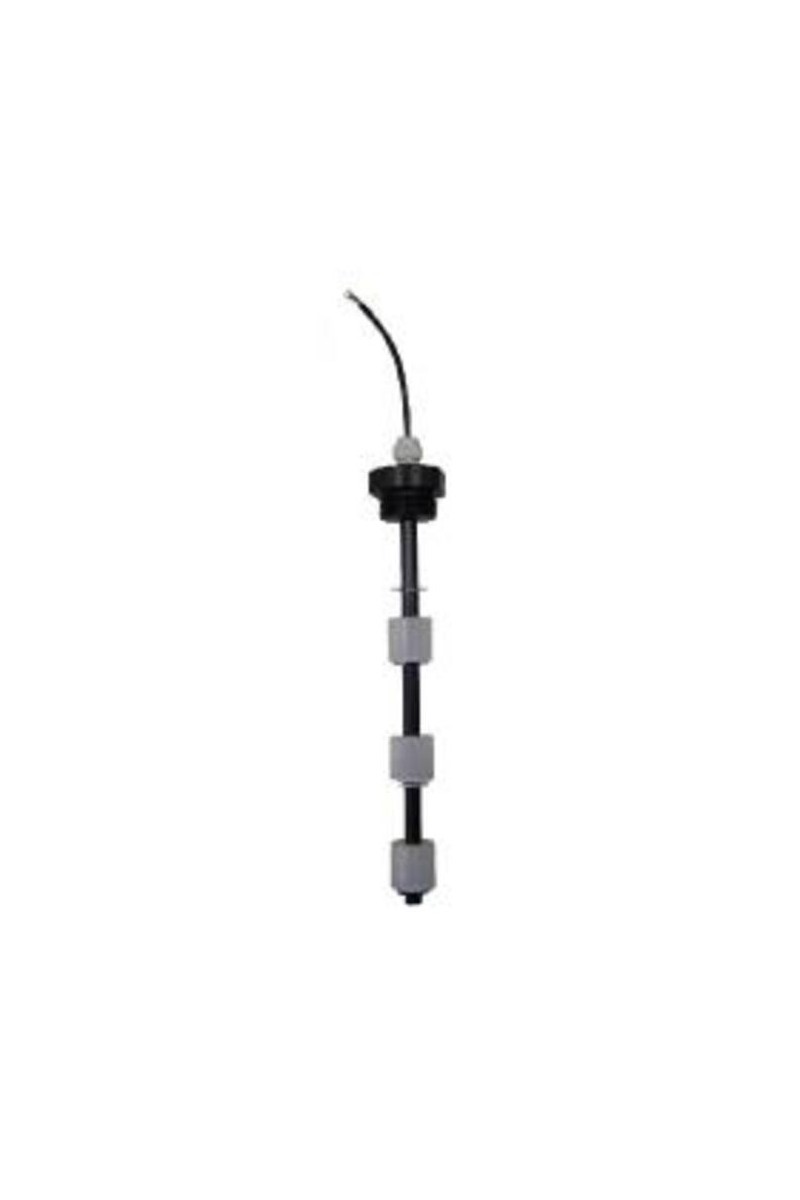

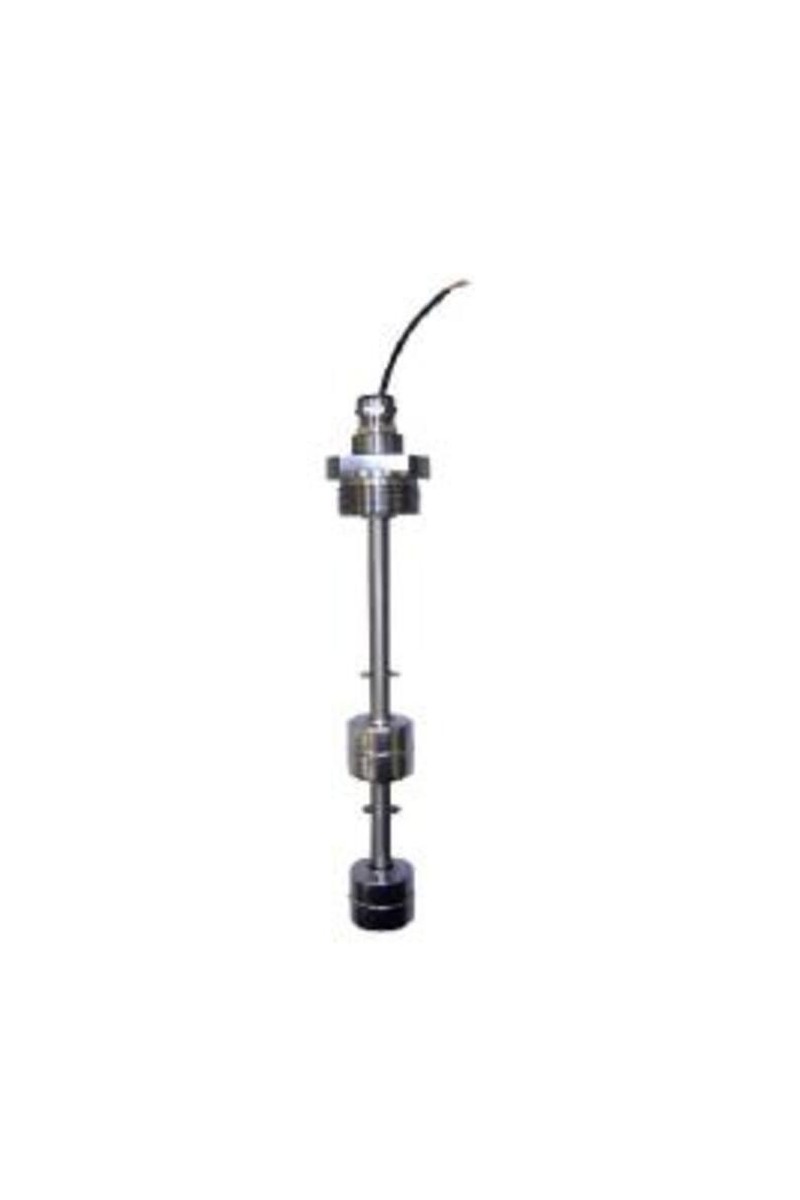

Multipoint Level Switches

Type M2/Multipoint O/S/V-F

• 1-6 floats/switch points

• Up to 6m long

• Up to 50 bar (depending on type)

• Up to 130°C (depending on type)

• ATEX approved versions available

• Materials: PVC, polypropylene, PVDF, brass/spansil & stainless steel

• 1/8” up to 2” thread options plus up to three flange options (depending on type)

• Five standard electrical connection options

• Selectable contact & switching options

• Floats for specific gravities ranging from 0.35 up to 0.8

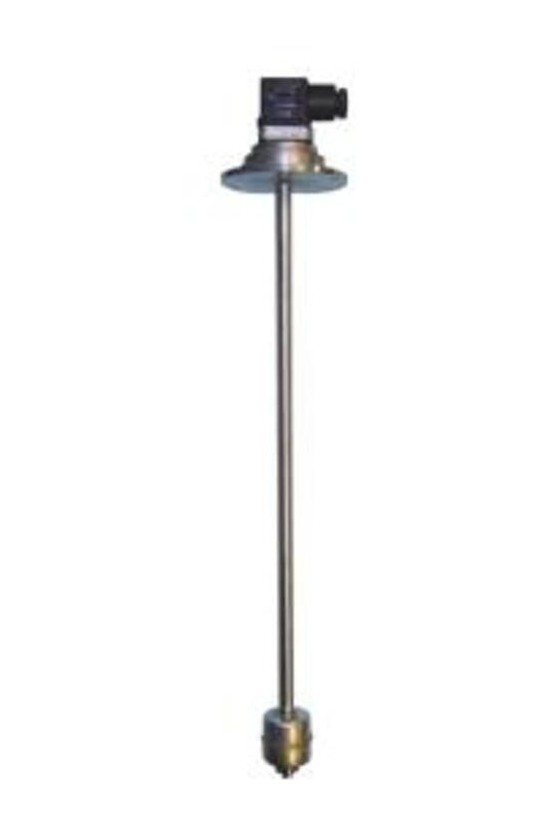

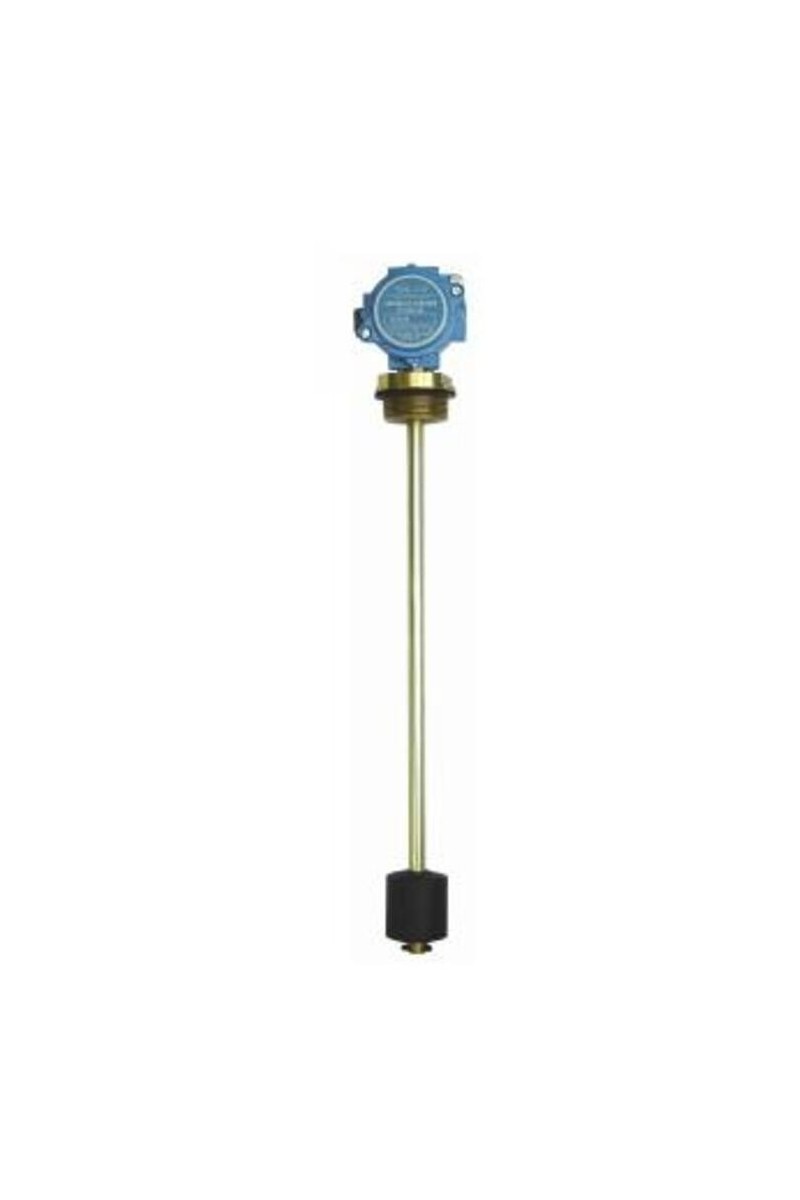

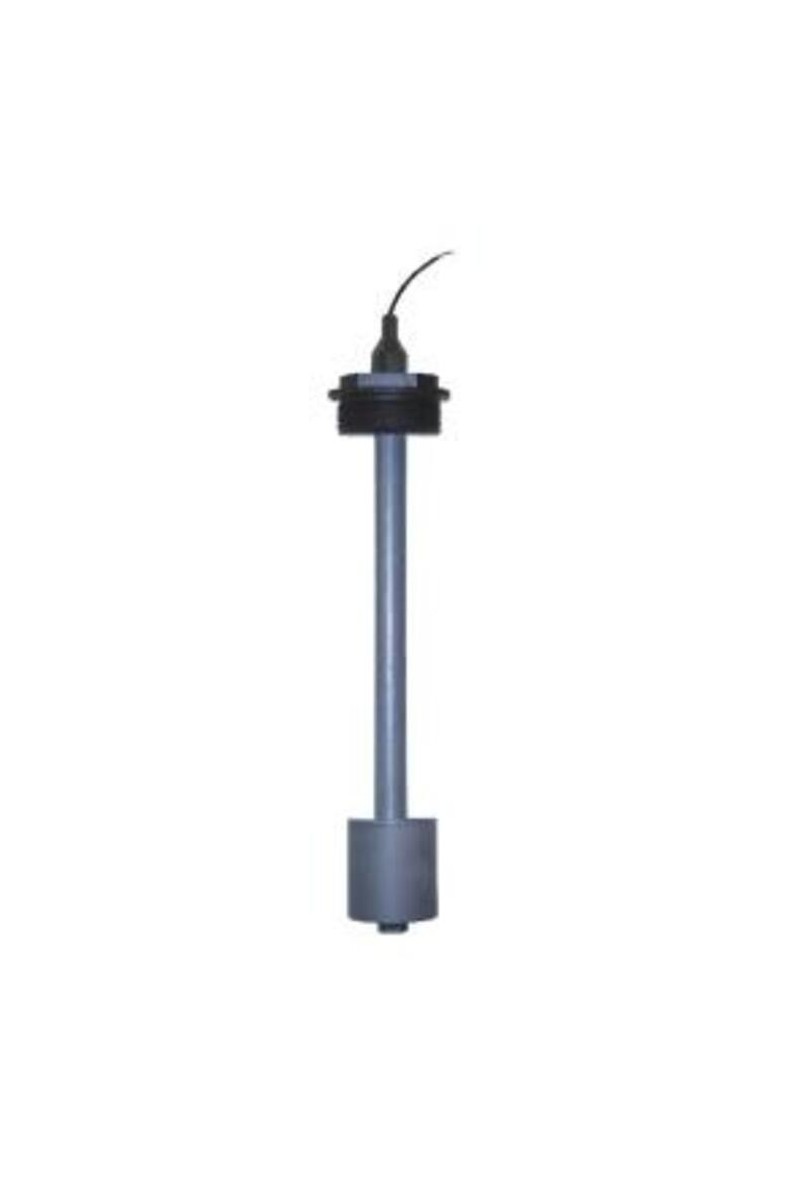

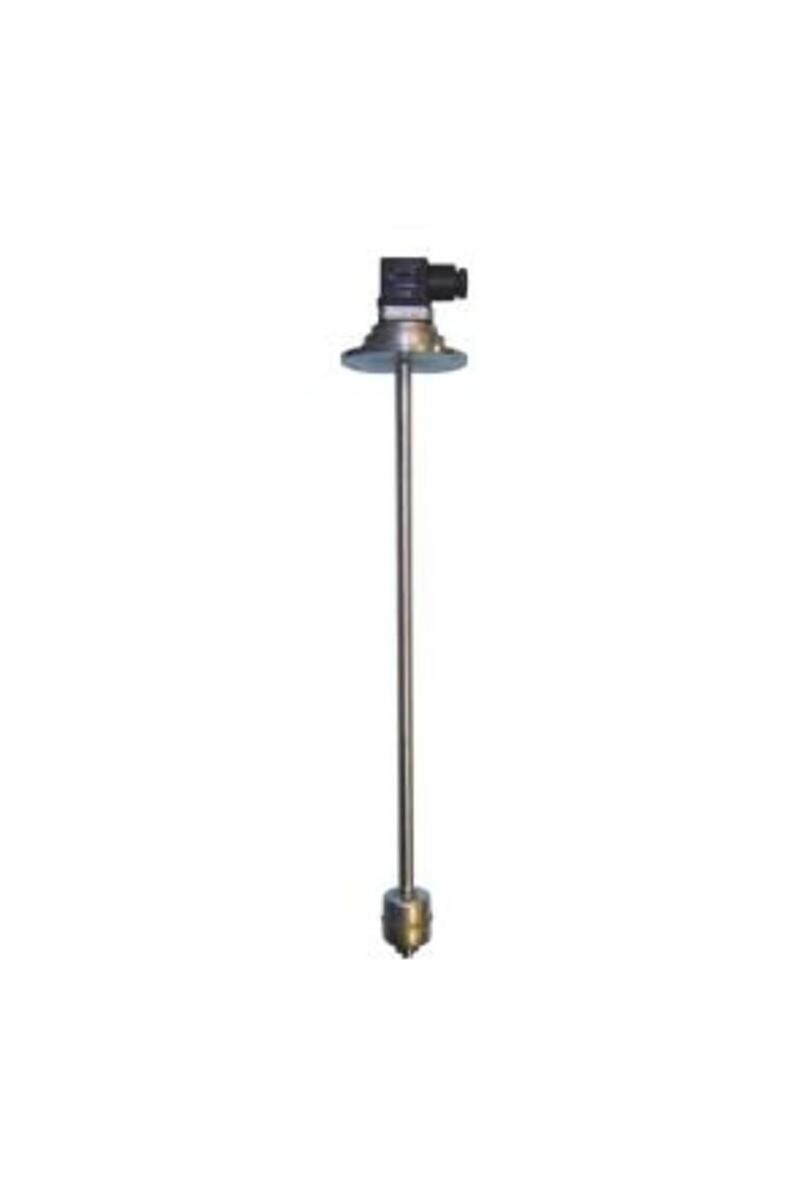

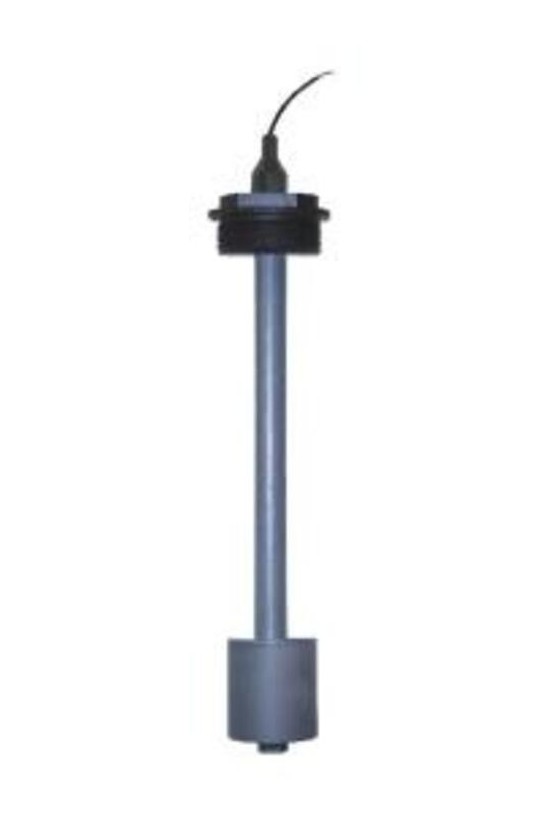

Continuous Level Sensors

Type LC/Linear O/S/V-F

• Potentiometric, 4-20mA, 0-5V, 0-10V outputs

• Up to 6m long

• Up to 50 bar (depending on type)

• Up to 130°C (depending on type)

• ATEX approved versions available

• Materials: PVC, polypropylene, PVDF, brass/spansil & stainless steel

• 3/8” up to 2” thread options plus up to two flange options (depending on type)

• Five standard electrical connection options

• Floats for specific gravities ranging from 0.35 up to 0.8

• Optional mounted/built-in digital display (4-20Ma)
