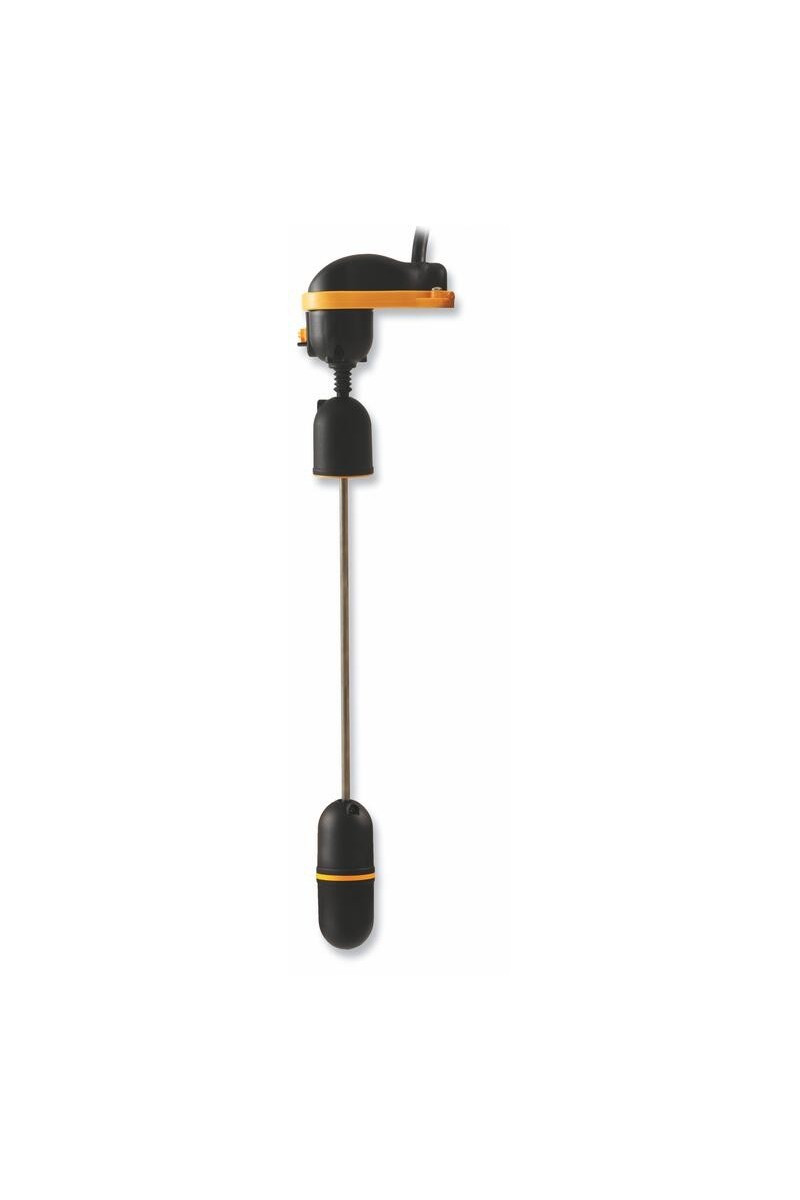

Tecnoplastic - Float Switch - MOUSE 500 B

The Mouse 500 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.


Maximum depth of 500m

Single or double function

Up to 50°C

Ideal for narrow spaces

£0.00
Tax included
Quantity :
Ask a Question

The Mouse 500 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.

Approvals CE, TÜV
Cable length 0.52 m
Cable type H07 RNF
Depth max 0.5 m
Function N/O & N/C
Insulation class I-II
IP class IP68
Material of float Polypropylene
Material of seals EPDM
Material of stem AISI 316
Operating temperature to 50 °C
Rated current 8 A
Supply voltage 250 V
