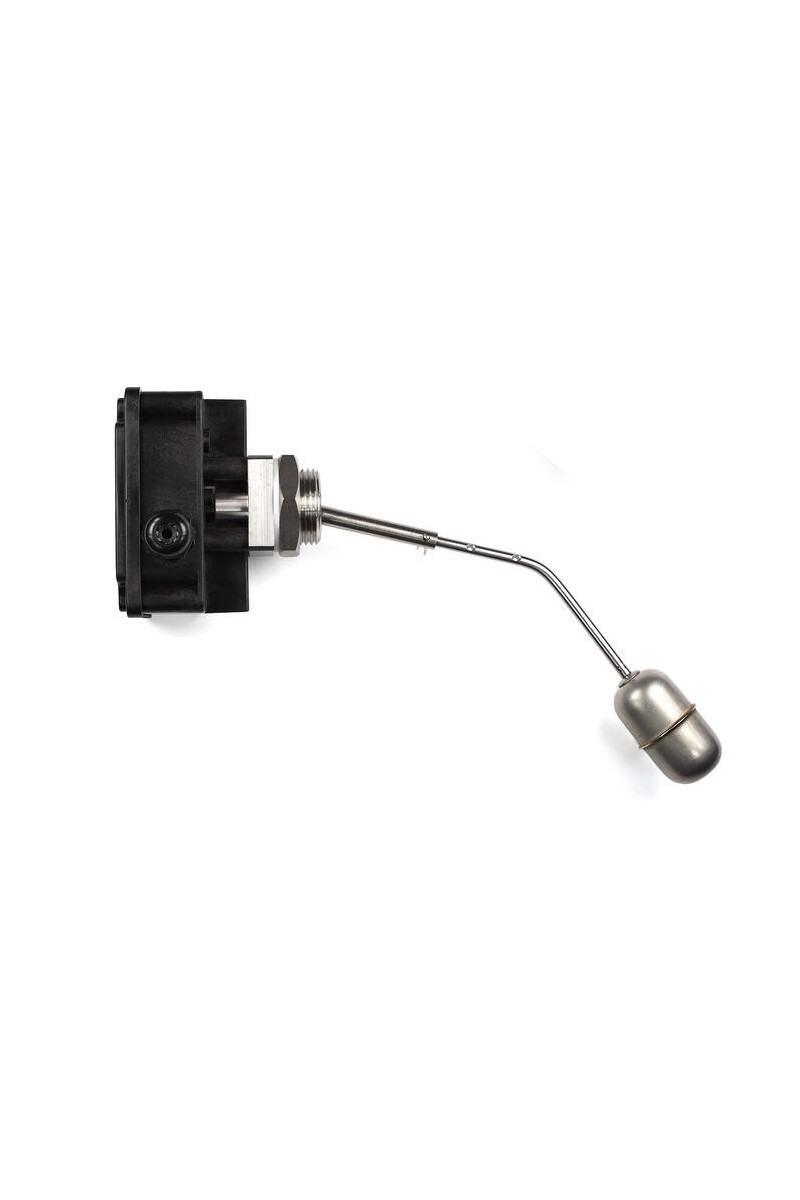

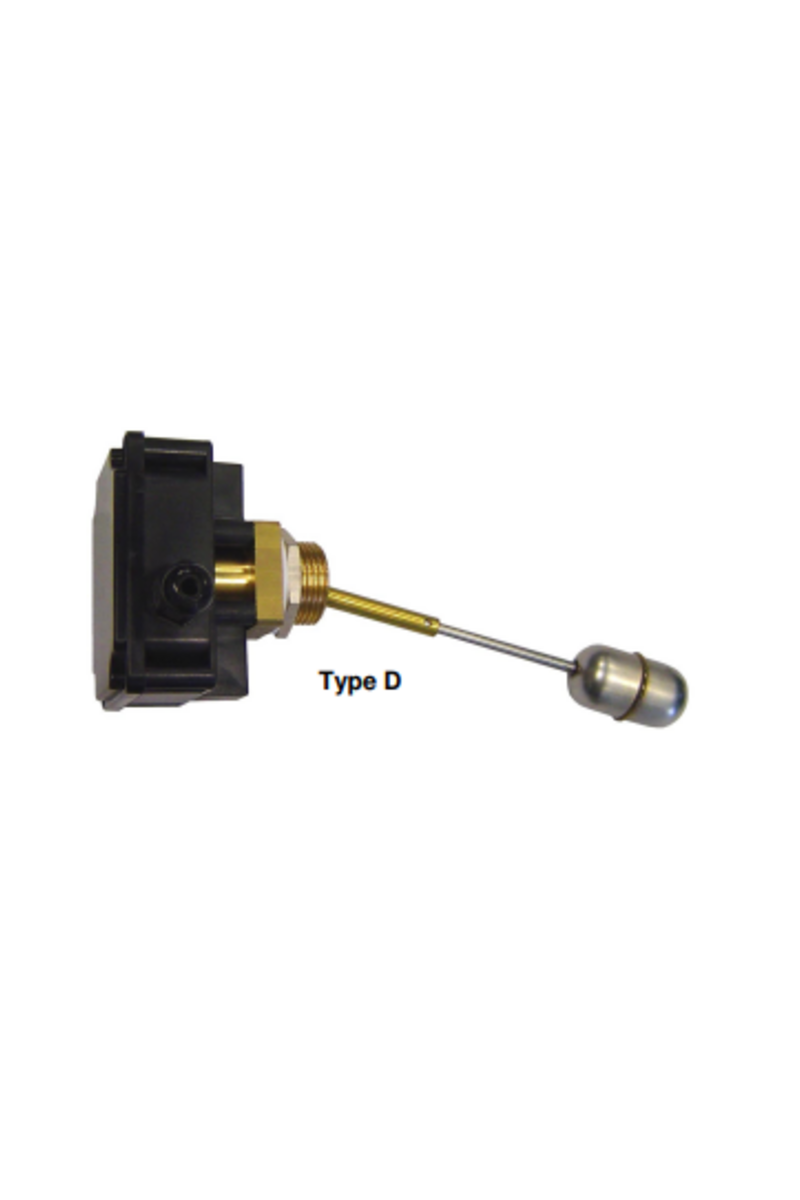

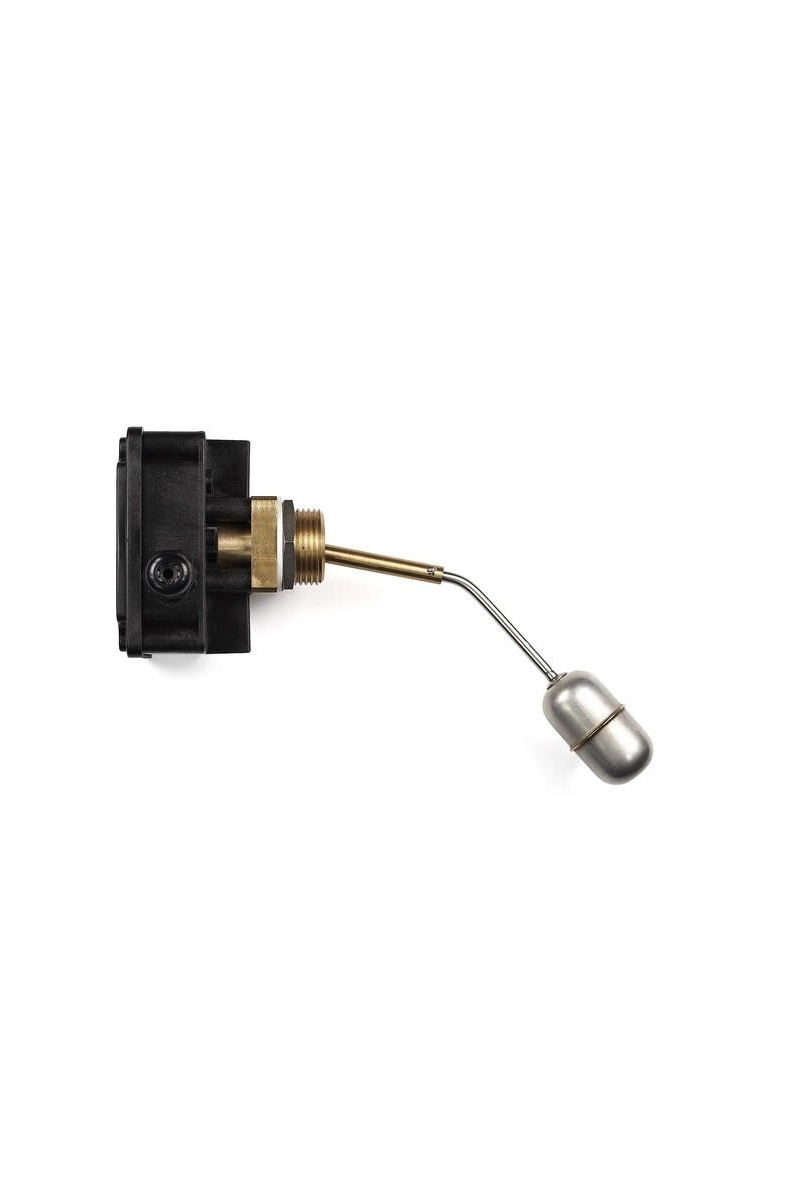

Valco - Side Mount Level Switch - S50 Series

These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperature up to 180 ° C.

PP housing with PG9 electrical connection

Micro-switch SPDT

Max working pressure 40 bar

Max working temperature 180°C

Brass or St. Steel materials

£0.00
Tax included
Quantity :
Ask a Question

Current 3A

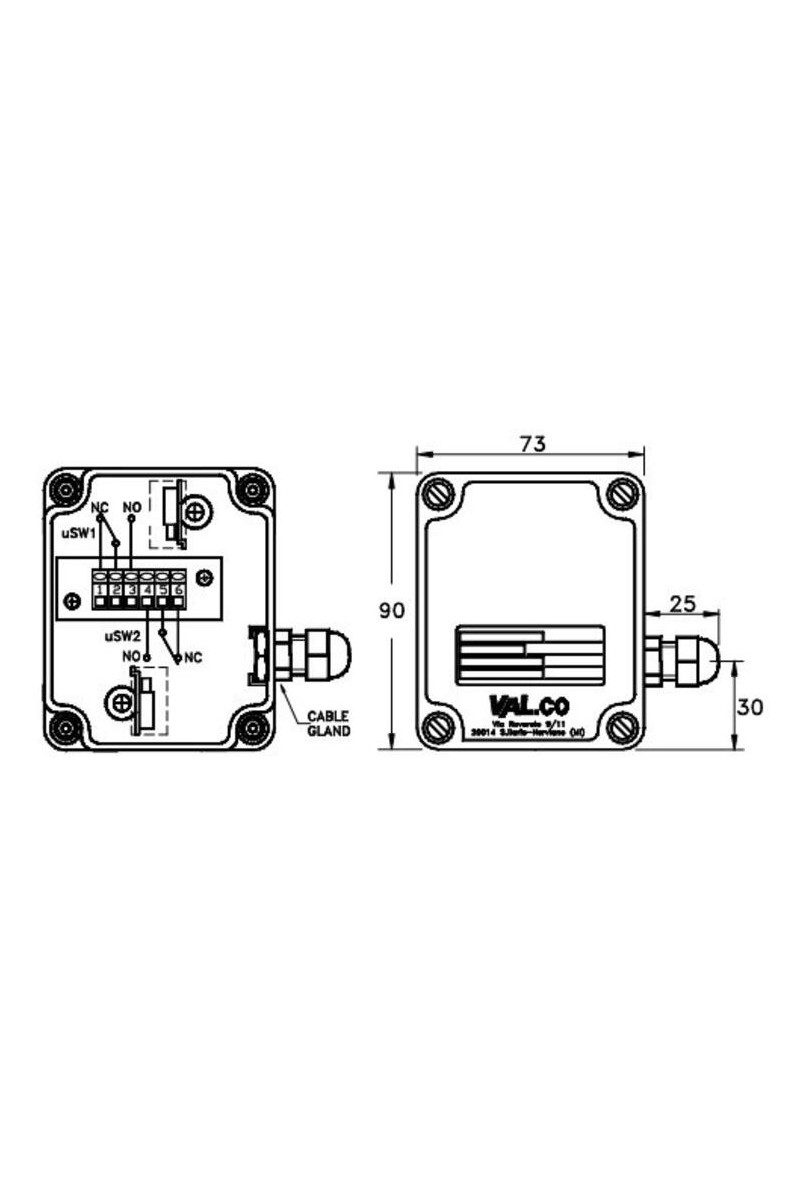

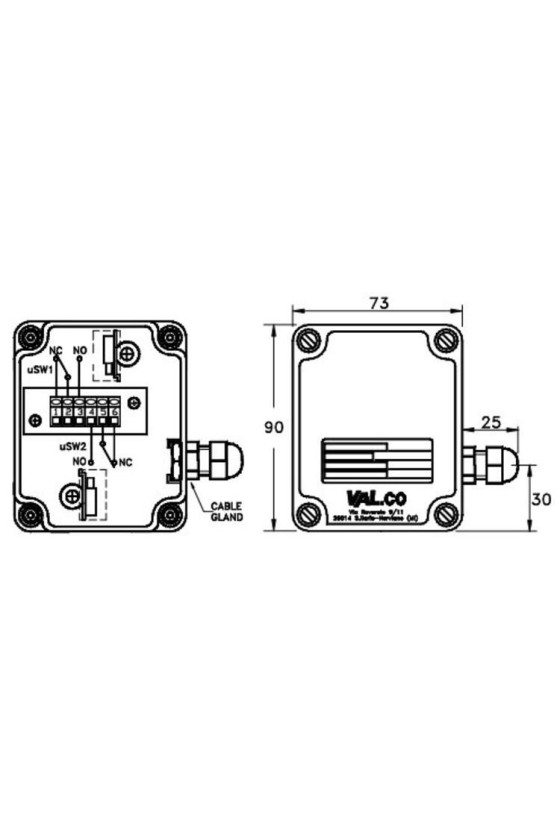

Electrical connection PG9 cable gland
Function Changeover (SPDT)
Hysteresis max 20 mm
IP class IP65
Manufacturer part no. L1.S50.7.C.25.G.O.W.I33
Material of body Glass fiber reinforced plastic (PBT)
Material of float Stainless steel 316
Material of seals PTFE
Material of wetted parts Stainless steel
Mounting Horizontal
Number of microswitches 1
Pressure max 25 bar
Process connection G1

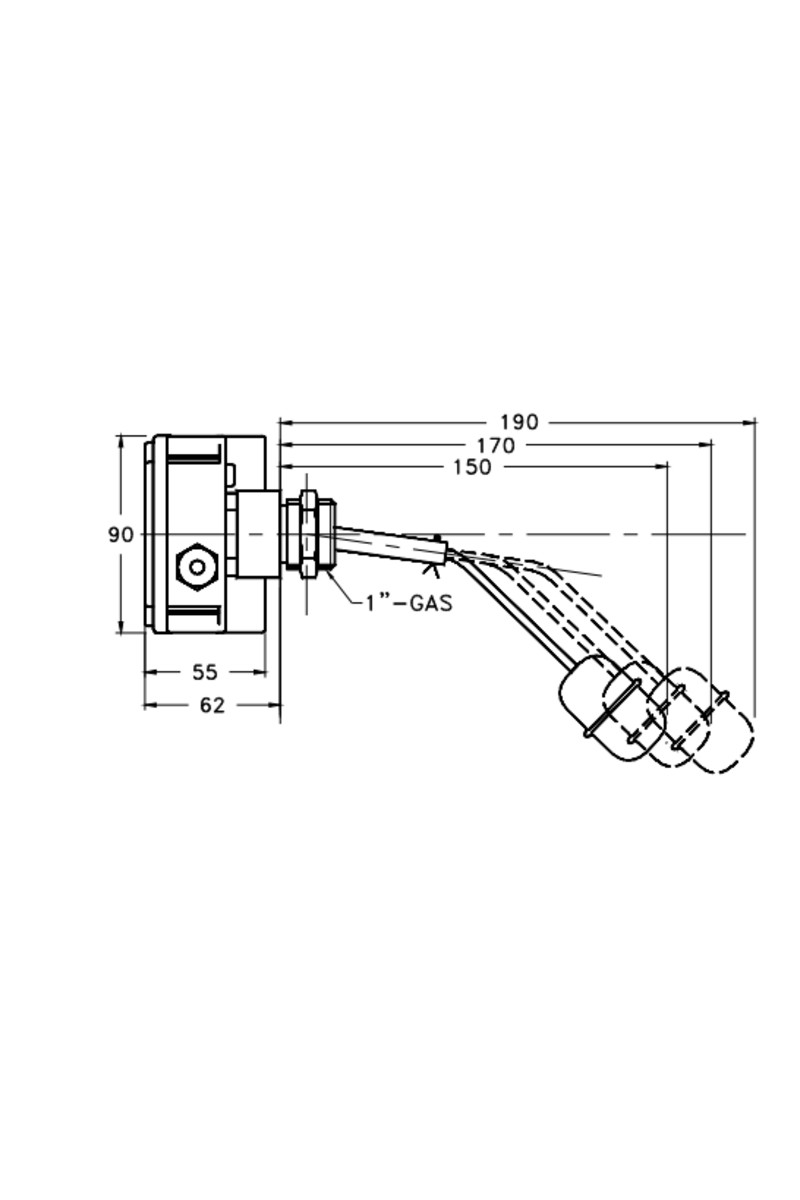

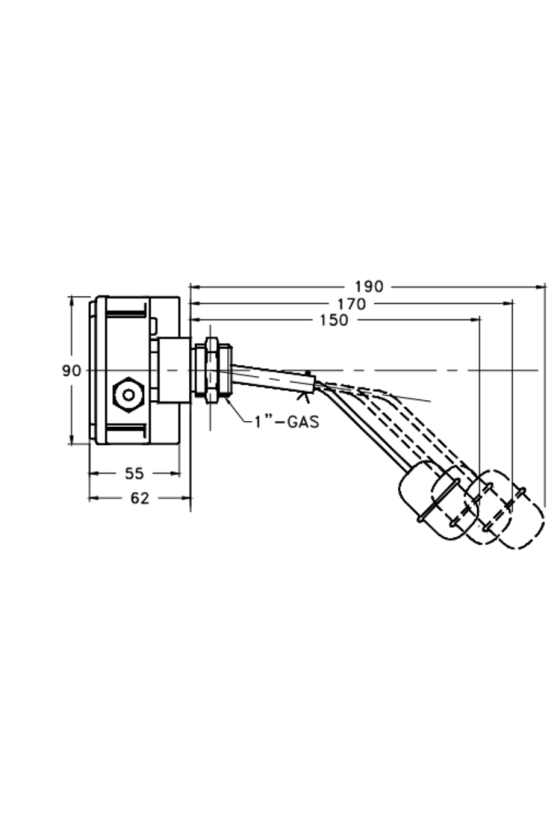

Rod type Angled
Specific gravity 0.7
Temperature operational max 180 °C
Voltage 250Vac/48Vdc
