Tecnoplastic - Float Switch - MOUSE 10000 B

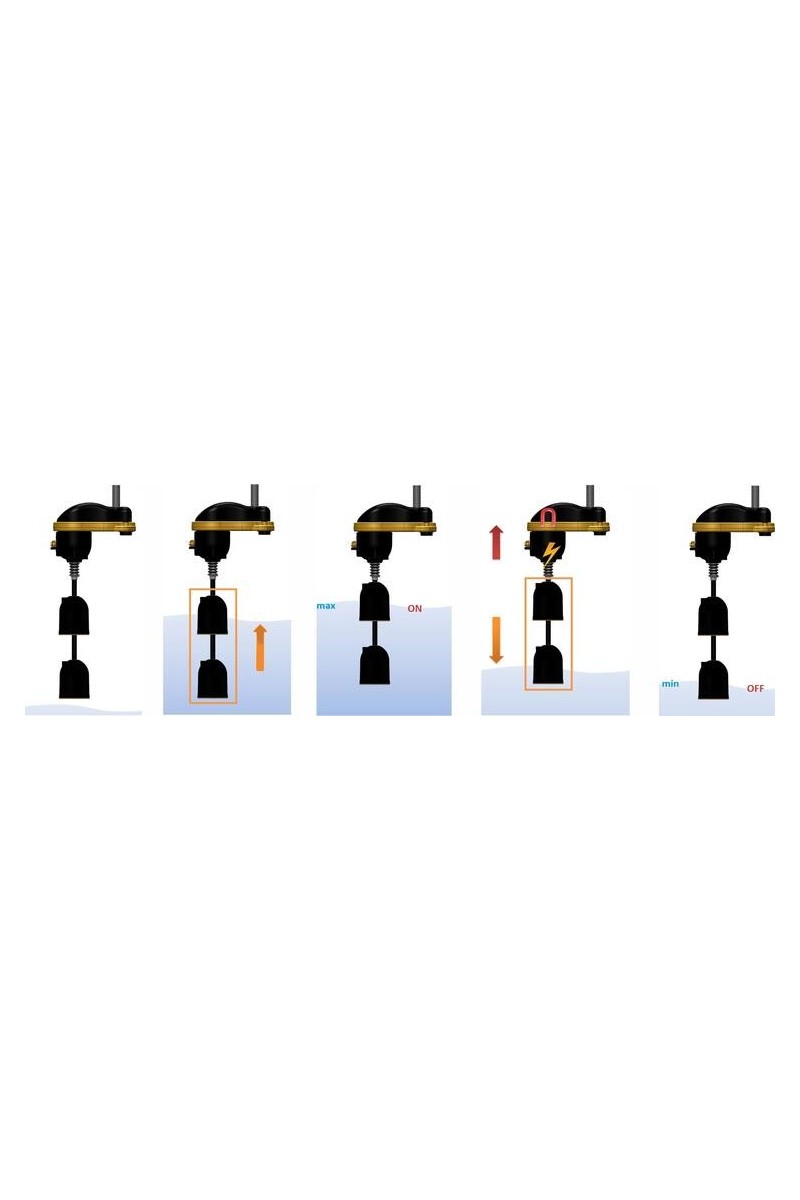

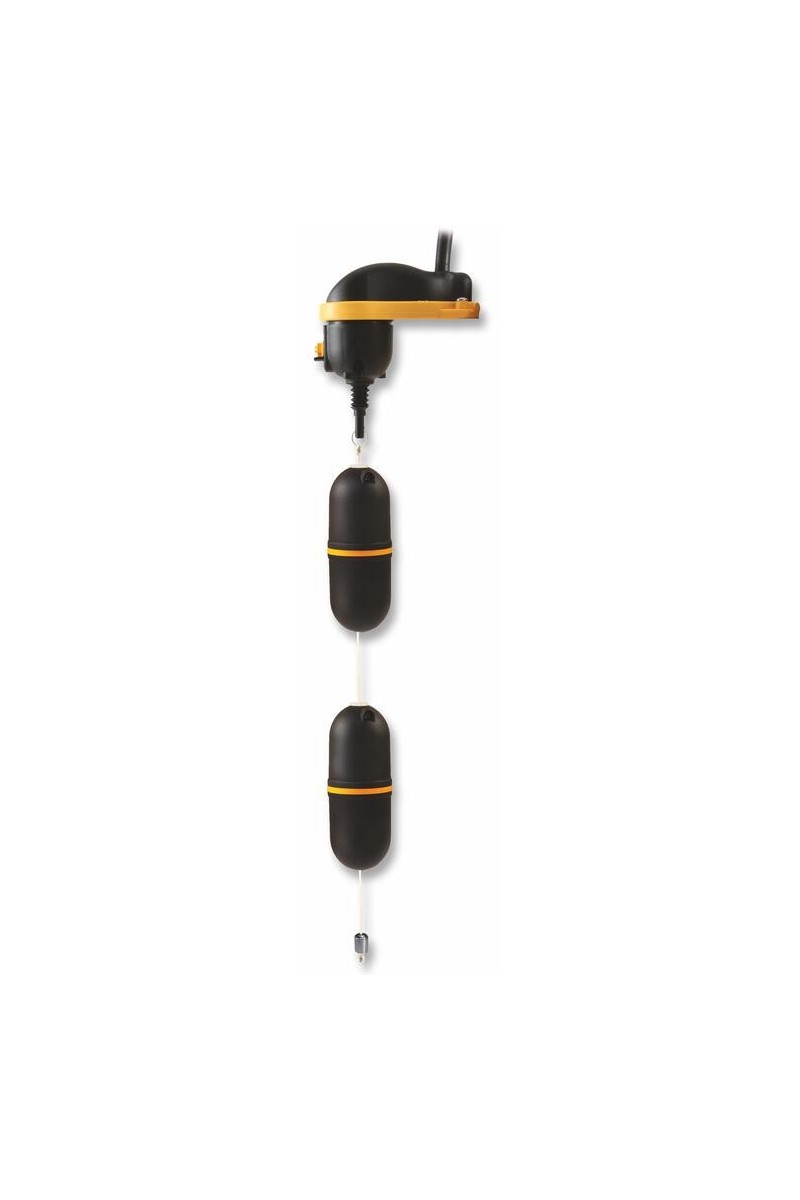

The Mouse 10000 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.

Maximum depth of 10m

Single or double function

Up to 50°C

Ideal for narrow spaces

£0.00
Tax included
Quantity :
Ask a Question

Approvals CE, TÜV
Cable length 0.52 m
Cable type H05 RNF
Depth max 10 m
Function N/O & N/C
Insulation class I-II
IP class IP68
Material of float Polypropylene
Material of seals EPDM
Material of stem Polyester
Operating temperature to 50 °C
Rated current 8 A
Supply voltage 250 V
