Quarter Turn

IP68

100Nm to 300Nm

Working temperature -20°C to +70°C

Fail safe Actuator

High performance series

GMH 3151

Includes 1 sensor terminal, analog output and data logger without sensor

6-pol. screened Mini-DIN connector (s) for GMSD / MSD sensor

Scope of supply: device, battery, test report, operating instruction

4½-digit display, sensors with higher resolution on request

The 0166/0169 series pressure switch is the most cost effective solution from SUCO for mechanical pressure monitoring. Offering a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Up to 42 V

Spade or screw terminals

Six adjustment ranges from 0,1..1 bar to 50..150 bar

Normally open or normally closed

Over pressure safety of 300 bar or 600 bar

Modular level switch with 1 electrical contact. The user is able to obtain a level switch of the desired length interposing an extension pipe between the control unit and the process fitting. The electrical contact inside the control unit is sealed and immersion proof. The assembly kit can be selected from a wide series of options that allows the user to adapt it to the most common types of installation.

500 mm. to 1500 mm. tube length

Brass stem and connection, Spansil float

Max working pressure up to 20 bar

Max temperature 105°C

Reed switch SPST or SPDT

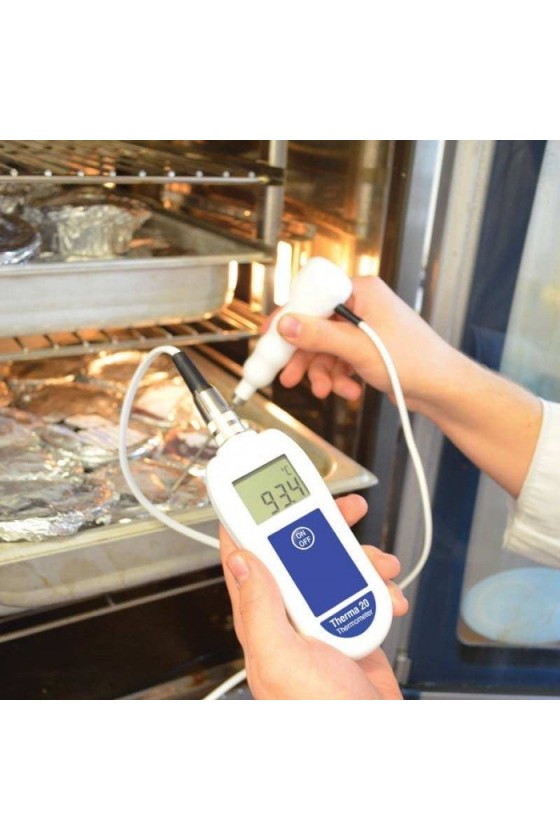

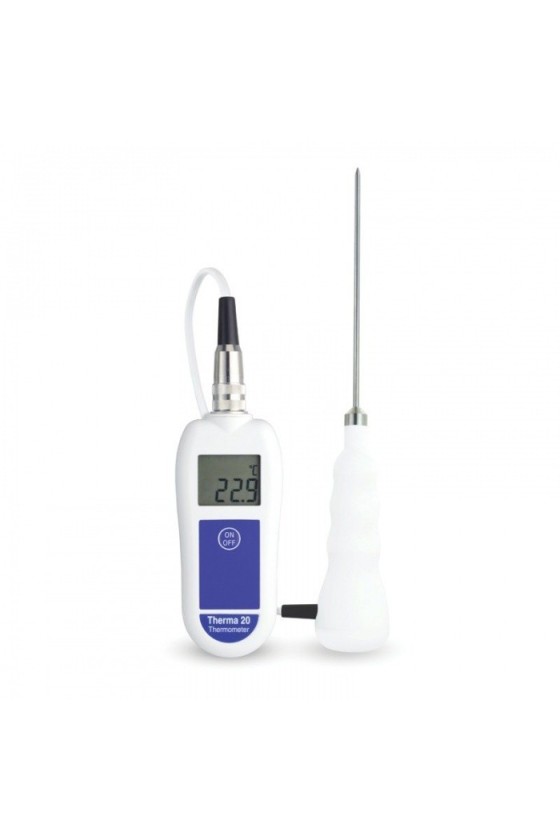

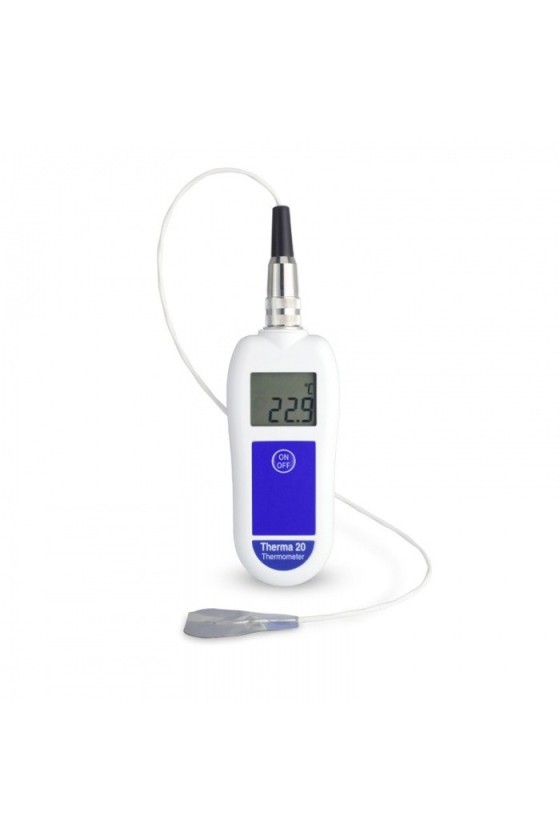

Therma 20 thermistor thermometer for high accuracy food temperatures

Probe not included

• Assured accuracy for the life of the thermometer
• Meets the European Standard EN 13485
• Free traceable certificate of calibration included
• UKAS 3-point certificate available*
• 2-year guarantee
• Biomaster product protection

Quarter Turn

IP68

100Nm to 300Nm

Working temperature -20°C to +70°C

Failsafe and ATEX rated Actuator

The type 2260 is a rugged, high performance ultrasonic level measurement transmitter, having transducer and processing electronics and a display/ programming unit incorporated in one single housing. All type 2260 Level Transmitters are using established high end pulse echo transducers, which provide narrow beam angles and reliable measurement ranges up to a distance of 15 meters.

Non-contact level metering

4 to 20 mA / HART interface (Optional)

Level, volume and open channel flow

Fully temperature compensated electronics

32-point linearization

Brass body

Up to 42 V

Spade or screw terminals

Four adjustment ranges from 0,1..1 bar to 10..20 bar

Normally open or normally closed

Over pressure safety of 35 bar

A wide range of standard units that, for variety of materials and dimensions, offers to the user a simple and economical solution for the control of liquid levels. The units are available with connection cable in lengths of 1.5 m and 3.0 m, other lengths are available on request
Materials, Brass, ST. Steel, PVC, PPL, PVDF
1/8″-3/8″ process connection
Max pressure up to 50 bar (see data sheet)
Max temperature 130°C (see data sheet)
Reed switch SPST or SPDT

Quarter Turn

IP68

600Nm to 2400Nm

Working temperature -20°C to +70°C

Fail safe Actuator

GDH 200-07, GDH 200-13

Differential and relative pressure measurement

Sensor: piezoresistive relative pressure sensor

Scope of supply: Device, battery, calibration protocol, manual

3 selectable measuring units: mbar, mmHg, PSI (GDH 200-07 also includes Pa)

Magnetostrictive continuous level transmitters base their operation on the physical principle called Wiedemann effect and it allows continuous and precise measurement of liquid levels. The electronic unit sends a pulse within a waveguide contained in the measuring rod; the magnetic float intercepts the pulse generating an echo that is detected by the same electronic unit. The elapsing time between the emission of the pulse and its recognition is directly proportional to the position of the float, and then to the value of the level to be measured.

Brass - Spansil

2 analog outputs, current and voltage

RS485 serial output, Valco protocol

Up to 2, 9 m length

Working pressure up to 20 bar
