Suco - 0166/0169 Pressure Switch

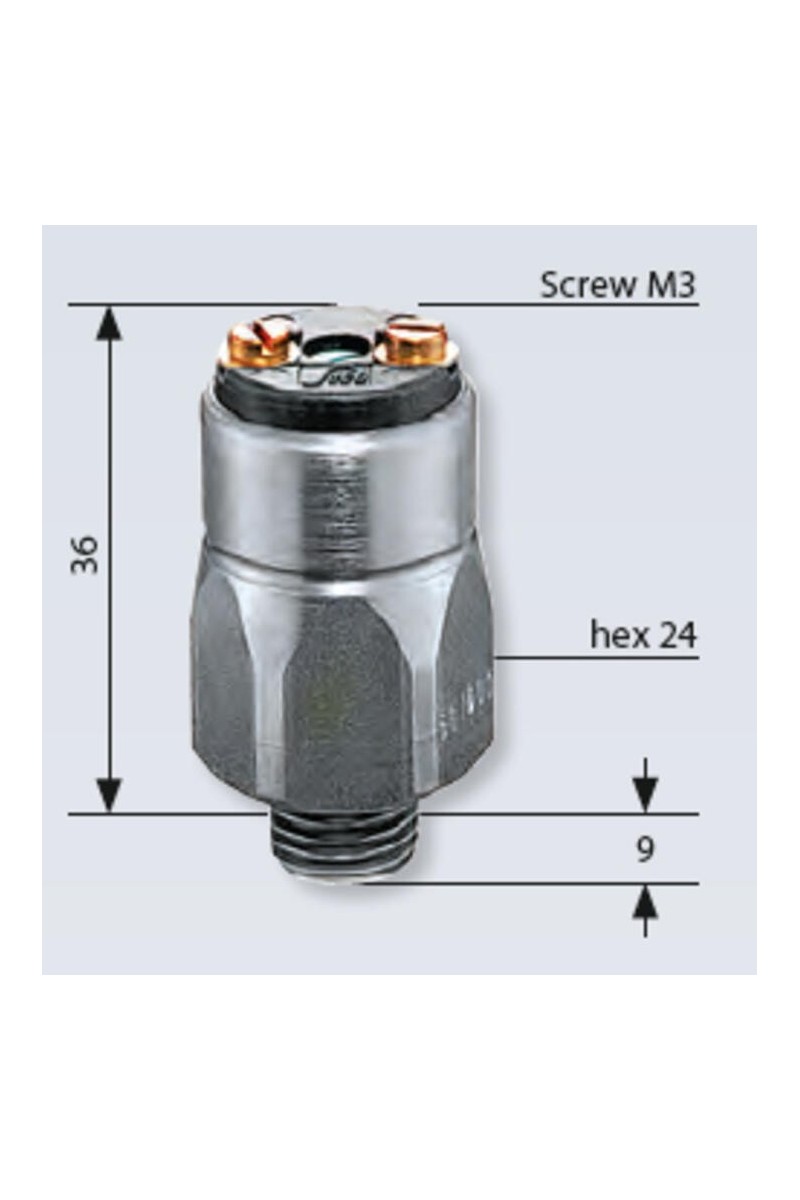

The 0166/0169 series pressure switch is the most cost effective solution from SUCO for mechanical pressure monitoring. Offering a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Up to 42 V

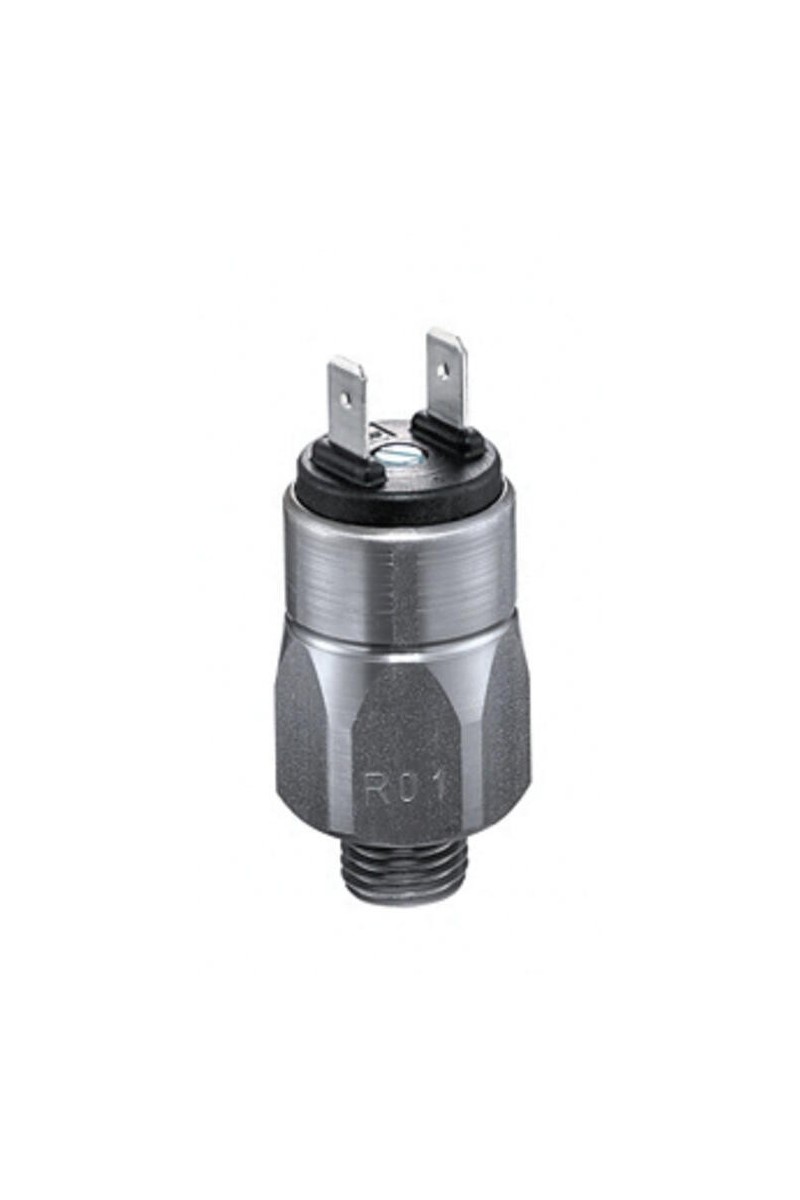

Spade or screw terminals

Six adjustment ranges from 0,1..1 bar to 50..150 bar

Normally open or normally closed

Over pressure safety of 300 bar or 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1 bar
Adjustment range min 0.1 bar
Approvals CSA US, RoHS II
Contact rating max 4 A
Deviation max ±0,2

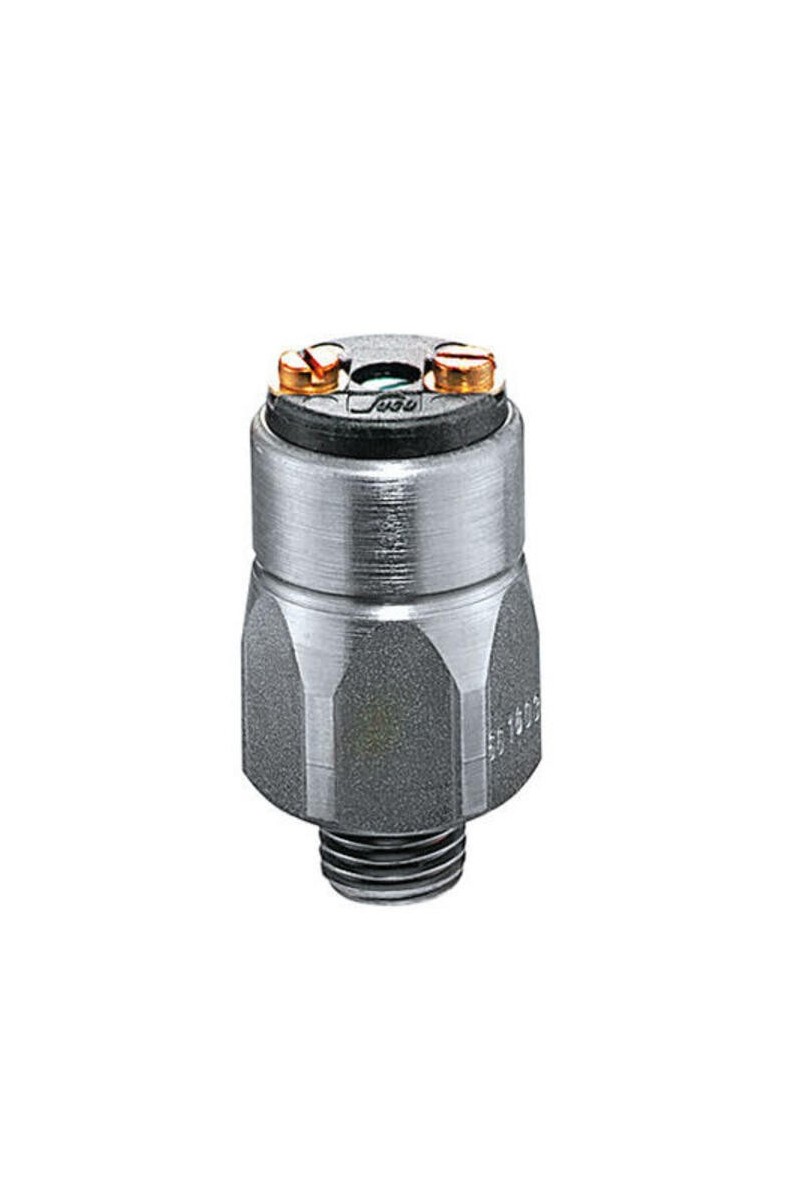

Electrical connection Screw (M3)
Function Normally open (SPST)
IP class IP00
Material membrane NBR
Material of body Galvanized steel
Material of wetted parts Galvanized steel, NBR
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 400 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 90 g
Voltage ac/dc max 42 V
Voltage ac/dc min 10 V
