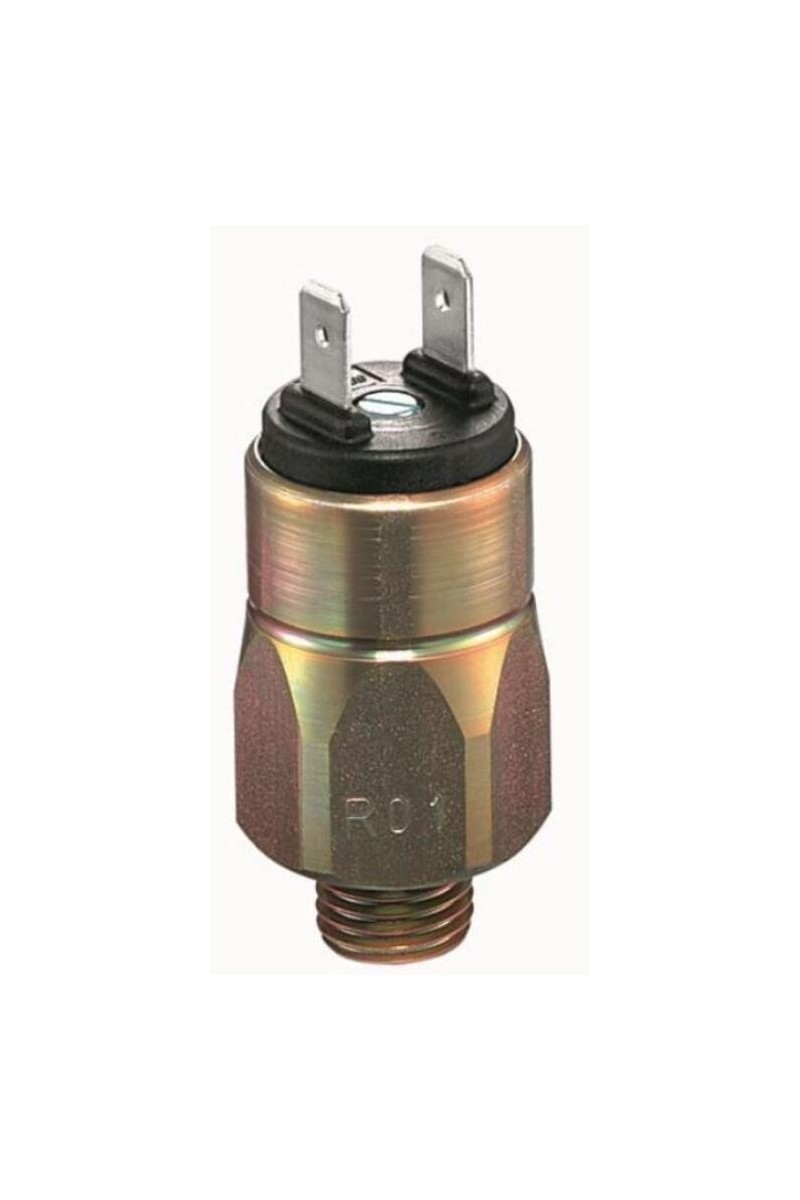

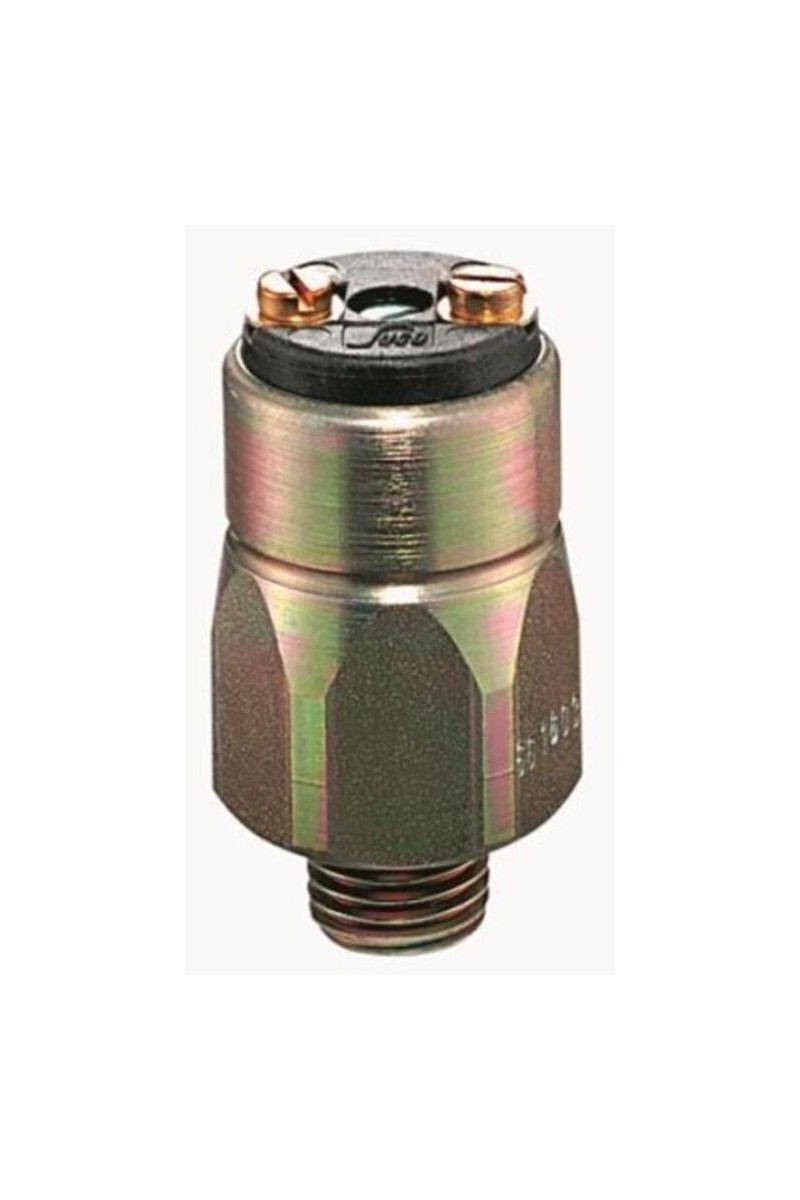

Suco - 0167 Pressure Switch

Brass body

Up to 42 V

Spade or screw terminals

Four adjustment ranges from 0,1..1 bar to 10..20 bar

Normally open or normally closed

Over pressure safety of 35 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1 bar
Adjustment range min 0.1 bar
Approvals CSA US, RoHS II
Contact rating max 4 A
Deviation max ±0,2
Electrical connection Screw (M3)
Function Normally open (SPST)
IP class IP00
Material membrane NBR
Material of body Brass
Material of wetted parts Brass, NBR
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 35 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 90 g
Voltage ac/dc max 42 V
Voltage ac/dc min 10 V
