VT Series Electric Actuator
  • VT Series Electric Actuator

VT Series Electric Actuator

Quarter Turn

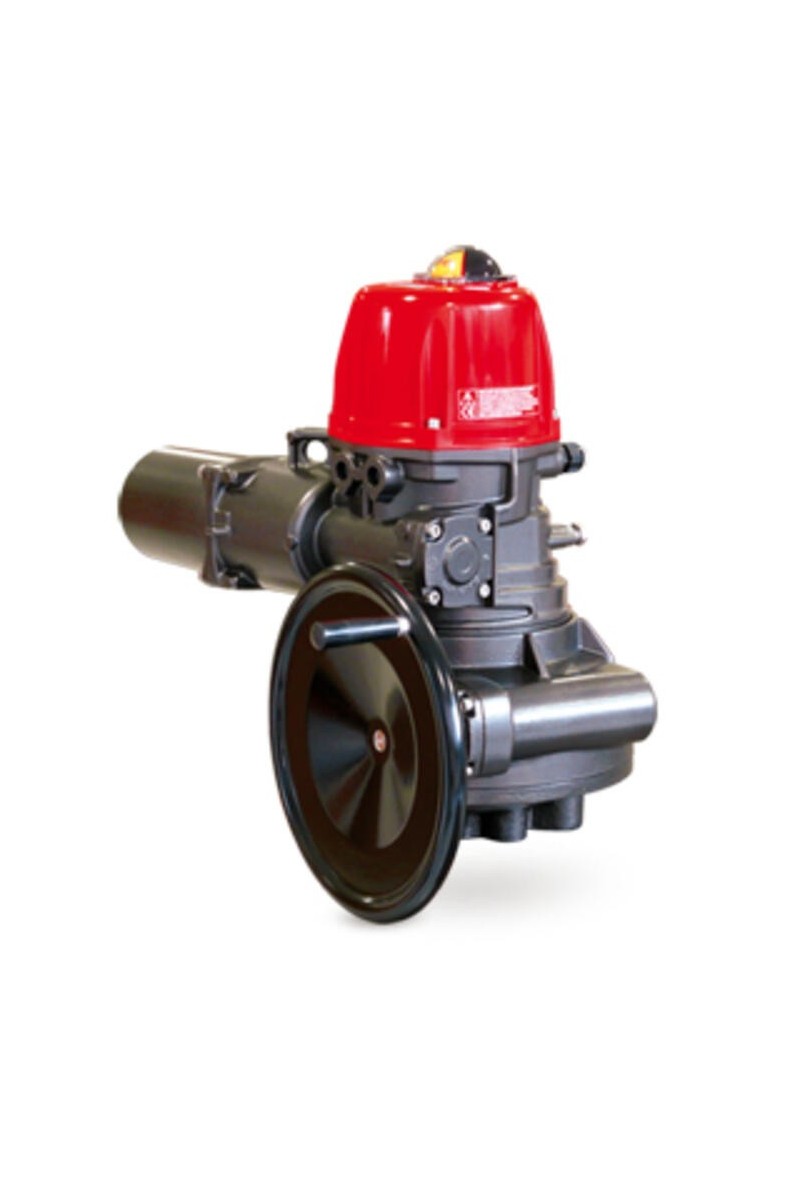

The Valpes VT is an IP68 rated quarter turn electric actuator, with aluminium housing and a cover made with polyamide (which meets UL94V0 standards) or aluminium (option). It comes with a manual override via hand wheel, is available in torques of 600Nm, 1000Nm, 1500Nm and 2400Nm and is supplied in accordance with CE-ROHS-REACH Directives.

IP68

600Nm to 2400Nm

Working temperature -20°C to +70°C

Fail safe Actuator

£0.00
Tax included
Quantity :
Ask a Question

The Valpes VT is an IP68 rated quarter turn electric actuator, with aluminium housing and a cover made with polyamide (which meets UL94V0 standards) or aluminium (option). It comes with a manual override via hand wheel, is available in torques of 600Nm, 1000Nm, 1500Nm and 2400Nm and is supplied in accordance with CE-ROHS-REACH Directives.

Available in Atex and with Marine coating and extreme vibration options.

For models Utilising the Valpes Bluetooth Communication Module including Battery Failsafe and Modulation facilities see the VT+ model.

Part Numbers:

  • VT600.A09.R00
  • VT1000.A09.R00
  • VT1500.B09.R00
  • VT1500.C09.R00
  • VT2400.B09.R00
  • VT2400.C09.R00
Connections F10/F12
Operating Time (Seconds) 38 s
Power 250 W
Star Drive 36
Torque 600
Voltage 3-phase 400 V 50 Hz
