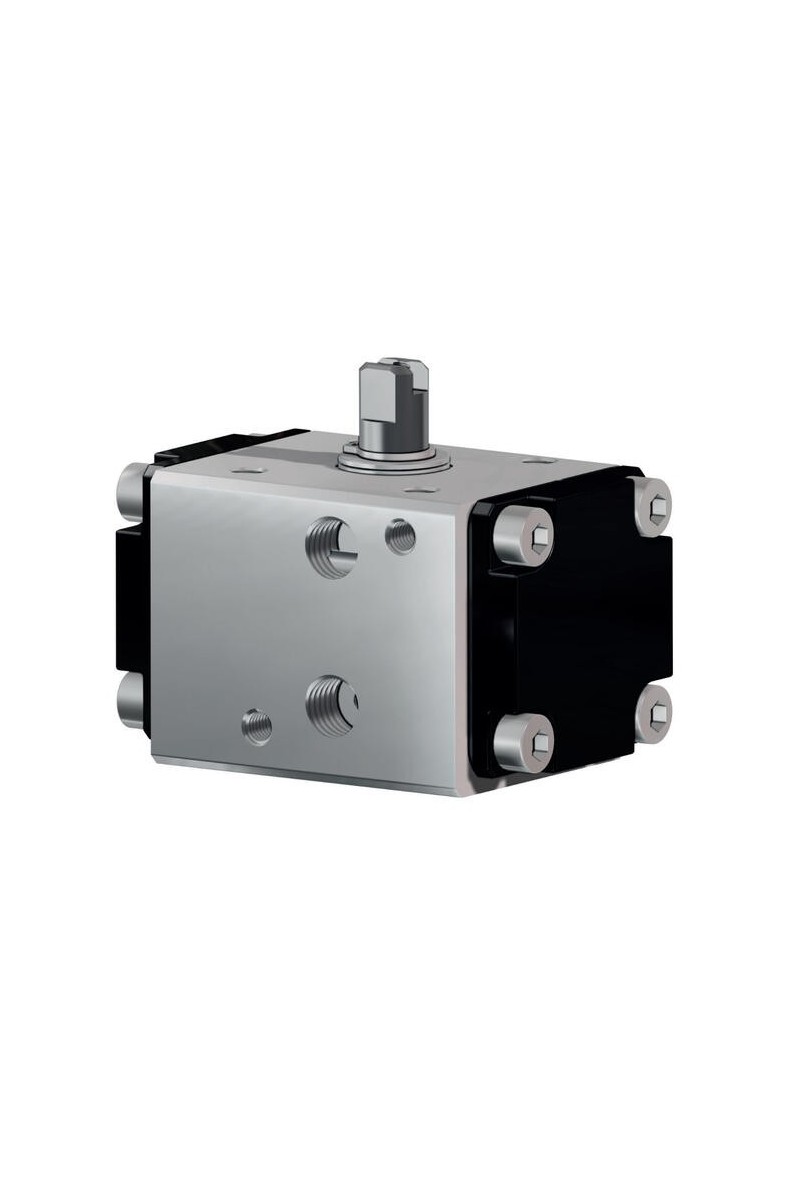

Small 8nm Double Acting Pneumatic Actuator

Omal's Smallest standard double acting Scotch Yoke design pneumatic actuator - DA008401S - which has an output torque of 8Nm. ISO F03 Mounting flange. Additional Namur interface plate, ATEX & SIL3 certification options on request.

• ISO Mounting flange according to EN ISO 5211 F03
• In accordance with EN 15714-3
• Rotation angle 90°
• Torque: directly proportional to the air supply (see table).
• ATEX version in conformity with directive 2014/34/EU.
• Temperature: from 0°C to +80°C; from -20°C to +80°C with dry air only. (+150°C in special execution)
• Air supply: 5,6 bar; maximum 8,4 bar.
• Operating media: compressed filtered air, not necessarily lubricated. (In case of lubricated air, either non detergent oil or NBR compatible oil, must be used.)
