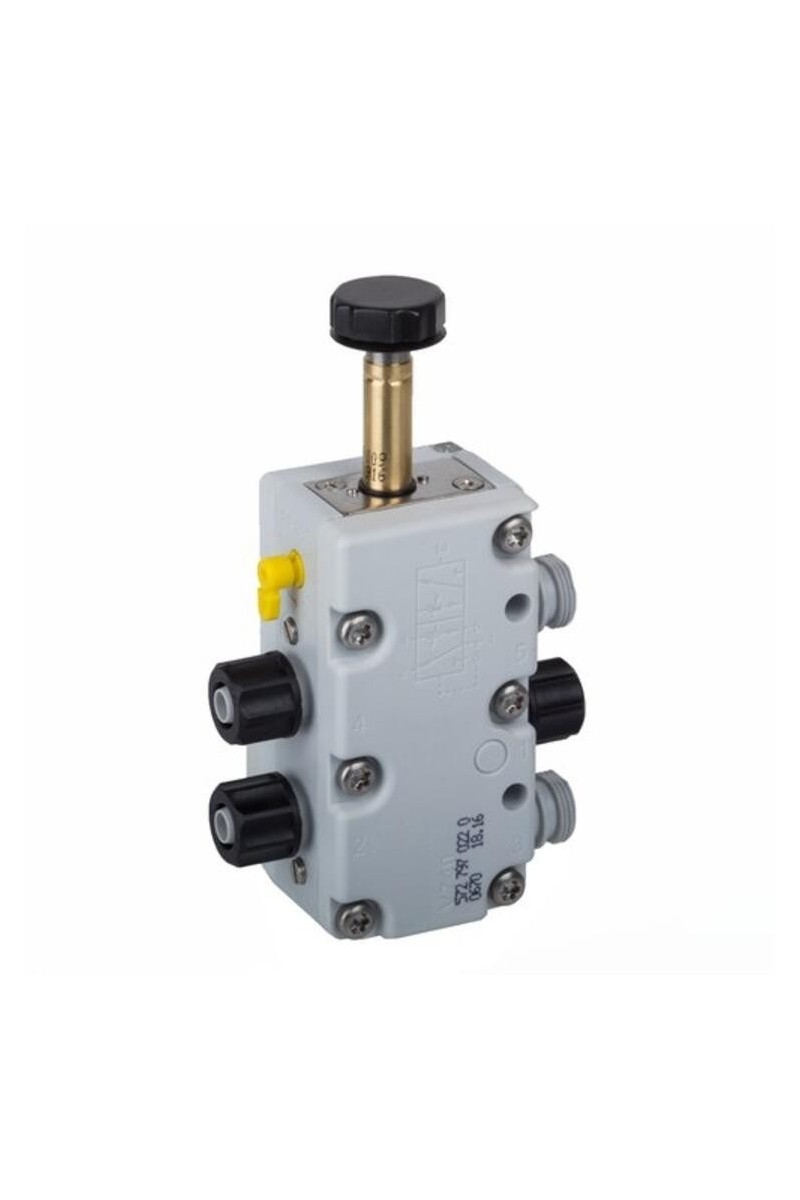

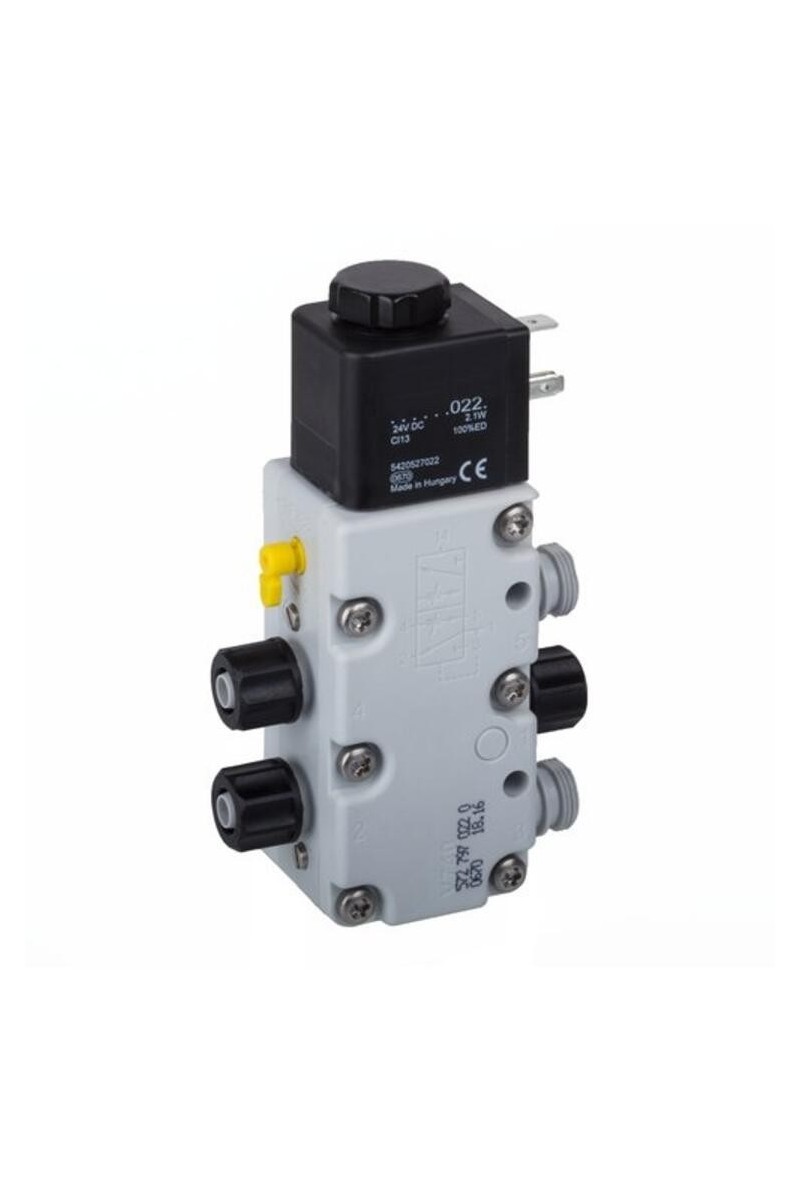

740 Series Diaphragm Seat Valve

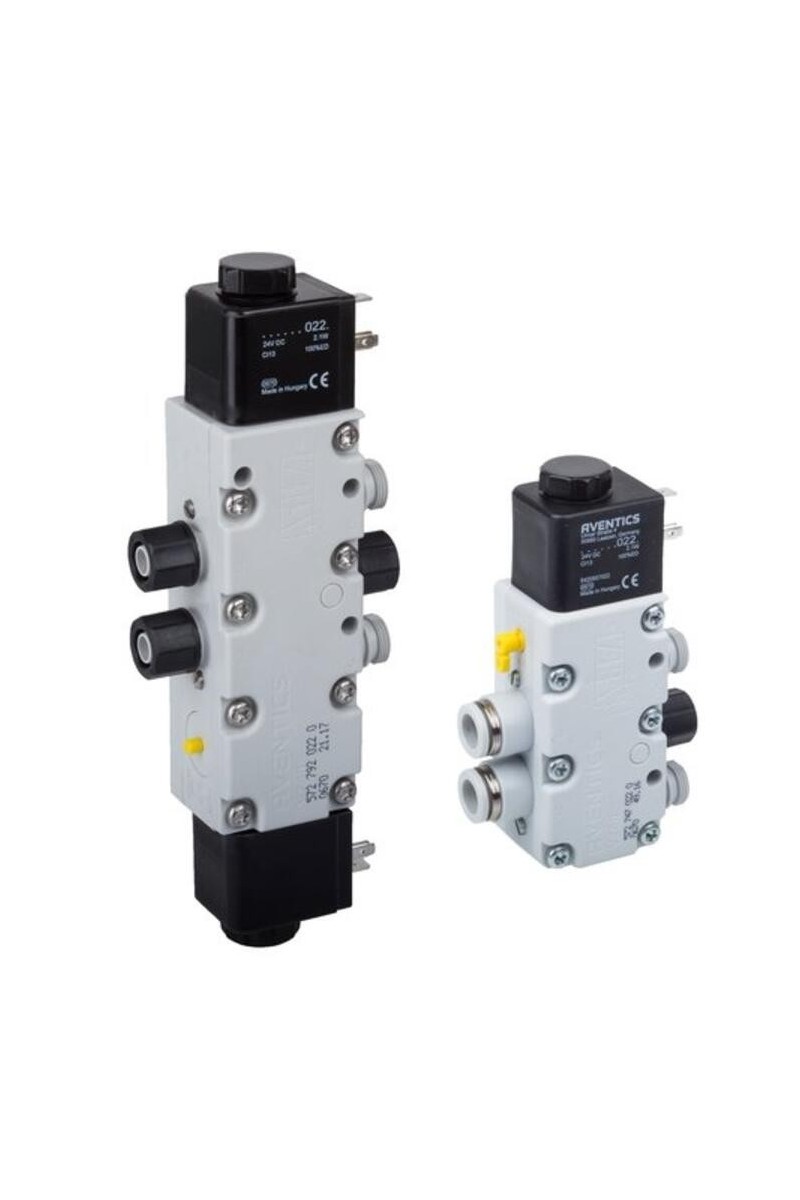

Plastic diaphragm seat valve for pneumatic applications from our manufacturer Aventics.

The body and connections are made of plastic, which means that the 740 series has a low weight and is corrosion-resistant.

High flow capacity, fast response time, and built-in flow adjustment as standard, which makes it a flexible alternative in automation.

Series 740 can be selected with ATEX rated coil.

As standard, it is for independent installation, but can also be built on a specially adapted base plate with quick connections.

  • Connection Plug, EN 175301-803, form A

    Flow capacity 1100l / min

    Temperature range -25 to +50 °C

    ATEX available on request

Selectable with ATEX coil
£0.00
Tax included
Quantity :
Ask a Question

Plastic diaphragm seat valve for pneumatic applications from our manufacturer Aventics.

The body and connections are made of plastic, which means that the 740 series has a low weight and is corrosion-resistant.

High flow capacity, fast response time, and built-in flow adjustment as standard, which makes it a flexible alternative in automation.

Series 740 can be selected with ATEX rated coil.

As standard, it is for independent installation, but can also be built on a specially adapted base plate with quick connections.

Connection air Ø 8x1

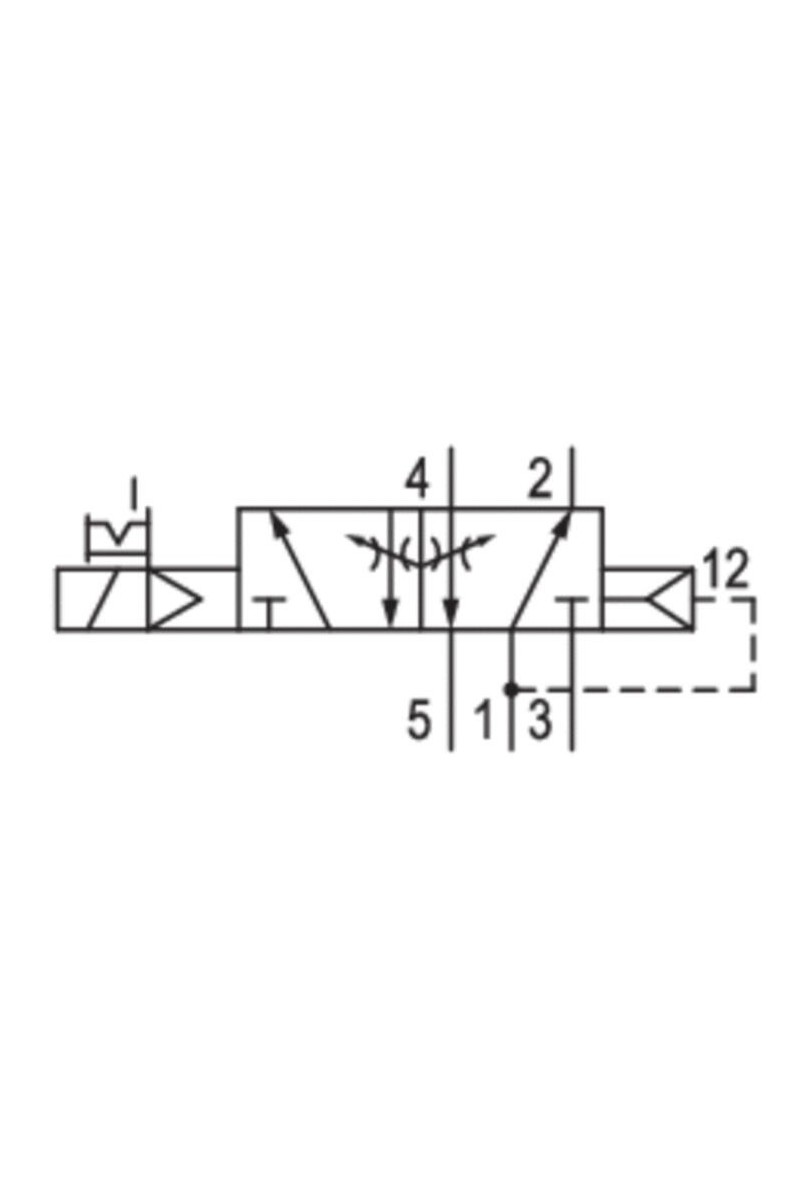

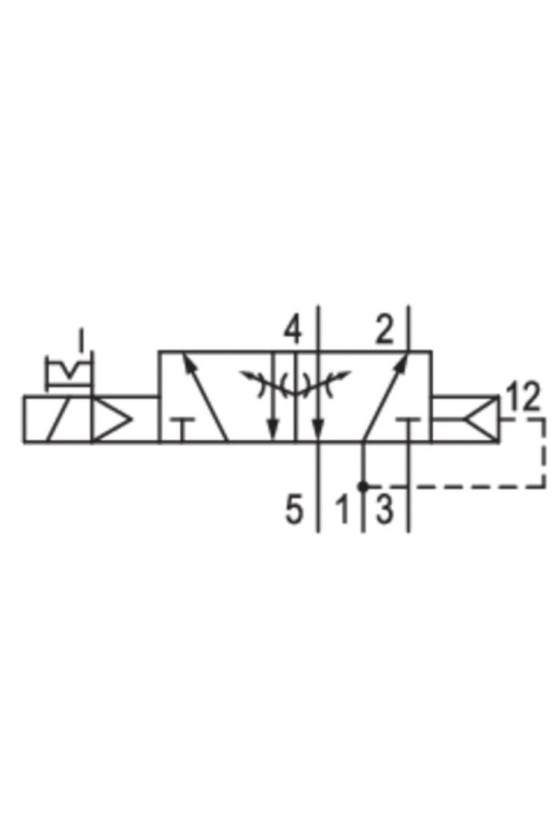

Function 5/2, Single solenoid
IP class IP65
Material of seals NBR
Nominal flow 700 l/min
Oil content max 5 mg/m³
Operating pressure max 10 bar
Operating pressure min 1.5 bar
Particle size max 50 µm
Power consumption 2.1 W
Response time off 24 ms
Temperature operational max 50 °C
Temperature operational min -25 °C
Weight 0.339 kg
Voltage dc 24 V
