CD07, CD12 Series Directional Valve

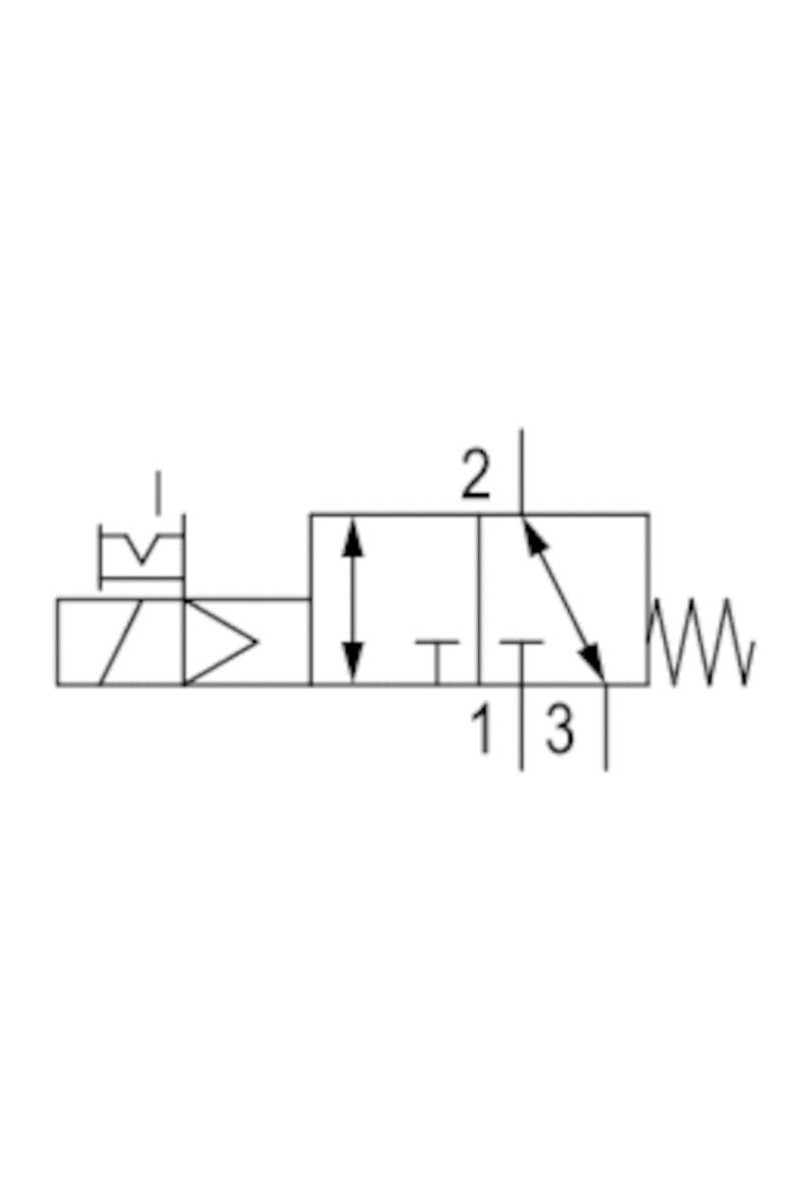

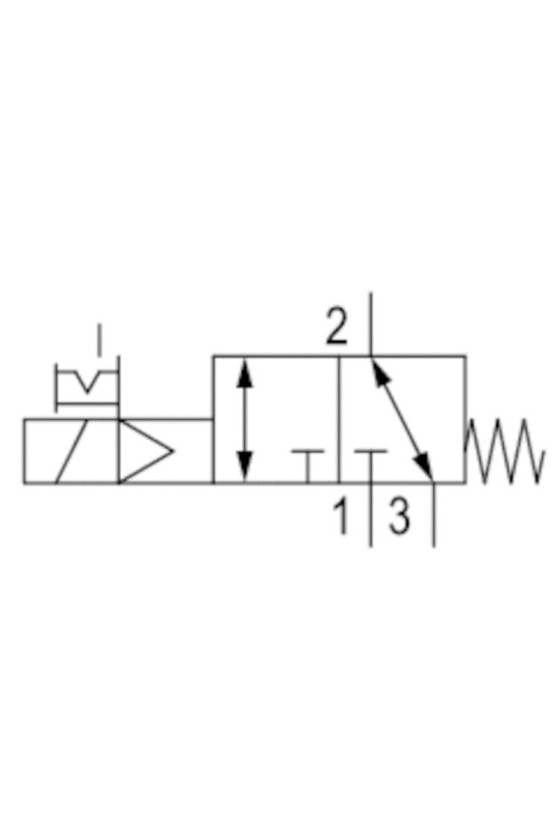

3/2" 5/3" 5/2"

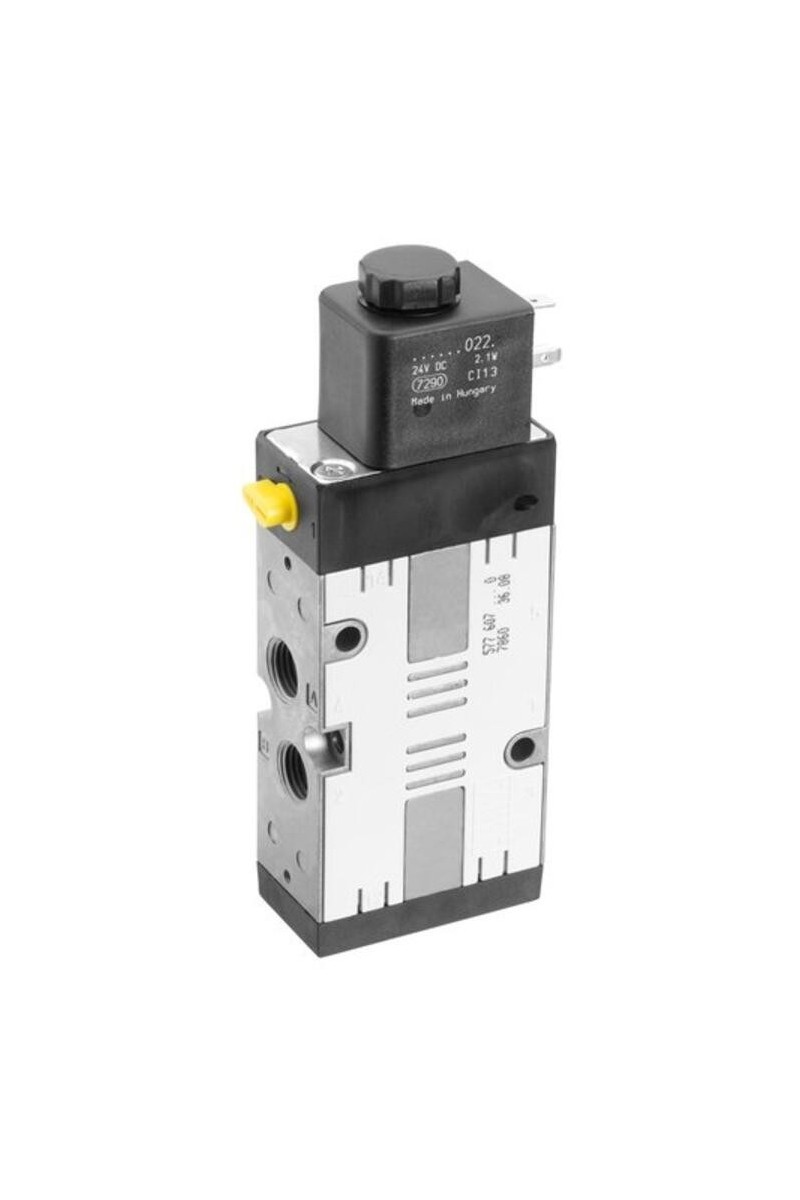

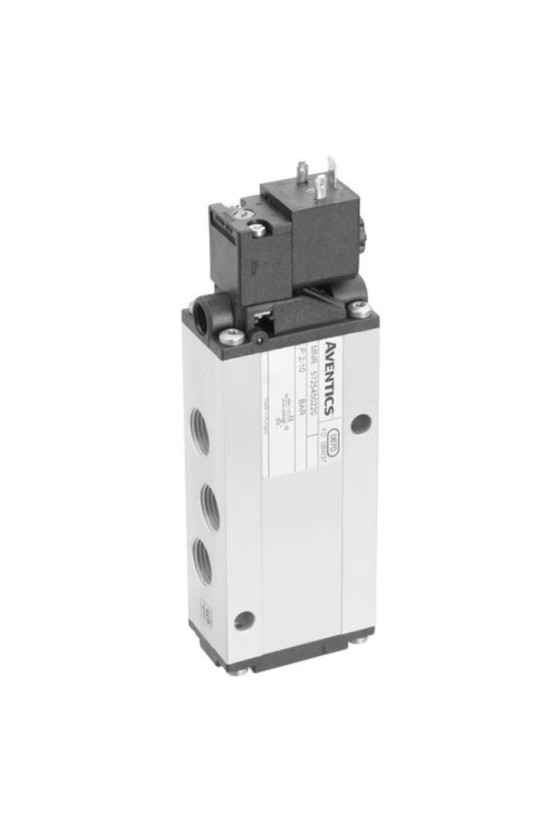

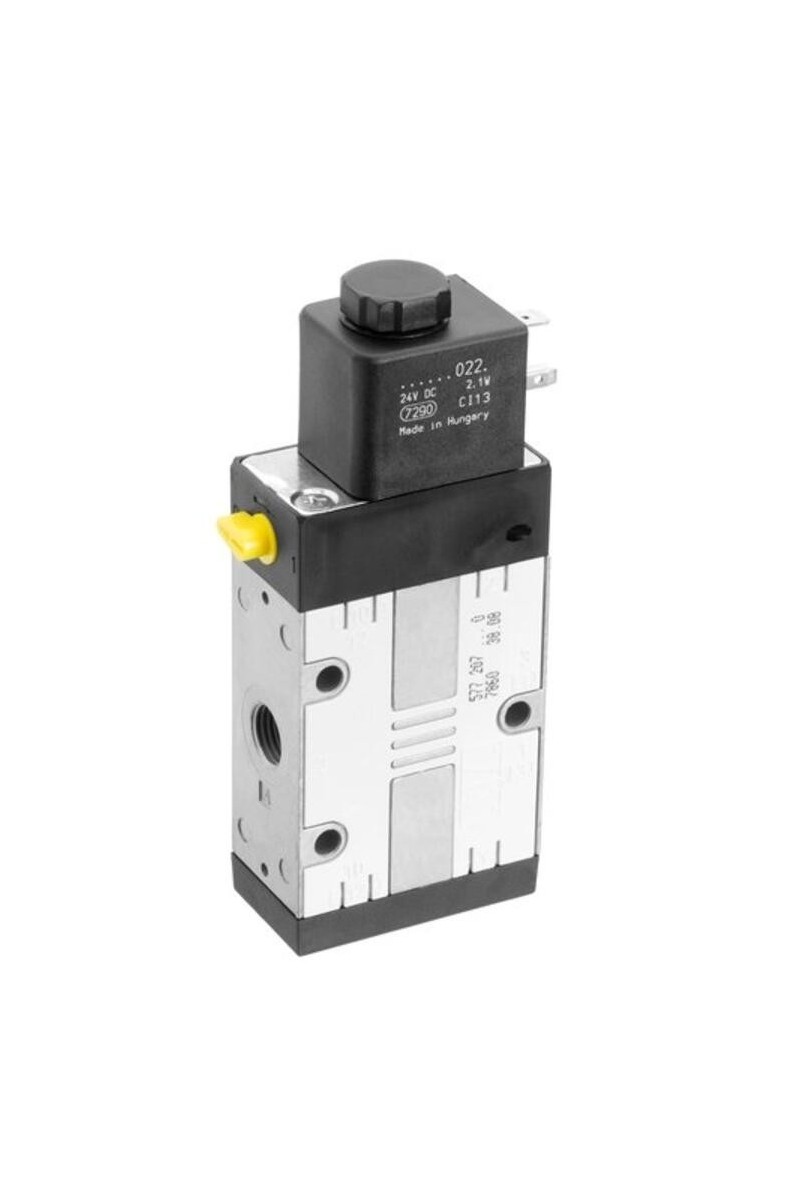

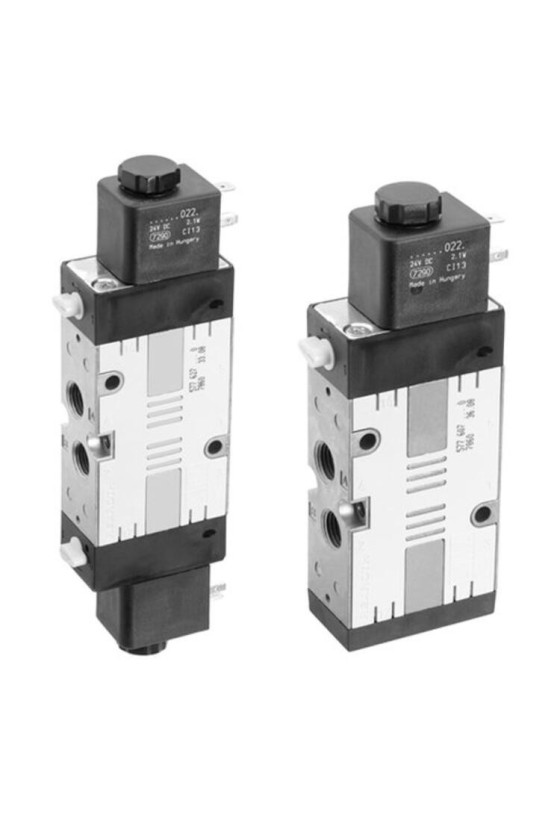

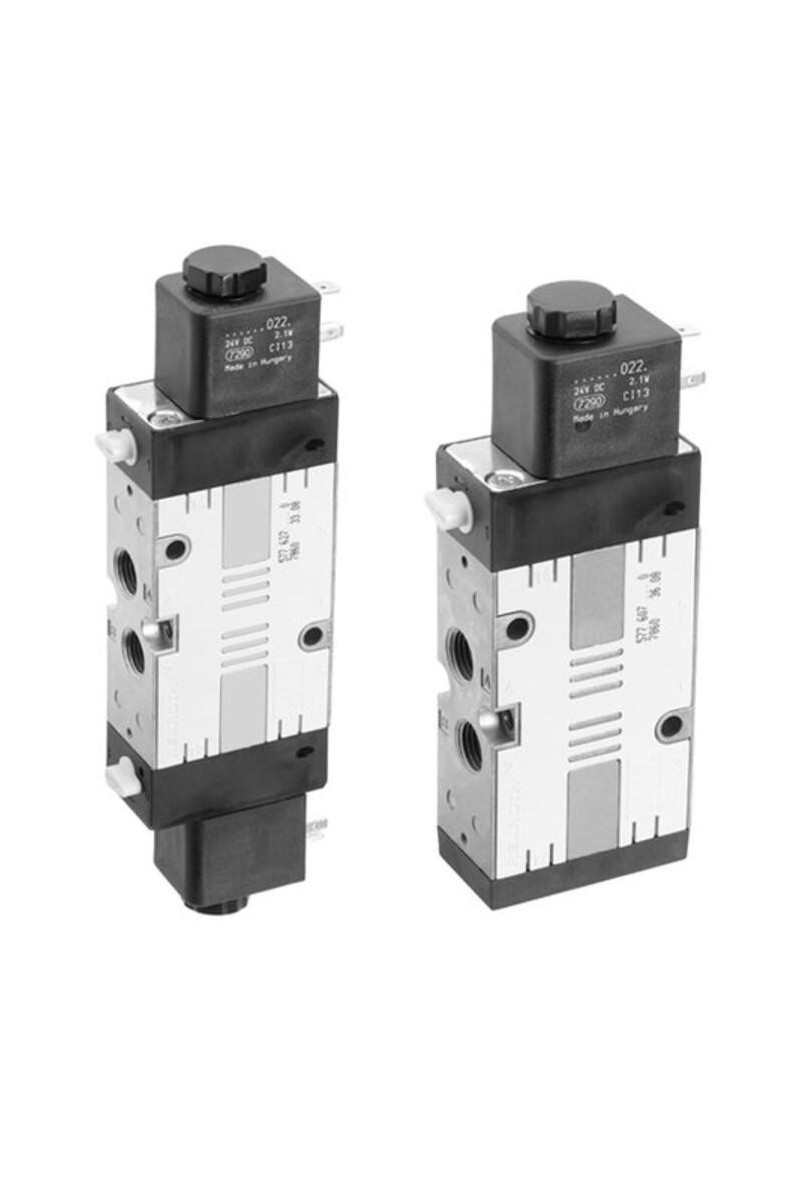

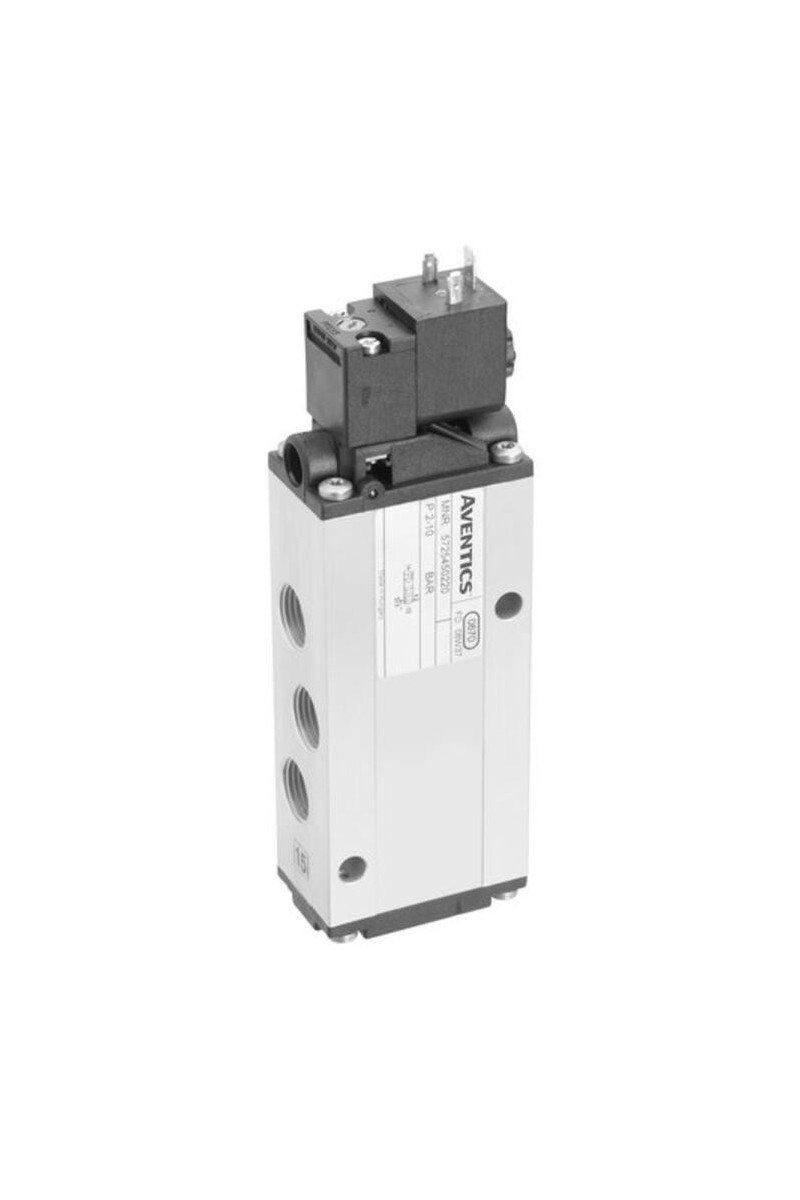

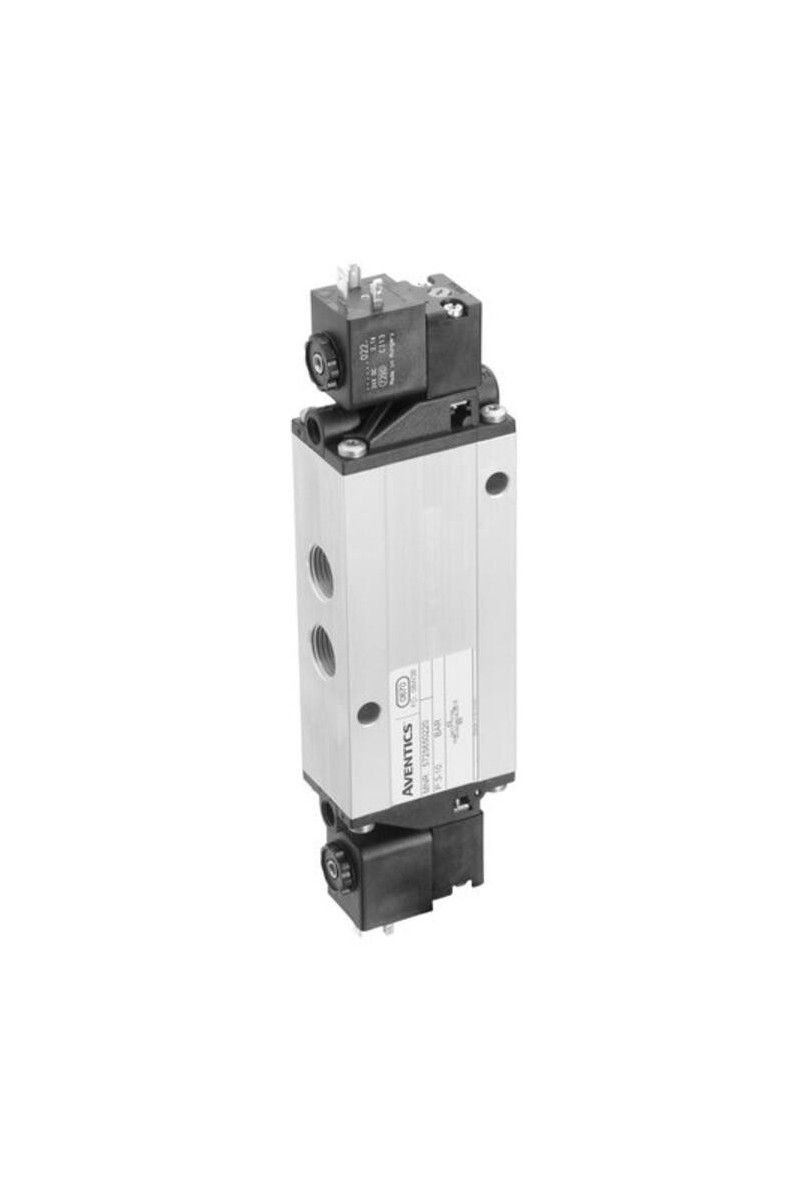

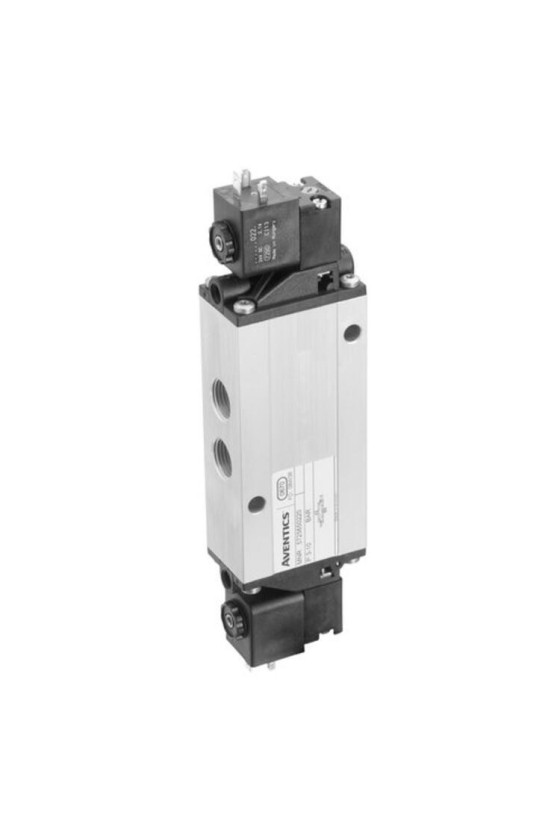

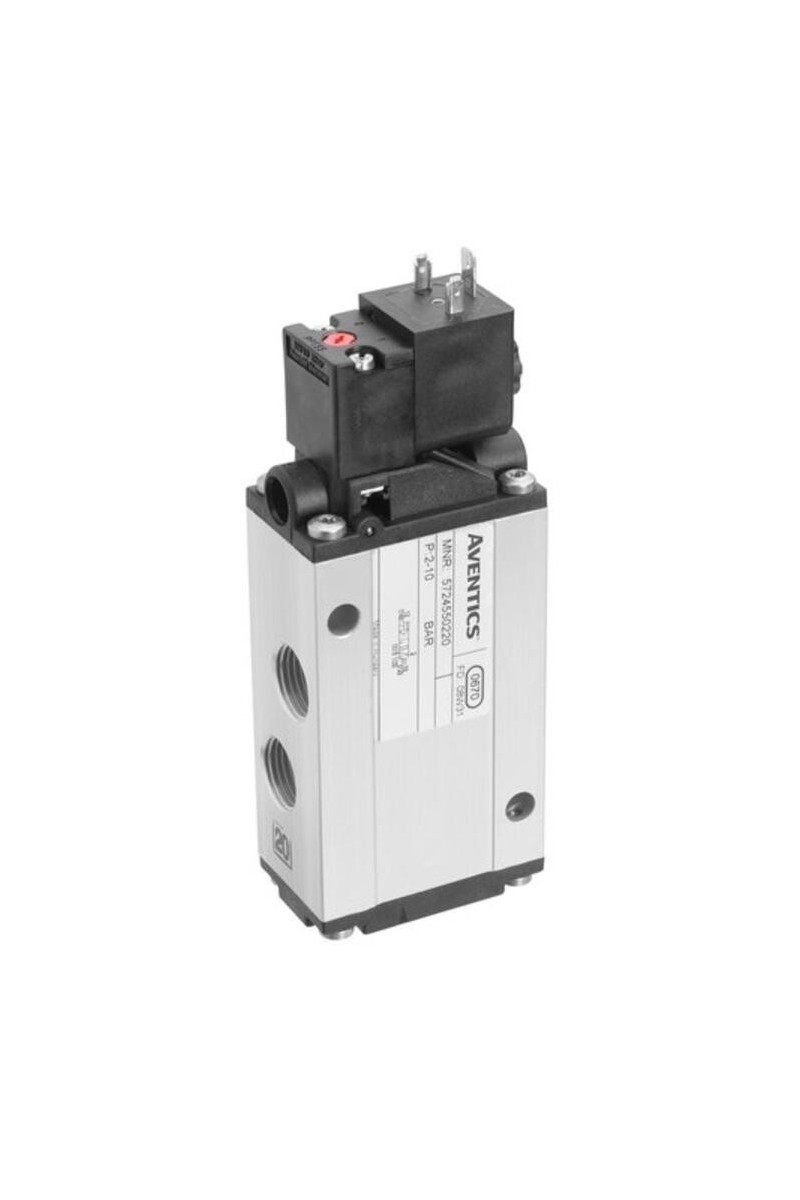

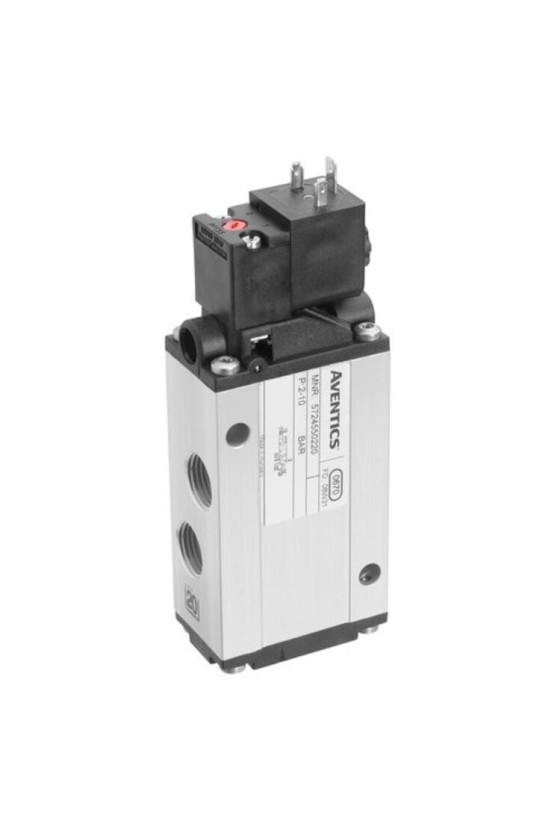

Aventics Directional Spool Valve CD012 and CD07, is electrically operated and available in solenoid / solenoid or solenoid / solenoid spring connection and APB Closed Centre Sealed Mid Position. With varients including, 5/3, 3/2, and 5/2, and in 1/2 BSP and 1/4 BSP connection.

  • Compressed air connection G1/4"-G1/2"

    Flow capacity 900 to 4100 l/min

    Temperature range -15/25°C to +50°C

ATEX available on request
£0.00
Tax included
Quantity :
Ask a Question

Aventics Directional Spool Valve CD012 and CD07, is electrically operated and available in solenoid / solenoid or solenoid / solenoid spring connection and APB Closed Centre Sealed Mid Position. With varients including, 5/3, 3/2, and 5/2, and in 1/2 BSP and 1/4 BSP connection.


Connection air 1/4 BSP
IP class IP65
Material of seals NBR
Material valve Fiberglass reinforced polyamide
Nominal flow 1400 l/min
Oil content max 1 mg/m³
Operating pressure max 10 bar
Operating pressure min 3 bar
Particle size max 50 µm
Power consumption 2.1 W
Response time off 45 ms
Temperature operational max 50 °C
Temperature operational min -25 °C
Weight 0.54 kg
Voltage dc 24 V
