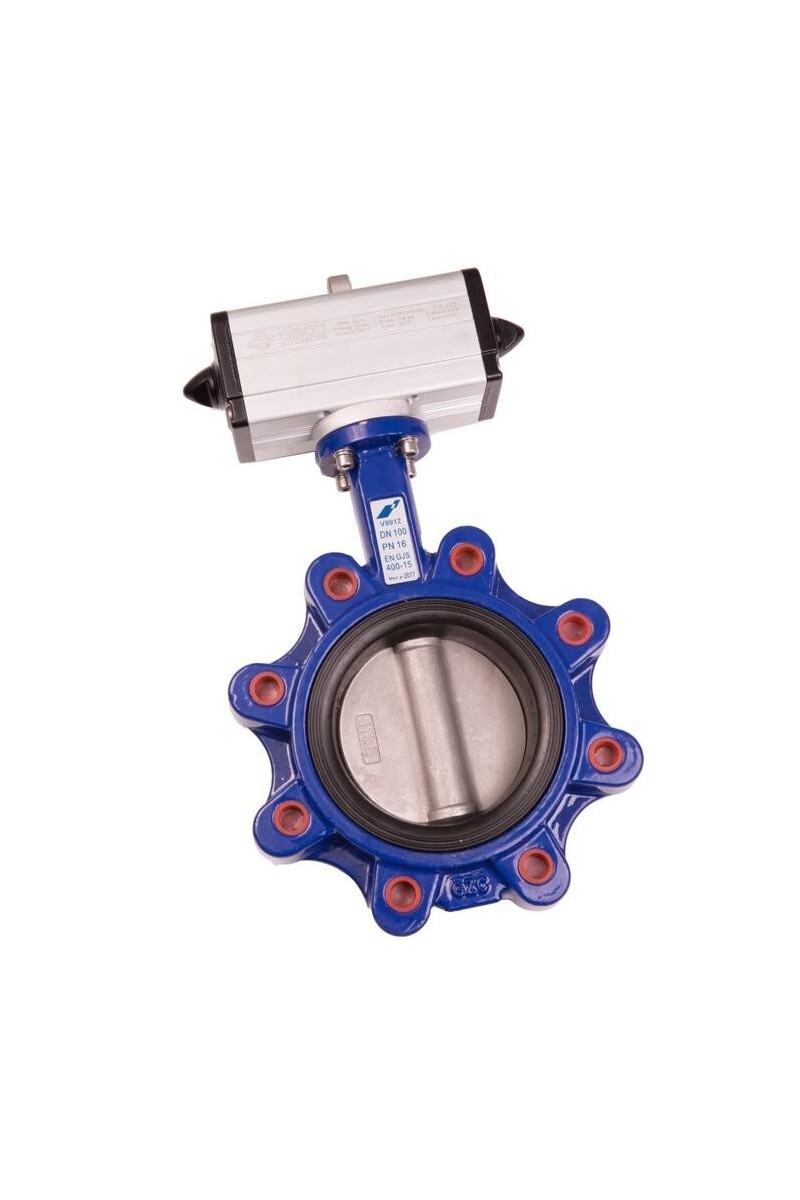

Lugged Butterfly Valve and Double Acting Actuator
  • Lugged Butterfly Valve and Double Acting Actuator

Lugged Butterfly Valve and Double Acting Actuator

High quality cast iron butterfly valve to be used between two flanges. DN40 to DN300, PN10 to PN16 Suitable for Drinking Water, Gas, or Food (With NBR White) with double acting pneumatic actuator.

Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C.

Sizes DN40 to DN300

Pressure range PN10 to 16 bar

Temperature range -40°C to +190°C

ATEX available on request

£0.00
Tax included
Quantity :
Ask a Question

High quality cast iron butterfly valve to be used between two flanges. DN40 to DN300, PN10 to PN16 Suitable for Drinking Water, Gas, or Food (With NBR White) with double acting pneumatic actuator.

Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C.
