TC08, TC15 Series Directional Spool Valve

5/3 5/2

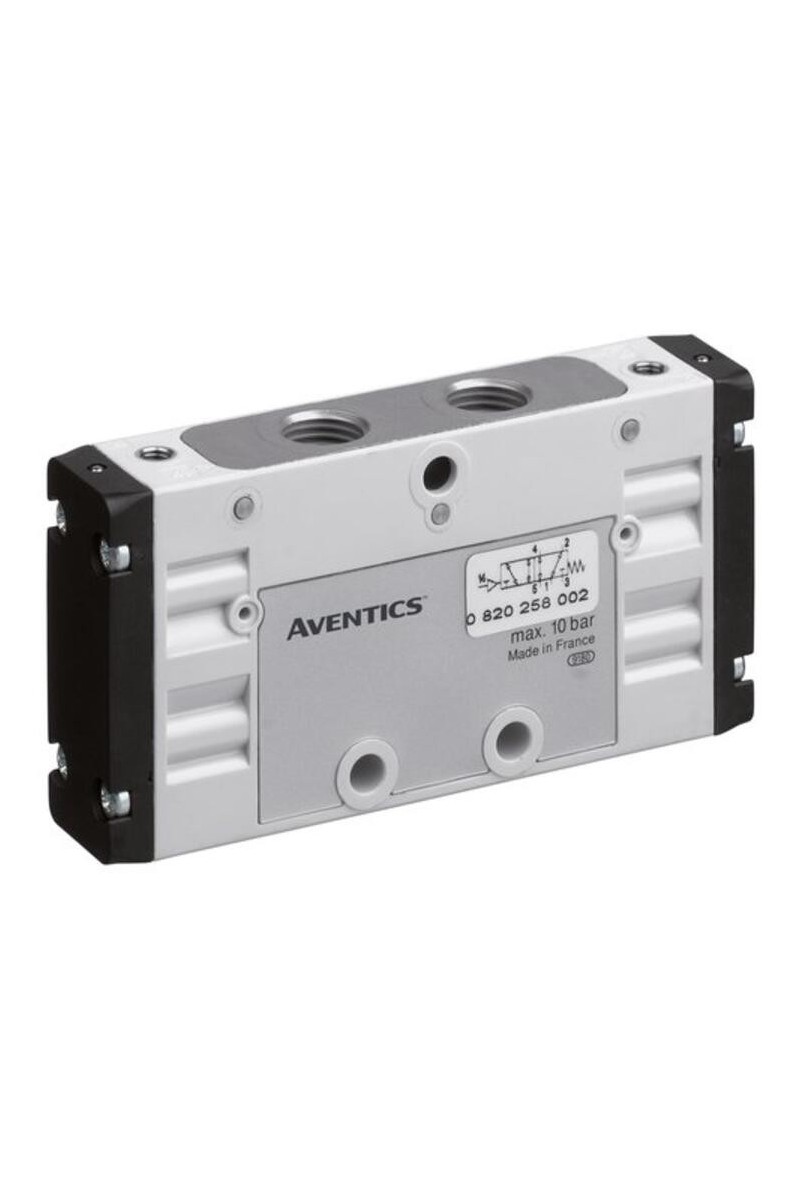

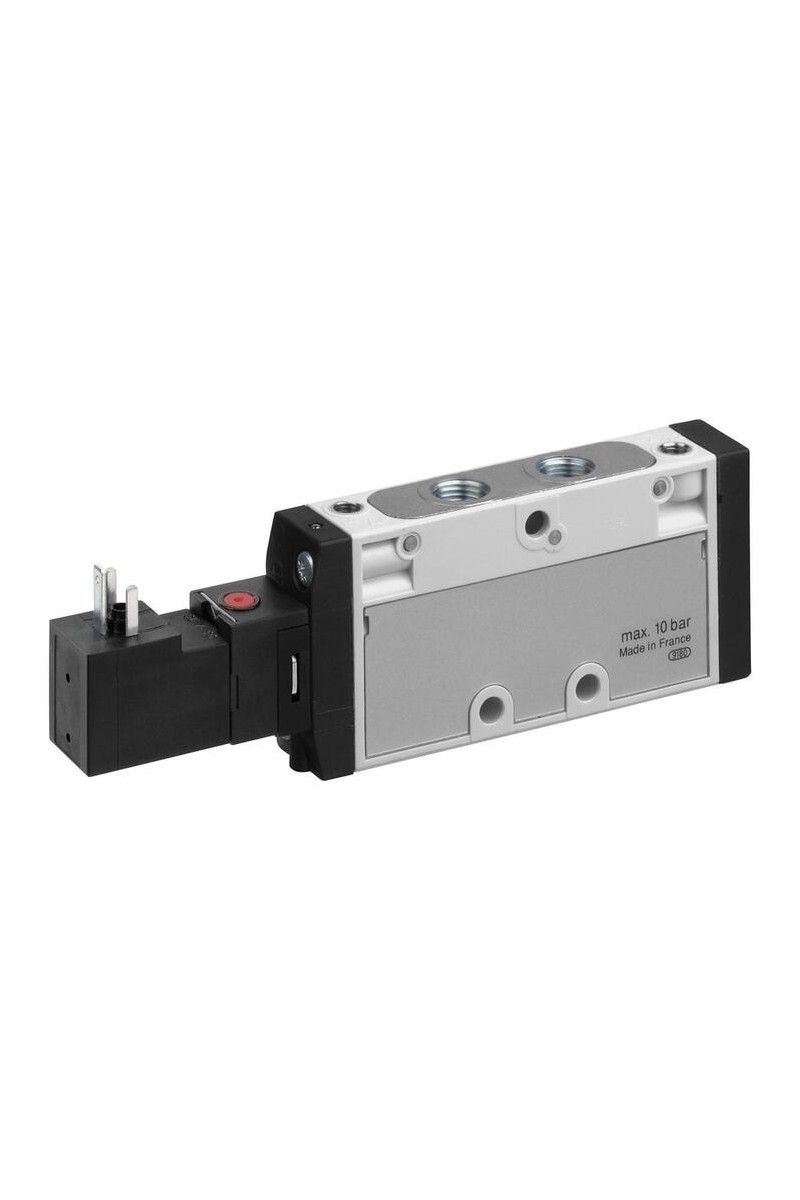

Aventics directional spool valve, TC15 and TC08, is electrically operated and available in solenoid / solenoid and solenoid / solenoid spring. Available as sealed mid position of closed centre, exhausted centre and pressurised centre. With compressed air connections 1/8" - 1/4" and 5/2 and 5/3.

  • Connection 1/8 ", 1/4"

    Flow capacity 800 l/min

    Temperature range -10°C to +50°C

IP65
£0.00
Tax included
Quantity :
Ask a Question

Close delay 14 ms
Connection air 1/8 BSP
Control Electrical
Electrical connection DIN C
Function 5/2, Spring return
IP class IP65
Material of seals Polyurethane-based
Material provided Polyamide
Material valve Polyamide
Media Air pressure
Nominal flow 800 l/min
Oil content max 5 mg/m³
Operating pressure max 10 bar
Operating pressure min 2 bar
Particle size max 5 µm
Power consumption 2 W
Response time off 18 ms
Temperature operational max 50 °C
Temperature operational min -10 °C
Type of valve Electrically controlled
Weight 0.14 kg
Voltage dc 24 V
