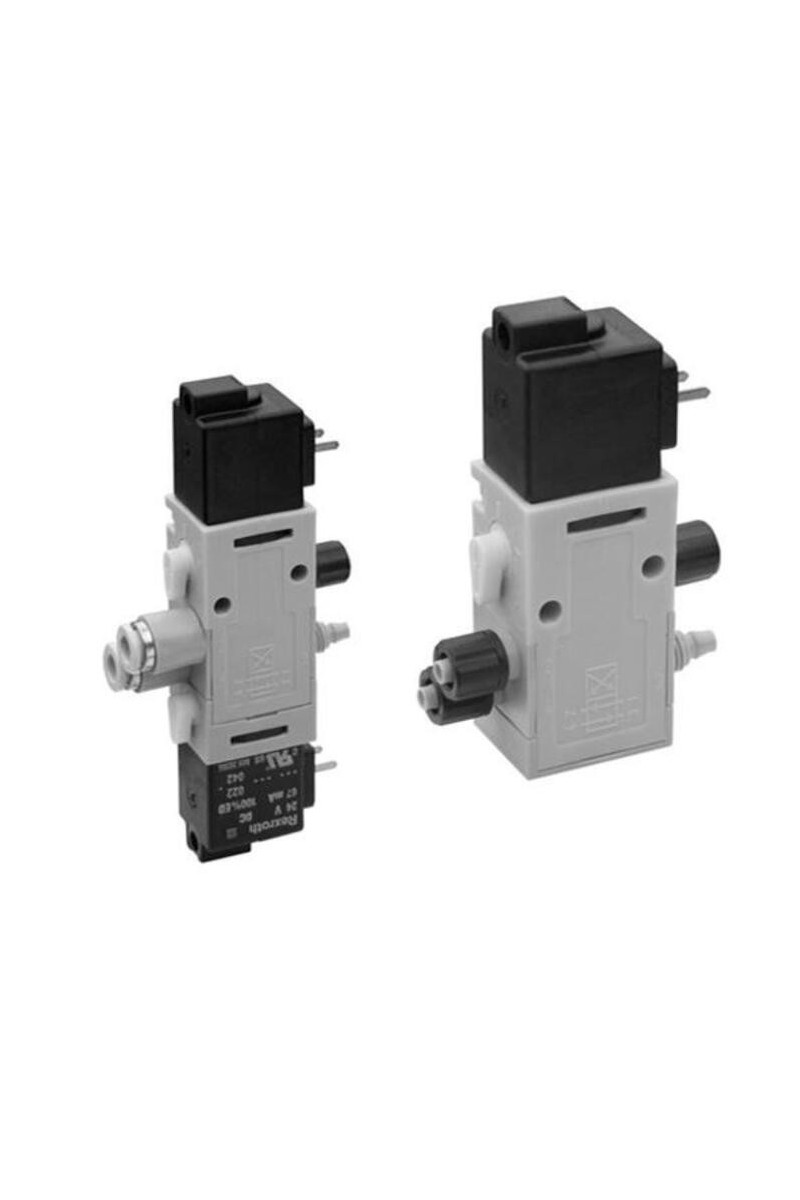

840 Series Directional Valve
  • 840 Series Directional Valve

840 Series Directional Valve

Solenoid/spring diaphragm valve

Aventics Directional Valve - Series 840 - 4/2 - Solenoid/Spring Diaphragm Poppet Valve. Available in 24vDC, 24vAC, 110vAC and 220/230vAC.

Compressed Air Connection 6x1

IP65

Temperature range -15°C to +50°C

Nominal Flow Qn = 200 l/min

£0.00
Tax included
Quantity :
Ask a Question

Aventics Directional Valve - Series 840 - 4/2 - Solenoid/Spring Diaphragm Poppet Valve. Available in 24vDC, 24vAC, 110vAC and 220/230vAC.

IP class IP65
Material of seals NBR
Nominal flow 200 l/min
Oil content max 1 mg/m³
Operating pressure max 10 bar
Operating pressure min 15 bar
Particle size max 50 µm
Power consumption 16 W
Response time off 12 ms
Temperature operational max 50 °C
Temperature operational min -15 °C
Weight 0.096 kg
Voltage dc 12 V
