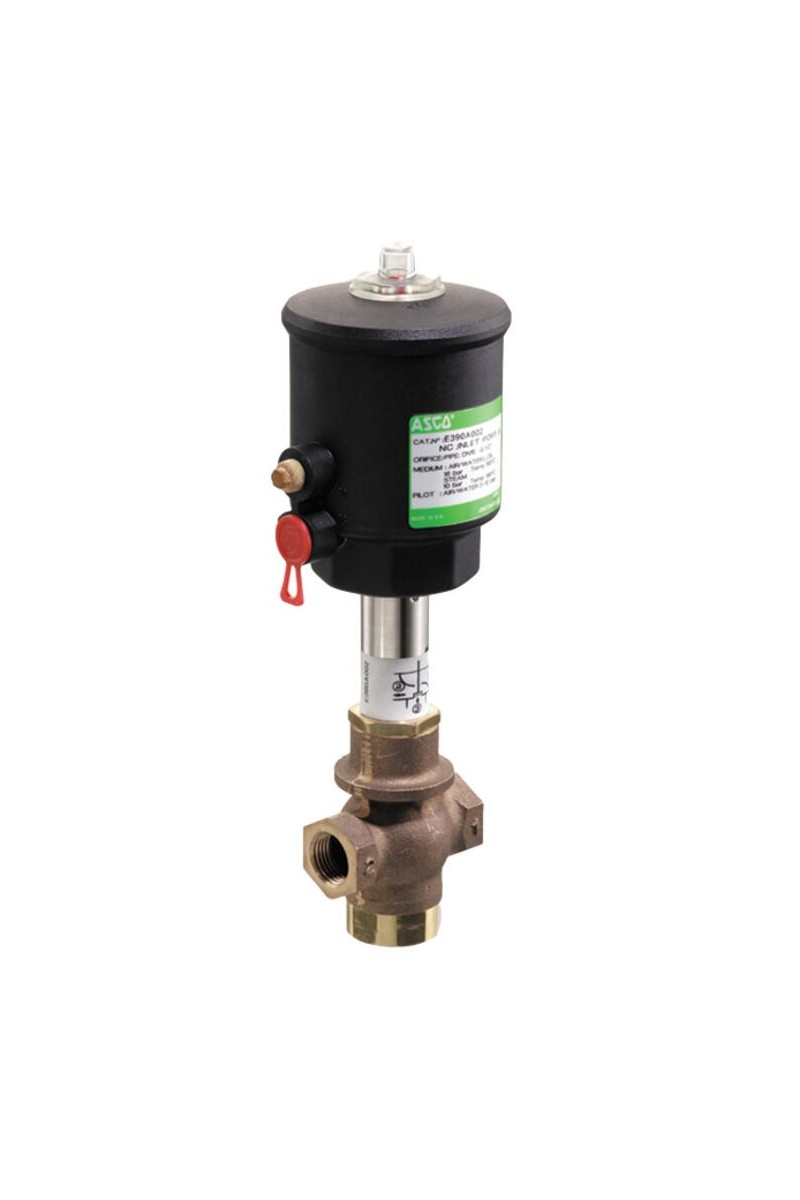

ASCO - 3/2 Angle-Seat Valve 1/2\"-2\"

Normally closed/open

Working pressure 0 to 16 bar

Housing in bronze

Non-sensitive to dirt

£0.00
Tax included
Quantity :
Ask a Question

General Data
Connection 1/2 BSP

Material Data
Material body Bronze
Material of seals PTFE

Temperature Data
Temperature of media from -10 °C
Temperature of media to 184 °C

Additional Data
Viscosity max 600 cSt
Approvals SIL2
Weight 1.6 kg
Throughput 15 mm
Type of valve Seat valve
Material packing Brass

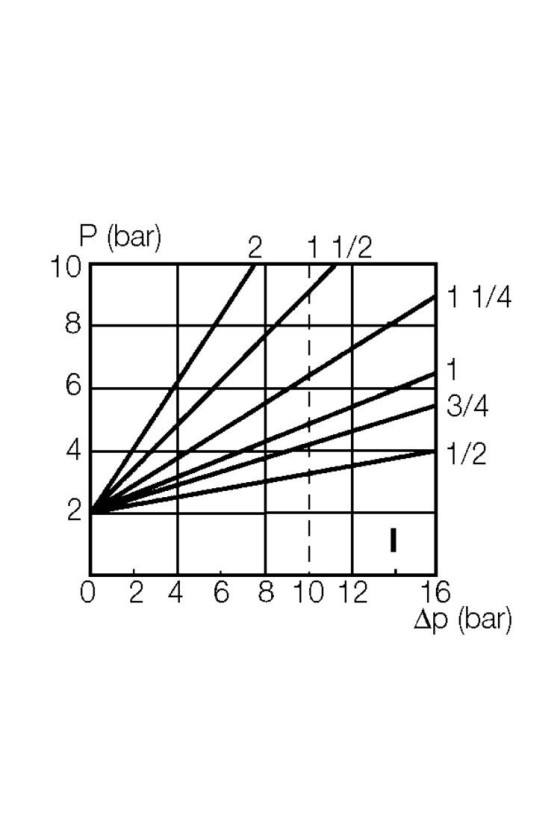

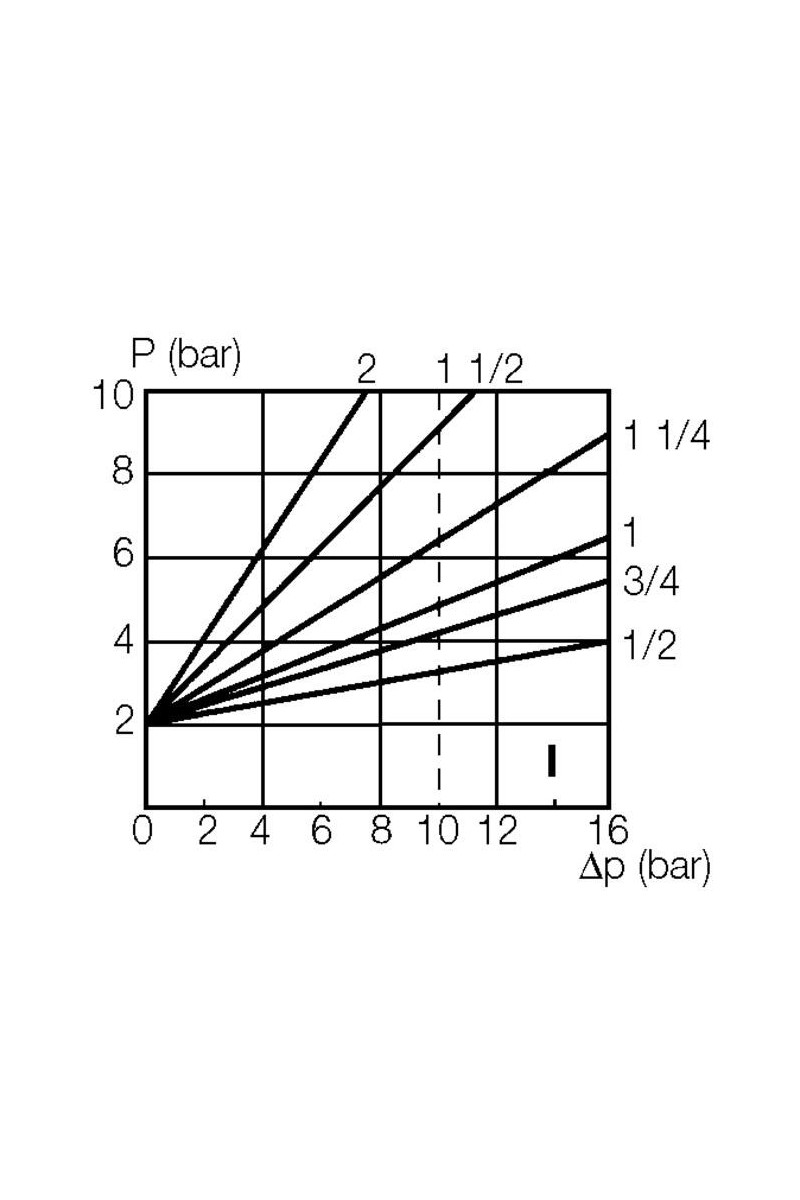

Pilot pressure max 10 bar
Temperature operational min -10 °C
Temperature operational max 60 °C
Connection air 1/8 BSP
Differential air pressure max 16 bar
Differential pressure min 0 bar
Differential oil pressure max 16 bar
Differential water pressure max 16 bar
Differential steam pressure max 10 bar

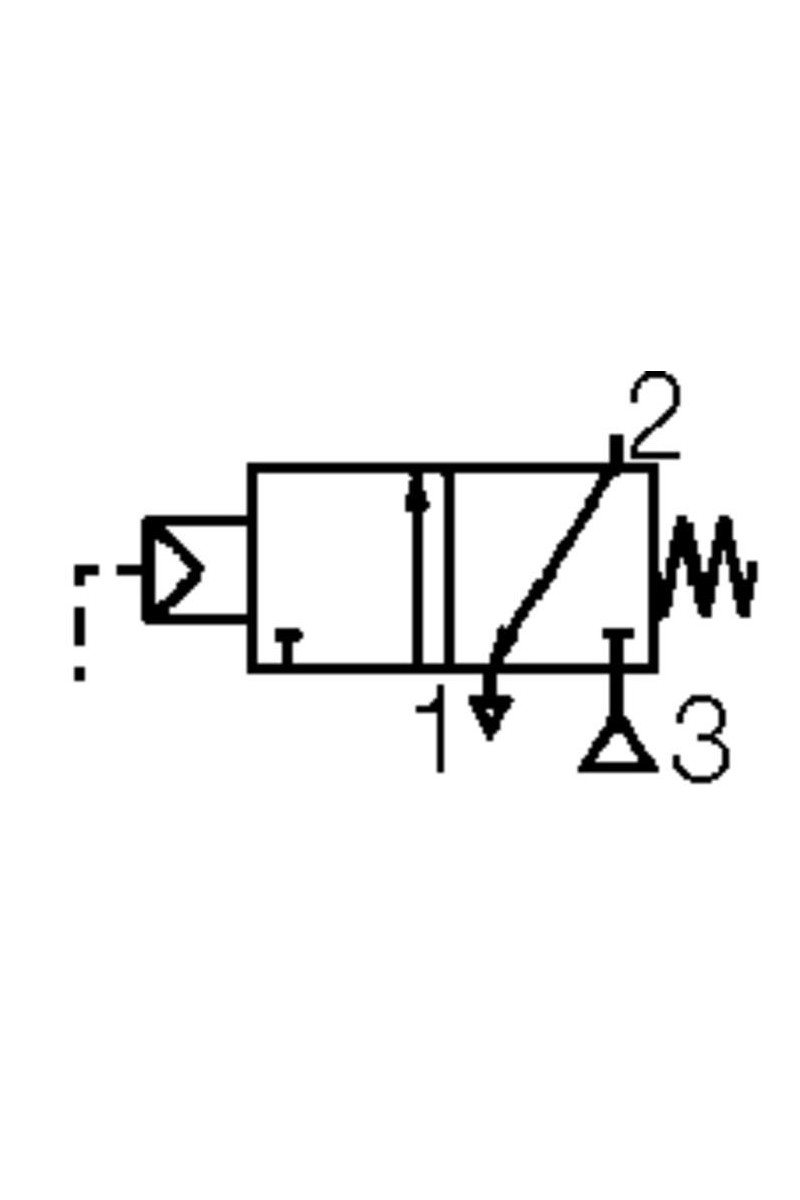

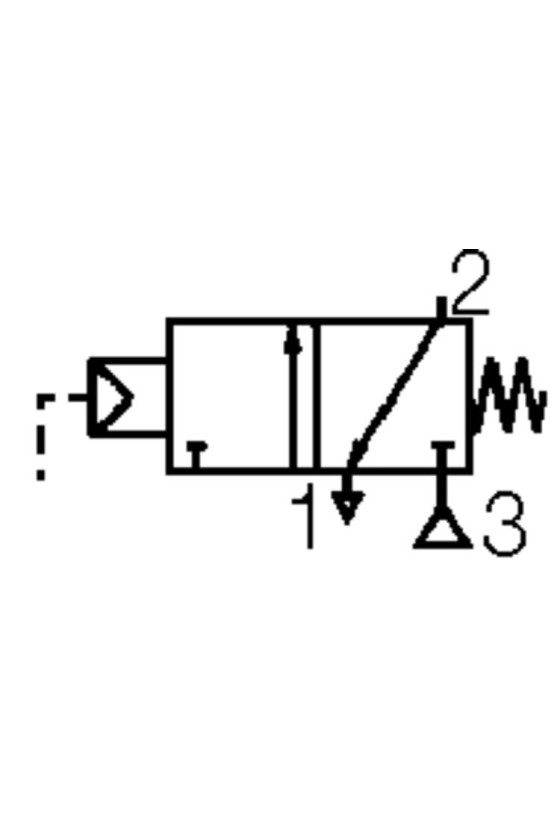

Function 1 3/2
Function 2 Normally Closed
Material controls Fiberglass reinforced polyamide
Material piston rod Stainless steel
Material scraping seal FPM
Material box stuffing PTFE flask filled
Material piston rod seal Stainless steel
Material piston seal PTFE
Pilot pressure min 3 bar
