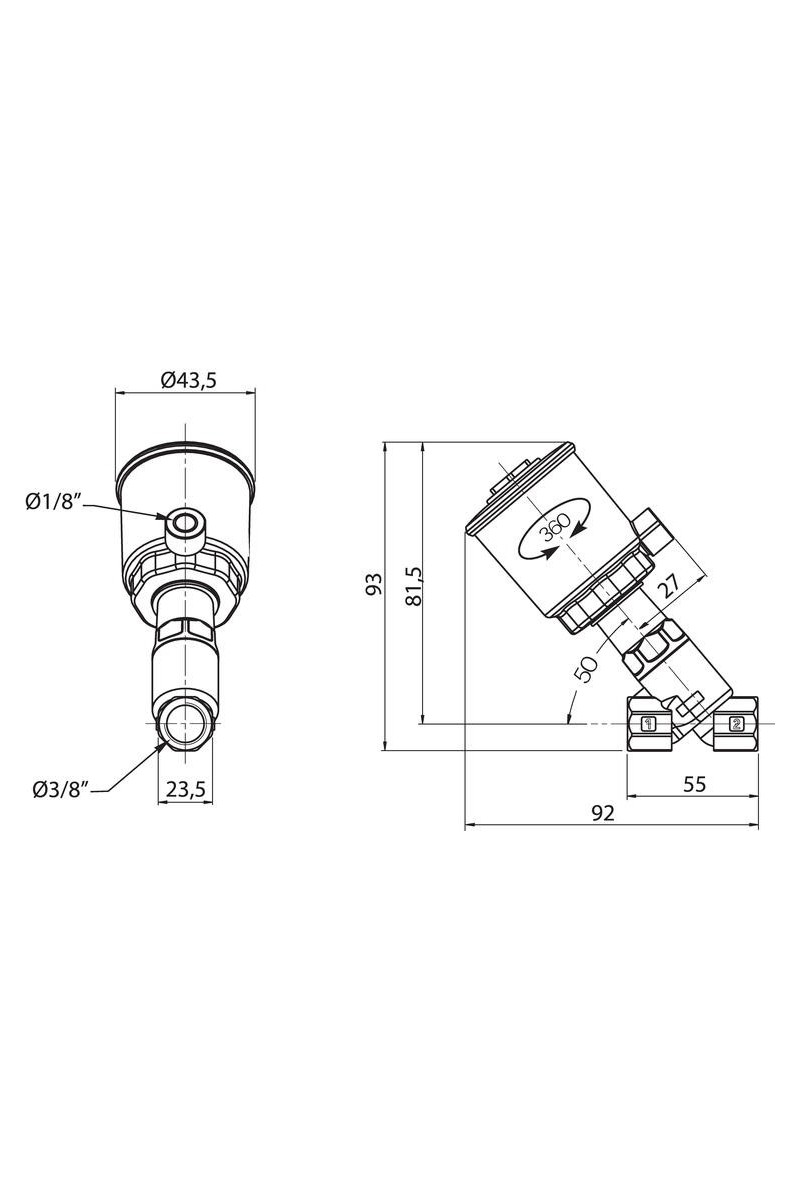

ASCO - 2/2 Angle-Seat Valve Air Controlled 3/8\"-3/4\"
Normally closed, normally open
Extremely compact version
Working pressure 0 bar to 16 barHousing in stainless
General Data
Connection 3/8 BSP Flow factor / flow coefficient 2,8 Material Data
Material body Stainless steel 316L Material of seals PTFE Temperature Data
Temperature of media from -10 °C Temperature of media to 184 °C Additional Data
Pressure max 16 bar Viscosity max 600 cSt Weight 0.35 kg Throughput 10 mm Material packing Stainless steel Pilot pressure max 10 bar Temperature operational min -10 °C Temperature operational max 60 °C Connection air 1/8 BSP Differential air pressure max 16 bar Differential pressure max 16 bar Differential pressure min 0 bar Differential oil pressure max 16 bar Differential water pressure max 16 bar Differential steam pressure max 10 bar Flow max 47 l/min Function 1 2/2 Function 2 Normally Closed Material of body Stainless steel 316L Material controls Fiberglass reinforced polyamide Material piston rod Stainless steel Material scraping seal FPM Material box stuffing PTFE Material piston rod seal Stainless steel 303 Material piston seal PTFE Pilot pressure min 4 bar
