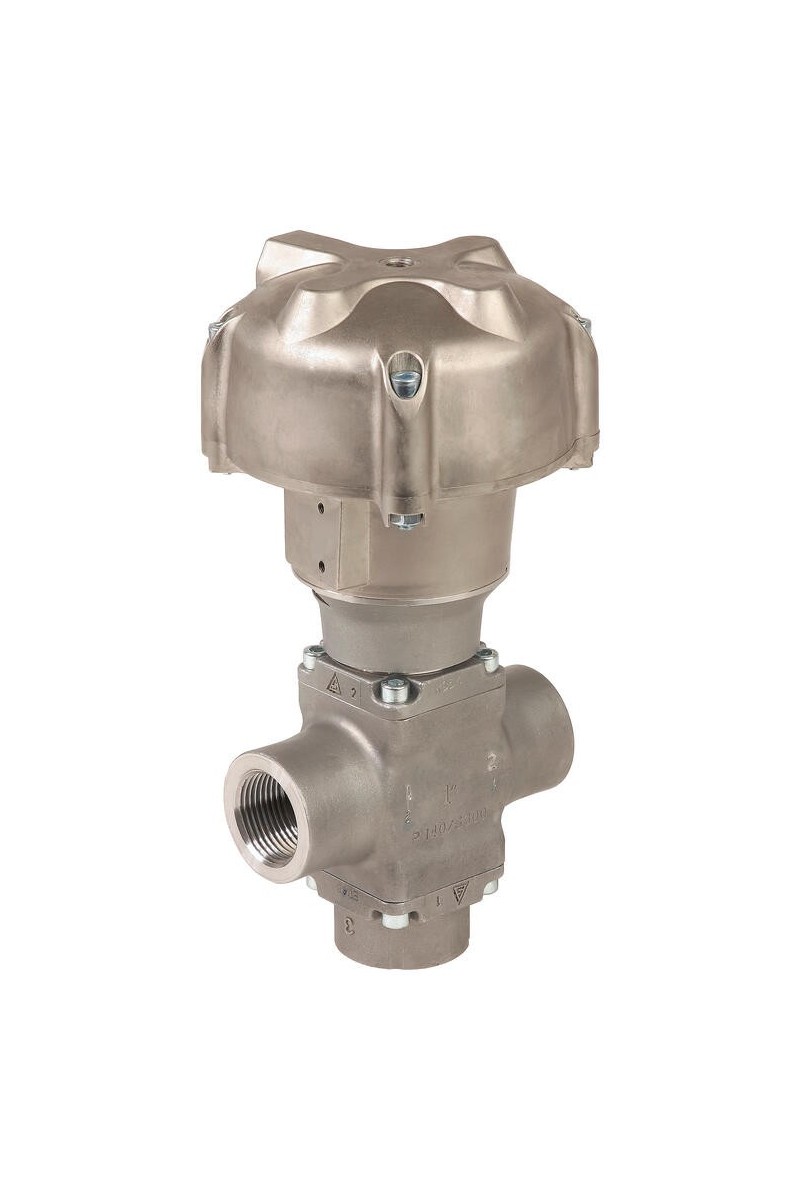

ASCO - 3/2 Seat Valve Air Controlled 1/2\"-2\"

Universal

Working pressure 0 to 40 bar

For temperatures up to +250 °C

For viscosity up to 5,000 cSt

£0.00
Tax included
Quantity :
Ask a Question

General Data
Connection 1/2 BSP

Material Data
Material body Stainless steel 316L
Material of seals Graphite

Temperature Data
Temperature of media from -10 °C
Temperature of media to 250 °C

Additional Data
Pressure max 40 bar
Viscosity max 5000 cSt
Approvals SIL2
Weight 1.88 kg
Throughput 15 mm
Type of valve Seat valve
Material packing Stainless steel

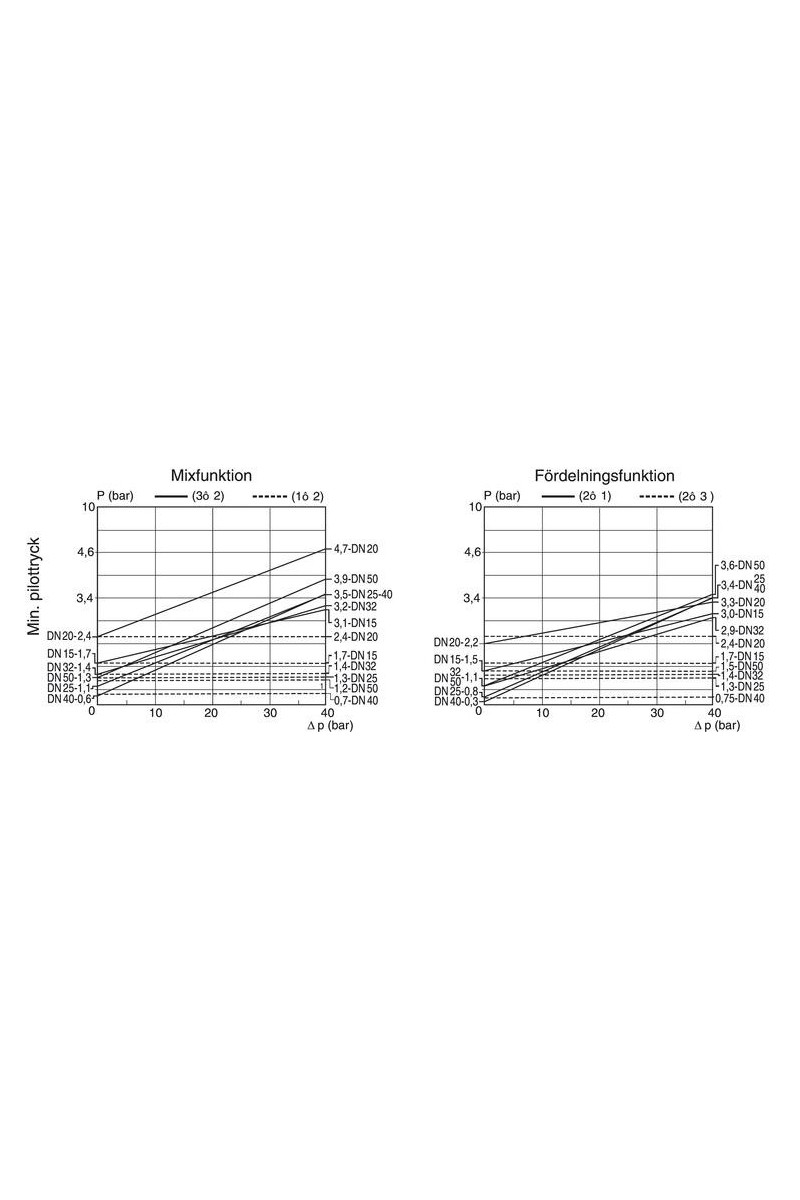

Pilot pressure max 10 bar
Temperature operational min -25 °C
Temperature operational max 180 °C
Connection air 1/8 BSP
Differential air pressure max 40 bar
Differential pressure max 40 bar
Differential pressure min 0 bar
Differential oil pressure max 40 bar
Differential water pressure max 40 bar
Differential steam pressure max 40 bar
Function 1 3/2
Function 2 Universal
Material controls Nickel plated aluminum
Material piston rod Stainless steel
Material box stuffing PTFE flask filled
Material piston seal Bronze, PTFE
