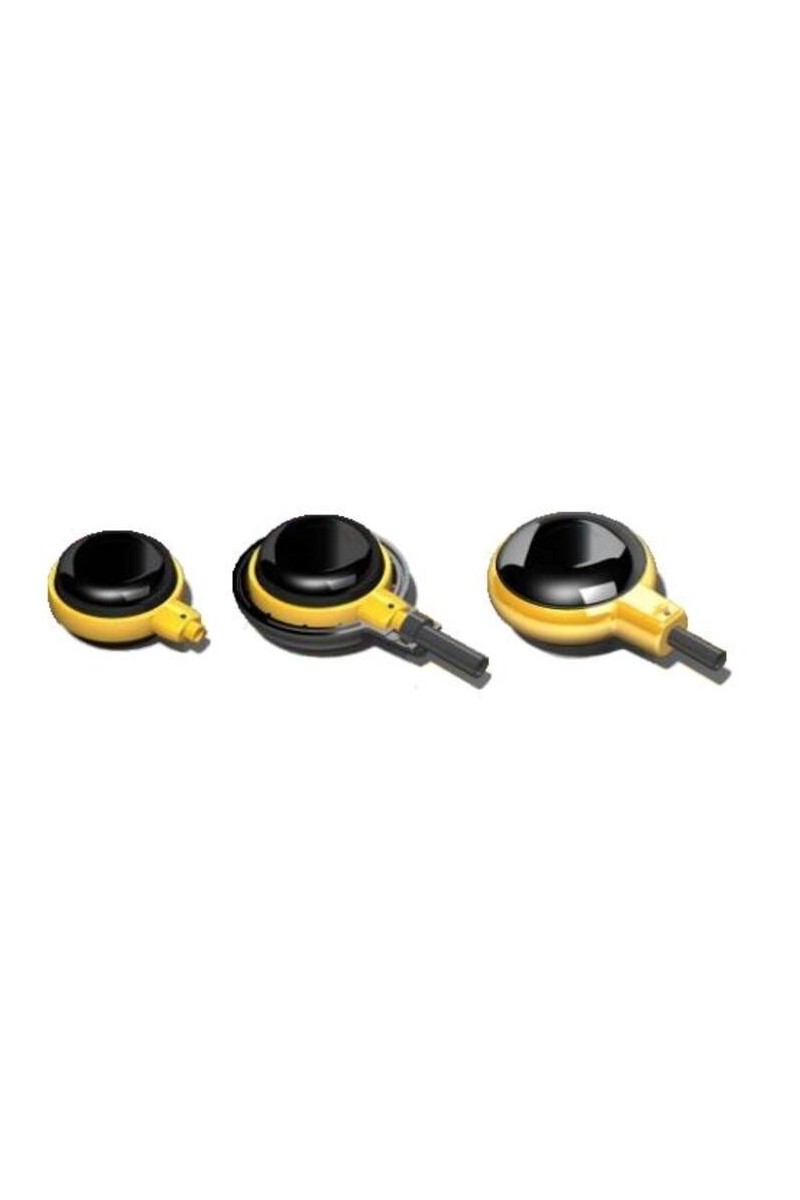

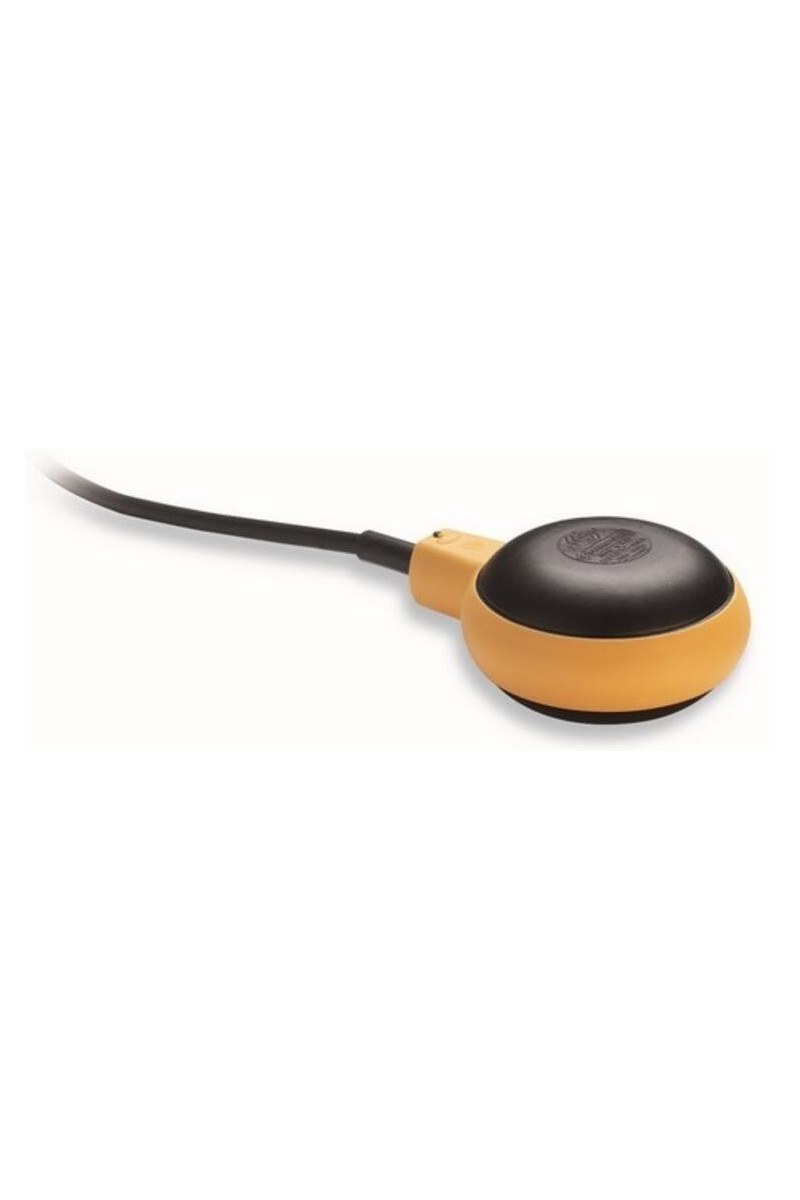

Tecnoplastic - Float Wwitch - Supertec
  • Tecnoplastic - Float Wwitch - Supertec
  • Tecnoplastic - Float Wwitch - Supertec
  • Tecnoplastic - Float Wwitch - Supertec

Tecnoplastic - Float Wwitch - Supertec

The Supertec level switch is resistant to high pressure due to its special double chamber construction. This level regulator is for more specialist requirements such deep tanks or where extra protection and integrity are a must.

  • Pumping stations
  • Drainage plants
  • Dirty water systems


    Maximum depth 40 meter

    Single or double function

    Up to 60°C

    Double chamber design
£0.00
Tax included
Quantity :
Ask a Question

The Supertec level switch is resistant to high pressure due to its special double chamber construction. This level regulator is for more specialist requirements such deep tanks or where extra protection and integrity are a must.



  • Drainage plants
  • Pumping stations
  • Dirty water systems

Activation angle 45 °
Approvals CE, TÜV
Cable length 10 m
Cable type H05RN-F
Counterweight included No
Depth max 40 m
Function Changeover (SPDT)
Insulation class I-II
IP class IP68
Material of float Polypropylene
Operating temperature to 60 °C
Rated current 8 A
Specific gravity 0.7 kg/dm³
Supply voltage 250 V
