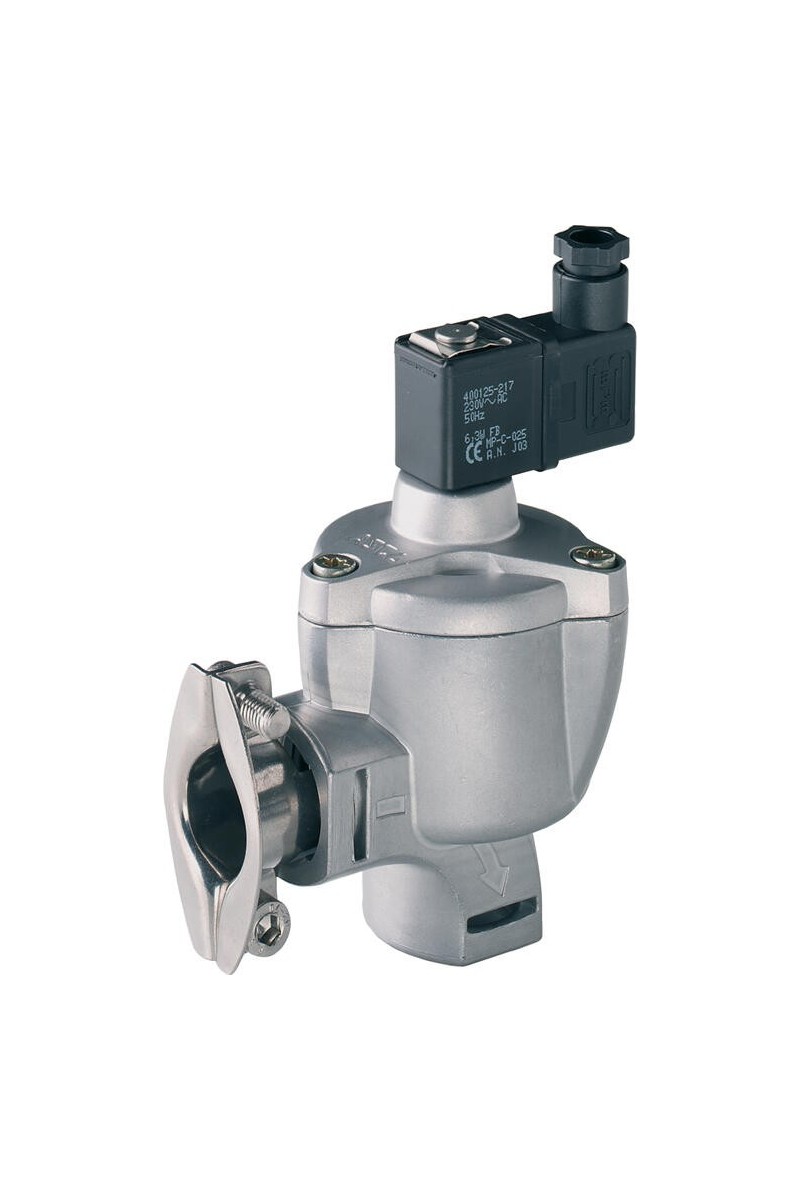

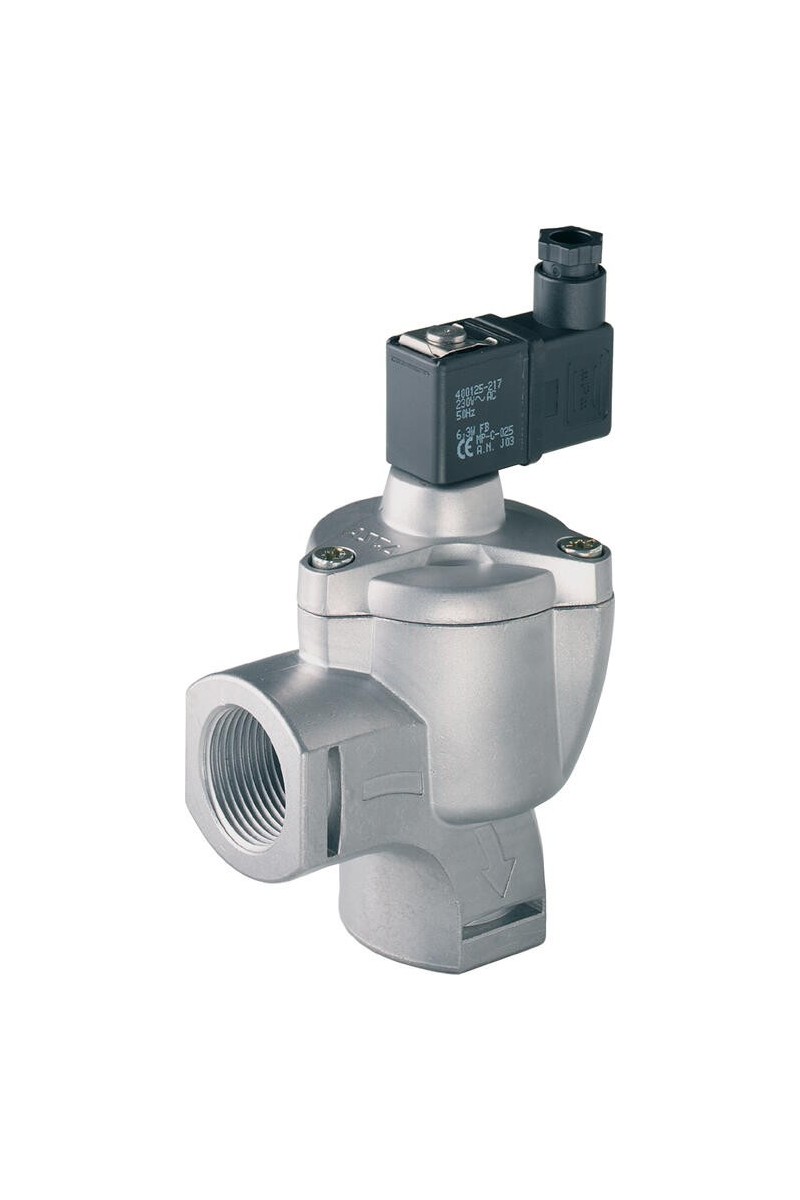

ASCO - 2/2 Pulse Valve 3/4\"-1 1/2\"
  • ASCO - 2/2 Pulse Valve 3/4\"-1 1/2\"
  • ASCO - 2/2 Pulse Valve 3/4\"-1 1/2\"
  • ASCO - 2/2 Pulse Valve 3/4\"-1 1/2\"

ASCO - 2/2 Pulse Valve 3/4\"-1 1/2\"

Current less closed

Thread or quick coupling

Electric/Air controlled

Housing in aluminum

£0.00
Tax included
Quantity :
Ask a Question

General Data
Connection 3/4 BSP
Flow factor / flow coefficient 14
IP class IP65

Material Data
Material body Aluminium
Material of seals NBR

Temperature Data
Temperature of media from -20 °C
Temperature of media to 85 °C

Additional Data
Pressure max 10 bar
Weight 0.52 kg
Power consumption 6.3 W
Throughput 20 mm
Voltage AC 230 V
Temperature operational min -20 °C
Temperature operational max 85 °C
Material coil Epoxy
Differential air pressure max 8.5 bar
Differential pressure max 8.5 bar
Differential pressure min 0.3 bar
Flow max 233 l/min
Function 1 2/2
Function 2 Normally Closed
Material flask POM
Material plunger Stainless steel
Material short-circuit ring Copper
Material spring Stainless steel
