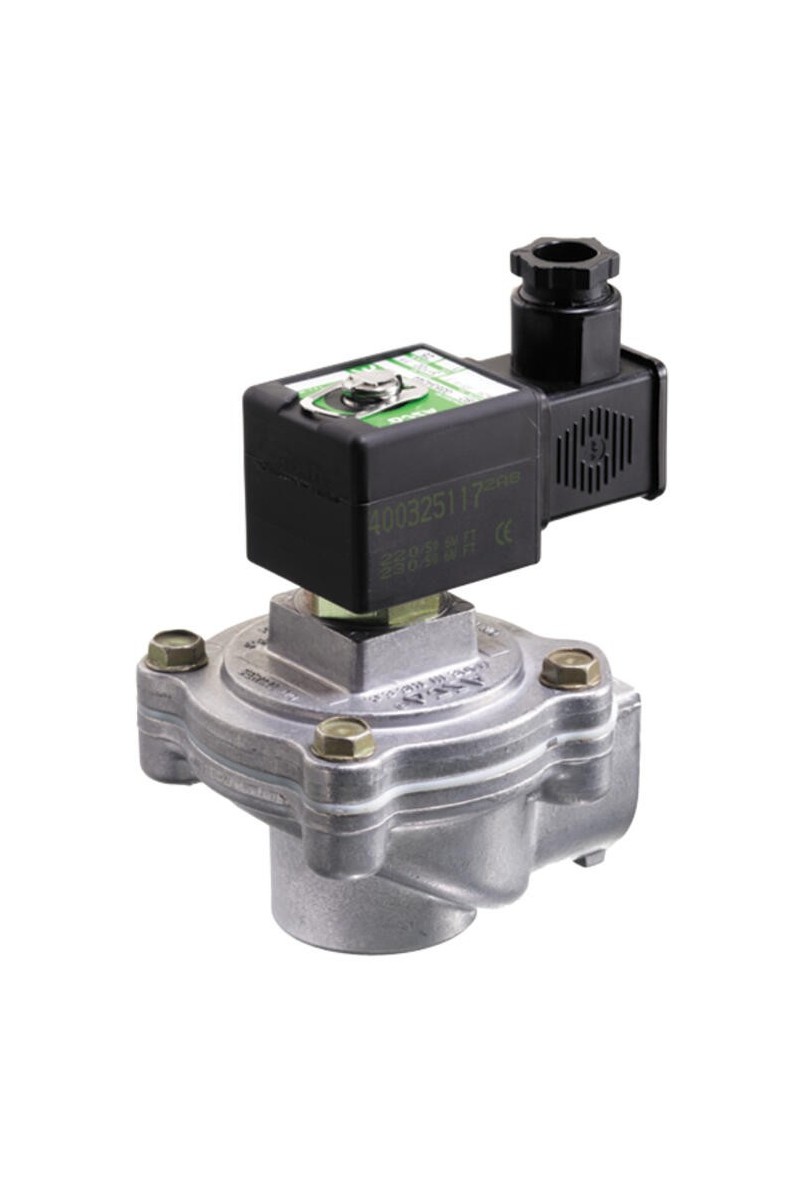

ASCO - 2/2 Pulse valve 3/4\"-3\"
Current less closed
Thread or quick coupling
Electric/air controlledHousing in aluminum
General Data
Connection 3/4 BSP Flow factor / flow coefficient 14 IP class IP65 Material Data
Material body Aluminium Material of seals NBR Temperature Data
Temperature of media from -20 °C Temperature of media to 85 °C Additional Data
Pressure max 10 bar Weight 0.7 kg Power consumption 6 W Throughput 25 mm Voltage AC 230 V Temperature operational min -20 °C Temperature operational max 85 °C Material coil Epoxy Differential air pressure max 8.5 bar Differential pressure min 0.35 bar Flow max 233 l/min Function 1 2/2 Function 2 Normally Closed Material plunger Stainless steel Material short-circuit ring Copper Material spring Stainless steel Material membrane TPE
