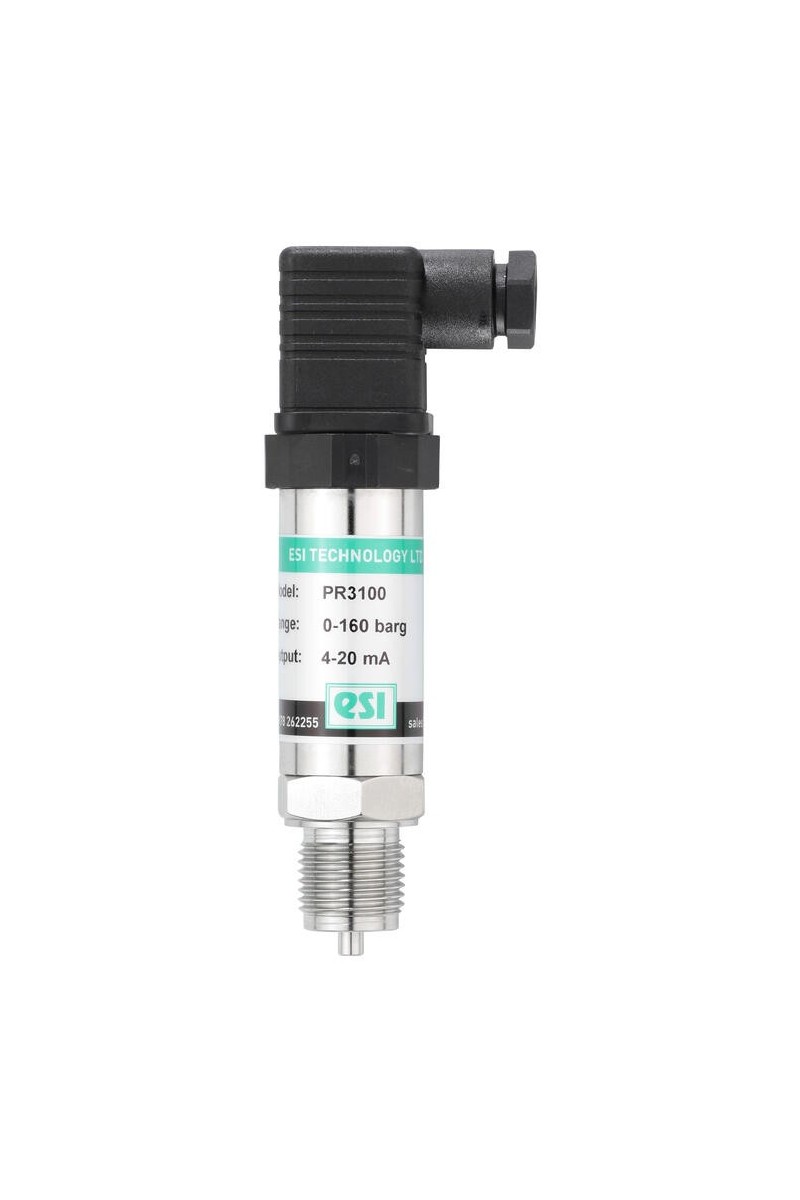

ESI - PR3100 - Industrial Pressure Sensor

The PR3100 is constructed from stainless steel which incorporates thick film, ceramic and bonded strain gauge technology. This offers excellent stability and accuracy over a long service life. On request this is also available in corrosion resistant materials. The available pressure range options are from 0-1Bar to 0-600Bar.

  • Suitable for the majority of industrial applications

    Reliable pressure measurement

    Long service life

    All stainless steel construction
£0.00
Tax included
Quantity :
Ask a Question

The PR3100 is constructed from stainless steel which incorporates thick film, ceramic and bonded strain gauge technology. This offers excellent stability and accuracy over a long service life. On request this is also available in corrosion resistant materials. The available pressure range options are from 0-1Bar to 0-600Bar.

There are optional ATEX and IECEx approved versions of the PR3100 available for Explosion protection for flammable gases (zone0), dusts (zone 20) and mining areas (group I M1).

Ambient temperature -20..85°C
Electrical connection DIN A 43650
EMC EN61000-6-4, EN61000-6-2
Linearity ≤±0.3% BSFL
Material of wetted parts Stainless steel 316, Aluminum oxide, NBR
Media temperature -20..85°C
Output 4-20 mA
Overpressure protection 20 bar
Pressure range max 10 bar
Pressure range min 0 bar
Pressure reference Gauge or Absolute
Process connection G1/4
Sensor technology Thick film or Bonded foil strain gauge
Storage temperature 5..40°C
Supply voltage 13-36 V DC
