ESI - PR3110EX - ATEX Pressure Sensor

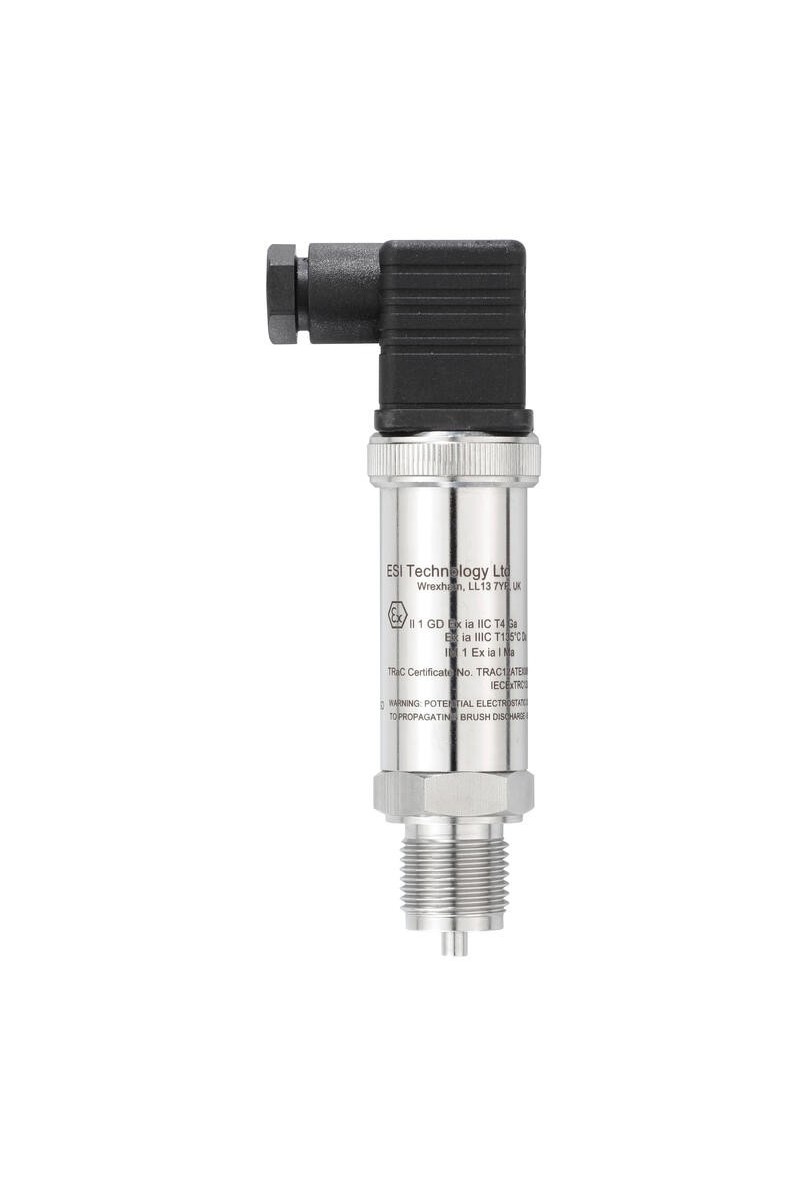

Robustly constructed from stainless steel the PR3110EX range incorporates the latest silicon strain gauge technology together with a custom IC amplifier offering excellent stability and accuracy over a long service life.

  • ATEX and IECEx certified

    Designed for operation in zone 0, zone 20 and M1 mining

    Wide choice of low and high pressure ranges

    NACE corrosion resistant materials
£0.00
Tax included
Quantity :
Ask a Question

Robustly constructed from stainless steel the PR3110EX range incorporates the latest silicon strain gauge technology together with a custom IC amplifier offering excellent stability and accuracy over a long service life.

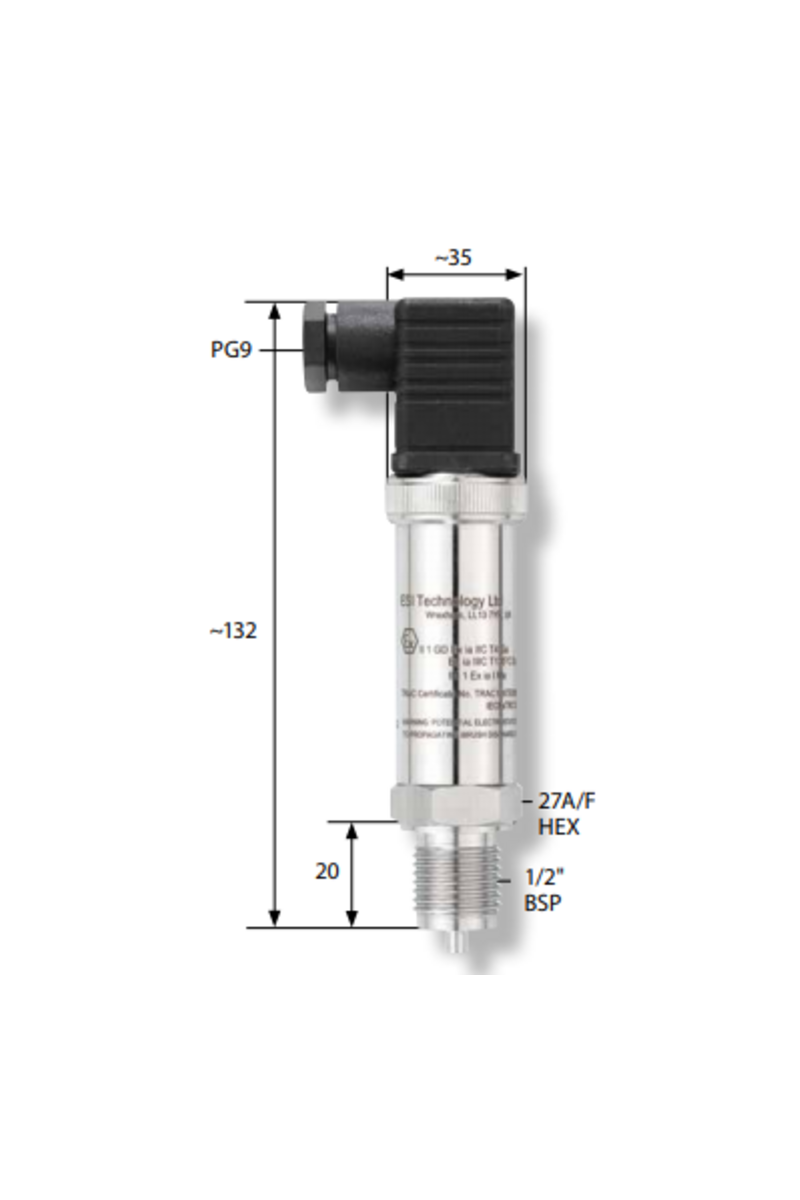

Electrical connection is via a detachable DIN connector allowing easy access to zero and span adjustment. Standard pressure connection is 1/2” BSP, but other options are available. Pressure ranges are available from 0- 100 mbar to 0- 900 mbar. Suitable for use with low pressure fluid and gas applications.

The PR3110EX is intended for installation and operation in zone 0, gas group IIC, temperature class T4 and zone 20 dust and M1 mining. ATEX and IECEx approval and protection is by intrinsic safety when used with a safety or isolation barrier.

Ambient temperature -20..85°C
Approvals CE, DNV, IEC
ATEX approved Yes
Electrical connection DIN A 43650
EMC EN61000-6-2, EN61000-6-4
EX approvals Ex I M 1 Ex ia I Ma, Ex II 1 G Ex ia IIC T4 Ga, Ex II 1 D Ex ia IIIC T135 °C Da
Linearity ≤±0.3% BSFL
Material of wetted parts NBR, Stainless steel 316
Media temperature -20..85°C
Output 4-20 mA
Overpressure protection 0.75 bar
Pressure range max 0.25 bar
Pressure range min 0 bar
Pressure reference Gauge
Process connection G1/4
Sensor technology Isolated Piezoresistive Silicon
Storage temperature 5..40°C
Supply voltage 13-36 V DC
