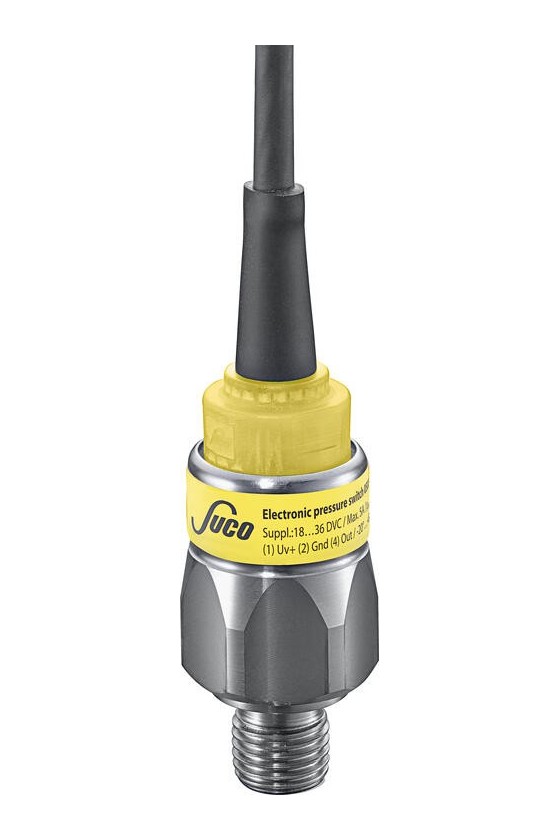

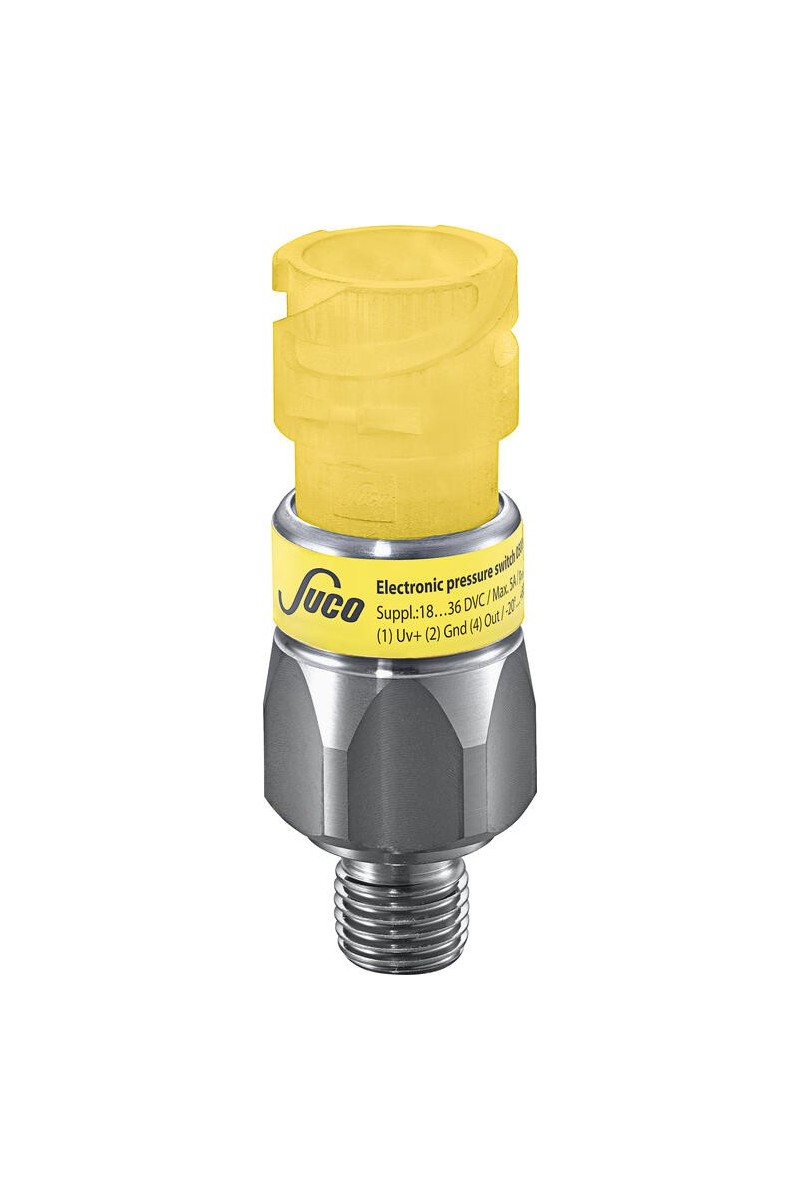

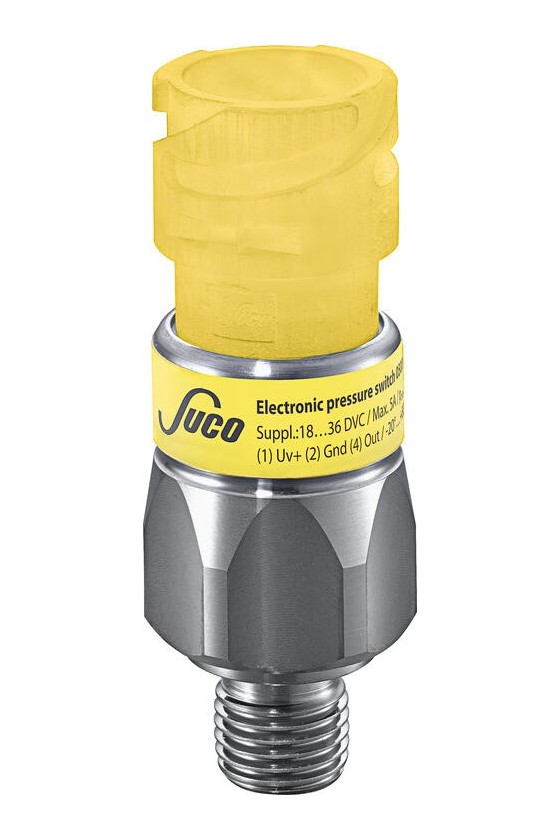

Suco 0500/0501 Electronic Pressure Switch

Factory set

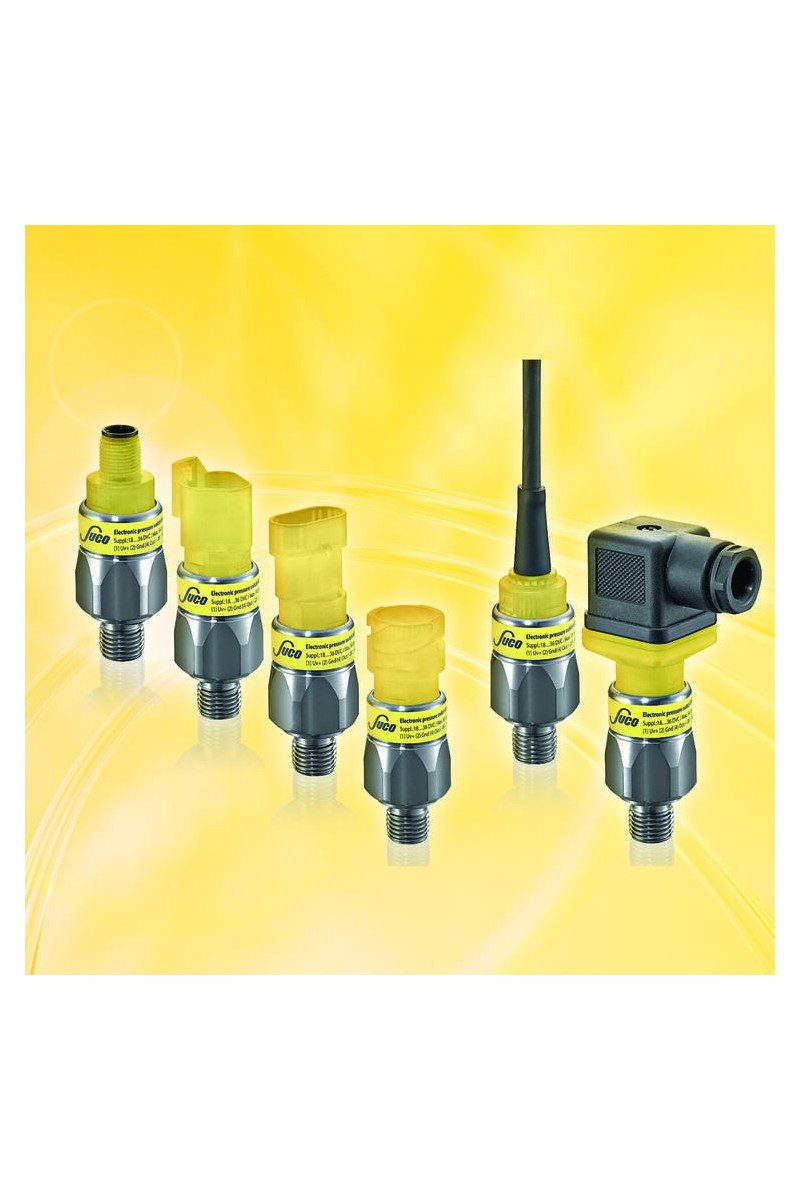

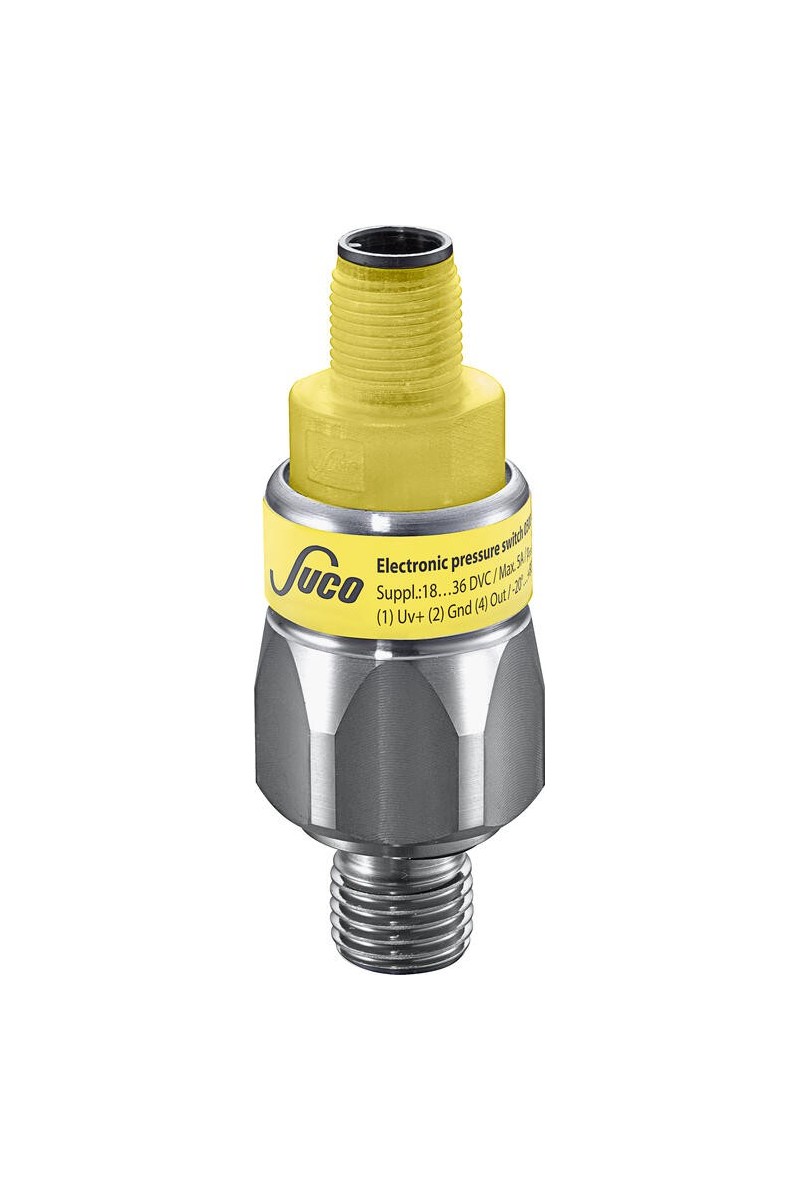

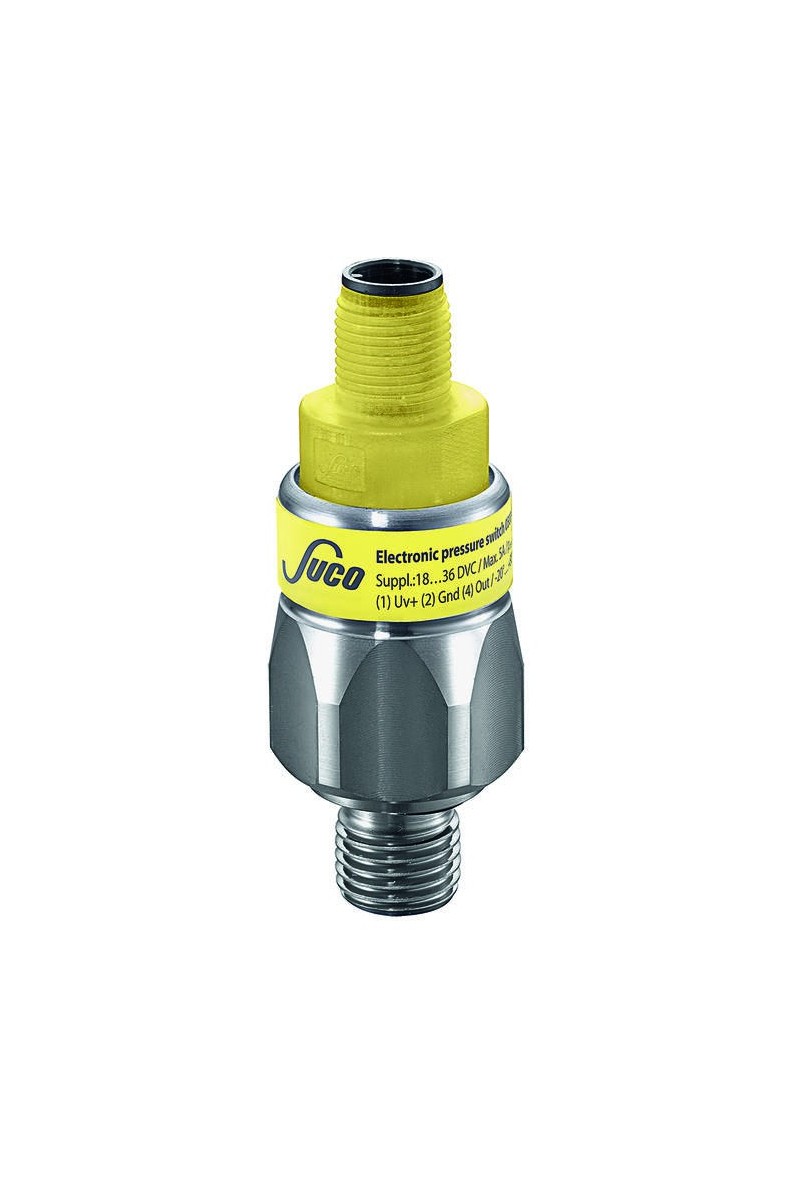

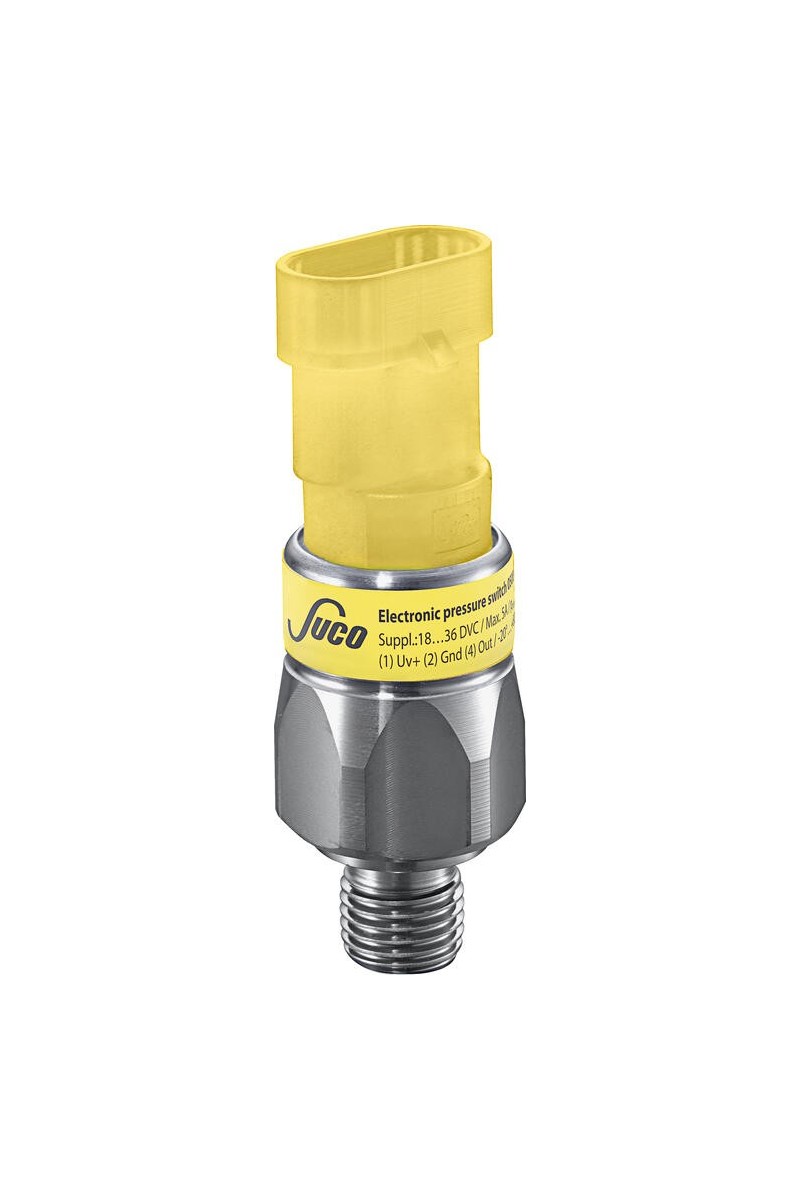

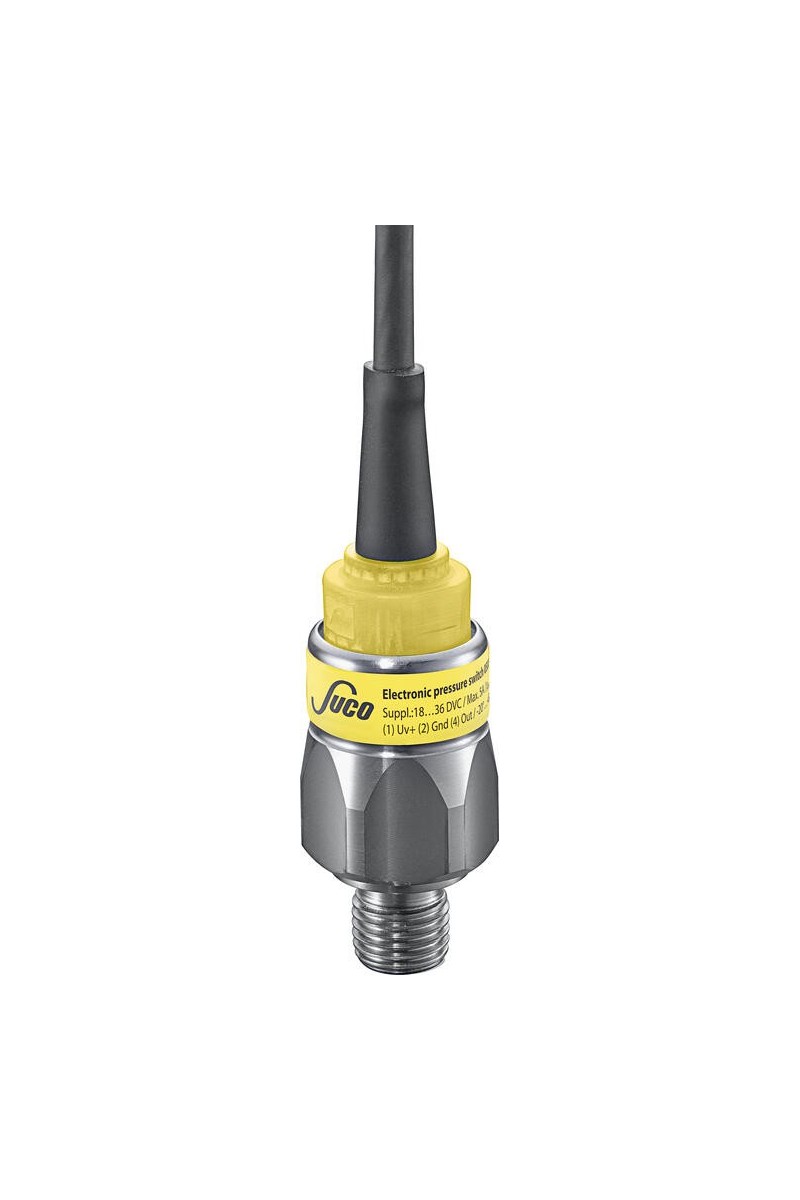

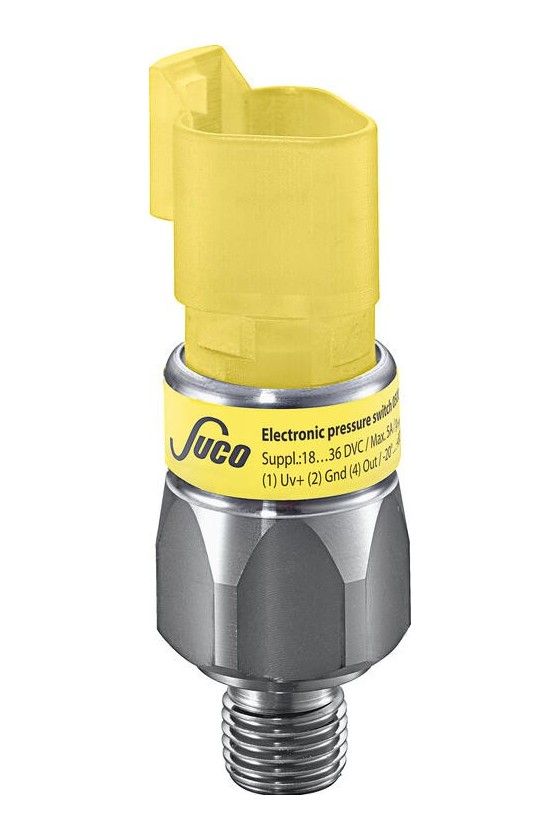

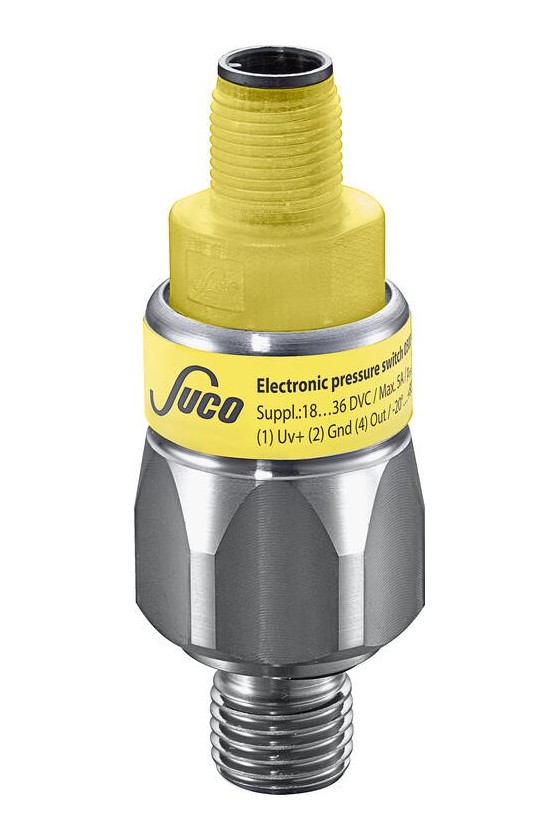

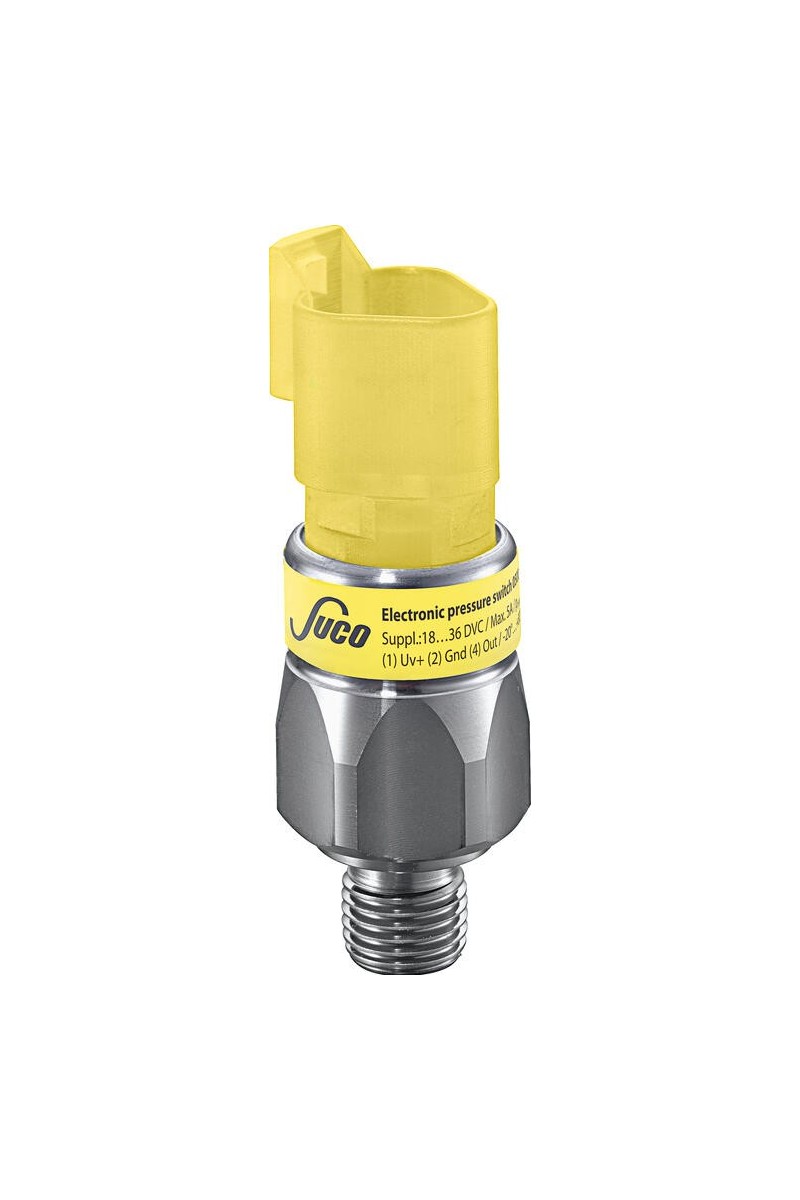

The SUCO 0500/0501 performance series electronic pressure switch offers a small compact electronic switch without compromising on quality which comes factory set (unadjustable by the user) with overpressure protection (up to 2x), has a long service life and is also attractively priced especially at high volumes. Using a ceramic sensor in thick film technology for a good operating temperature range and accuracy, there are six standard pressure ranges starting from 0..2 bar all the way up to 0..100 bar and a hysteresis of 1%-98%, available in normally open or normally closed with a PNP transistor output.

Single switch point

Small & compact

Ceramic sensor

Stainless steel housing

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 10 bar
Adjustment range min 0 bar

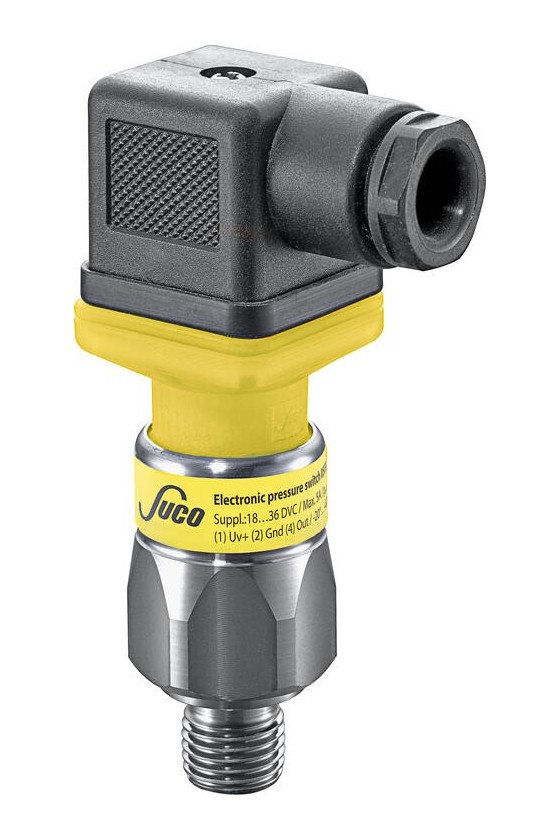

Electrical connection DIN EN 175301-803-A
Process connection G1/4
Function Normally Closed (SPST)
Output NPN
Burst pressure 80 bar
Pressure max 40 bar

Temperature & Materials Data
Temperature of media from -40 °C
Temperature of media to 125 °C
Temperature ambient from -40 °C
Temperature ambient to 100 °C
Material of body Stainless steel 1.4305
Material of wetted parts Stainless steel 1.4305, Titanium

Additional Data
Supply voltage dc max 32 V DC

Supply voltage dc min 9.6 V DC
Pressure rise ≤ 5,000 bar/s
Switching time < 2 ms
Switching point adjustment range 2 … 100 % of the nominal pressure range Full Scale (FS), programmable at factory
Weight 110 g

Safety & Approvals
IP class IP65
Hysteresis 2..99.8% of nominal pressure range (full scale), programmable at factory
Shock resistance 500m / s²; 11 ms half sine wave; DIN EN 60068-2-27
Vibration resistance 20g: 4..2000 Hz sine wave, DIN EN 60068-2-6
EMC EMC 2014/30/EU, EN 61000-6-2:2005, EN 61000-6-3:2007
Accuracy ±0.5 % of adjustment range (Full scale) at room temperature
Long term stability ±0.1 % of adjustment range (full scale) per year
Mechanical life expectancy 10,000,000 switching cycles at rise rates to 5,000 bar/s nominal pressure
Repeatability ±0.1 % full scale
