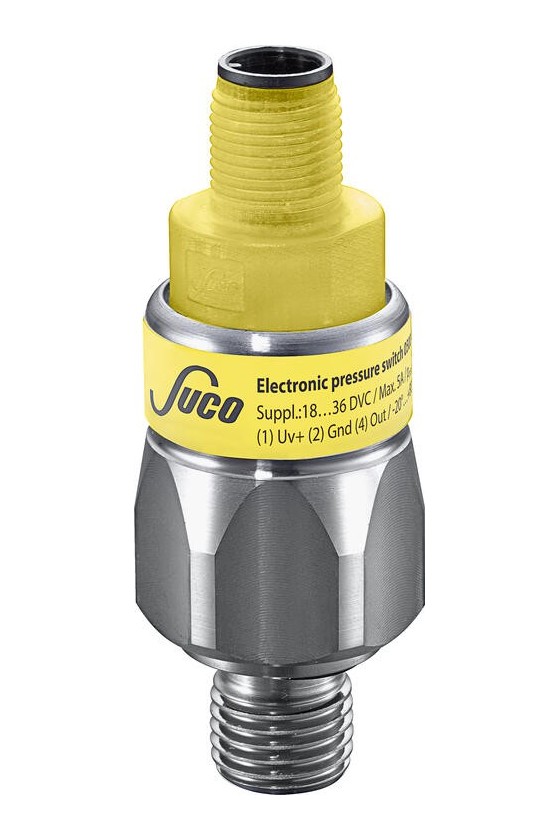

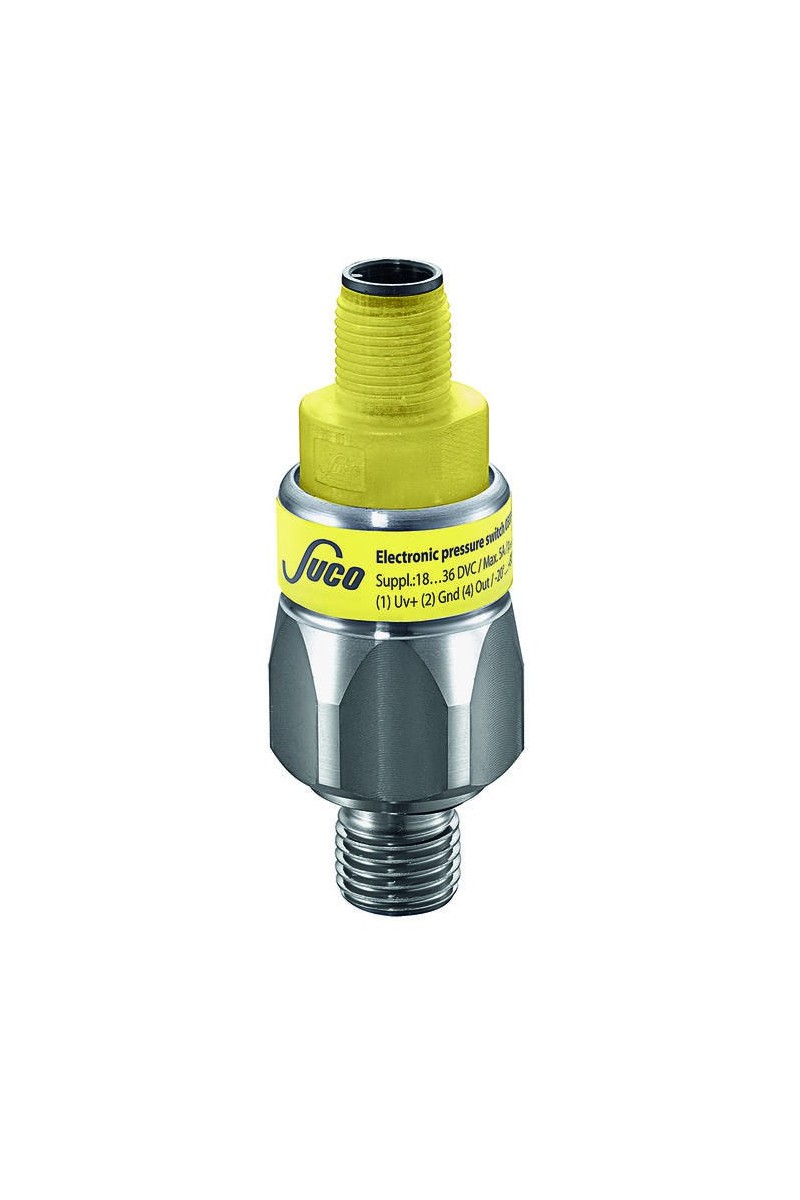

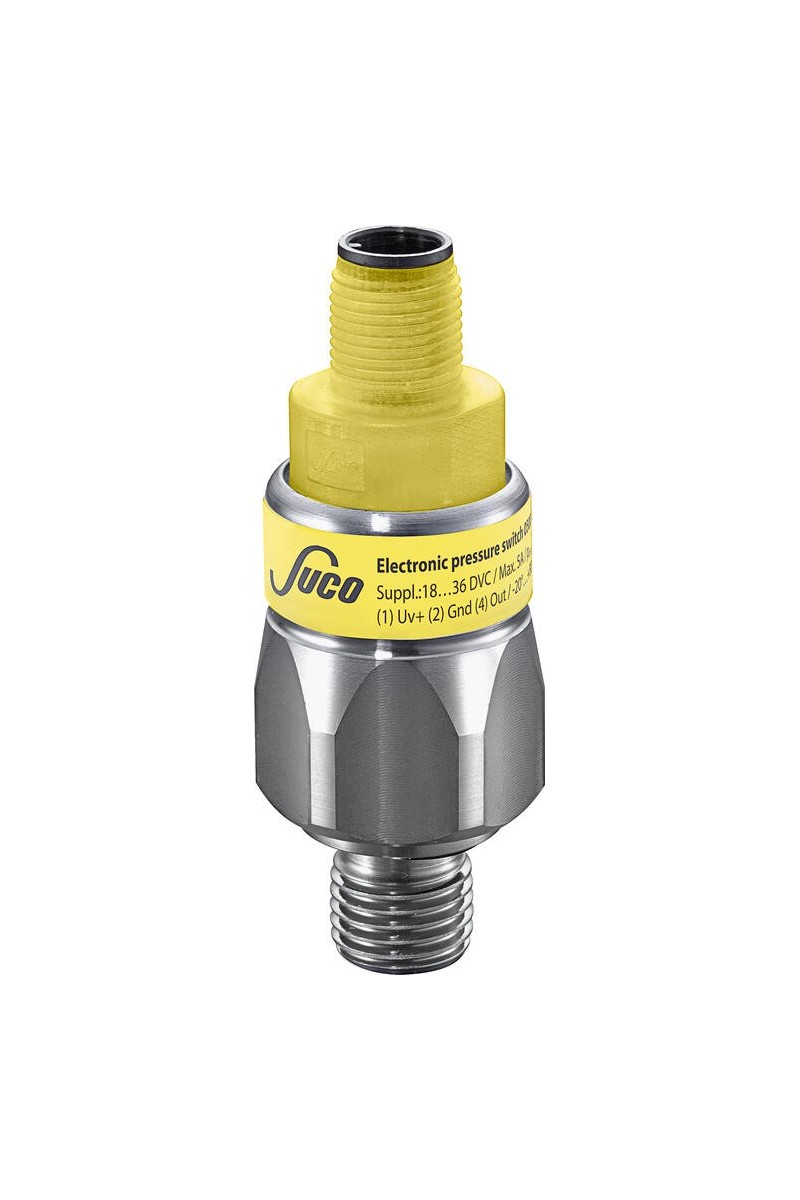

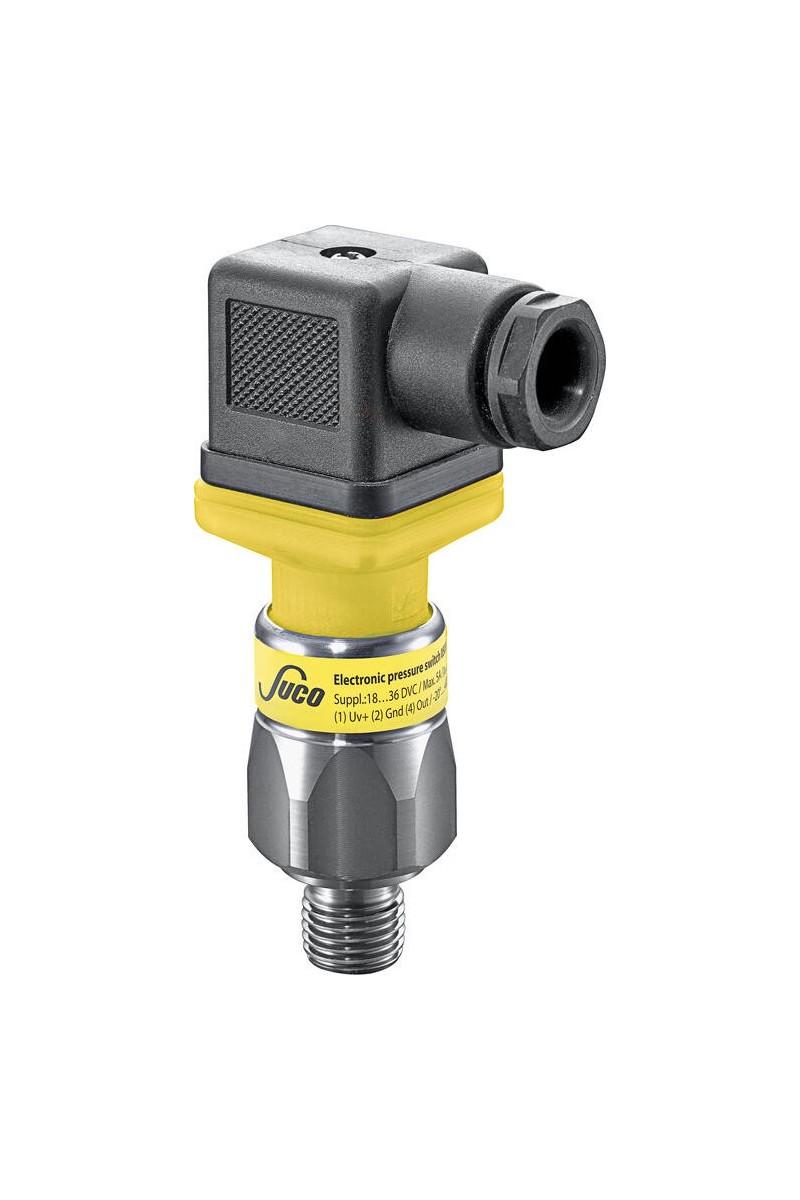

Suco 0510/0511 G1/4 Electronic Pressure Switch

Adjustable by user

The SUCO performance series electronic pressure switch offers a small compact electronic switch without compromising on quality which comes adjustable by the user (hysteresis not adjustable) with over pressure protection (up to 2x), has a long service life and is also attractively priced especially at high volumes.

Single switch point

  • Small & compact

    Ceramic sensor

Stainless steel housing
£0.00
Tax included
Quantity :
Ask a Question

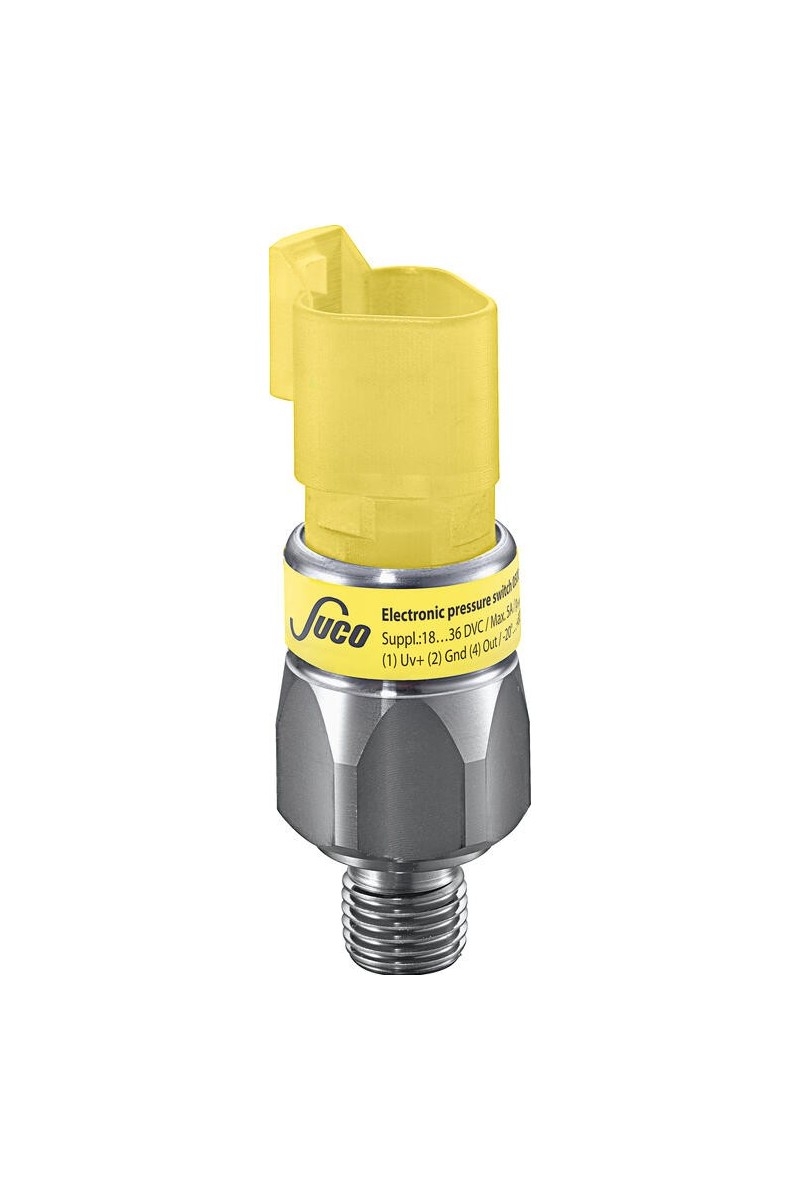

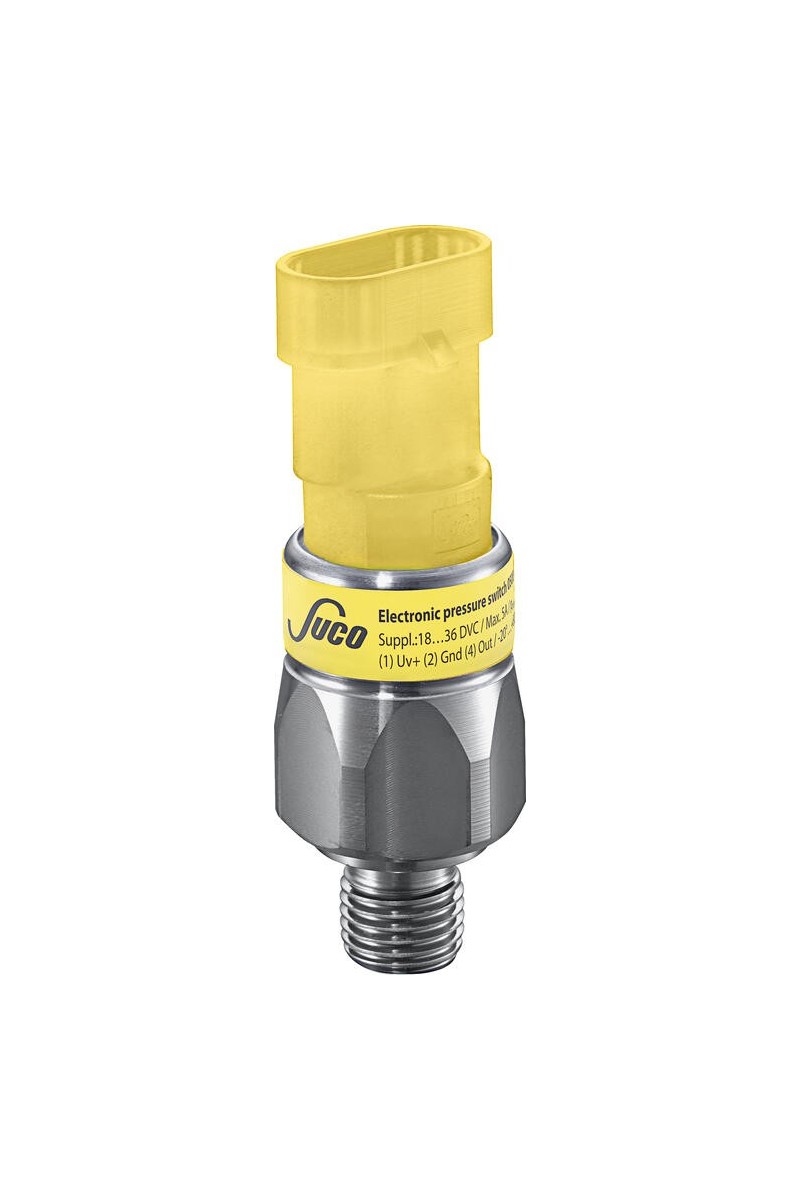

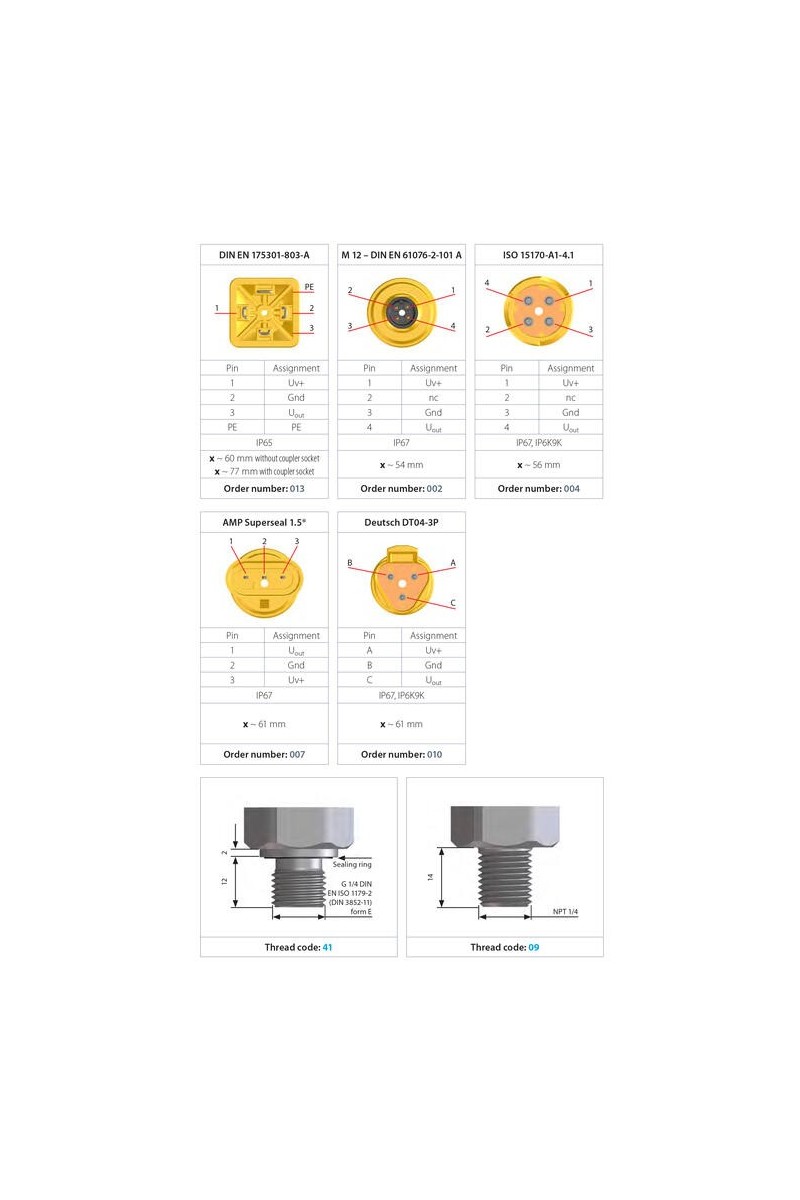

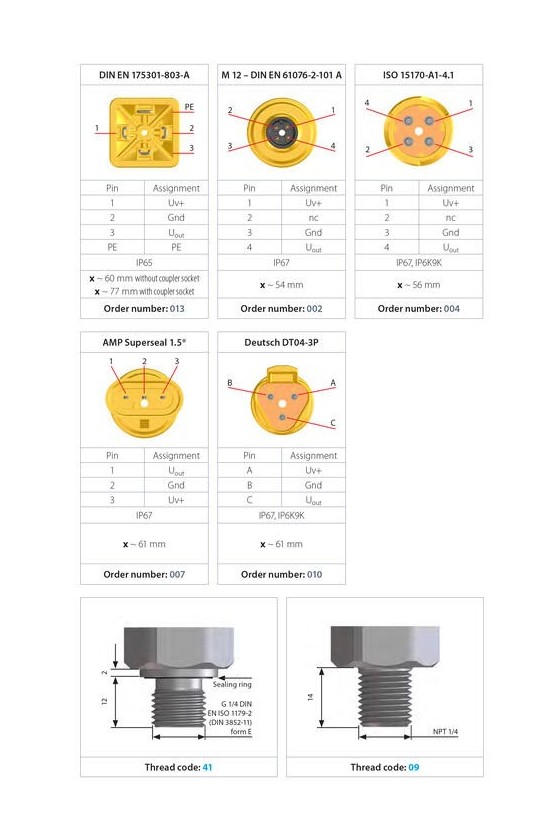

Using a ceramic sensor in thick film technology for a good operating temperature range and accuracy, there are six standard pressure ranges starting from 0..2 bar all the way up to 0..100 bar and a hysteresis of 1%-98%, available in normally open or normally closed with a PNP output. The wetted parts are made of ceramic, stainless steel and either NBR, EPDM OR FKM ensuring excellent media compatibility, with six standard electrical connection options including Deutsch, DIN and M12 combined with two standard thread type options

Customer specific solutions are also available on request.

Application examples

  • Automotive
  • Braking systems
  • Medical
  • Mobile hydraulics
  • Off highway
  • Off-shore
  • Rail

Adjustment range max 2 bar
Adjustment range min 0 bar

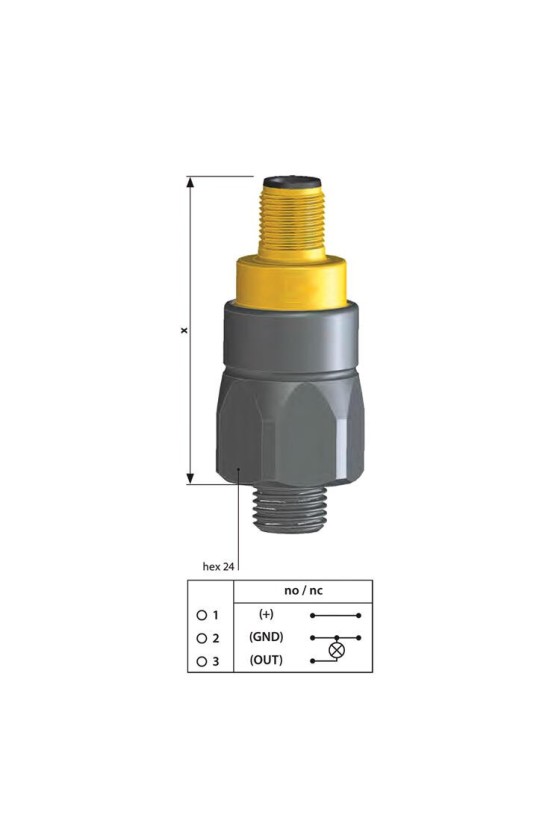

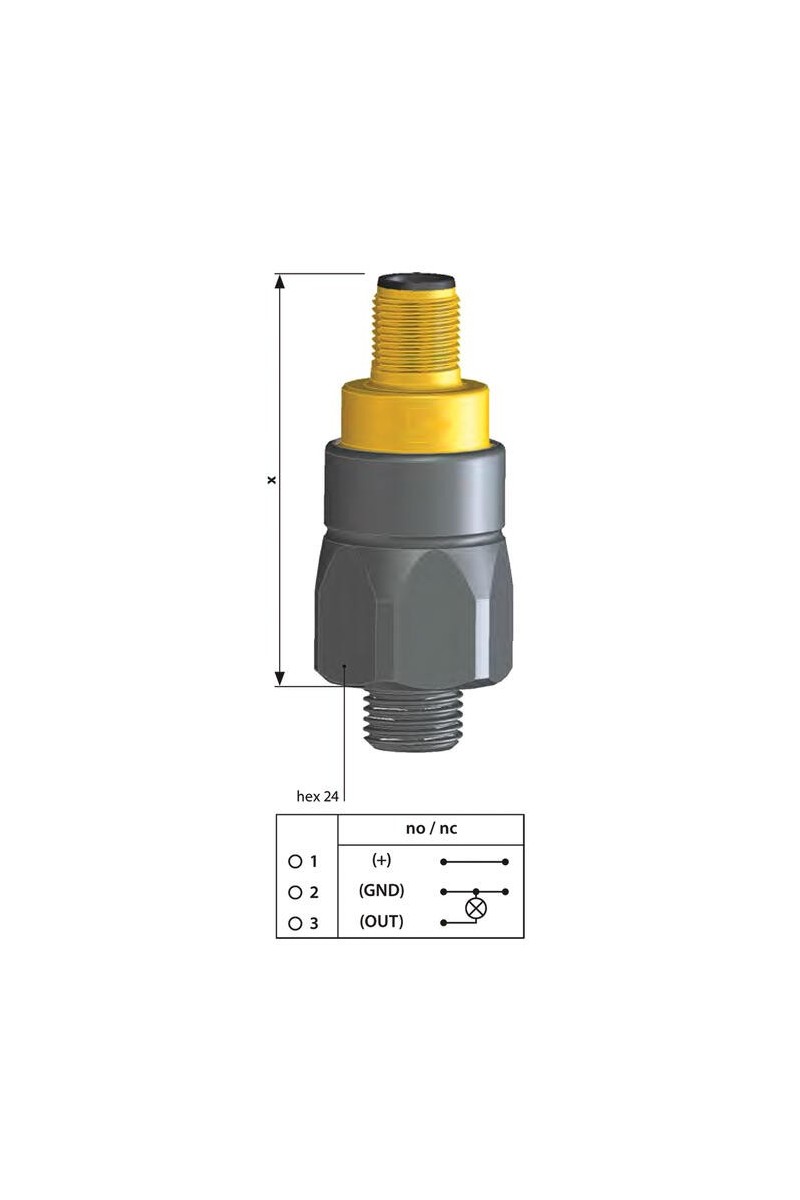

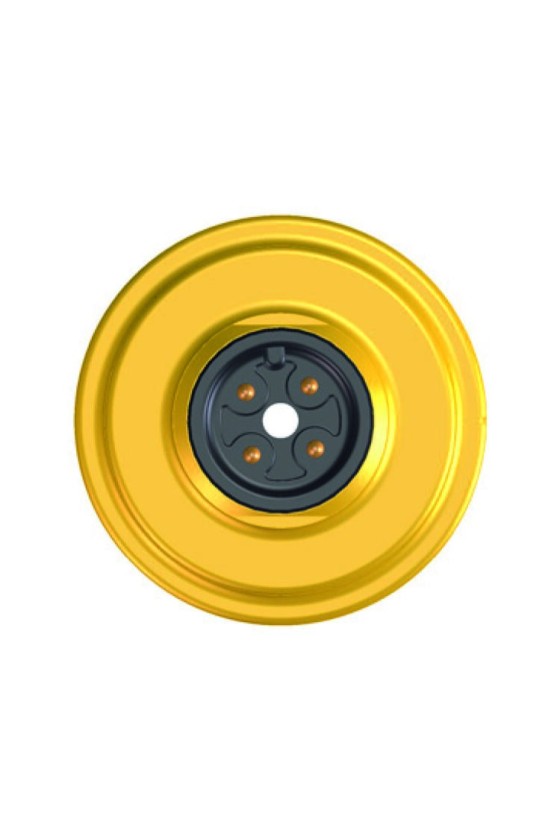

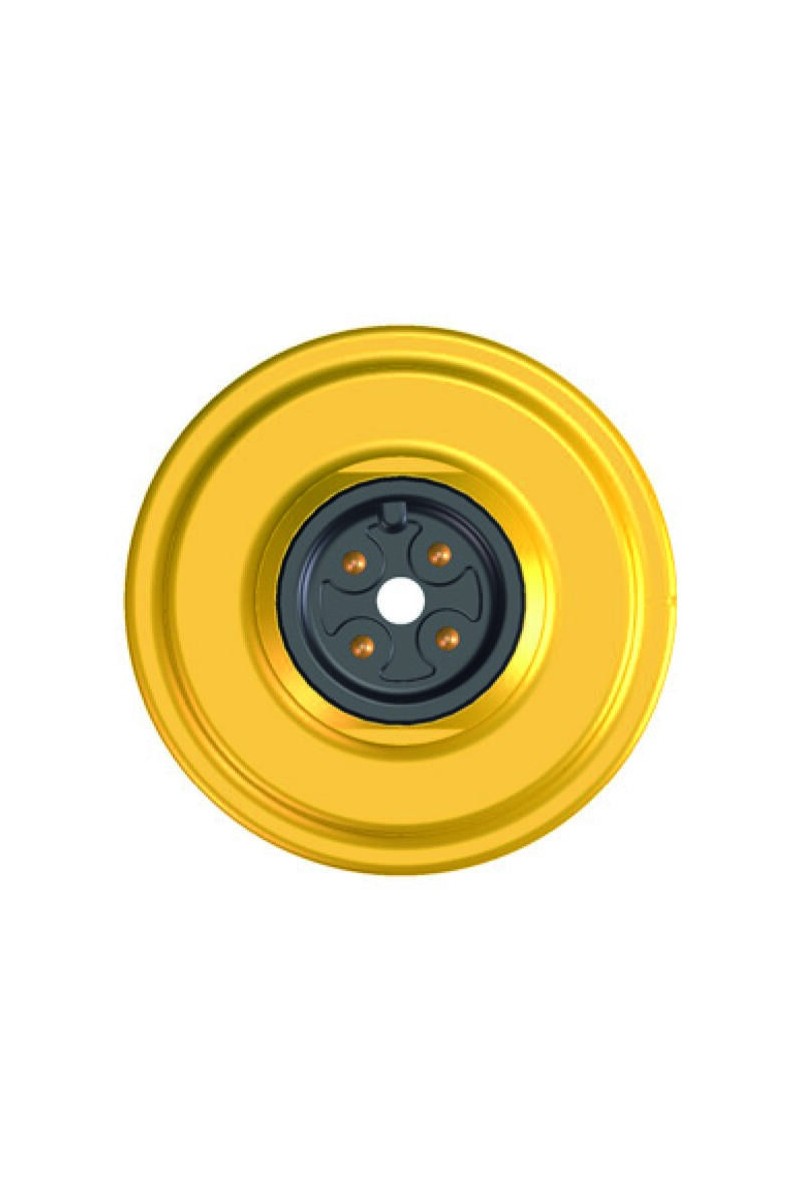

Electrical connection M12x1

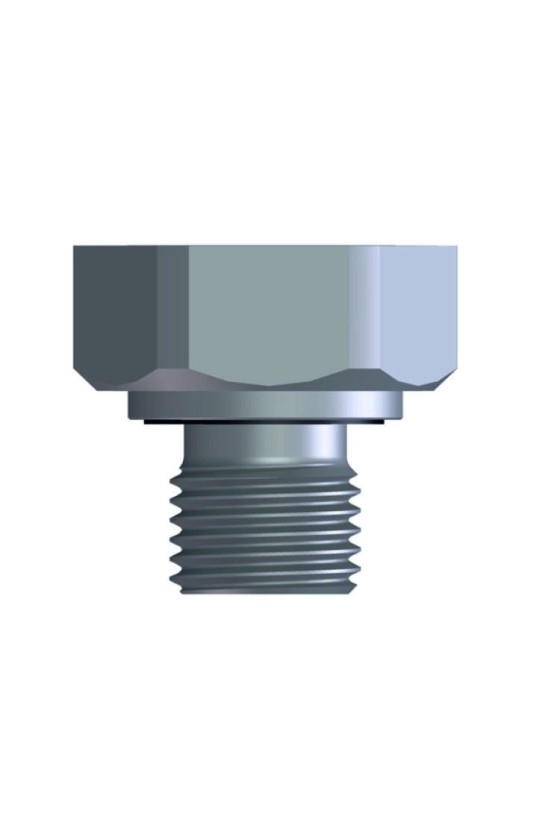

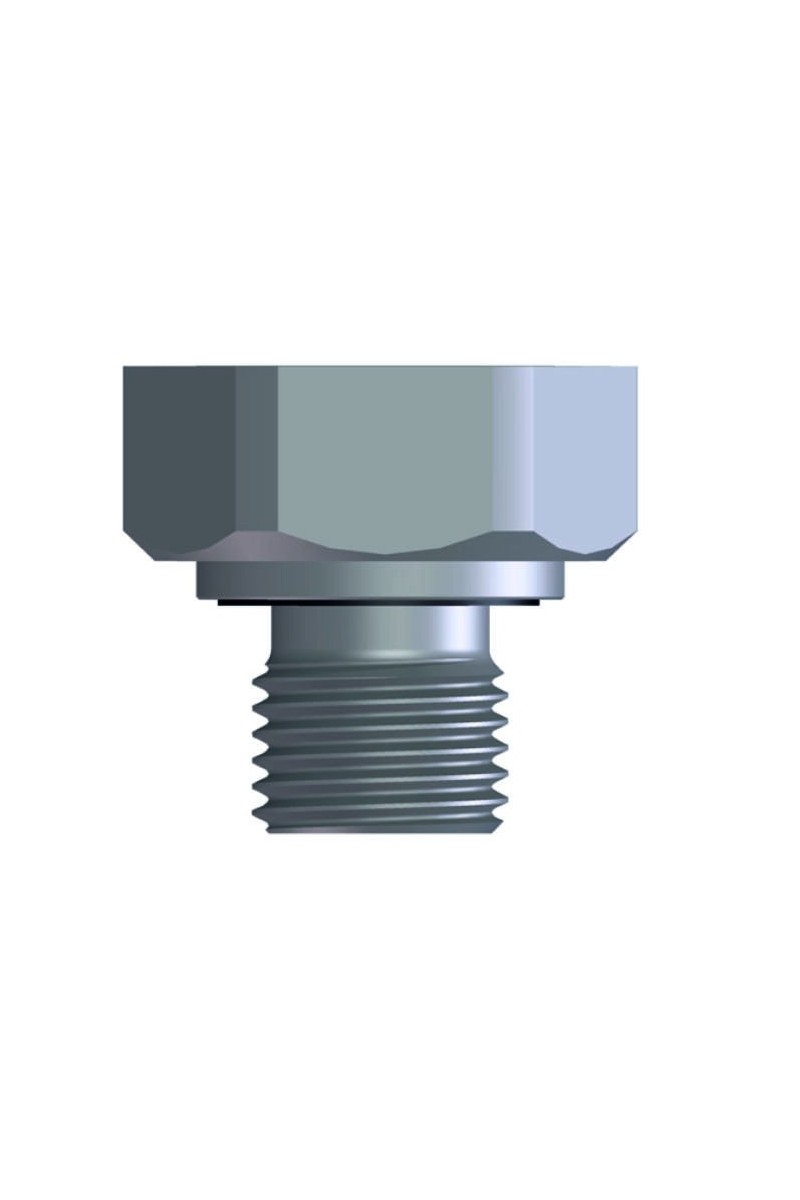

Process connection G1/4
Function Normally open (SPST)
Output PNP
Burst pressure 8 bar
Pressure max 4 bar

Temperature & Materials Data
Temperature of media from -30 °C
Temperature of media to 100 °C
Temperature ambient from -30 °C
Temperature ambient to 100 °C
Material of body Stainless steel 1.4305
Material of wetted parts NBR, Stainless steel 1.4305
Material membrane NBR

Additional Data
Supply voltage dc max 32 V DC

Supply voltage dc min 9.6 V DC
Pressure rise ≤ 1 bar/ms
Switching time < 4 ms
Switching point adjustment range 3...100 % of adjustment range(full scale), set at factory
Weight 80 g

Safety & Approvals
IP class IP67
Hysteresis 2...98% full scale, programmable at factory (maximum tolerance ±1.0% of adjustment range nominal pressure)
Shock resistance 500m / s²; 11 ms half sine wave; DIN EN 60068-2-27
Vibration resistance 20g: 4..2000 Hz sine wave, DIN EN 60068-2-6
EMC EMC 2014/30/EU; EN 61000-6-2:2005; EN 61000-6-3:2007
Accuracy ±0.5 % of adjustment range (Full scale) at room temperature
Long term stability ±0.1 % of adjustment range (full scale) per year
Mechanical life expectancy 5,000,000 pulsations at rise rates to 1 bar/ms nominal pressure
Repeatability ±0.1 % of adjustment range (full scale)
