Suco 0570 Electronic Pressure Switch/Sensor

Dual output with display

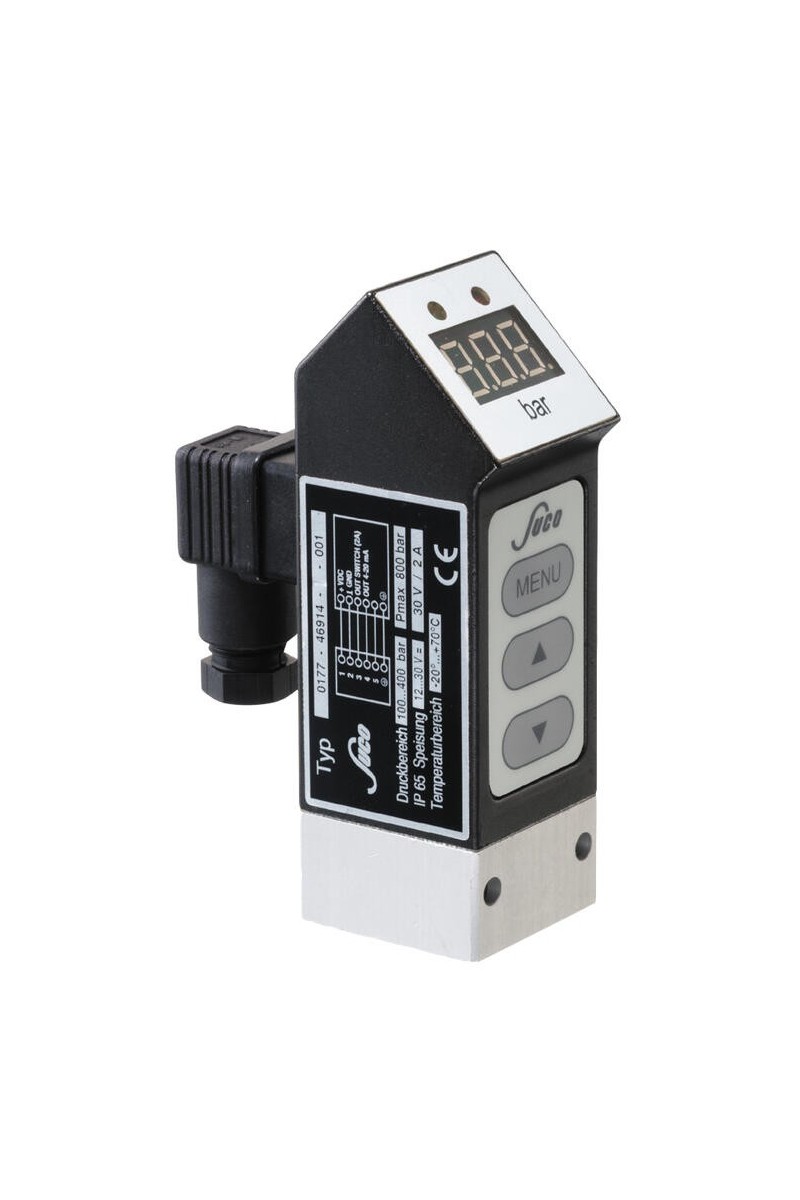

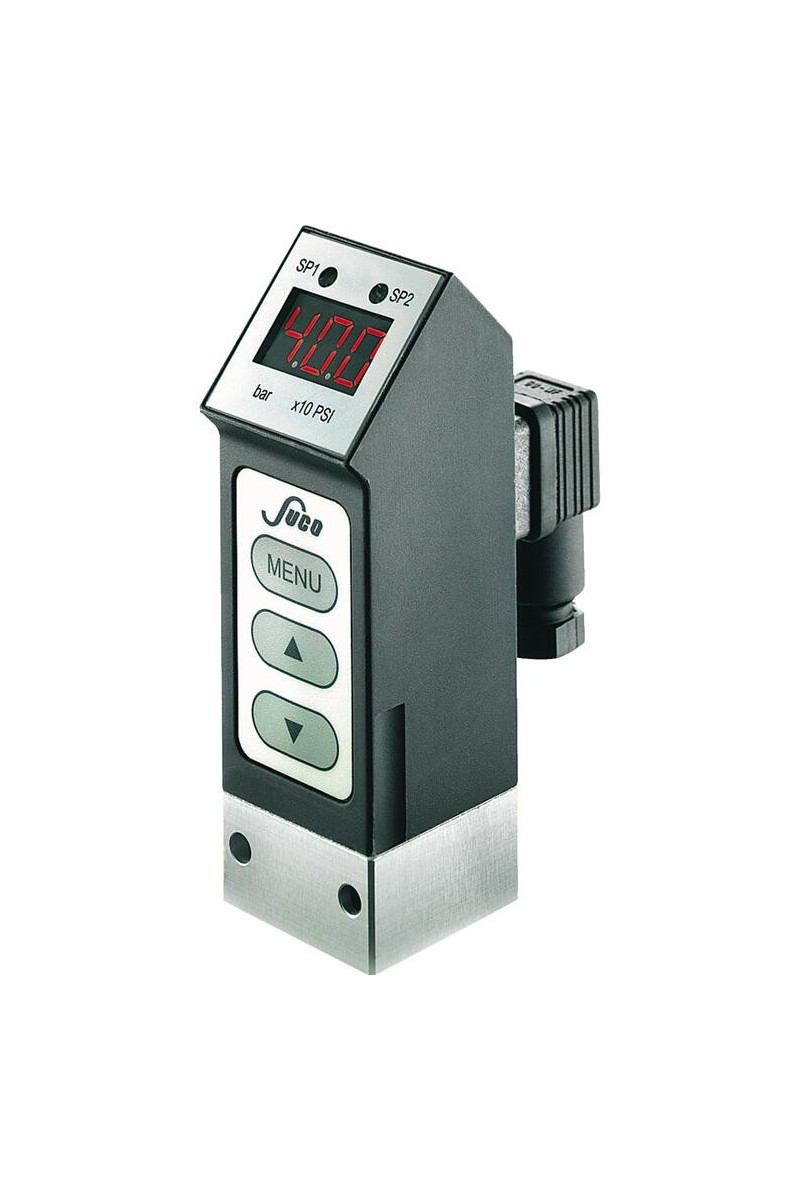

The SUCO 0570 is a menu controlled electonic pressure switch with a built in 4-20mA output and simple to program through the touch keypad. There are two switch points available and either can be programmed to normally open or normally closed along with switching time delay, zero point reset, peak value memory an switch point counter. The current pressure is displayed on the LED display and and both switch points have an active indication light.

Common applications include factory monitoring, air systems, hydraulics and more.

LED Display

Programmable using keypad

Three adjustment ranges from 0..10 bar to 0..400 bar

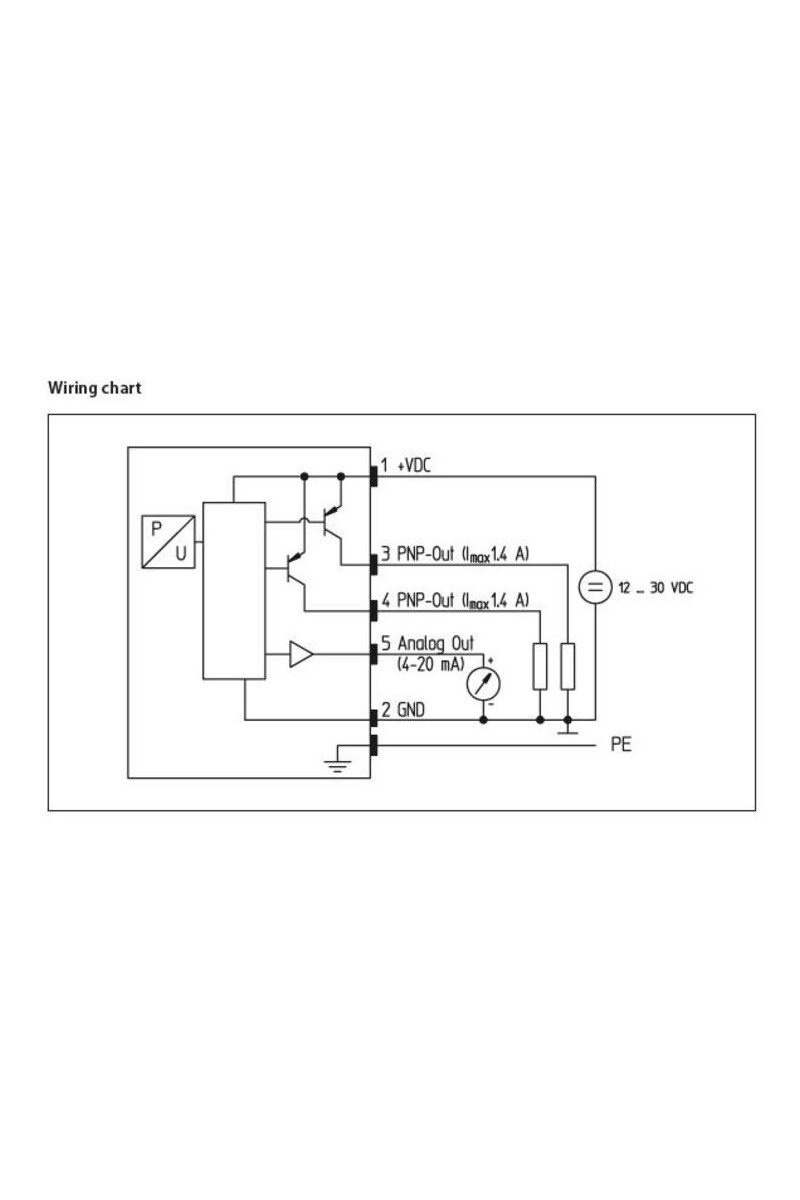

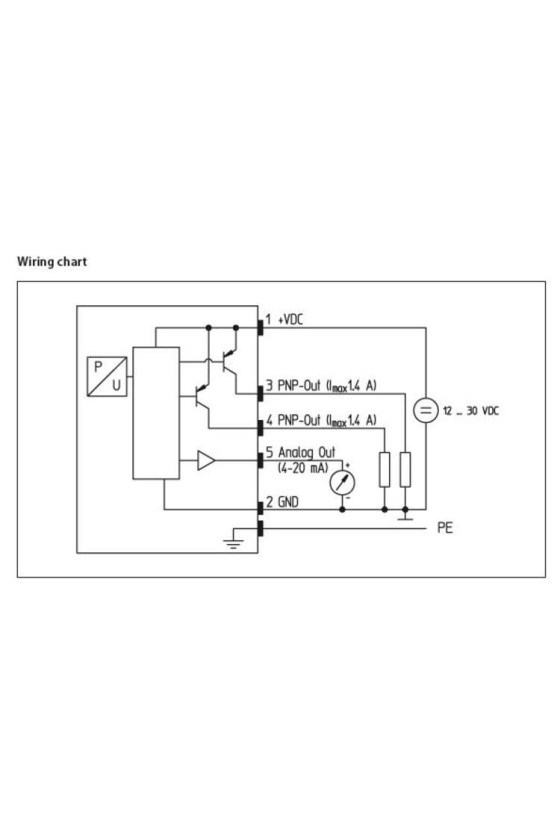

2 PNP + 4-20 mA output
£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 10 bar
Adjustment range min 0 bar
Electrical connection GO 51 FAV M

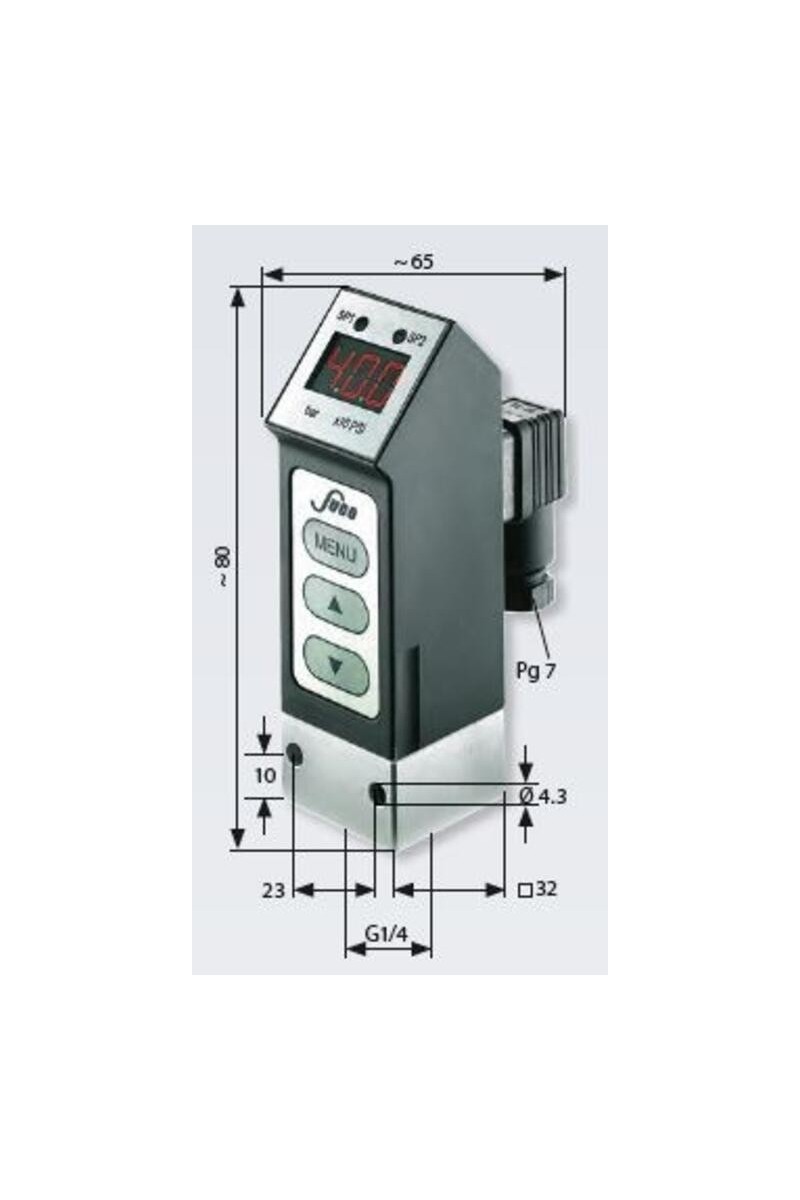

Process connection G1/4 female
Burst pressure 25 bar
Pressure max 20 bar


Temperature & Materials Data
Temperature of media from -20 °C
Temperature of media to 80 °C
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Material of body Anodised aluminum
Material of wetted parts Anodised aluminum, Ceramic, NBR

Material membrane NBR
Measuring technology Ceramic cell in thick-film technology


Additional Data
Supply voltage dc max 30 V DC
Supply voltage dc min 12 V DC
Weight 340 g

Safety & Approvals
Approvals CE, RoHS II
IP class IP65
Hysteresis 1...99% Full Scale
Shock resistance 294m / s²; 11 ms half sinusoidal wave; DIN EN 60068-2-27
Accuracy ±0.5% FS
Mechanical life expectancy 5,000,000 pulsations at rise rates to 1,000 bar/s nominal pressure
