Suco - 0165 ATEX Pressure Switch

ATEX rated

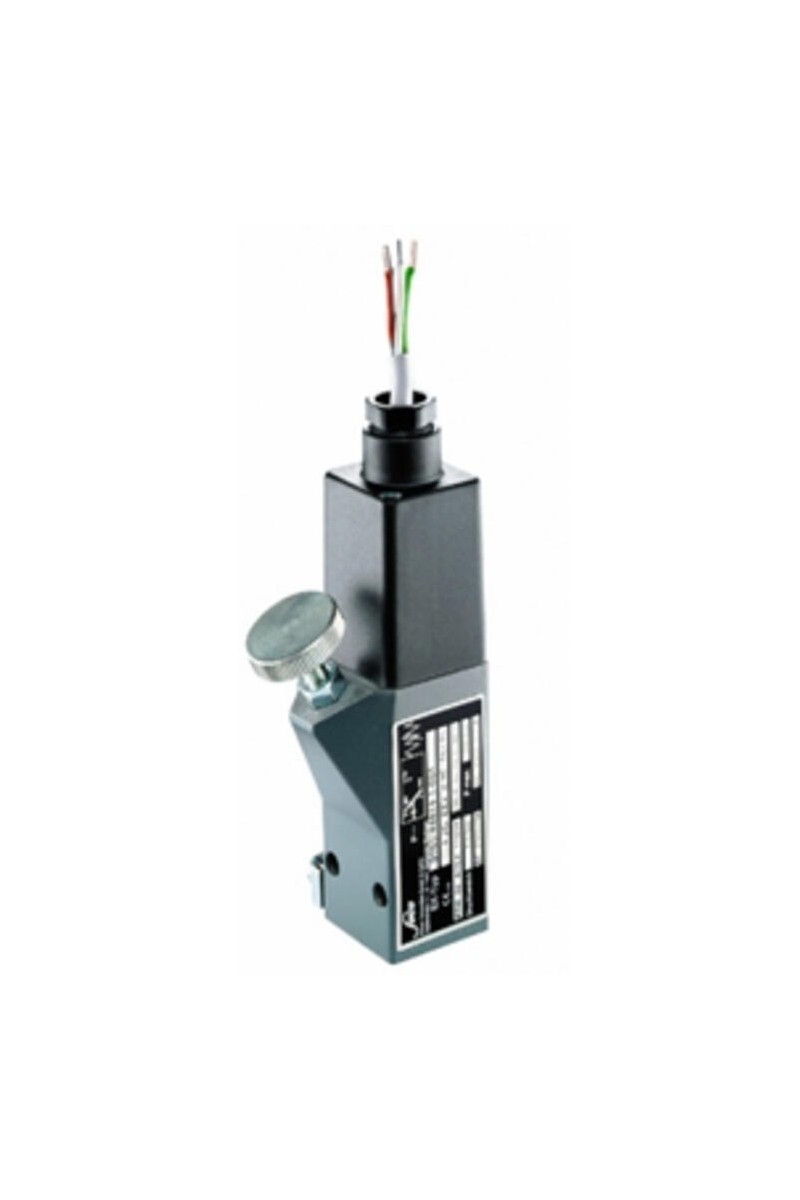

The 0165 series pressure switch is part of the ATEX range from SUCO for gas zones 1 and 2 offering adjustment while in operation. Pg9 cable gland connector and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F alumimium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and can come pre-set.

Gas protected zones 1 and 2

Up to 250 V

Five adjustment ranges from 1..6 bar to 100..400 bar

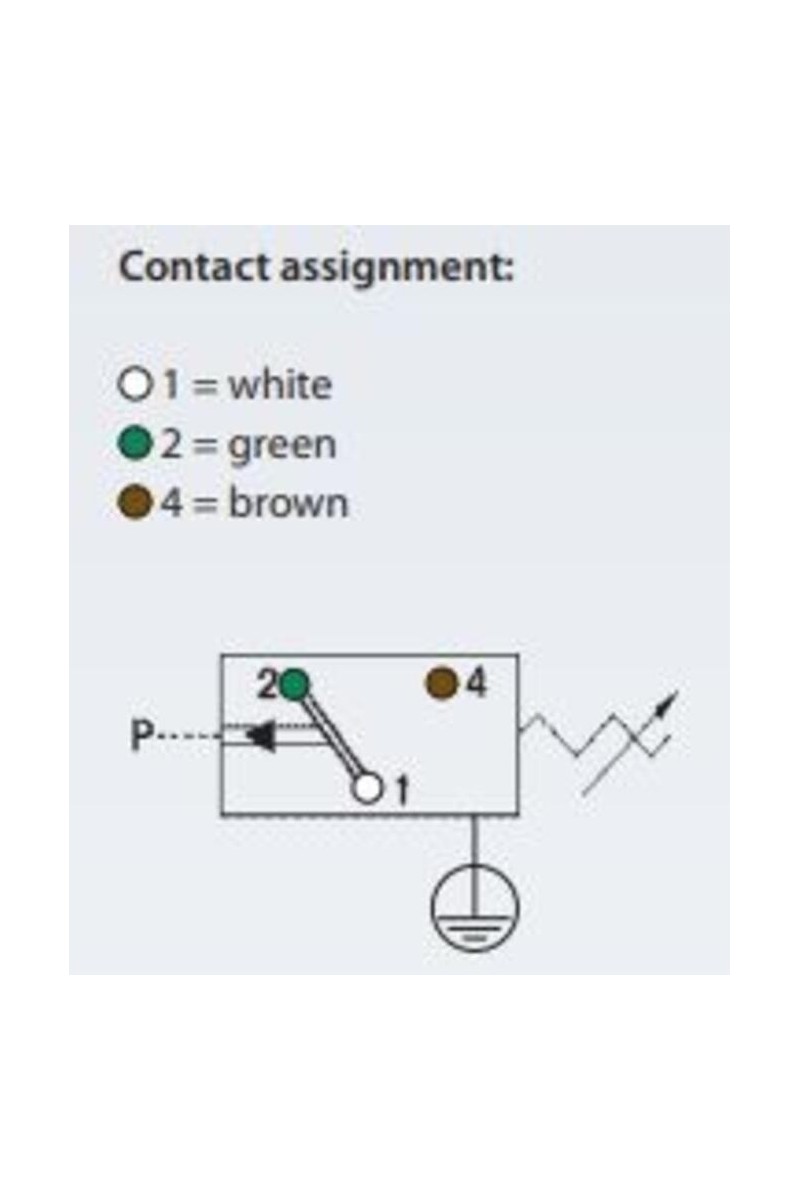

Changeover (SPDT)

Over pressure safety from 200 bar up to 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 6 bar
Adjustment range min 1 bar
Approvals CSA US, Ex-d
Contact load max ac 1 A
Contact load max dc 0.25 A
Deviation max ±0,5
Electrical connection Embedded 2m cable
Function Changeover (SPDT)
IP class IP65
Material membrane NBR
Material of body Aluminium
Material of wetted parts Aluminium, NBR
Max switching frequency/min 200
Pressure max 200 bar
Process connection G1/4 female
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -20 °C
Temperature of media to 80 °C
Weight 380 g
Voltage ac/dc max 250 V
Voltage ac/dc min 10 V
