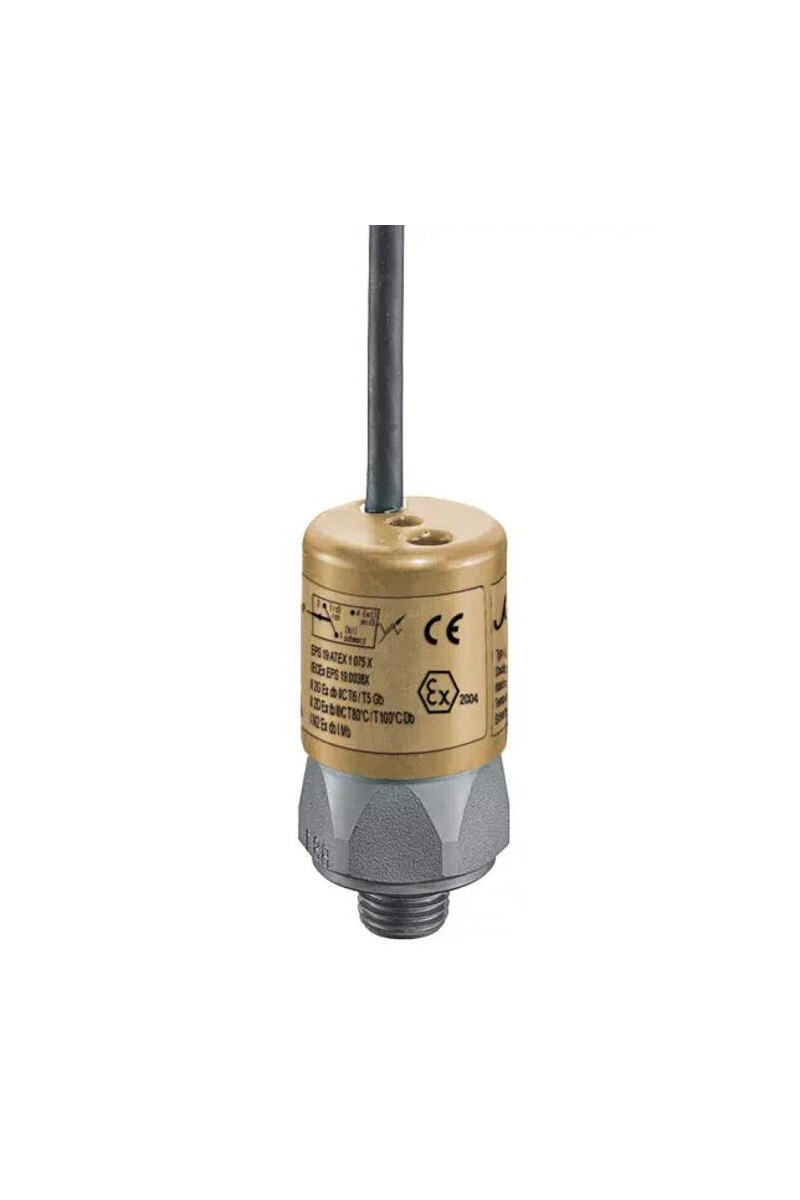

Suco - 0342/0343 Pressure Switch
  • Suco - 0342/0343 Pressure Switch

Suco - 0342/0343 Pressure Switch

ATEX rated

The 0342/0343 series pressure switch is part of the ATEX range from SUCO, designed for gas protection zones 1 + 2 and dust protection zones 21 + 22. Offering a maximum voltage of 250V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and also adjustable on site and can come pre-set.

Gas protected zones 1 and 2

Dust protection zones 21 and 22

Mining M2

Voltage up to 250 V

Working area up to 150 bar
£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 10 bar
Adjustment range min 1 bar
Approvals ATEX, CE, IECEx
Contact load max ac 5 A
Contact load max dc 3.5 A
Deviation max ±1,0
Electrical connection Embedded 2m cable
Function Changeover (SPDT)
IP class IP65
Material membrane NBR
Material of body Aluminium
Material of wetted parts Zinc-plated steel, NBR
Max switching frequency/min 200
Pressure max 300 bar
Pressure range max 10 bar
Pressure range min 1 bar
Pressure type Relativt tryck
Process connection 1/4 BSP
Temperature of media from -20 °C
Temperature of media to 80 °C
Weight 230 g
Voltage ac/dc max 250 V
Voltage ac/dc min 24 V
