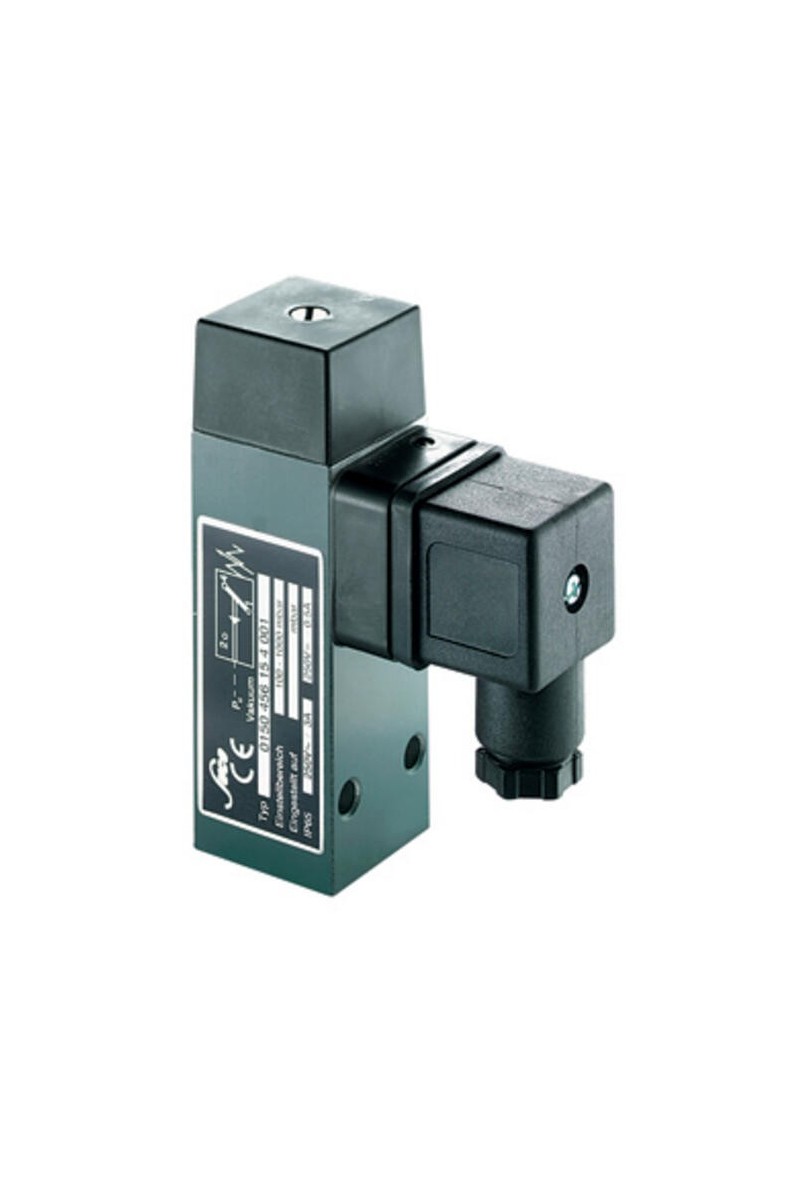

Suco - 0150 Vacuum Switch

Aluminium body

The 0150 series vacuum switch is part of the block style and wall mountable range from SUCO offering a rugged solution. Connector included and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F aluminium body offering a high pressure resistance.The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Common applications medical, air systems, chemical and process.

Up to 250 V

Connector included (DIN 43650/Form A)

Adjustment range of 100..950 mbar (relative)

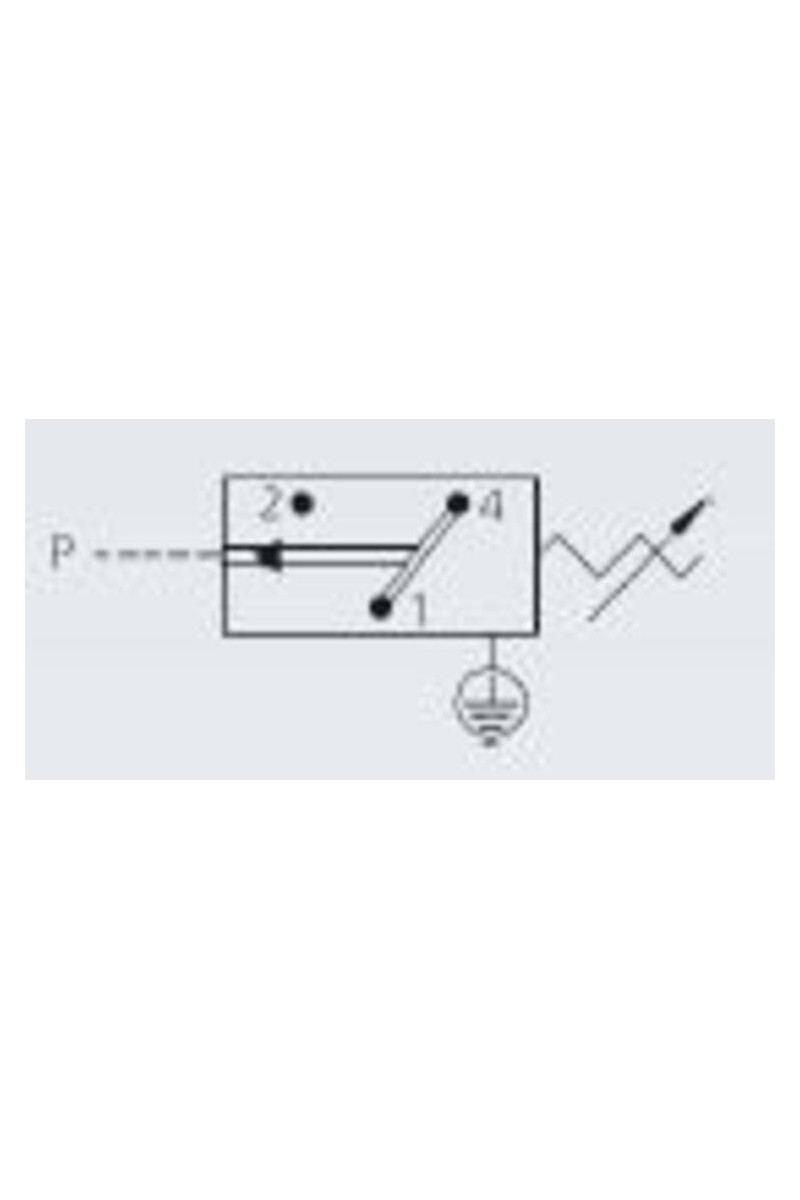

Changeover (SPDT)

Over pressure safety of 20 bar

£0.00
Tax included
Quantity :
Ask a Question

Contact load max ac 5 A
Contact load max dc 0.25 A
Deviation max ±50mbar
Electrical connection DIN EN 175301-803-A
Function Changeover (SPDT)
IP class IP65
Material membrane ECO
Material of body Aluminium
Material of wetted parts Aluminium, ECO
Max switching frequency/min 200
Operating range max 950 mbar
Operating range min 100 mbar
Pressure range max 0.95 bar
Pressure range min 0.1 bar
Process connection G1/8 female
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -20 °C
Temperature of media to 100 °C
Weight 270 g
Voltage ac/dc max 250 V
Voltage ac/dc min 10 V
