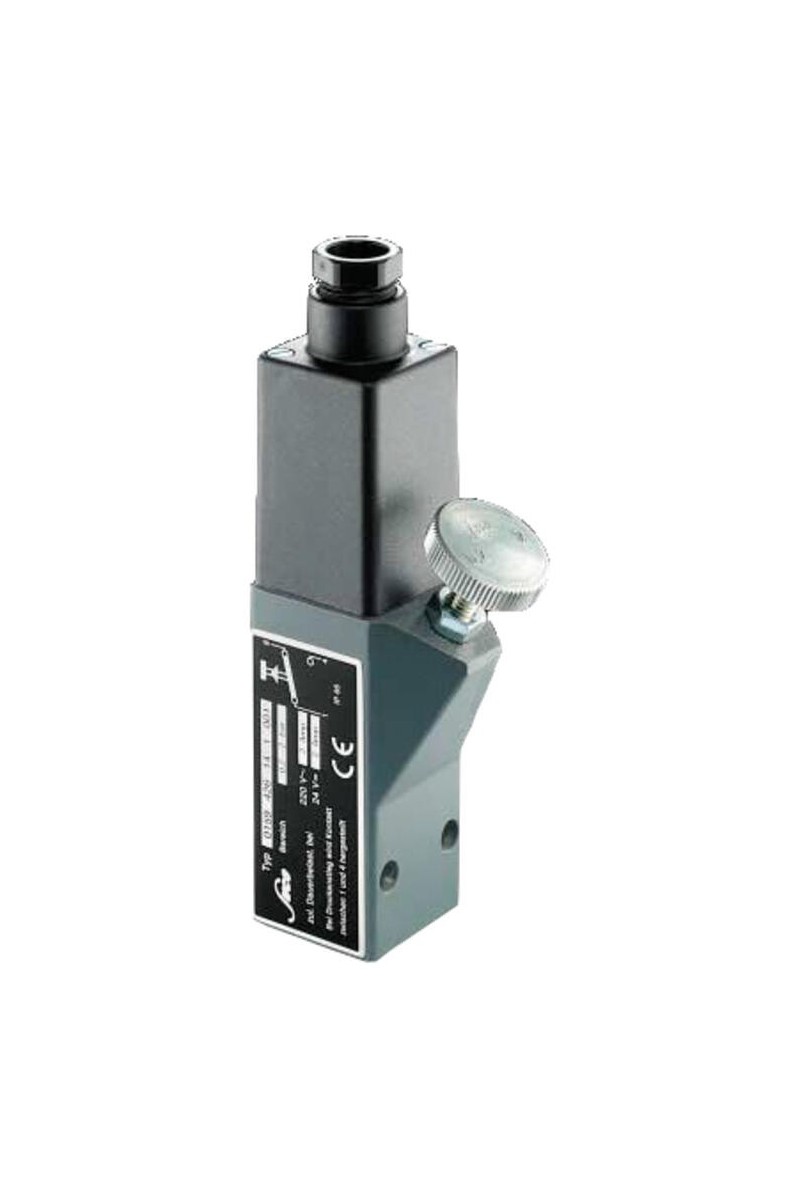

Suco - 0159 Pressure Switch

Aluminium body

The 0159 series pressure switch is part of the heavy duty range from SUCO offering adjustment while in operation. Pg9 cable gland connector and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F alumimium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and can come pre-set.

Up to 250 V

Pg9 Cable gland

Eight adjustment ranges from 0,2..2 bar to 40..400 bar

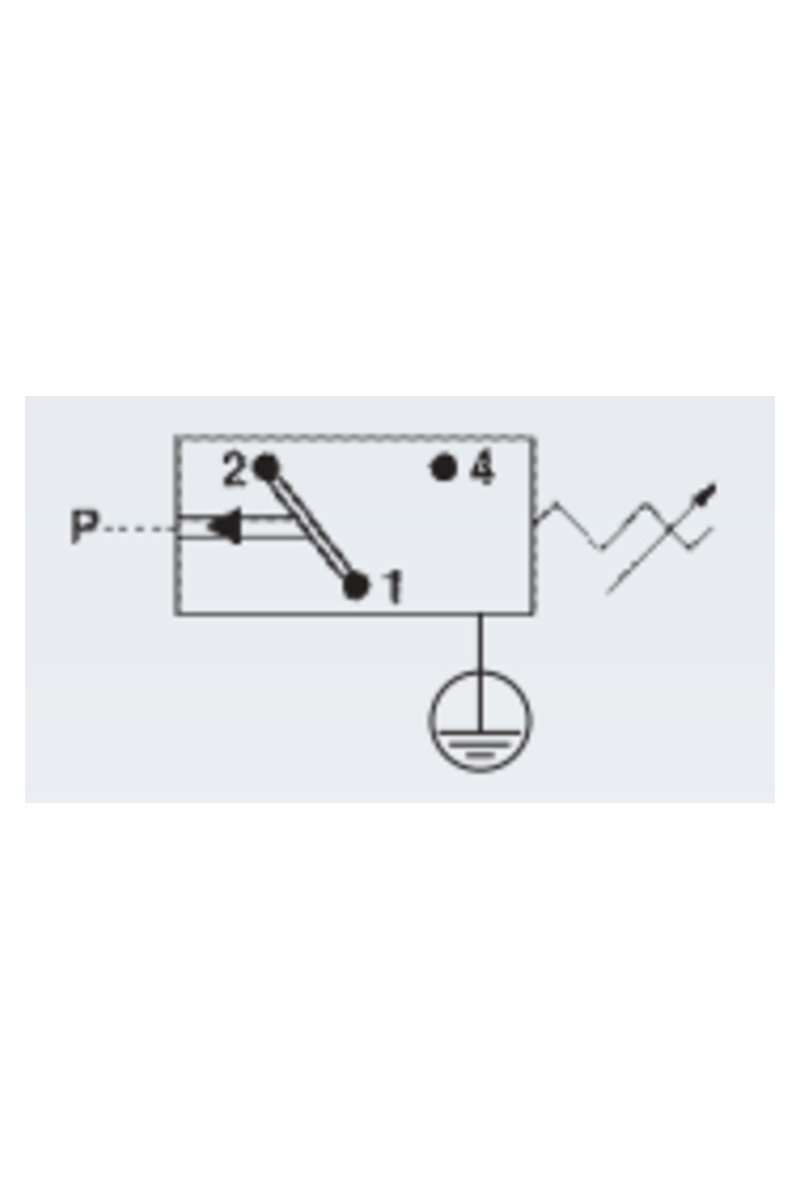

Changeover (SPDT)

Over pressure safety from 200 bar up to 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 2 bar
Adjustment range min 0.2 bar
Approvals CE, RoHS II
Contact load max ac 2.5 A
Contact load max dc 0.3 A
Deviation max ±0,2-0,3
Electrical connection Cable PG9
Function Changeover (SPDT)
IP class IP65
Material membrane NBR
Material of body Aluminium
Material of wetted parts Aluminium, NBR
Max switching frequency/min 200
Pressure max 200 bar
Process connection G1/4 female
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 240 g
Voltage ac/dc max 250 V
