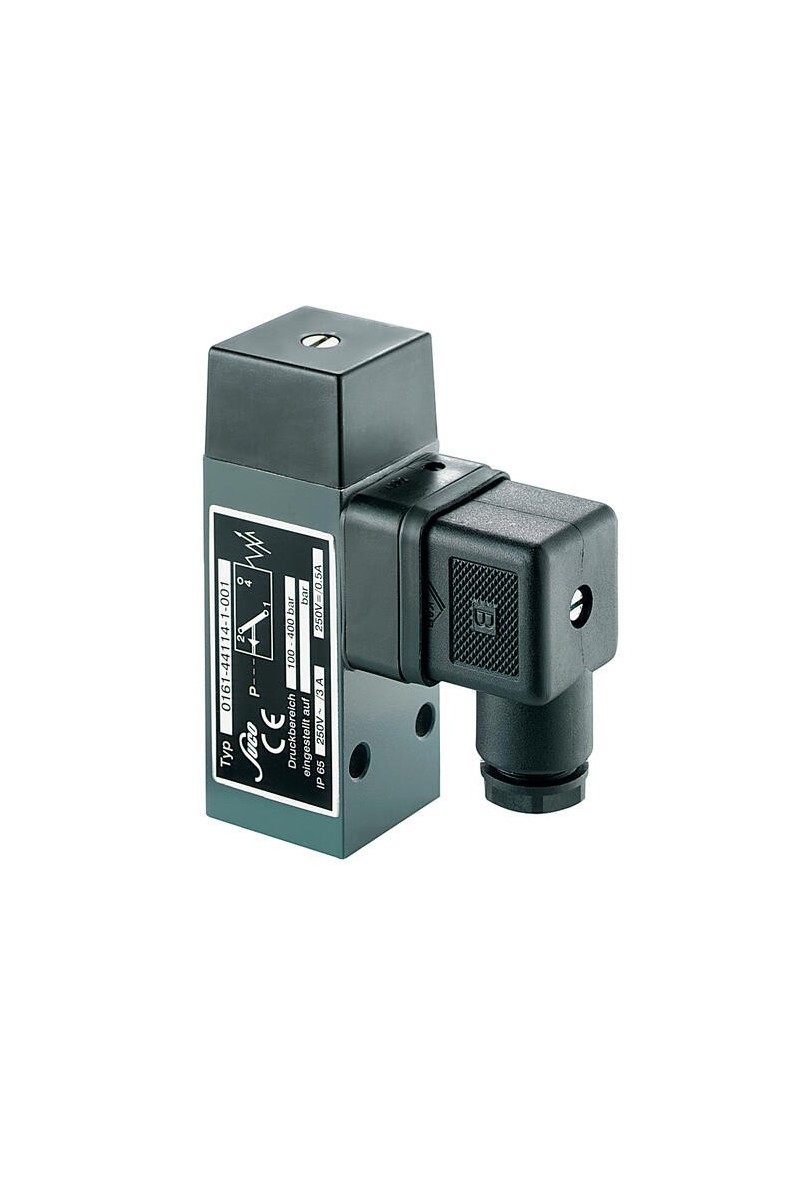

Suco - 0161 Heavy Duty Pressure Switch

Aluminium body

The 0161 series pressure switch is part of the block style and wall mountable range from SUCO offering a rugged solution. Connector included and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F aluminium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Common applications general hydraulics, power packs, high pressure systems and harsh environments.

Up to 250 V

Connector included (DIN 43650/Form A)

Six adjustment ranges from 0,5..1 bar to 100..400 bar

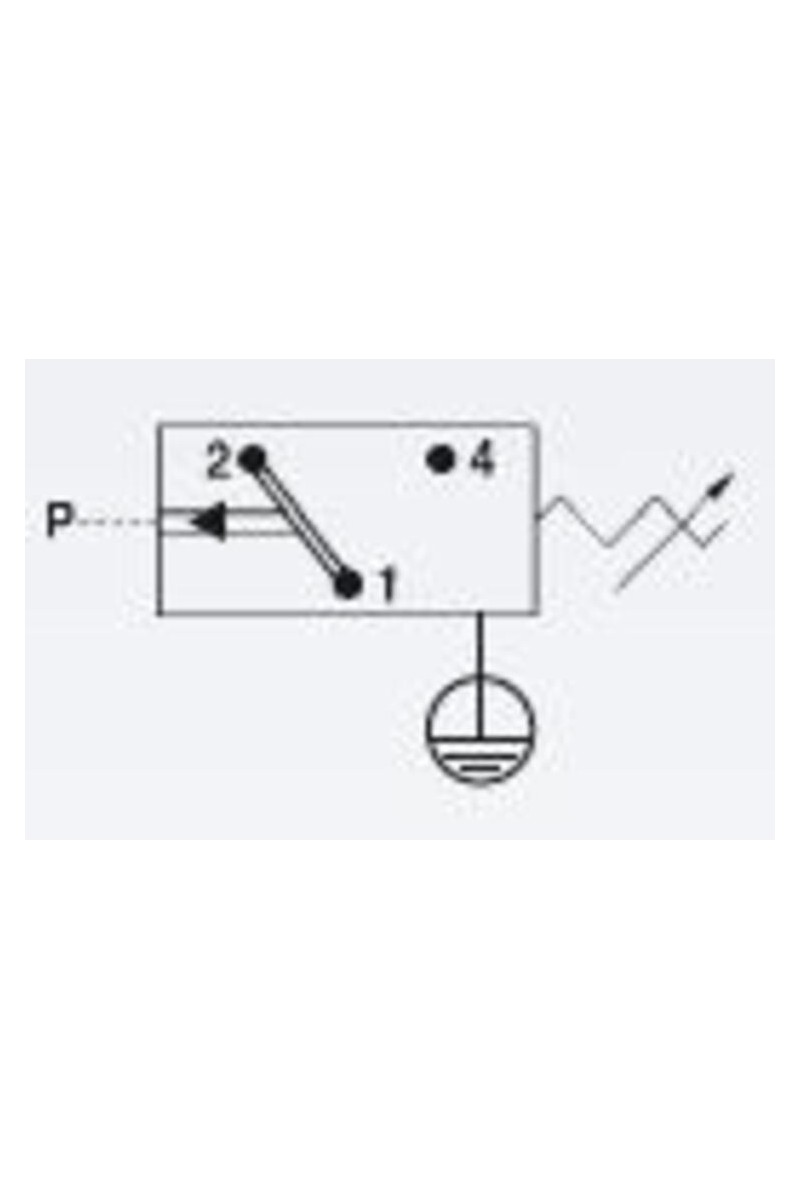

Changeover (SPDT)

Over pressure safety from 200 bar up to 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1 bar
Adjustment range min 0.5 bar
Approvals CE, RoHS II
Contact load max ac 5 A
Contact load max dc 3.5 A
Deviation max ±0,2
Electrical connection DIN EN 175301-803-A
Function Changeover (SPDT)
IP class IP65
Material membrane NBR
Material of body Aluminium
Material of wetted parts Aluminium, NBR
Max switching frequency/min 200
Pressure max 200 bar
Process connection G1/4 female
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 240 g
Voltage ac/dc max 250 V
