Tecnoplastic - Koala

Reference: ACCGLEA100001

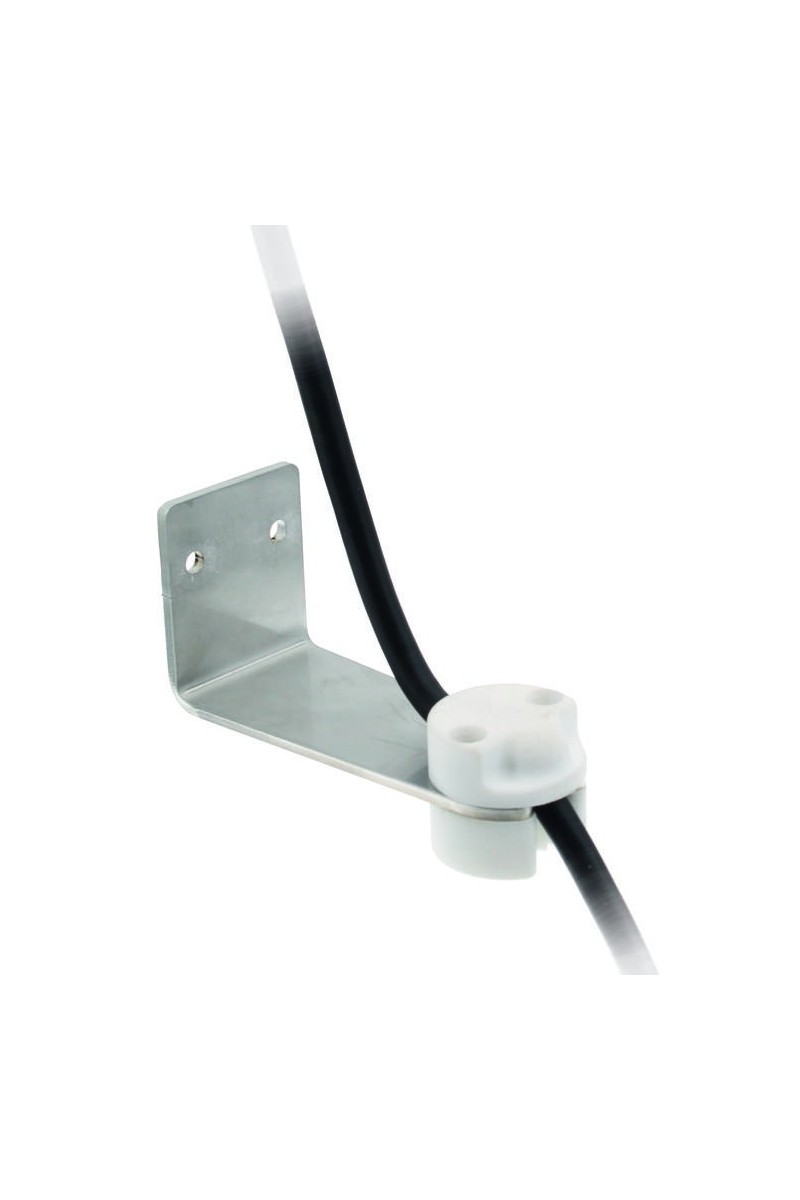

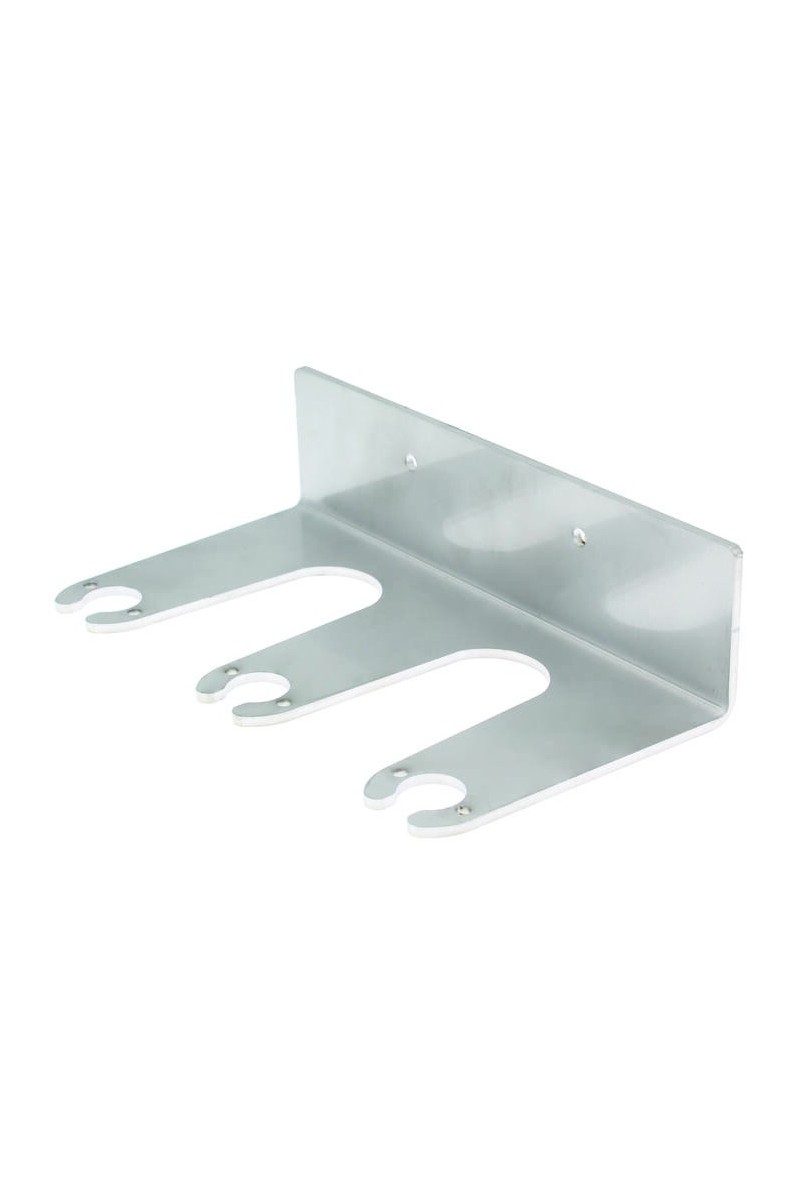

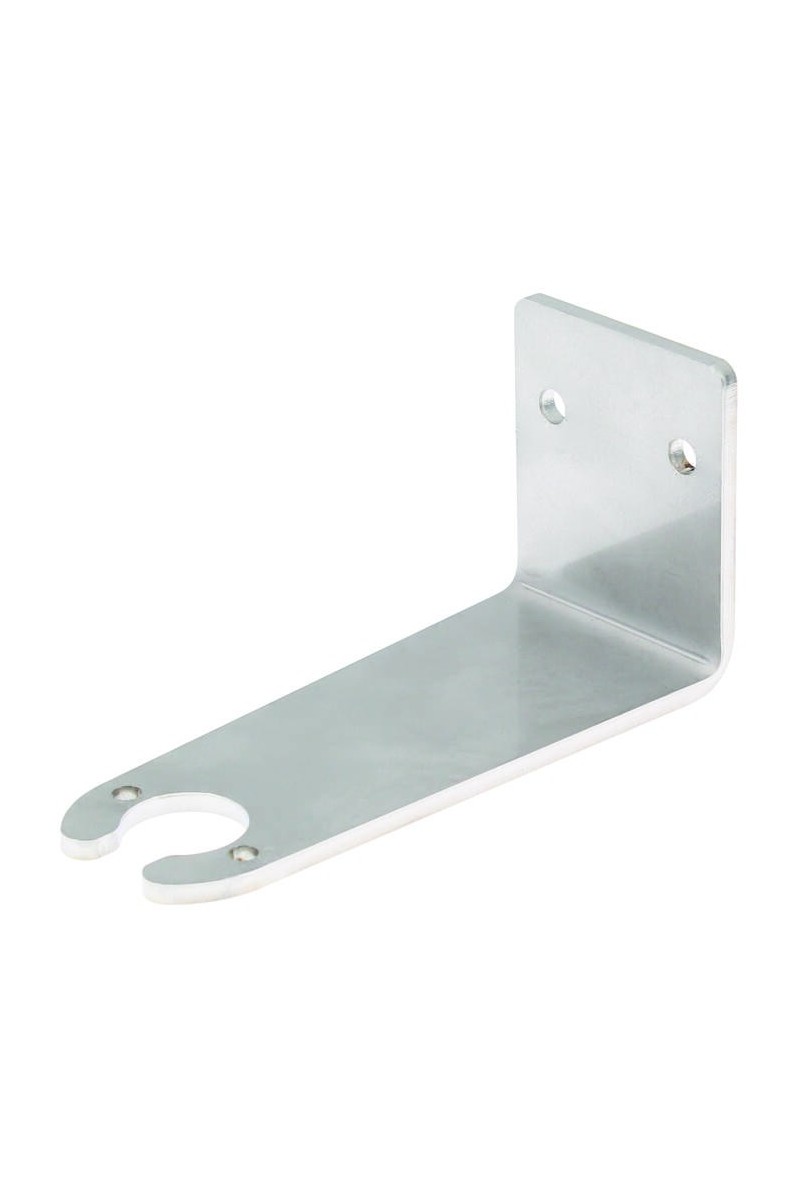

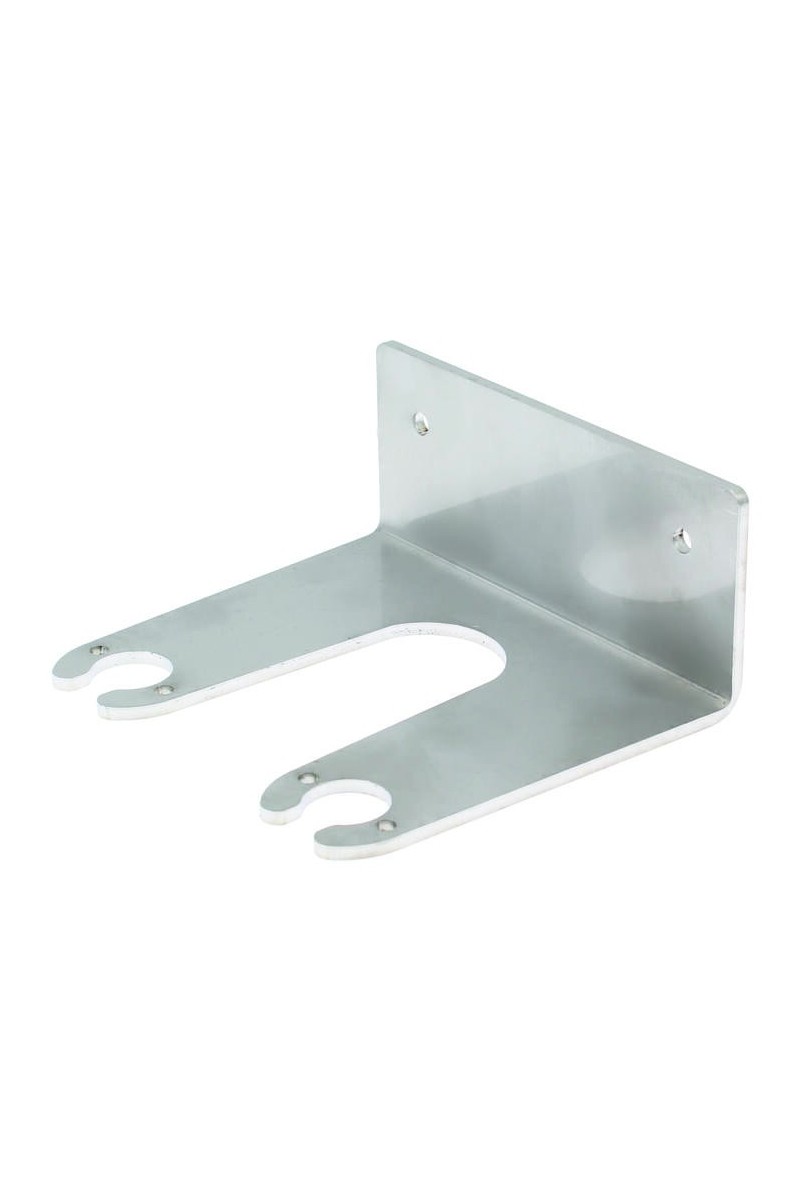

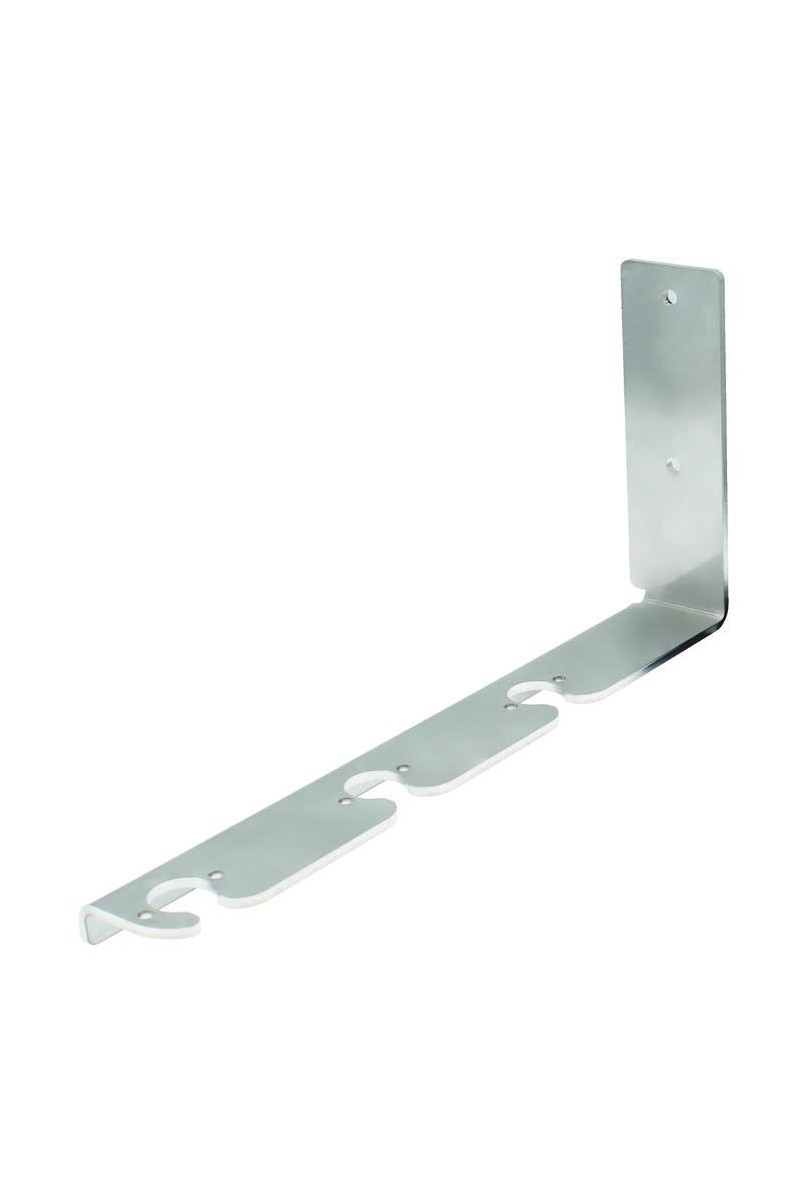

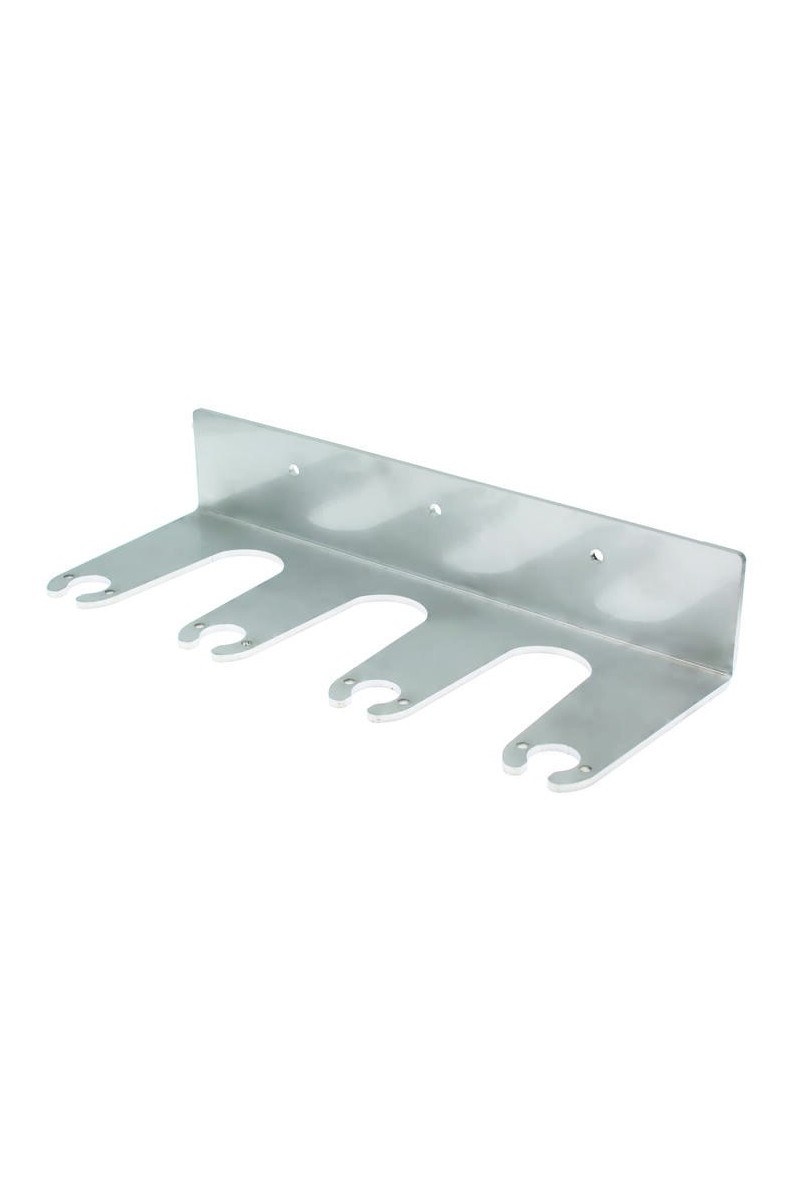

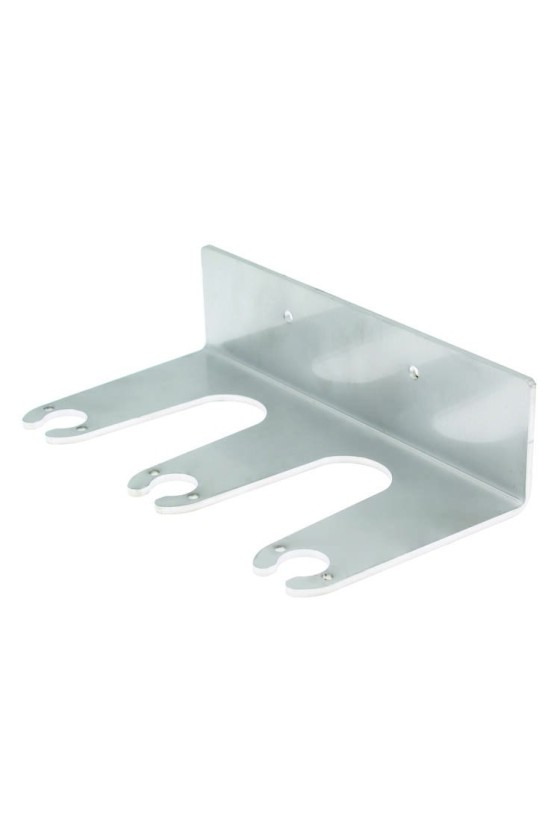

This is a cable holder accessory that can be supplied with dedicated brackets. Thanks to its design it can be easily fastened to both Leaf and Liana brackets reducing the time needed for installation and maintenance. Plus, the portion of bended cable is less vulnerable to breakage. The Koala can hold both cable sizes of H05 (Ø7,5mm) and H07 (Ø9mm) by turning its lower half. The bracket can also host other standard cable glands with a 16mm diameter.

Patented product and kit
Polypropylene body
SST 304 brackets
Plugs suitable for various building materials like plastic, plasterboard, wood or concrete

£0.00

Tax included

Quantity :

Description
Product Details

This is a cable holder accessory that can be supplied with dedicated brackets. Thanks to its design it can be easily fastened to both Leaf and Liana brackets reducing the time needed for installation and maintenance. Plus, the portion of bended cable is less vulnerable to breakage.The Koala can hold both cable sizes of H05 (Ø7,5mm) and H07 (Ø9mm) by turning its lower half. The bracket can also host other standard cable glands with a 16mm diameter.

Technical data

Material fixing bracket	AISI 304
Material of case	Polypropylene
Max. torque	0.7
Operating temperature to	80 °C

Reference ACCGLEA100001
