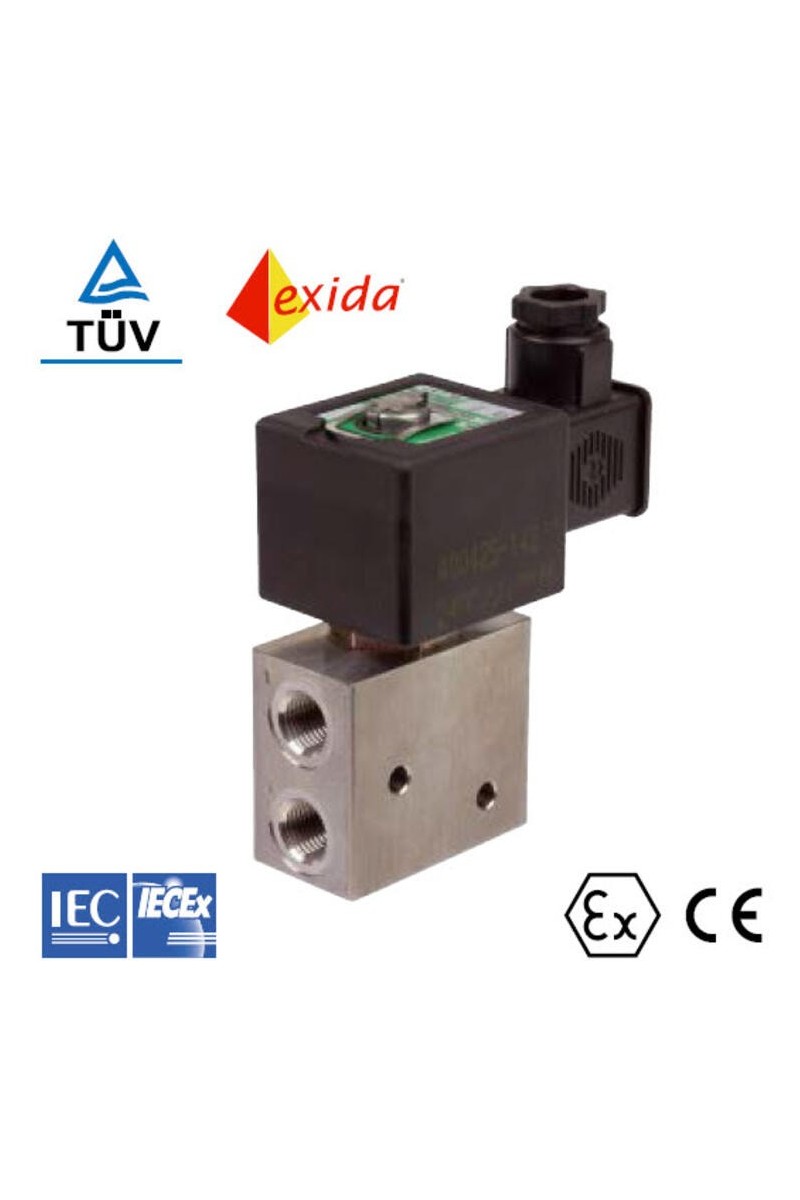

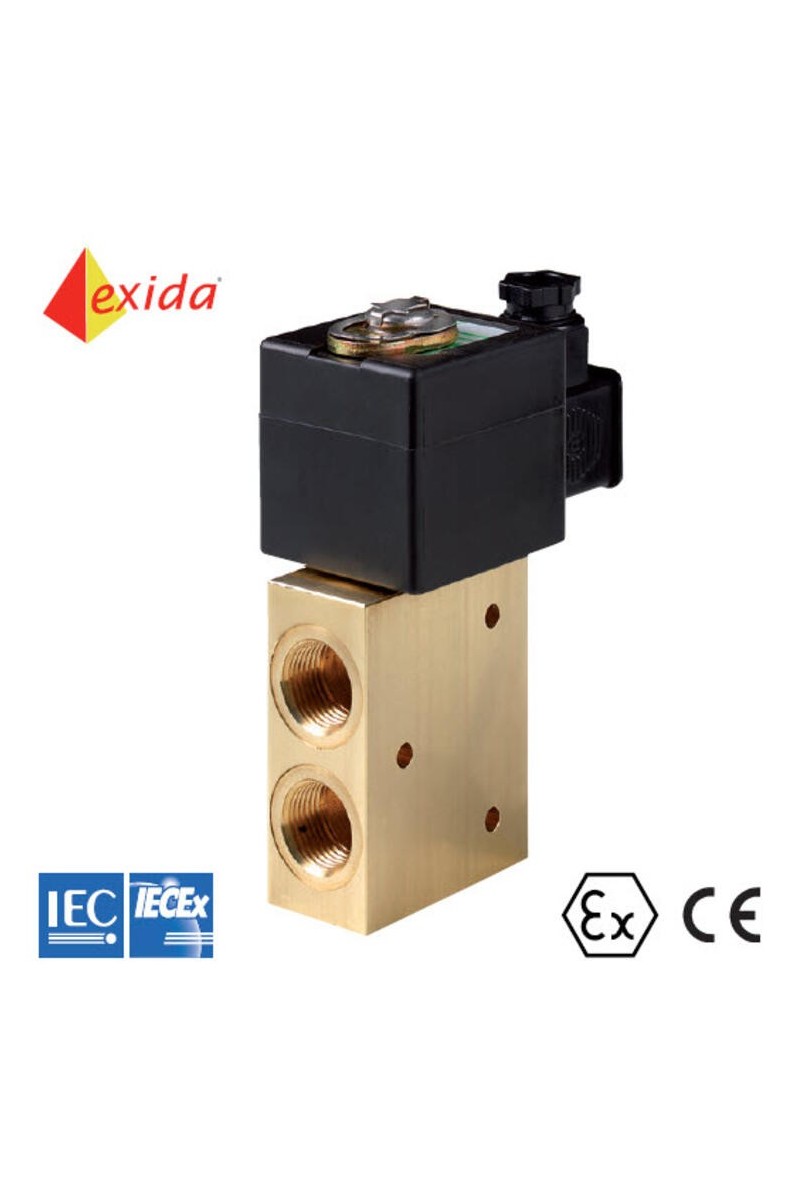

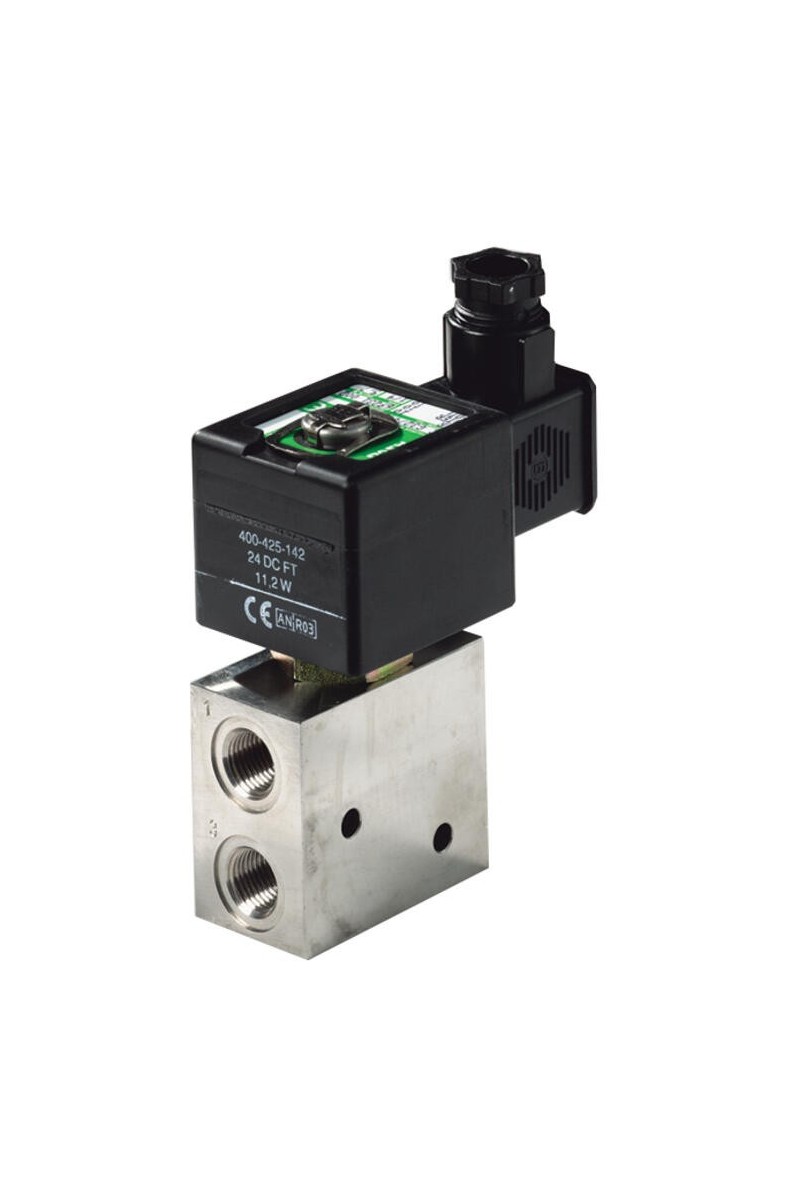

ASCO - 327 Series Direct Operated

3/2

Housing in brass or stainless

Universal function

Large flow

Working pressure 0 to 10 bar

£0.00
Tax included
Quantity :
Ask a Question

General Data
Flow factor / flow coefficient 0,45
IP class IP65


Material Data
Material body Brass
Material of seals FPM


Temperature Data
Temperature of media from -20 °C
Temperature of media to 120 °C


Additional Data
Response time 100 ms
Viscosity max 65 cSt
Weight 0.95 kg
Power consumption 10 W
Throughput 5.7 mm
Type of valve Solenoid valve
Voltage AC 230 V
Temperature operational min -40 °C
Temperature operational max 55 °C
Material coil Epoxy

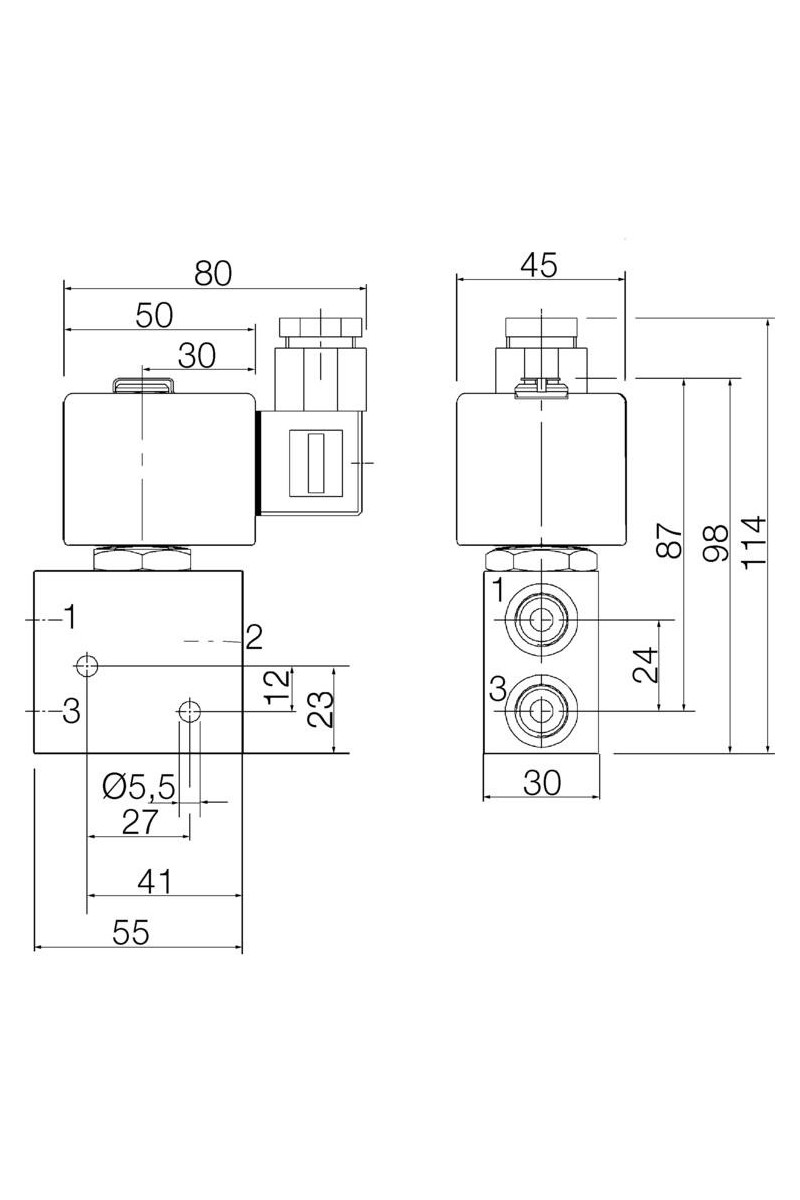

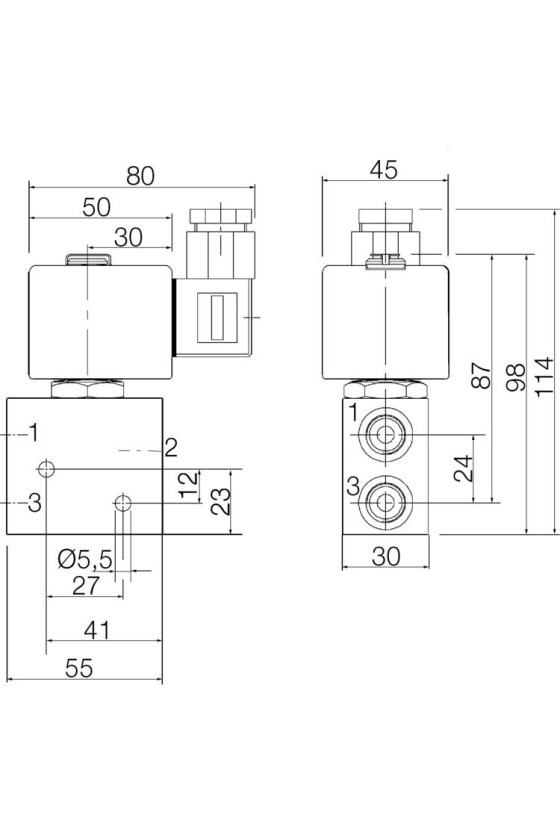

Connection port 1-2 G1/4
Connection port 3 G1/4
Differential air pressure max 10 bar
Differential pressure max 10 bar
Differential pressure min 0 bar
Differential water pressure max 10 bar
Flow max 7.5 l/min

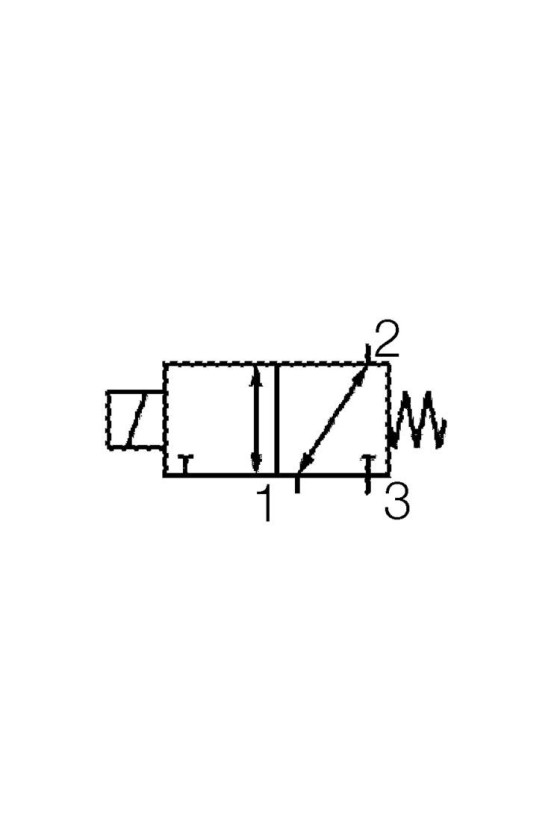

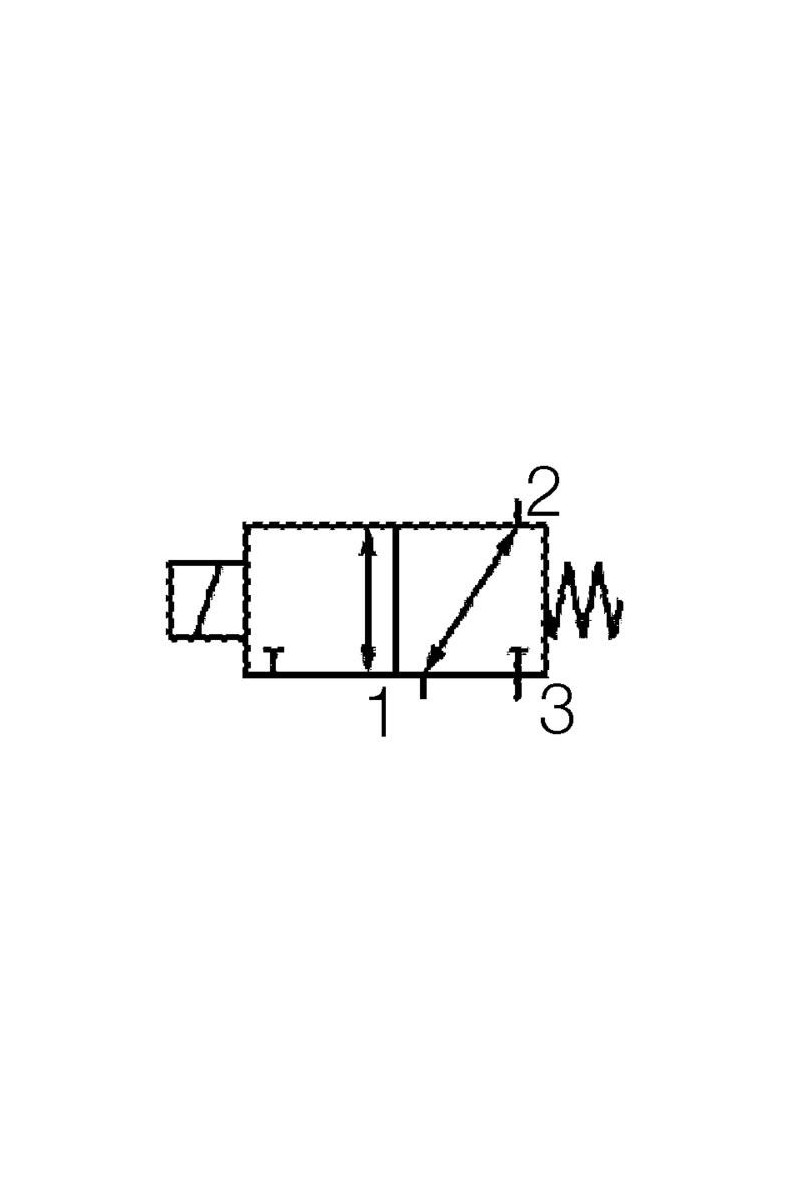

Function 1 3/2
Function 2 Universal
Material plunger Stainless steel
Material glide ring PTFE
Material seat seal FPM
Material spring Stainless steel
