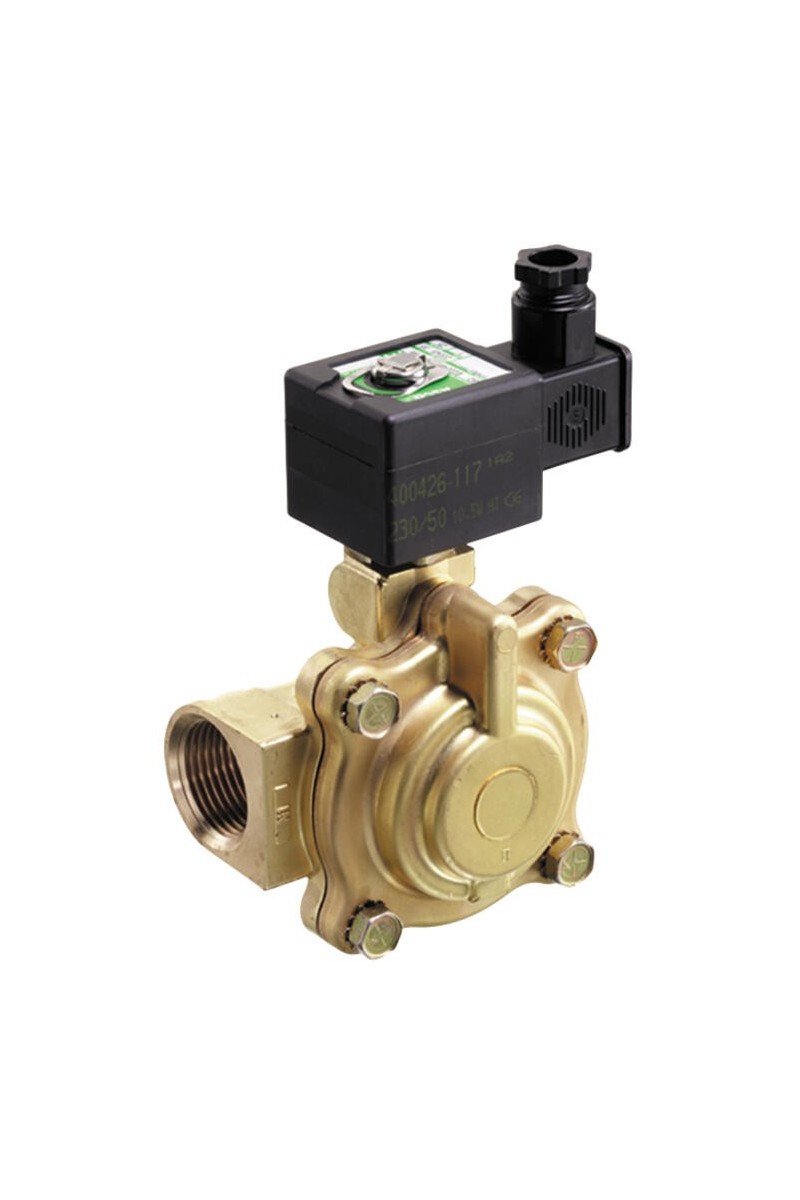

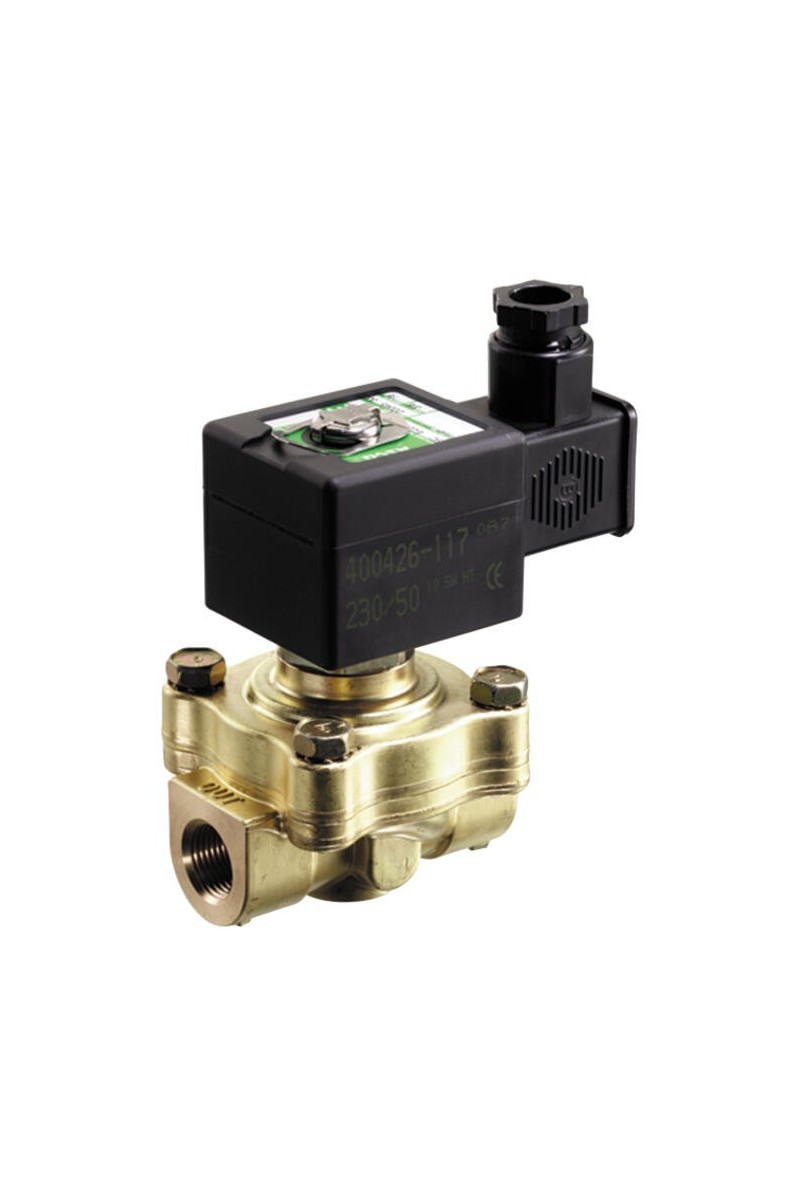

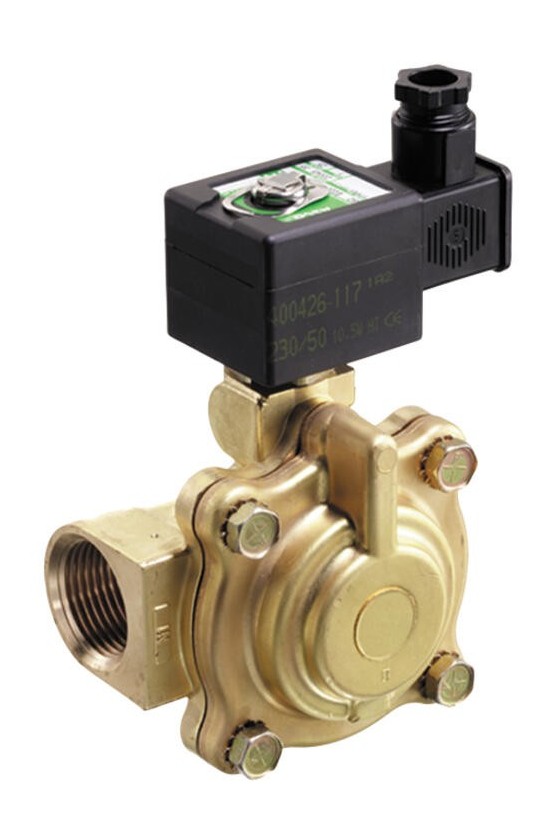

ASCO - 2/2 Steam valve 3/8\"-2\"
  • ASCO - 2/2 Steam valve 3/8\"-2\"
  • ASCO - 2/2 Steam valve 3/8\"-2\"
  • ASCO - 2/2 Steam valve 3/8\"-2\"

ASCO - 2/2 Steam valve 3/8\"-2\"

Normally closed

Media temperature up to +185 °C

Working pressure 0.35 to 10 bar steam

Housing in brass

£0.00
Tax included
Quantity :
Ask a Question

General Data
Connection 3/8 BSP
IP class IP65

Material Data
Material body Brass
Material of seals EPDM
Material seat Brass

Temperature Data
Temperature of media from -20 °C
Temperature of media to 184 °C

Additional Data
Pressure max 10 bar
Close delay 40 ms
Power consumption 10.5 W
Throughput 16 mm
Type of valve Solenoid valve
Response time off 120 ms
Voltage AC 230 V
Temperature operational min -20 °C
Temperature operational max 40 °C
Material coil Epoxy
Differential air pressure max 10 bar
Differential pressure max 10 bar
Differential pressure min 0.35 bar
Differential water pressure max 10 bar
Flow max 43 l/min
Function 1 2/2
Function 2 Normally Closed
Material plunger Stainless steel
Material short-circuit ring Copper
Material seat seal PTFE
Material spring Stainless steel
