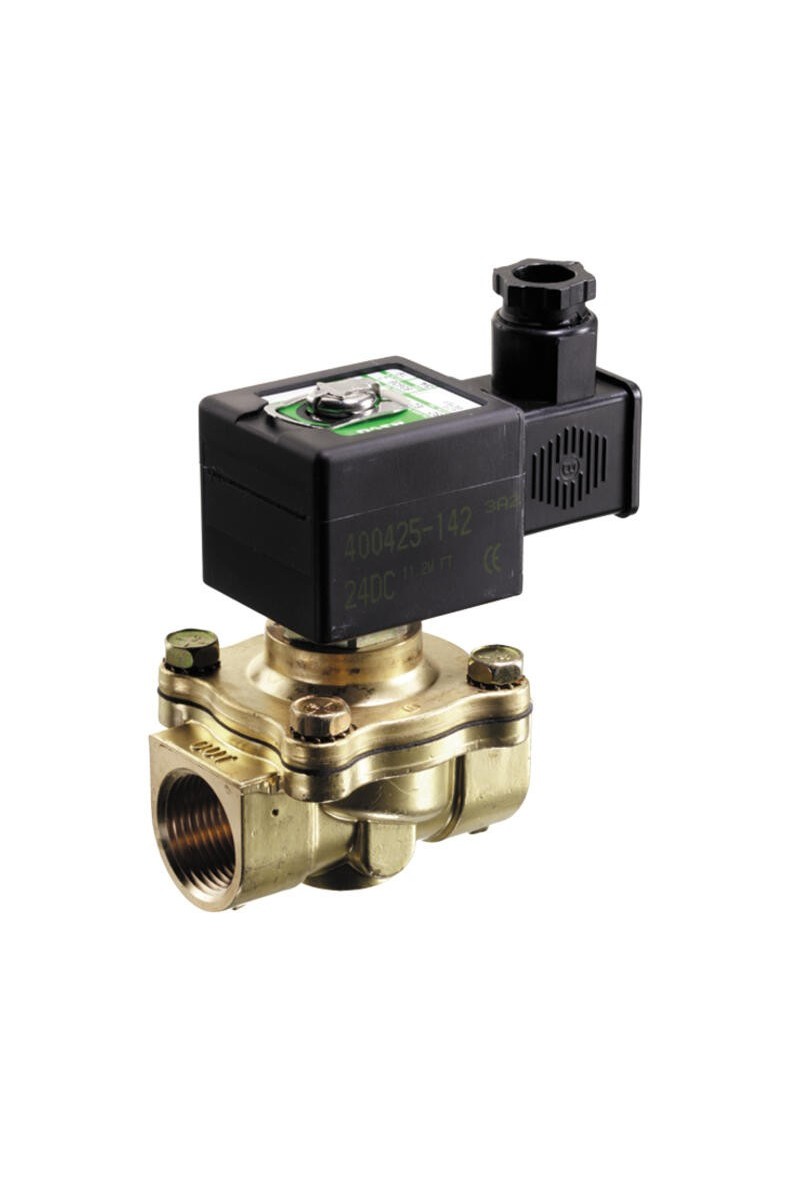

ASCO - 2/2 Steam valve 3/8\"-1 1/2\"
  • ASCO - 2/2 Steam valve 3/8\"-1 1/2\"
  • ASCO - 2/2 Steam valve 3/8\"-1 1/2\"
  • ASCO - 2/2 Steam valve 3/8\"-1 1/2\"
  • ASCO - 2/2 Steam valve 3/8\"-1 1/2\"

ASCO - 2/2 Steam valve 3/8\"-1 1/2\"

Normally closed

Media temperature up to +150 °C

Working pressure 0 to 3.5 bar steam

Housing in brass

£0.00
Tax included
Quantity :
Ask a Question

Connection 3/8 BSP
Flow factor / flow coefficient 2,6
IP class IP65


Material Data
Material body Brass
Material of seals EPDM
Material seat Brass


Temperature Data
Temperature of media from -20 °C
Temperature of media to 150 °C


Additional Data
Pressure max 10 bar
Close delay 15 ms
Weight 1.2 kg
Power consumption 10.5 W
Throughput 16 mm
Type of valve Solenoid valve
Response time off 60 ms
Voltage AC 230 V
Temperature operational min -20 °C
Temperature operational max 40 °C
Material coil Epoxy
Differential pressure min 0 bar
Differential steam pressure max 3.5 bar
Flow max 43.3 l/min

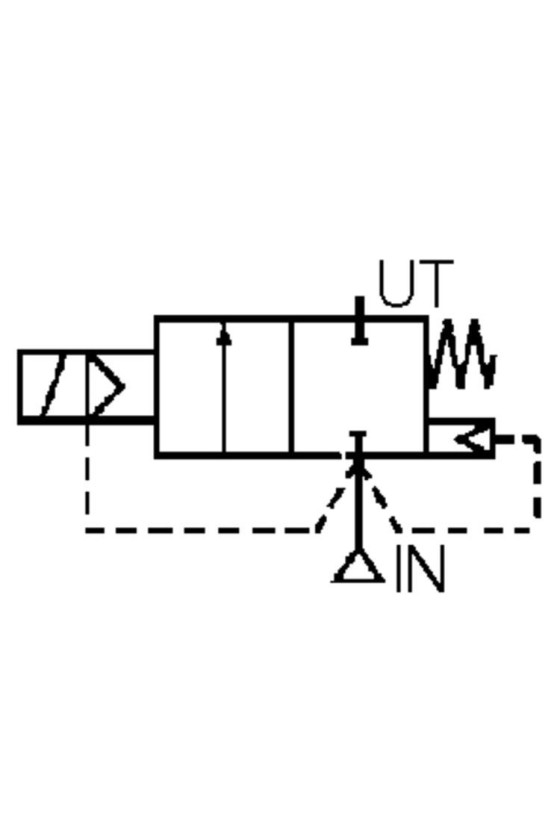

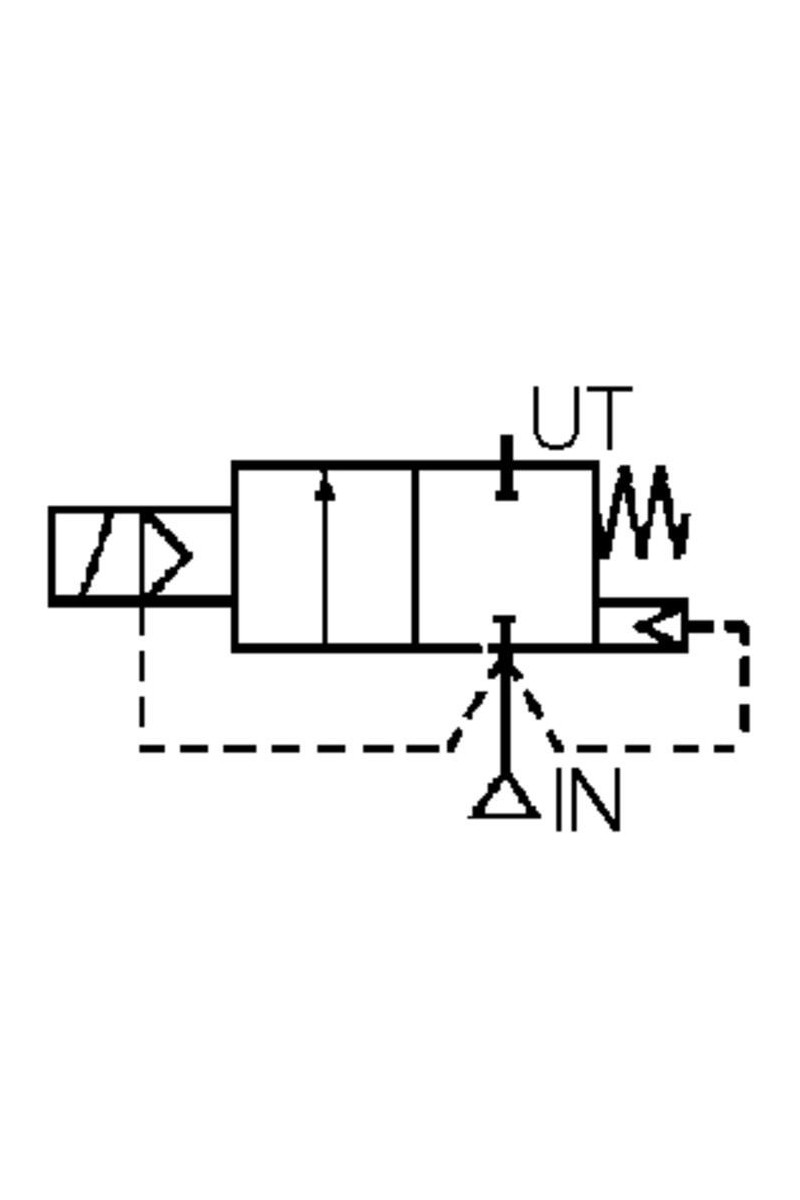

Function 1 2/2
Function 2 Normally Closed
Material plunger Stainless steel
Material short-circuit ring Copper
Material spring Stainless steel
