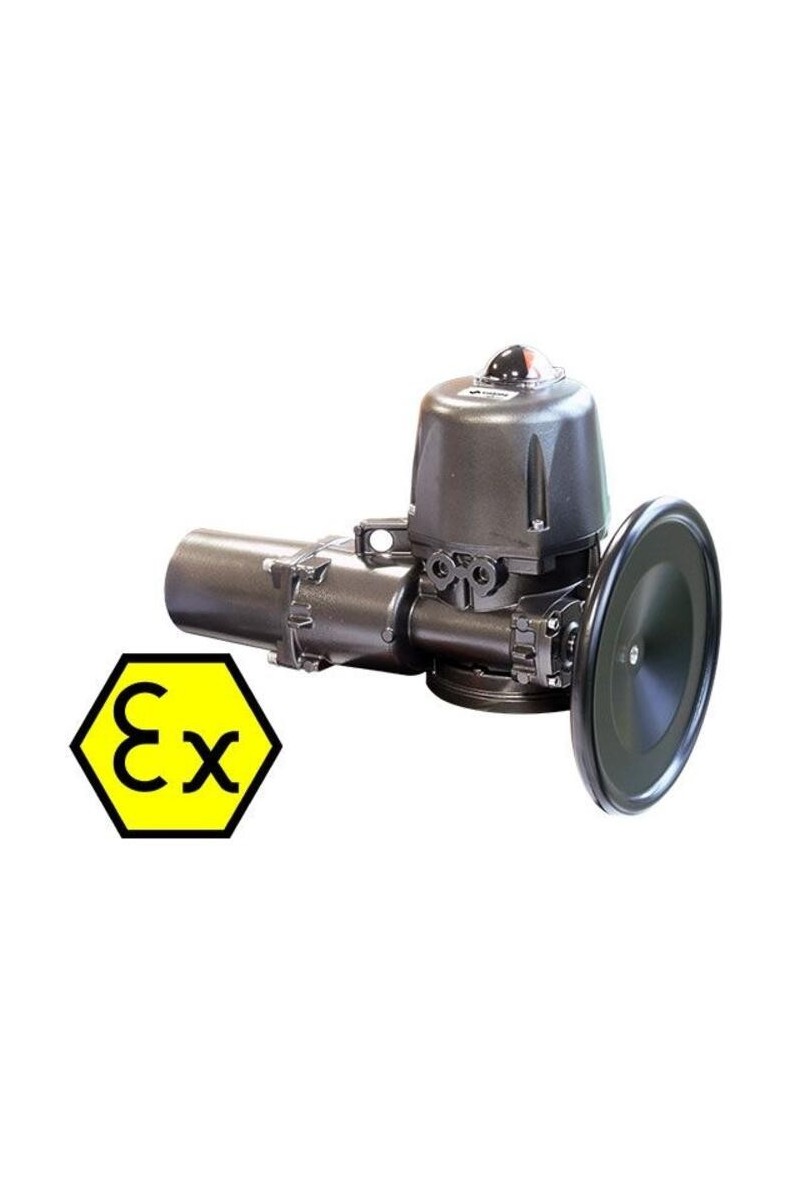

VTX Series ATEX Electric Actuator
  • VTX Series ATEX Electric Actuator

VTX Series ATEX Electric Actuator

Quarter Turn

The VTX is an IP68 rated ATEX certified, quarter turn electric actuator, with aluminium housing and aluminium cover. It has a manual override via a hand wheel and is available in torque outputs of 600 Nm and 1000 Nm. The actuator is built in accordance with CE-ROHS-REACH directives. Suitable for various Oil and Gas applications.

IP68

600Nm to 1000Nm

Working temperature -20°C to +70°C

Fail safe and ATEX rated Actuator

£0.00
Tax included
Quantity :
Ask a Question

he VTX is an IP68 rated ATEX certified, quarter turn electric actuator, with aluminium housing and aluminium cover. It has a manual override via a hand wheel and is available in torque outputs of 600 Nm and 1000 Nm. The actuator is built in accordance with CE-ROHS-REACH directives. Suitable for various Oil and Gas applications.



Part Numbers:

  • 942370
  • 942371
  • 942368
  • 942369
Connections F10/F12
Operating Time (Seconds) 38 s
Power 250 W
Star Drive 36
Torque 600
Voltage 230 V 50/60 Hz
