VALCO LCD Level Sensor

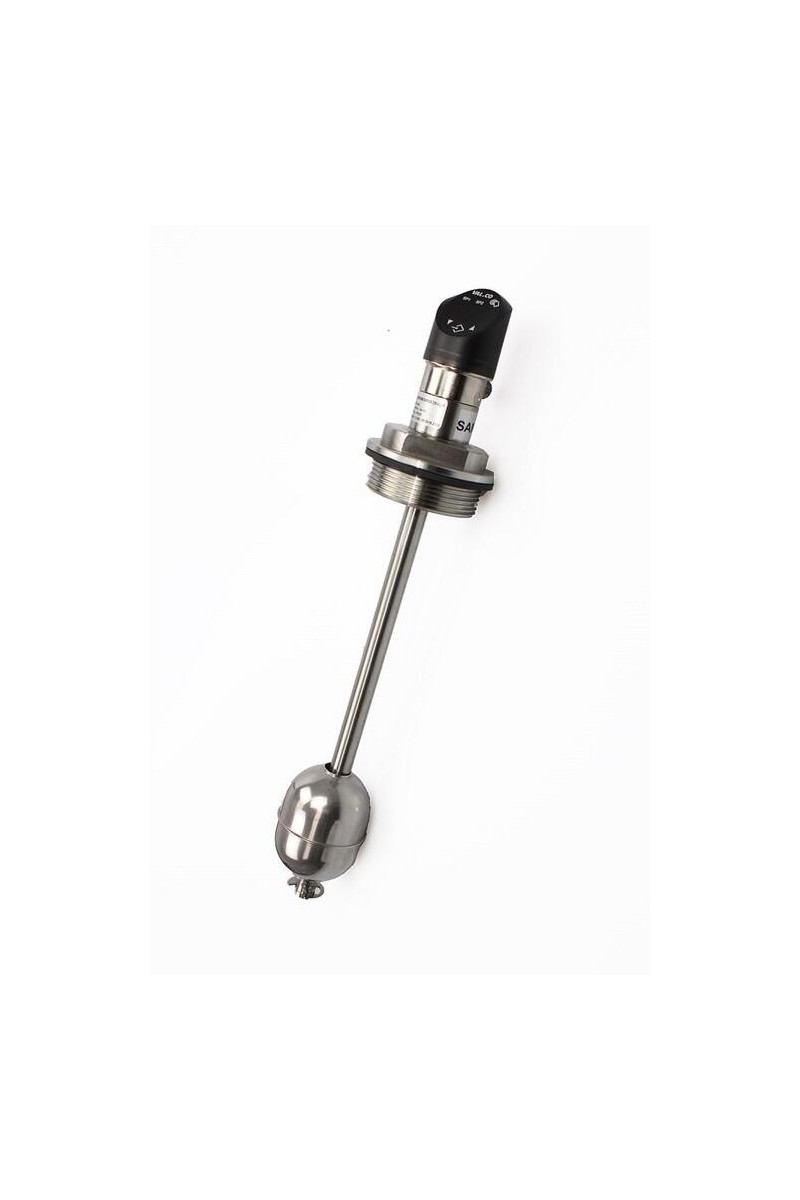

The principle operation of the LCD-S level switch is based on the moderate shutdown of a series of resistors and reed contacts. These are placed inside the guiding rod by a magnetic float. The only moving parts will be the float which moves along the measuring rod. You can program the sensor manually or via the “MYVALCO” app using NFC technology, available on Android® app store.

General specifications for continuous level sensor with display. Other specifications are selectable in the part number builder form below.

LCD.S29.5.450/500.S.25GS.M12

Local indicator 4 digit (9999)

Integrated data logger + export file data .csv

Up to 6m length

Analogue output switchable mA or V

Configured via NFC communication system through "MYVALCO" APP
