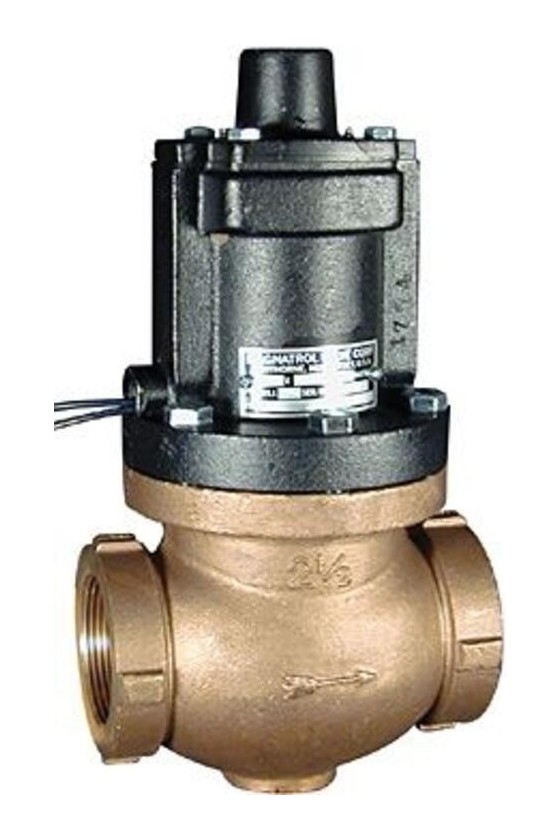

The type SR is a normally open solenoid valve capable of controlling the flow of steam. Steam must be free of sediment. Valve operates from zero pressure.

Full Port Normally Open Valve ½” to 3” NPT

Maximum static pressure 200PSI

Valve operates from zero pressure.

Valve Body – Cast Bronze, Globe Pattern – NPT ends

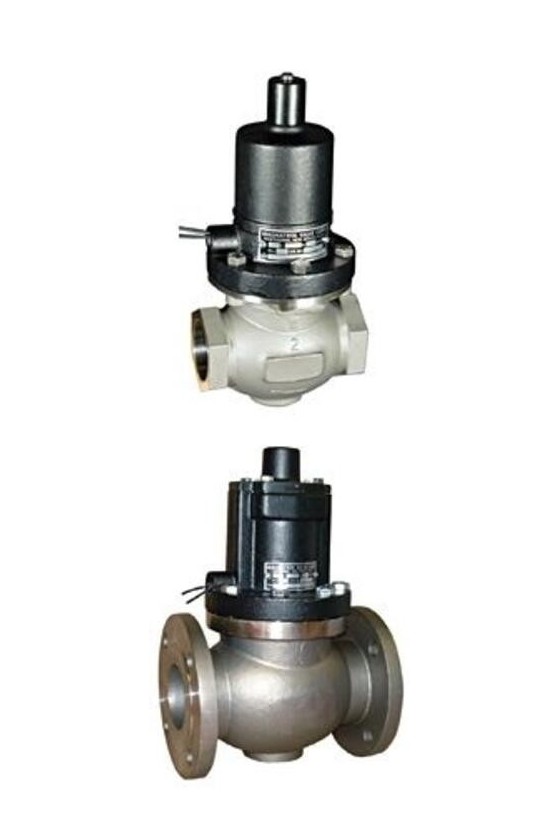

The Type WR valve is a normally open solenoid valve suitable for controlling the flow of steam. Steam must be free of sediment. Valve operates from zero pressure.

Full Port Normally Open Valve ½” to 3” NPT

Maximum static pressure 200PSI

Valve operates from zero pressure

Valve Body – 304 Stainless Steel Globe Pattern – NPT ends

Universal

Working pressure 0 to 40 bar

For temperatures up to +250 °C

For viscosity up to 5,000 cSt

Normally closed

For high pressure

Standard working pressure 0.7 bar to 100 bar

Housing in brass or stainless

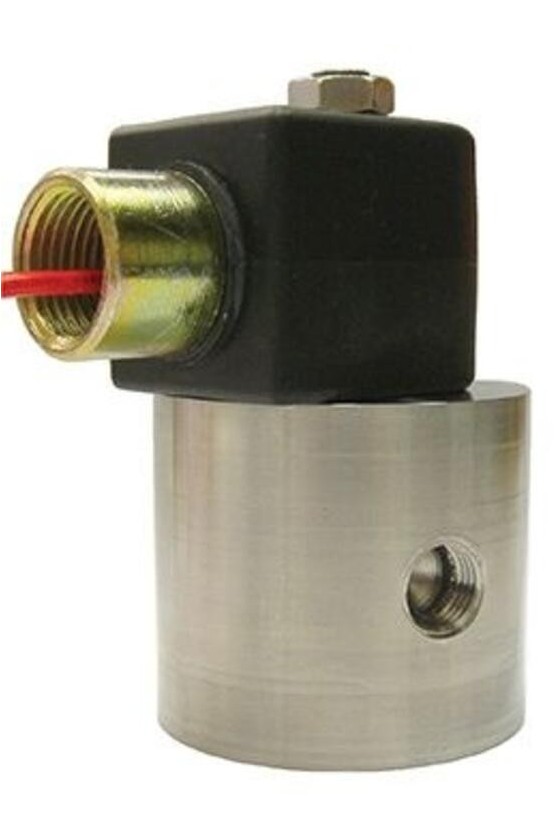

The Model EH30 is a 2-way, reduced port solenoid valve in ¼” NPT available in both Normally Closed and Open for pressures from 0 to 10,000Psi.

¼” NPT

0 to 10,000PSI

Unidirectional reduced port

Valve Body - 316 Stainless Steel

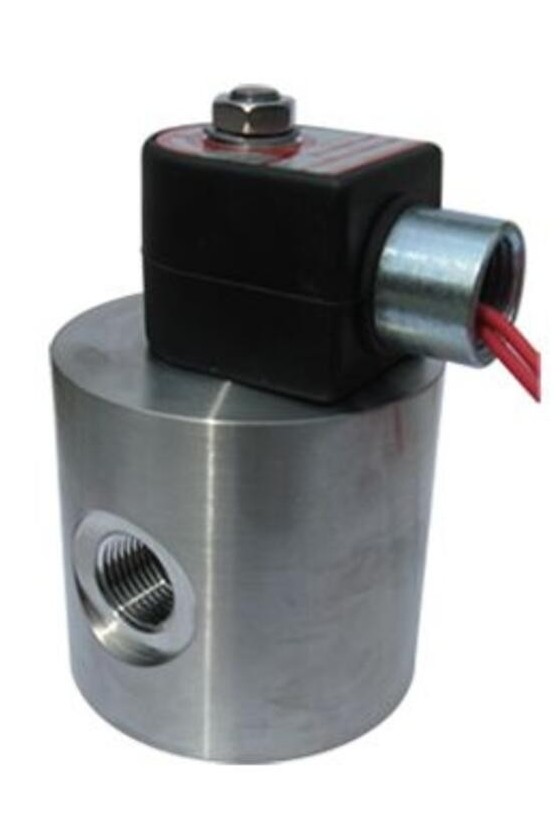

The Model EH40 is a 2-way, full port solenoid valve in ¼” and ½”NPT available in both Normally Closed and Open for pressures up to 10,000Psi. This pilot operated valve can be used to control the flow of media such as high pressure air, water, natural gas, hydrogen, nitrogen, and other gases or light liquids compatible with materials of construction.

1/4” and 1/2” NPT

50 to 10,000 PSI.

Unidirectional, full port

Valve Body - 316 Stainless Steel

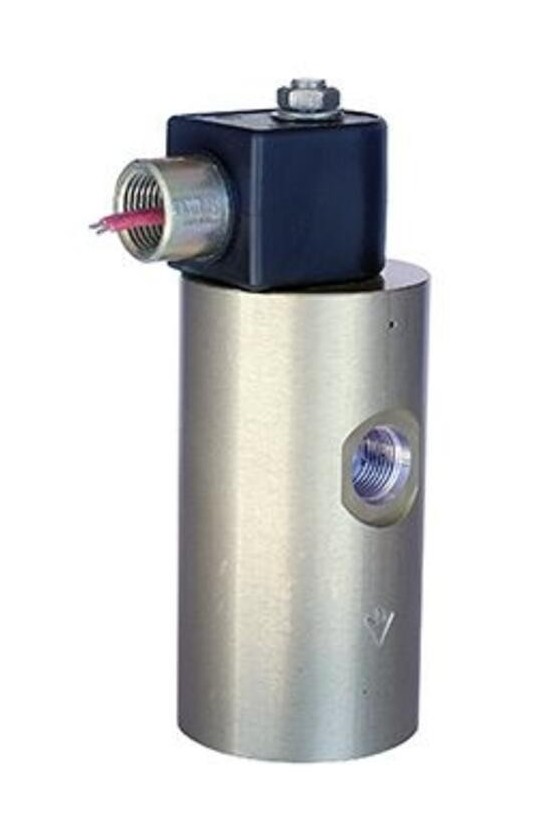

The Model EH50 is a 2-way, full port solenoid valve in  ½”NPT available in both Normally Closed and Open for pressure up to 10,000Psi.

½” NPT

10,000 PSI

100 PSIG minimum pressure differential between inlet and outlet for operation

Valve Body - 7075-T6 Andonised Aluminium/316 Stainless Steel

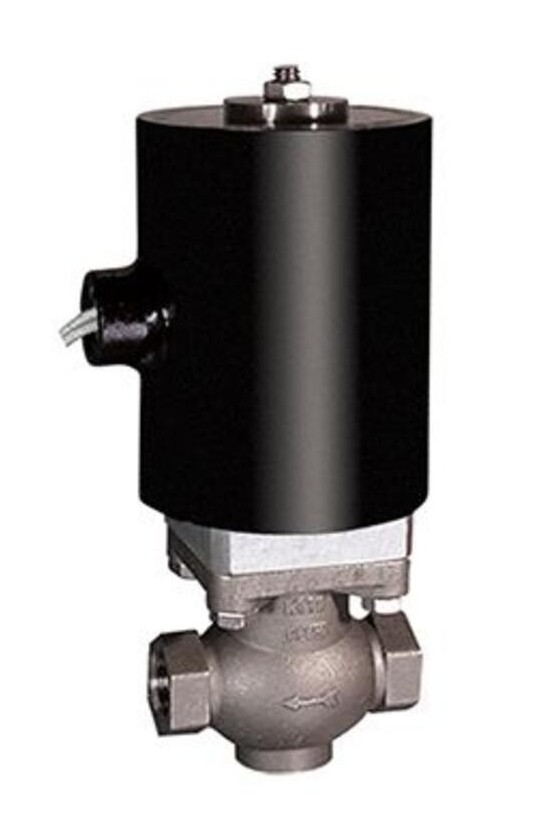

The Model EH70 is a 2-way, unidirectional full port solenoid valve from ½” to 2” NPT available in both Normally Closed and Open for pressure up to 1,500Psi.

½” to 2” NPT

1,500 PSI

2-way, unidirectional

Valve Body - 316 Stainless Steel (CF8M)

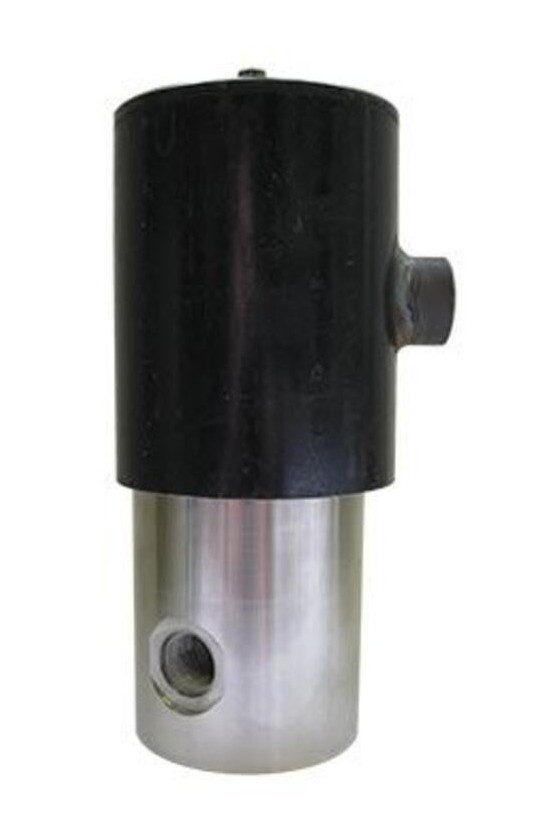

The Model EP70 is a 2-way, Unidirectional full port solenoid valve available in ½” NPT or SAE in Normally Closed for pressures up to 5,000Psi. This pilot assisted, direct operated valve can be configured with a UL/CSA certified explosion proof coil for Class 1, Division 1, Group A-D locations.

½” NPT or SAE

Up to 5,000PSI

2-way, unidirectional full port

Valve Body - 316 Stainless Steel (CF8M)

Model EX40 is a 2 Way Reduced bore solenoid Valve in 3/8” MPF available in Normally Closed for pressure up to 15,000Psi.

3/8” MPF

Requires a 100 PSIG -15,000 PSIG

2 Way Reduced bore

Valve Body - 316 Stainless Steel

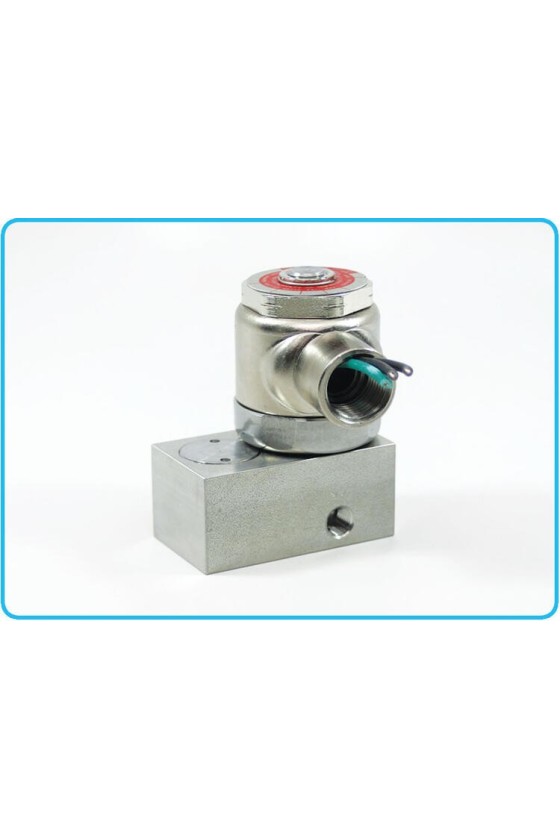

The Model EH21 is a two way normally open (2/2 NO) high pressure stainless steel solenoid valve with 1/8" NPT ports in either a standard or manifold body, suitable for hazardous locations. Various coil options available.

Standard 1/8" NPT other ports available

Flame-Proof Construction with 1/2" NPT conduit

Precision stainless steel rocker arm

5000 PSI burst pressure

The Model H21 is a two way normally open (2/2 NO) high pressure stainless steel solenoid valve with 1/8" NPT ports in either a standard or dual-operator manifold body. Various coil options available.

Standard 1/8" and 1/4" NPT other ports available

Grommet and 1/2" NPT conduit

Orifice guides the sealing pin for perfect alignment

10,000 PSI burst pressure

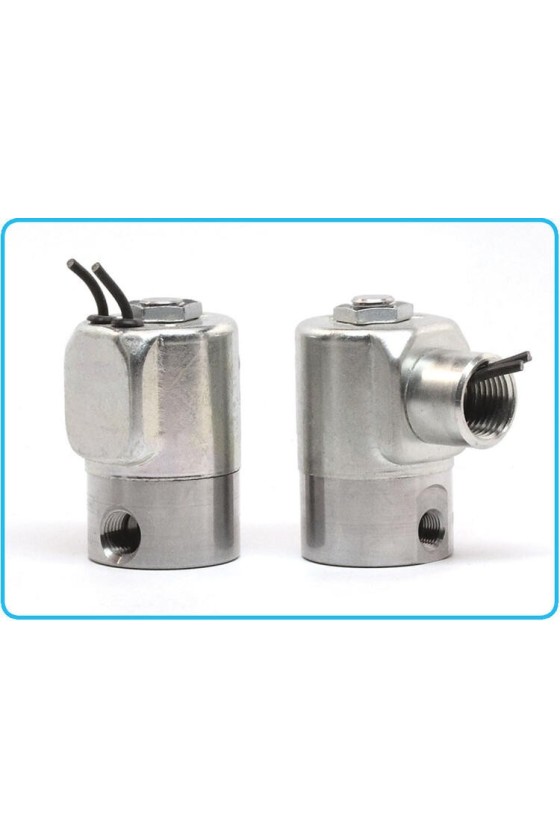

The Model H22 is a two way normally closed (2/2 NC) high pressure stainless steel solenoid valve with 1/8" NPT or 1/4" NPT ports. Various body and coil options available.

Standard 1/8" and 1/4" NPT other ports available

Grommet and 1/2" NPT conduit

Orifice guides the sealing pin for perfect alignment

10,000 PSI burst pressure

The Model EH22 is a two way normally closed (2/2 NC) high pressure stainless steel solenoid valve with 1/8" NPT or 1/4" NPT ports, suitable for hazardous locations. Various body and coil options available.

Standard 1/8" and 1/4" NPT other ports available

Flame-Proof Construction with 1/2" NPT conduit

Precision stainless steel, free floating plunger

5000 PSI burst pressure

The Model EH23 is a three way normally closed (3/2 NC) high pressure dual-operator stainless steel solenoid valve with 1/8 NPT or 1/4" NPT ports in a manifold body, suitable for hazardous locations. Various coil options available.

1/4" NPT porting

Flame-Proof Construction with 1/2″ NPT conduit

Precision stainless free floating plunger

5000 PSI burst pressure

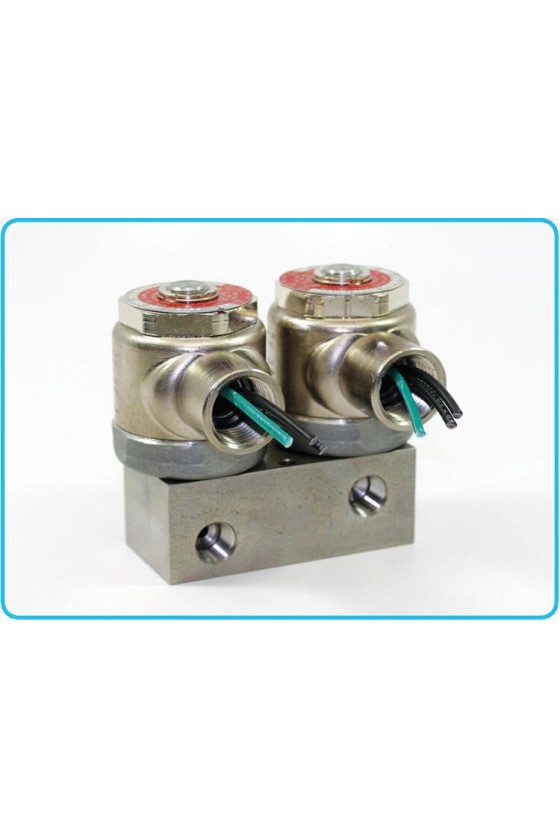

The Model H23 is a three way normally closed (3/2 NC) high pressure dual-operator stainless steel solenoid valve with 1/8 NPT or 1/4" NPT ports in a manifold body. Various coil options available.

1/4" NPT porting

Grommet or 1/2" NPT conduit

Precision stainless free floating plunger

10,000 PSI burst pressure

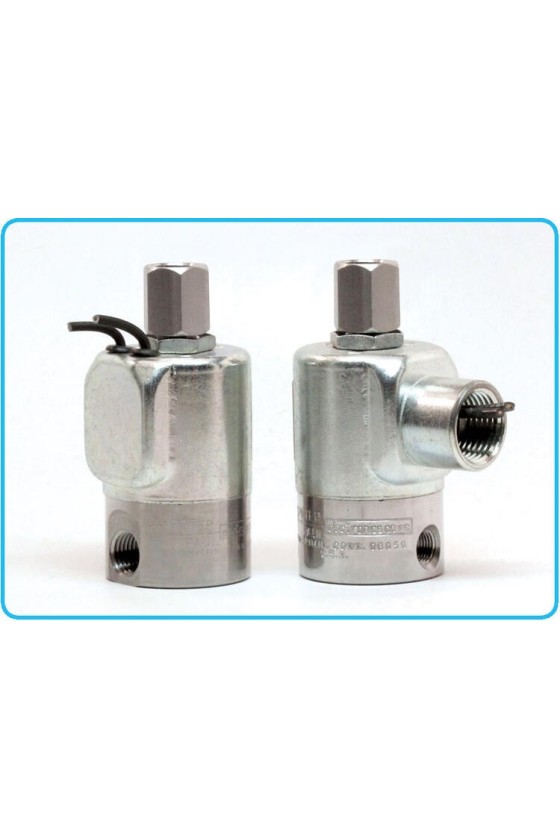

The H24 is a three way normally open (3/2 NO) stainless steel solenoid valve (based on model H22). DC only. This valve allows the same media control as a standard three way normally open valve but at a much higher pressure rating 1000 PIS.

1/8" and 1/4" NPT

Grommet and 1/2" NPT conduit

Precision stainless steel plunger

6000 PSI burst pressure
