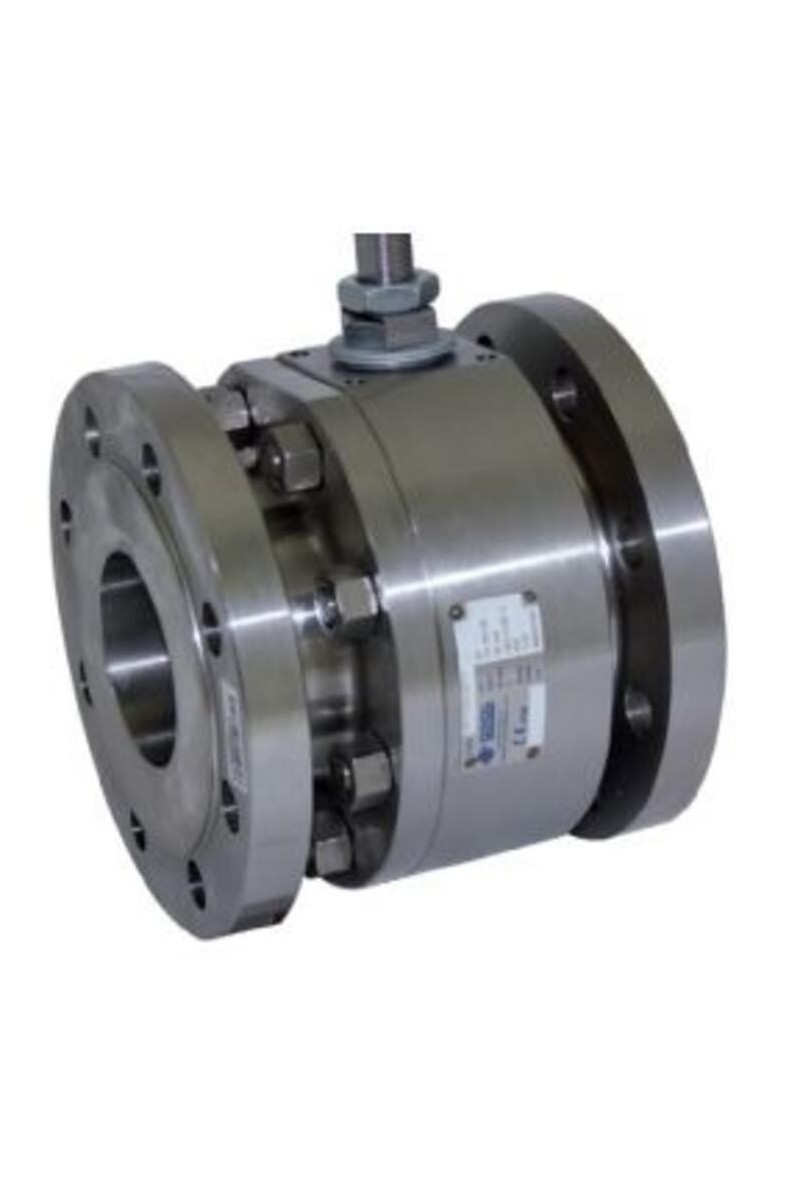

A high quality stainless steel split body ball valve (PN 16-40 / ANSI 150-300 or PN 63 - 100 / ANSI 600 flanges) manufactured on site at Omal in Italy. The Thor is a non protruding full bore floating ball valve suitable for many applications including oil and gas / petrochemical. Certifications include European Directive 97/23 EC PED, Fugitive Emission UNI EN ISO 154848 (2006), TA-LUFT VDI 2440 (2000), Fire Safe API 607:2005 ISO 10497:2010 - API6FA:1999, API6D: Certification 6D-1007 (Valves with ANSI). ATEX available. Also available in Reduced Bore.

PN 16-40 / ANSI 150-300 or PN 63 - 100 / ANSI 600 flanges

Non protruding full bore floating ball valve

Anti static device and anti blow out stem

ATEX available
