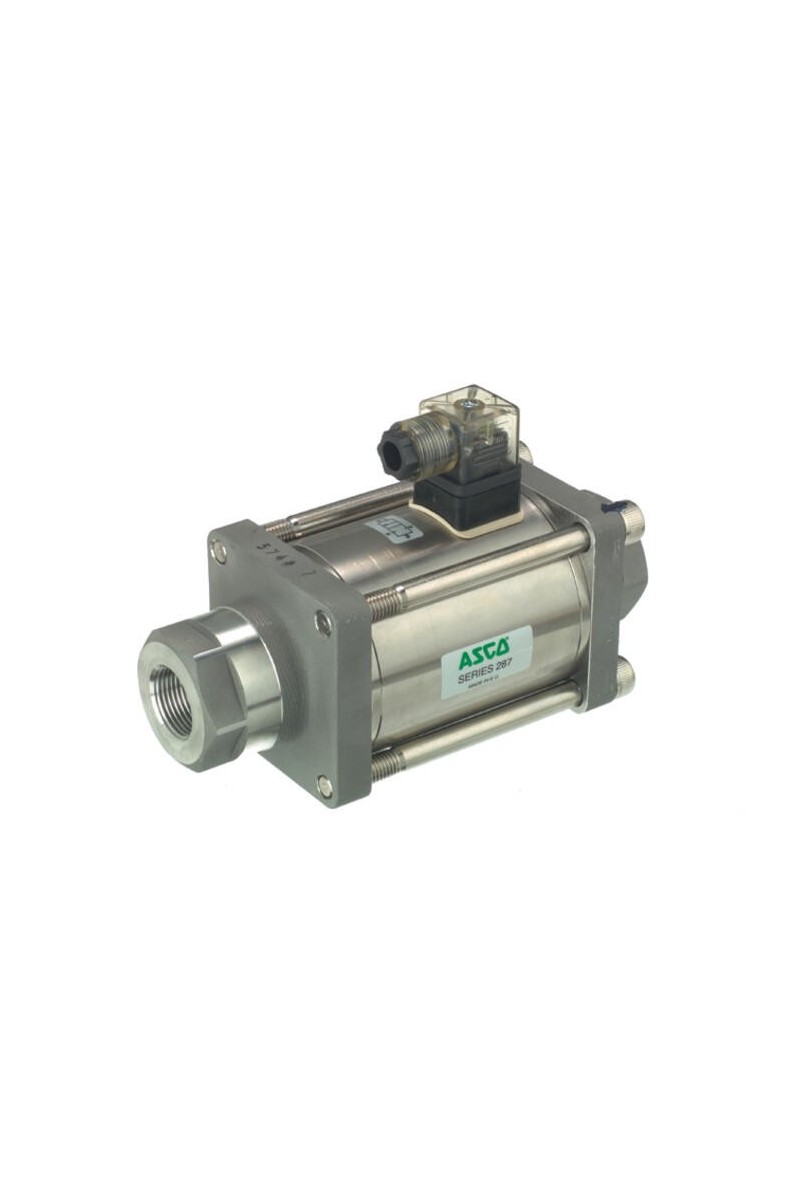

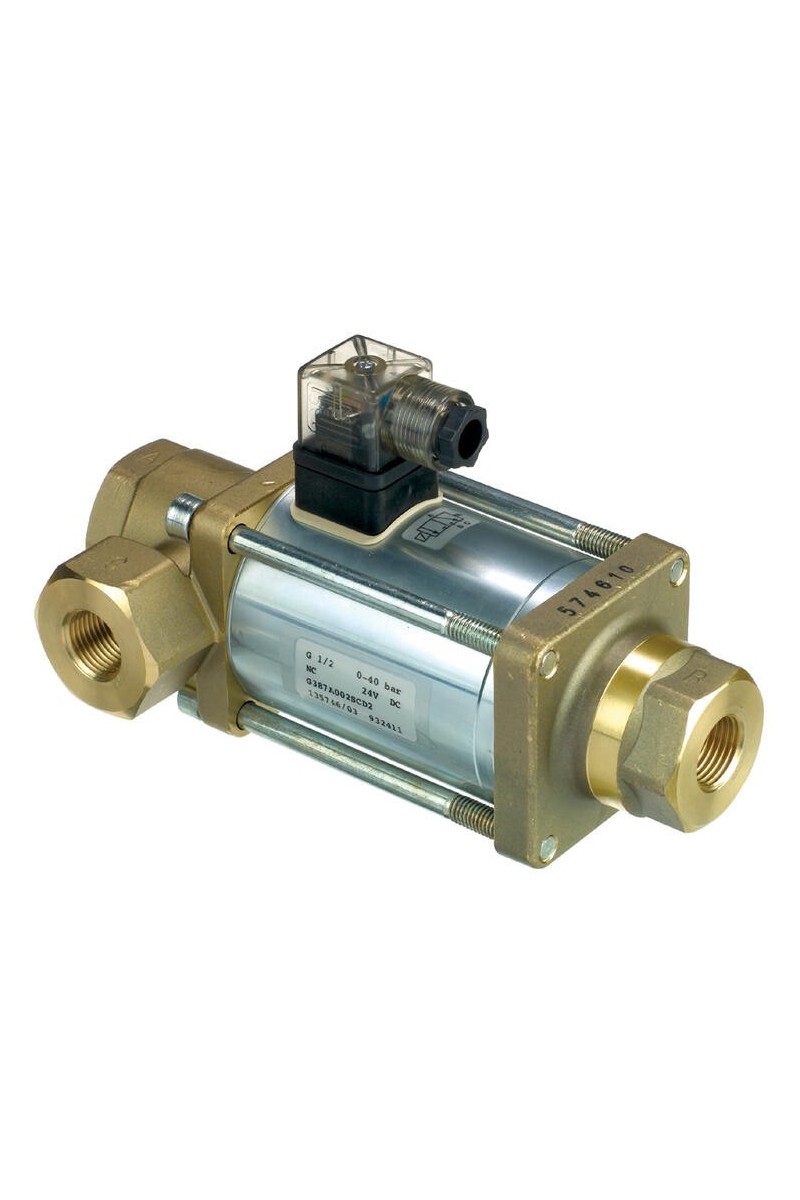

ASCO - Coaxial Valves

Coaxial valves are used in applications for high pressure and high flows. The coaxial valve can accomodate flow in both dircetions. Coaxial valves are available in electrically controlled versions and pressure controlled namur versions.

G3/8 - G1

Temperature -20 to 100 °

Pressure 0 to 40 bar

Medium water, oil, gases

Brass or stainless steel body

£0.00
Tax included
Quantity :
Ask a Question

Coaxial valves are used in applications for high pressure and high flows. The coaxial valve can accommodate flow in both directions. Coaxial valves are available in electrically controlled versions and pressure controlled namur versions.

Model SCG287

Function

Coaxialventil
  • Brass/stainless
  • 2/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-2,031 l/min.



Model SCG387

Function

Coaxialventil
  • Brass/stainless
  • 3/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.



Model G287/Namur

Function

Coaxialventil
  • Brass/stainless
  • 2/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.



Model G387/Namur

Function

Coaxialventil
  • Brass/stainless
  • 3/2 normally closed/open
  • 3/8"-1"
  • 0-40 bar
  • 37-203 l/min.
