ER premier series electric actuator
  • ER premier series electric actuator

ER premier series electric actuator

Quarter Turn

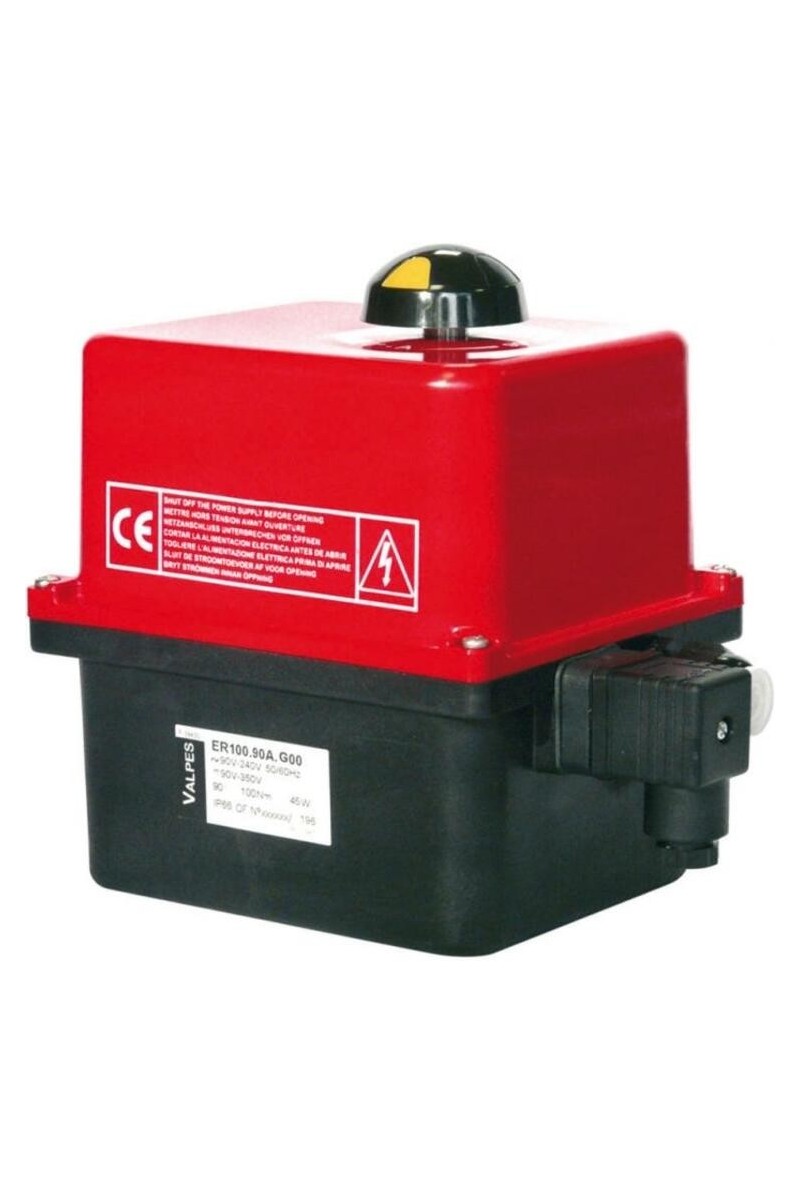

The ER Premier electric actuator by Valpes is an IP65 rated quarter turn electric actuator, with a PA6.6 housing which achieves UL 94 V0 standards. It has a secured manual override available in torques of 20 Nm, 35 Nm, 60 Nm and 100 Nm. The actuator is built in compliance with CE quality standards.

  • IP65

    20Nm to 100Nm

    Working temperature -10°C to +55°C

    Secured manual override
£0.00
Tax included
Quantity :
Ask a Question

The ER Premier electric actuator by Valpes is an IP65 rated quarter turn electric actuator, with a PA6.6 housing which achieves UL 94 V0 standards. It has a secured manual override available in torques of 20 Nm, 35 Nm, 60 Nm and 100 Nm. The actuator is built in compliance with CE quality standards.

Available variants

  • ER10.X91.M00 - 10Nm, 12VAC/12VDC, ON/OFF
  • ER10.X93.M00 - 10Nm, 24VAC/24VDC, OF/OFF
  • ER20.X91.M00 - 20Nm, 12VAC/12VDC, ON/OFF
  • ER20X93.M00 - 20Nm, 24VAC/24VDC, ON/OFF
  • ER20.X0A.M00 - 20Nm, 100-240VAC, ON/OFF
  • ER20.X03.M00 - 20Nm, 24VAC/24VDC, ON/OFF
  • ER35.90A.M00 - 35Nm, 100-240VAC, ON/OFF
  • ER35.903.M00 - 35Nm, 24VAC/24VDC, ON/OFF
  • ER60.90A.M00 - 60Nm, 100-240VAC, ON/OFF
  • ER60.903.M00 - 60Nm, 24VAC/24VDC, ON/OFF
  • ER100.90A.M00 - 100Nm, 100-240VAC., ON/OFF
  • ER100.903.M00 - 100Nm, 24VAC/24VDC, ON/OFF

Connections F03/F04/F05
Operating Time (Seconds) 13 s
Power 15 W
Star Drive 14
Torque 20
Voltage 100-240 VAC, 100-350 VDC
