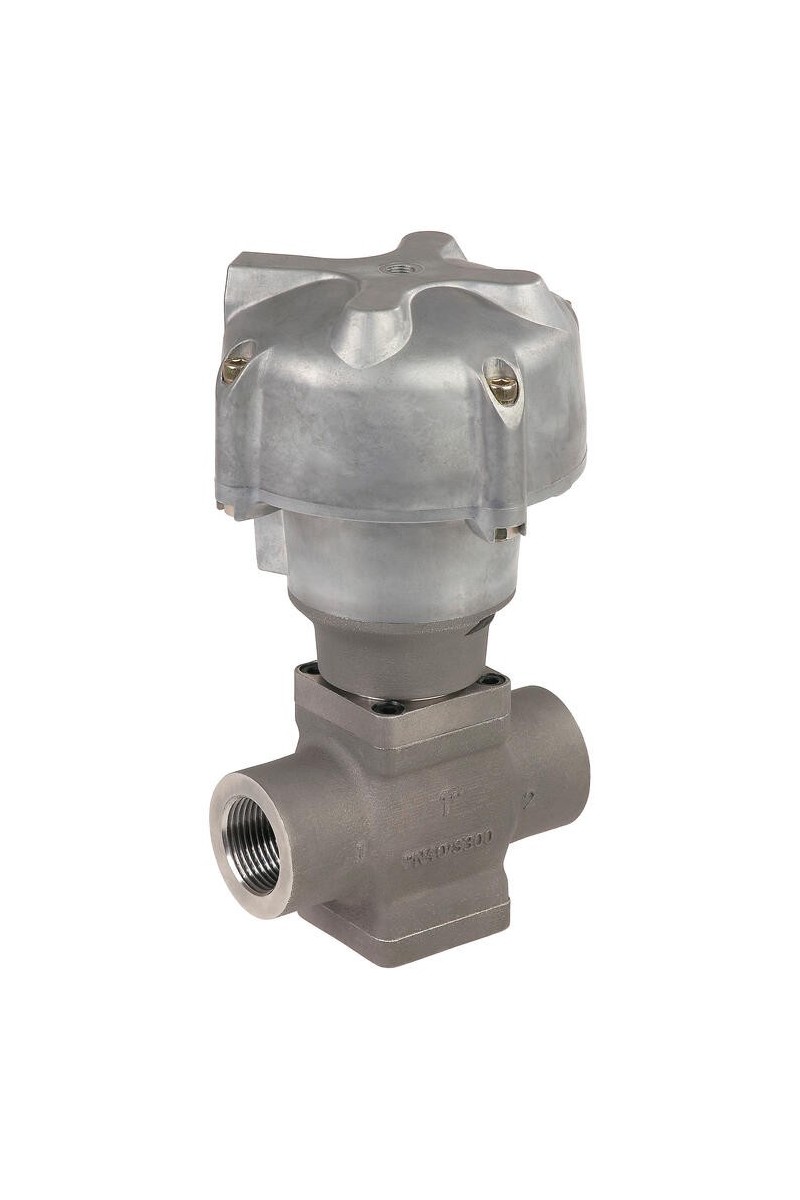

ASCO - 2/2 Seat valve air controlled 1/2\"-2\"
  • ASCO - 2/2 Seat valve air controlled 1/2\"-2\"
  • ASCO - 2/2 Seat valve air controlled 1/2\"-2\"
  • ASCO - 2/2 Seat valve air controlled 1/2\"-2\"

ASCO - 2/2 Seat valve air controlled 1/2\"-2\"

Normally closed, normally open

Working pressure 0 to 40 bar

For temperatures up to +250 °C

For viscosity up to 5,000 cSt

£0.00
Tax included
Quantity :
Ask a Question

General Data
Connection 1/2 BSP

Material Data
Material body Stainless steel 316L
Material of seals Graphite

Temperature Data
Temperature of media from -10 °C
Temperature of media to 250 °C

Additional Data
Viscosity max 5000 cSt
Weight 1.82 kg
Throughput 15 mm
Type of valve Seat valve
Material packing Stainless steel

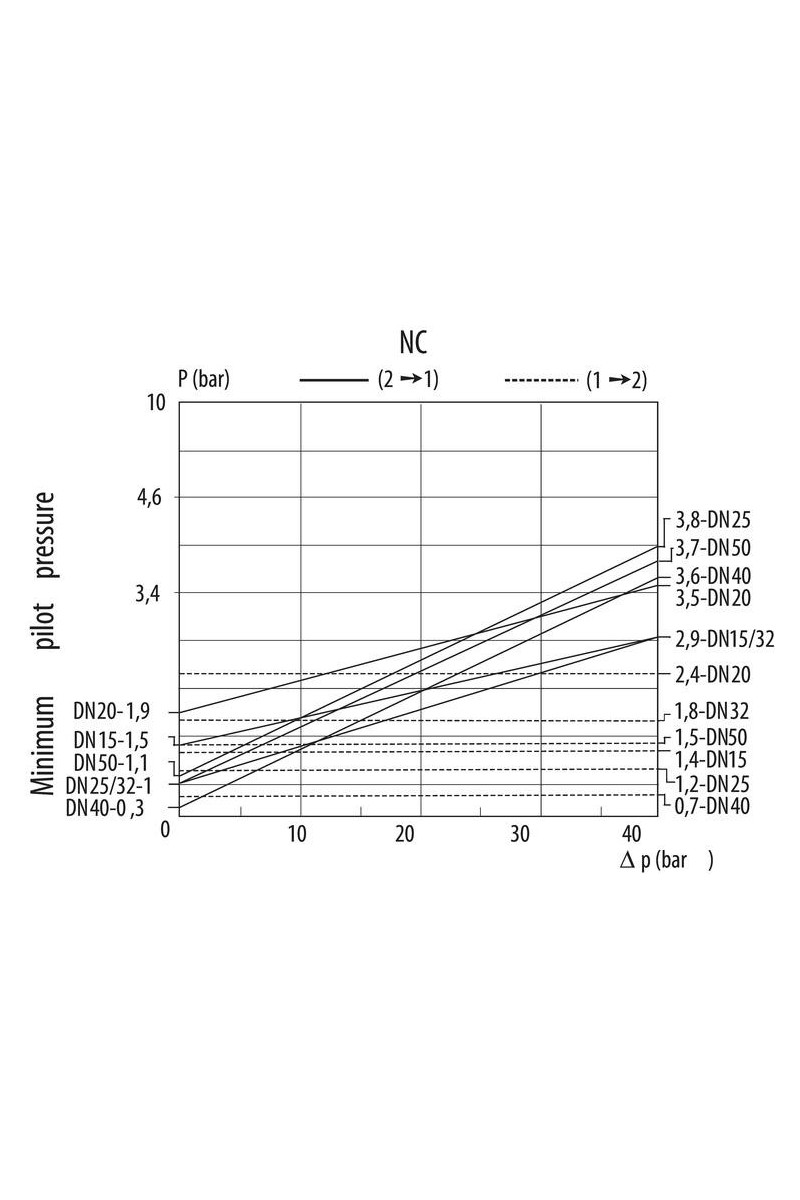

Pilot pressure max 10 bar
Temperature operational min -25 °C
Temperature operational max 180 °C
Connection air 1/8 BSP
Differential air pressure max 40 bar
Differential pressure max 40 bar
Differential pressure min 0 bar
Differential oil pressure max 40 bar
Differential water pressure max 40 bar
Differential steam pressure max 40 bar
Function 1 2/2
Function 2 Normally Closed
Material controls Nickel plated aluminum
Material piston rod Stainless steel
Material box stuffing PTFE flask filled
Material piston seal Bronze, PTFE
