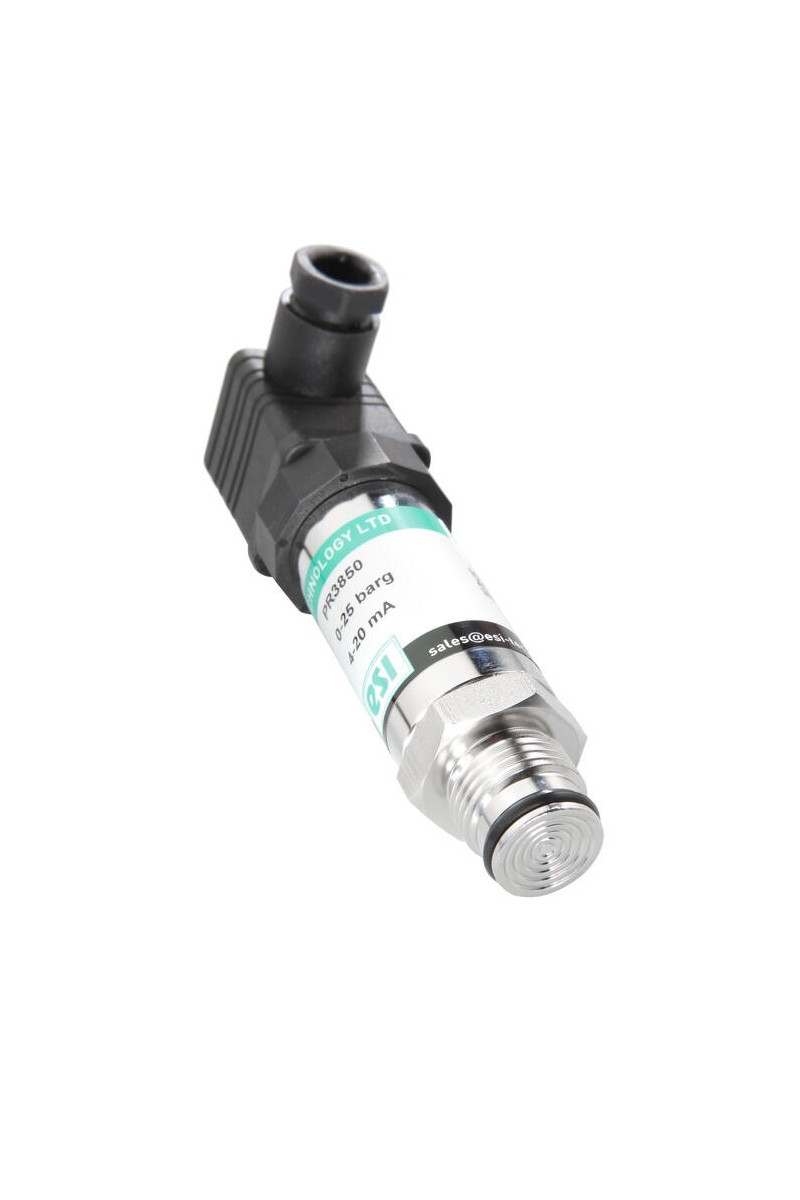

ESI - PR3850 - Flush Diaphragm Pressure Sensor

The PR3850 pressure transmitter has been designed to meet the requirements of the majority of industrial pressure measurement applications where a hygienic flush diaphragm connection is required. Robustly constructed from stainless steel this range of pressure transmitters incorporates the latest strain gauge technology together with a custom IC amplifier offering excellent stability and accuracy over a long service life. Output options include 0-5Vdc, 0-10Vdc and 0-20mA.

Thick film sensor technology for long service life

Pressure ranges up to 400 bar

Up to 85°C media temperature

Easy clean flush membrane to prevent clogging

£0.00
Tax included
Quantity :
Ask a Question

The PR3850 pressure transmitter has been designed to meet the requirements of the majority of industrial pressure measurement applications where a hygienic flush diaphragm connection is required. Robustly constructed from stainless steel this range of pressure transmitters incorporates the latest strain gauge technology together with a custom IC amplifier offering excellent stability and accuracy over a long service life. Output options include 0-5Vdc, 0-10Vdc and 0-20mA. This transmitter is particularly suitable for use with high viscosity materials. Typical applications include food processing, pharmaceutical, petrochemical, waste water and slurry handling. The flush membrane can be easily cleaned for long term reliability and outstanding performance.

Ambient temperature -20..85°C
Electrical connection DIN A 43650
EMC EN61000-6-2, EN61000-6-4
Linearity ≤±0.3% BSFL
Material of wetted parts Stainless steel 316L
Media temperature -20..85°C
Output 4-20 mA
Overpressure protection 6 bar
Pressure range max 4 bar
Pressure range min 0 bar
Pressure reference Gauge

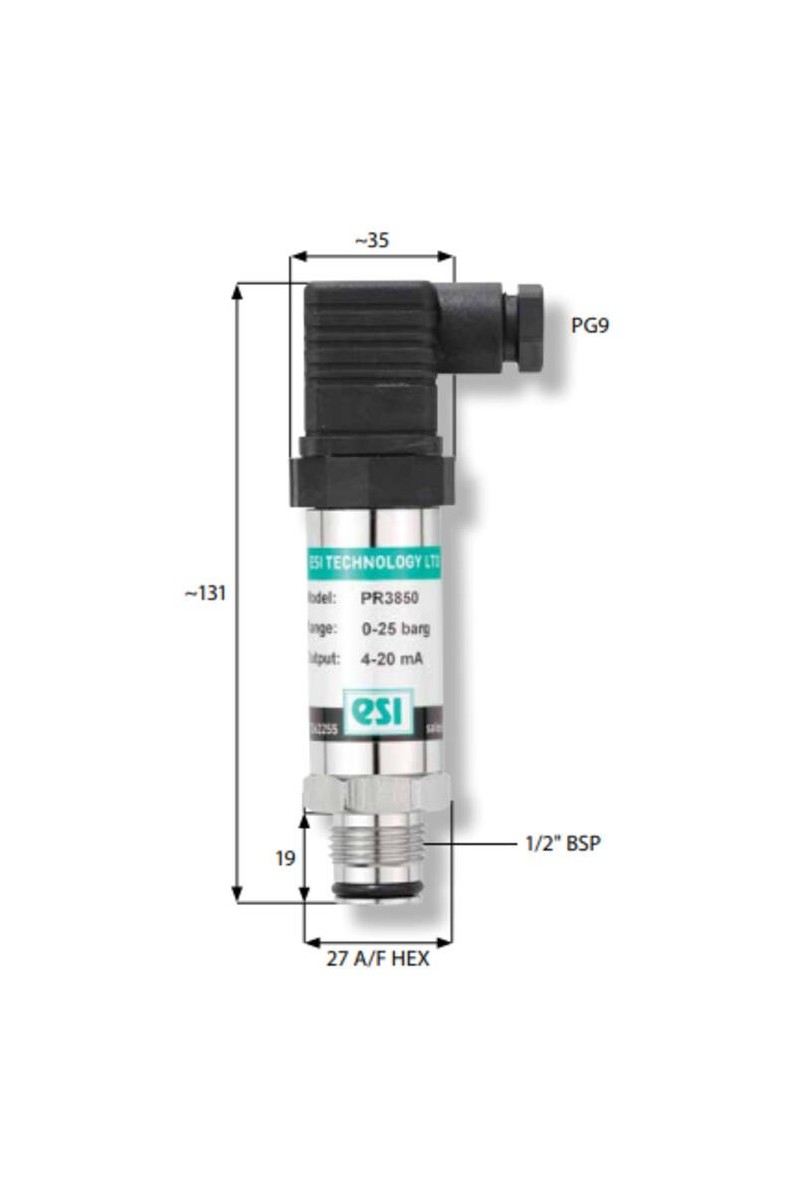

Process connection G1/2" flush diaphragm
Sensor technology Ceramic thick film
Storage temperature 5..40°C
Supply voltage 13-36 V DC
