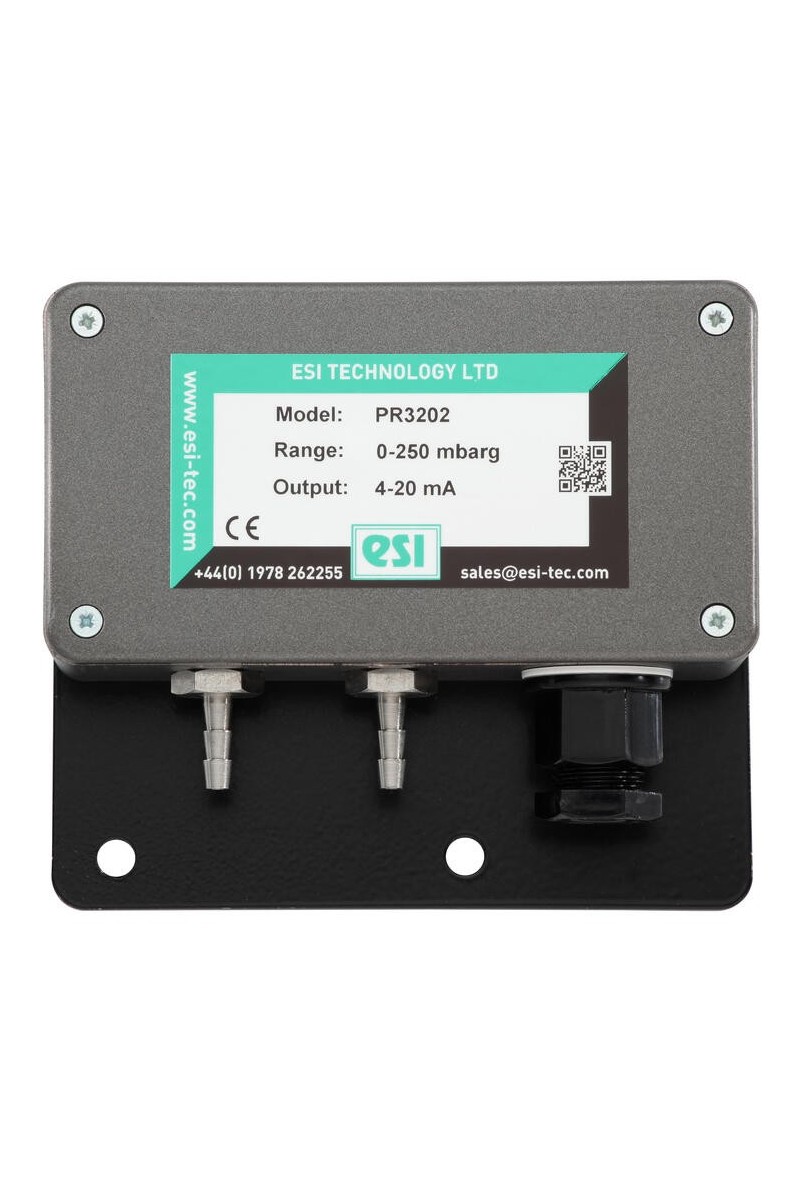

ESI - PR3202 - Differential Pressure Sensor

The PR3202 air differential pressure transmitter gives you a precise solution for low pressure sensing, and is fully temperature compensated for unrivaled stability at very low pressures.  Housed in a RFI protected shielded mountable box for EMC security, these transmitters combine exact measurement for control at extremely low pressure, with the robustness and adaptability for industrial and commercial installations.

  • Piezoresistive Silicon sensor technology

    Wide range of pressure ranges from ultra-low to 200 barDP

    Wet/wet OR dry/dry OPERATION

Durable designs for industrial and commercial installations
£0.00
Tax included
Quantity :
Ask a Question

The PR3202 air differential pressure transmitter gives you a precise solution for low pressure sensing, and is fully temperature compensated for unrivaled stability at very low pressures.  Housed in a RFI protected shielded mountable box for EMC security, these transmitters combine exact measurement for control at extremely low pressure, with the robustness and adaptability for industrial and commercial installations. An optional heavy-duty aluminum die-cast housing is available for the harshest environments.

There are optional ATEX and IECEx approved versions of the PR3202 available for explosion protection for flammable gases (zone0), dusts (zone 20) and mining areas (group I M1).

Ambient temperature -20..70°C
Approvals CE, IEC
Electrical connection PG7 Cable gland
EMC EN61000-6-2, EN61000-6-4
Linearity ≤±0.3% BSFL
Material of wetted parts Nickel-plated brass
Media temperature -20..70°C
Output 4-20 mA
Overpressure protection 1.2 bar
Pressure range max 1 bar
Pressure range min 0 bar
Pressure reference Differential
Process connection G1/4
Sensor technology Piezoresistive Silicon
Storage temperature 5..40°C
Supply voltage 10-36 V DC
