Aplisens - PCE-28 Pressure Transmitter

PCE-28 series from Aplisens, is a robust and versatile pressure transmitters of the highest quality with good accuracy.

Can be used for relative pressure, negative pressure and absolute pressure of air, water, oil and gas.

Any range from 0...25 mbar up to 0...1380 bar

Max. deviation 0.2%

Air, water, oil and gas

Minimum span 25 mbar

Also in ATEX / IECEx / EXD

£0.00
Tax included
Quantity :
Ask a Question

PCE-28 series from Aplisens, is a robust and versatile pressure transmitters of the highest quality with good accuracy.

Can be used for relative pressure, negative pressure and absolute pressure of air, water, oil and gas.The pressure transmitter can be zero adjusted, it is recommended to do this when the transmitter is installed in the application.For seawater, we strongly recommend Hastelloy C. material quality membrane.

 Can be calibrated in any range within -1 to +1380 bar.

 · Large selection in electrical connections (IP65, IP66, IP67, IP68)

· Large selection in process connections

· DNV marine certified as an option

· Oxygen washed as an option

· SIL1 as an option

· ATEX / IECEx as an option (Ex-ia & Ex-d)

Approvals ATEX, DNV, Ex-d, Ex-ia
Electrical connection DIN A 43650
IP class IP65, IP66, IP67, IP68
Material of body Stainless steel AISI 304, Stainless steel 316L
Material of wetted parts Hastelloy C, Stainless steel 316L, Gold

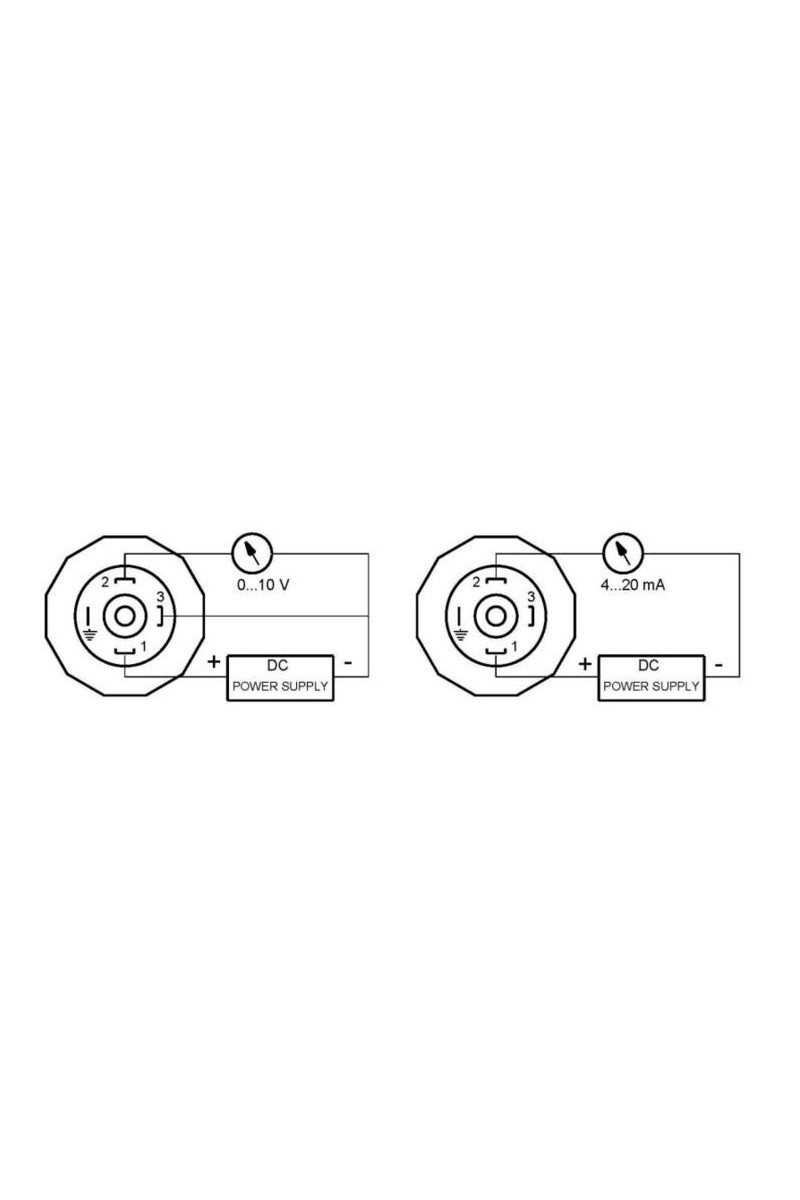

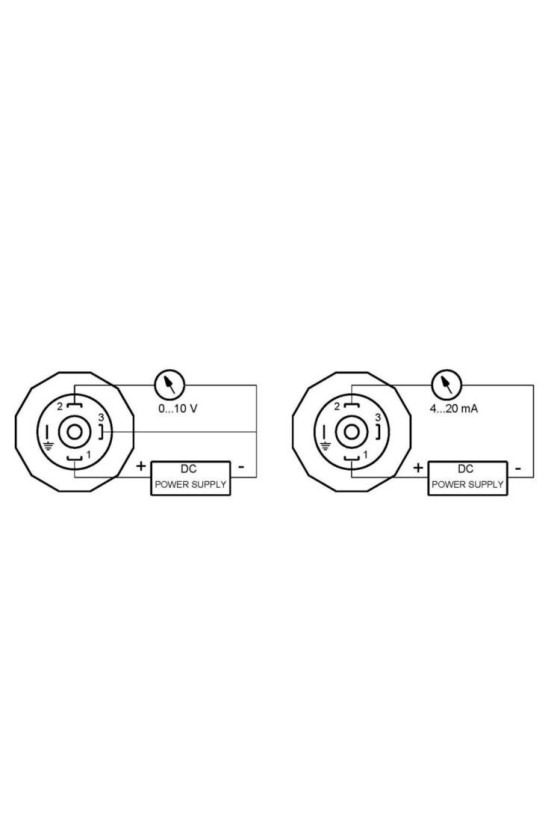

Output 0-10V, 4-20 mA, Modbus
Pressure range max 1380 bar
Pressure range min 1 bar
Supply voltage dc max 30 V DC
Supply voltage dc min 8 V DC
Temperature ambient from -40 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 130 °C
