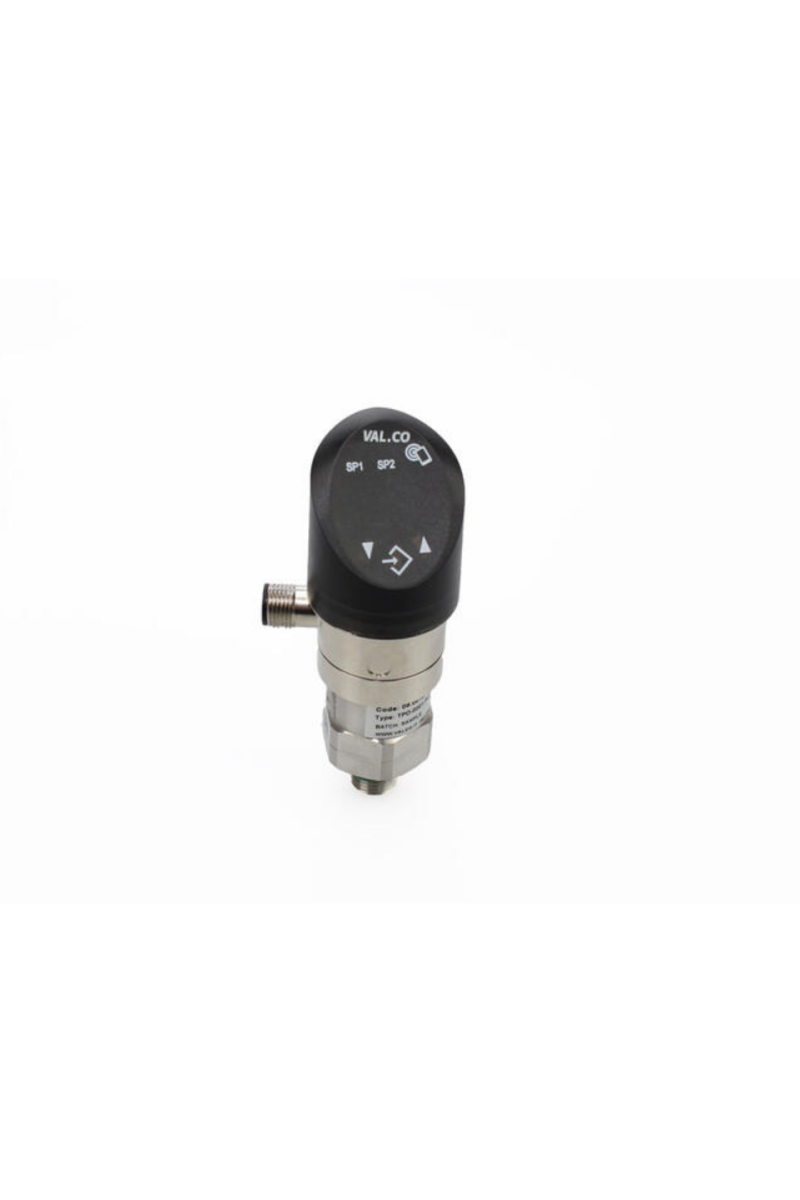

VALCO TPD Pressure Transmitter

The Val.Co TPD Pressure Sensor is suitable for applications where it is required to measure pressure, the local display can be programmed manually or via the “MYVALCO” app using NFC technology, available on Android® app store. These sensors are also available with both outputs of 4-20mA and 0..10V, again you can make the choice using the MYVALCO app.

Sensing element - Ceramic cell

Integrated data logger + export file data .csv

2 x PNP switching output

Degree of protection IP67

Full control via APP 'MY VALCO'

£0.00
Tax included
Quantity :
Ask a Question

The Val.Co TPD Pressure Sensor is suitable for applications where it is required to measure pressure, the local display can be programmed manually or via the “MYVALCO” app using NFC technology, available on Android® app store. These sensors are also available with both outputs of 4-20mA and 0..10V, again you can make the choice using the MYVALCO app.

 General specifications for pressure sensor TPD-C:

  • Sensing element - Ceramic cell
  • Full control via APP 'MY VALCO'
  • 2 x PNP switching output
  • Degree of protection IP67
  • Integrated data logger + export file data .csv

Other process connection dimensions are available on request, if you request a quote from us please state dimensions required if differing from those stated in technical data.

Burst pressure 2 bar
Current consumption ≤ 30mA
Electrical connection M12x1 4-pole
IP class IP67
Material of connection Stainless steel 316
Max overpressure 1.2 bar
Measuring range 0 … 0.2 bar
Output 4-20 mA/0-10 V switchable
Process connection 1/4" UNI 228/1
Sensor element Piezoresistive with ceramic support
Supply voltage 10-35 V DC
Temperature operational max 85 °C
Temperature operational min -25 °C
