Suco - 0240/0241 Pressure Switch

Pre-cabled (2m)

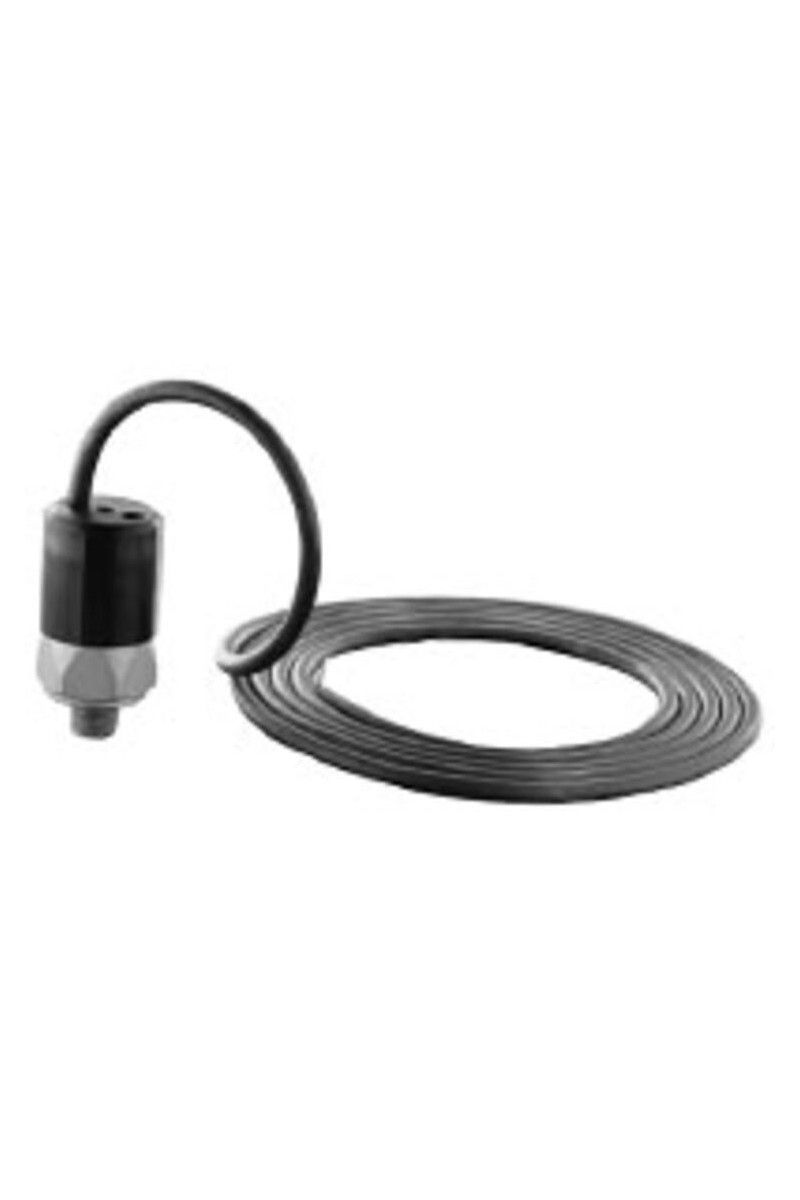

The 0240/0241 series is a pre-cabled (2 meters) pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 42 V or 250 V (depedning on connection) with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Up to 250 V depending on connection

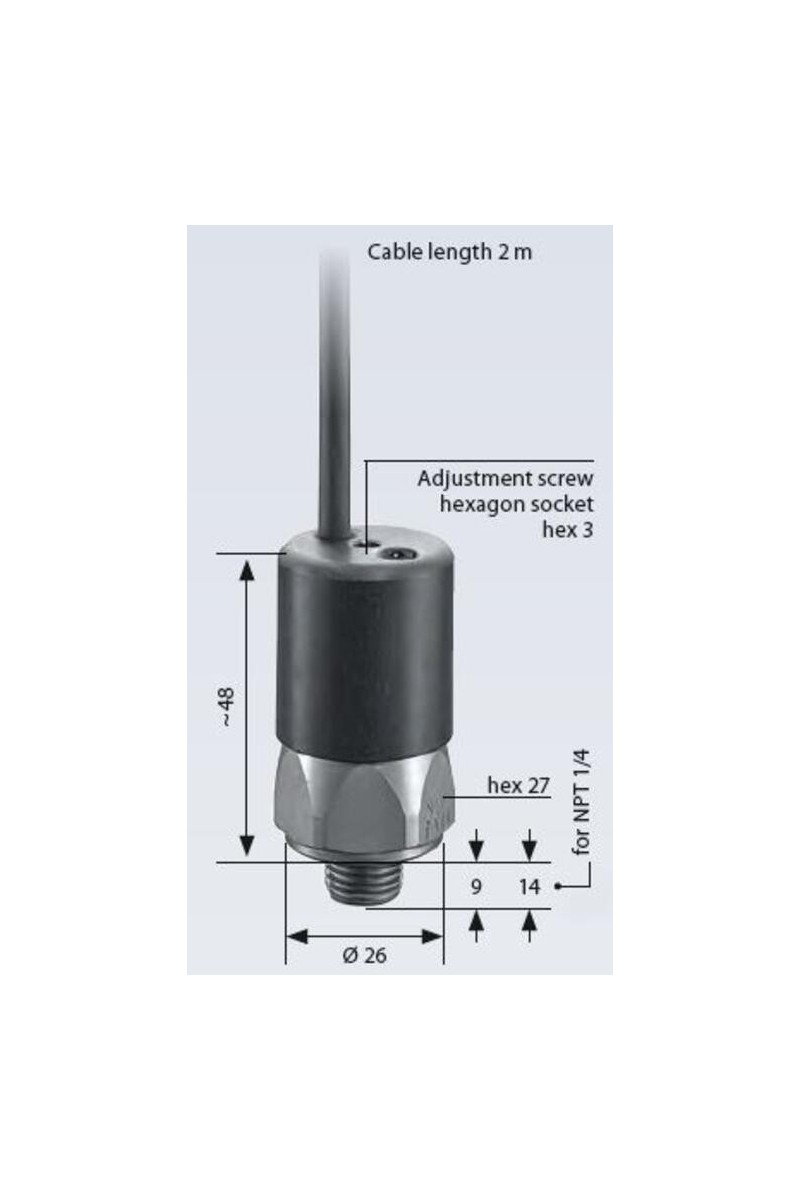

Pre-cabled at 2 metres

Five adjustable ranges from 0,3..1,5 bar to 50..150 bar

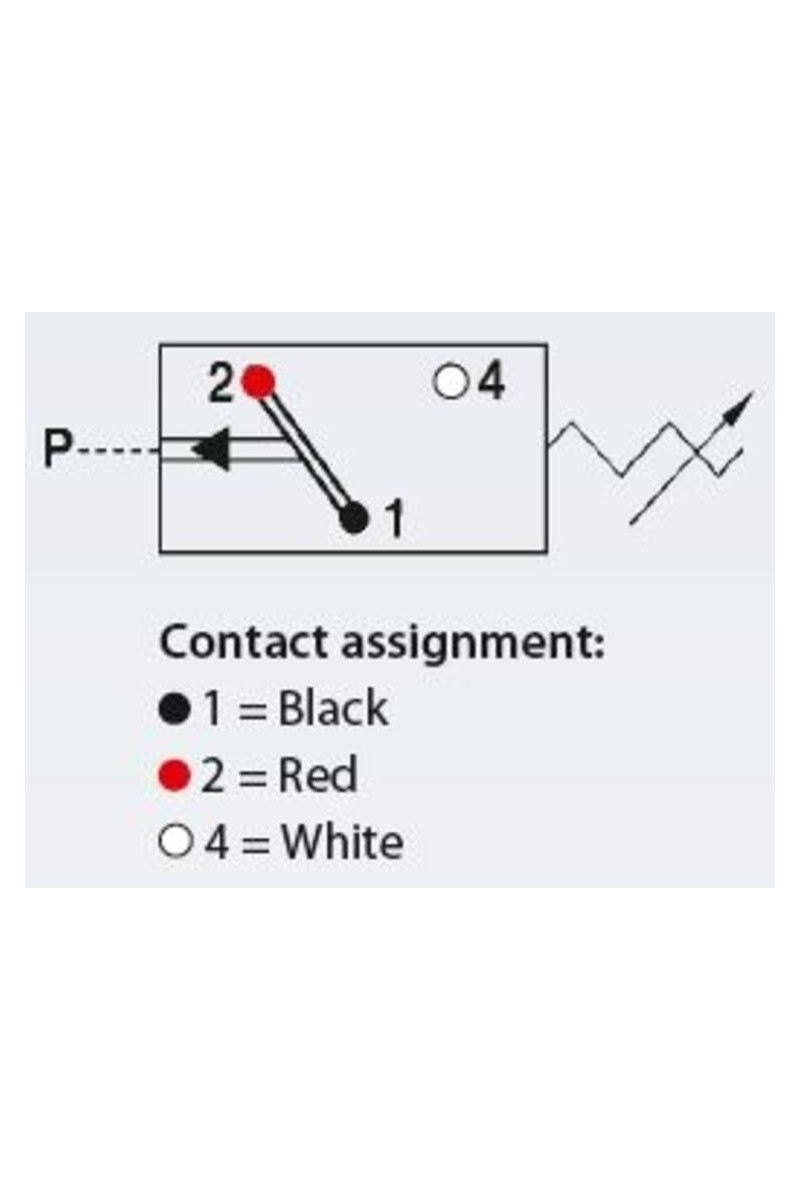

Changeover (SPDT)

Over pressure safety of 300 bar or 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1.5 bar
Adjustment range min 0.3 bar
Approvals RoHS II, CE
Contact rating max 2 A
Deviation max ±0.2
Electrical connection Embedded 2m cable
Function Changeover (SPDT)
IP class IP67
Material membrane NBR
Material of body Zinc-plated steel
Material of wetted parts Zinc-plated steel, NBR
Max switching frequency/min 200
Pressure max 300 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 120 g
